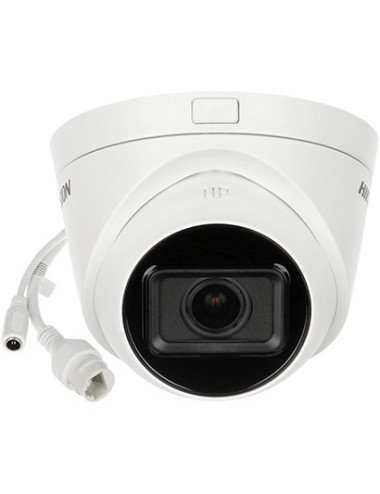

Hikvision IP Camera DS-2CD2787G2H-LIPTRZS2U/SL (2.8-12mm)

Product Details

Reference WLONONWCRGPLW

In stock 7 Items

Data sheet

Type

IP security camera

Height

140.4 mm

Connectivity technology

Wired

Weight

820 g

Package depth

206 mm

Package height

230 mm

Package width

206 mm

Package weight

1.2 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Built-in microphone

Yes

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Protection features

Water resistant

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

16 W

Maximum resolution

3840 x 2160 pixels

Built-in speaker(s)

Yes

Placement supported

Indoor & outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Housing material

Metal

Networking standards

IEEE 802.1x

Security algorithms

TLS

Ethernet LAN

Yes

Supported graphics resolutions

2688 x 1520

Diameter

15.5 cm

International Protection (IP) code

IP66

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Reset button

Yes

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

White

Tilt angle range

0 - 85°

Focal length range

2.8 - 12 mm

Web browser

Yes

LED type

IR/White

Night vision

Yes

Total megapixels

8 MP

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

137.4 - 47.3°

Video compression formats

H.265+

Angle of rotation

350°

DC output current

1.35 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

40 m

Number of lenses

1

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

58.1 - 23.1°

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.2

Lens viewing angle, horizontal

112.3 - 41.2°

Number of sensors

1

Infra-red wavelength

850 nm

Alert notification type

E-mail

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Alarm input/output

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

18 W

HTTPS encryption

Yes

Behavior analysis

Line crossing detection, Region entrance detection, Region exiting detection

Image quality adjustment

Sharpness

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Identify distance (wide)

9 m

Recognize distance (wide)

18 m

Audio input channels

1.0 channels

Observe distance (wide)

35 m

Detect distance (wide)

89 m

Identify distance (tele)

22 m

Pixel counter

Yes

Recognize distance (tele)

44 m

Detect distance (tele)

220 m

Observe distance (tele)

87 m

Audio codecs

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Bit rate range

16 - 320 Kbit/s

Alarm output channels

1

Alarm input channels

1

Number of Privacy masking areas

4

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes

Flash log

Yes
