Hikvision

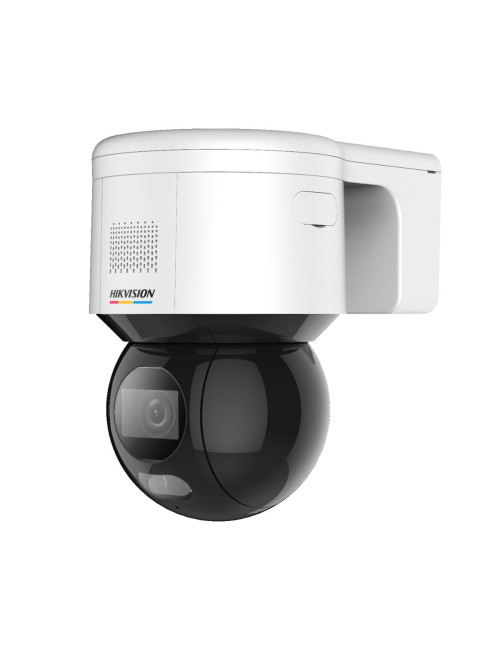

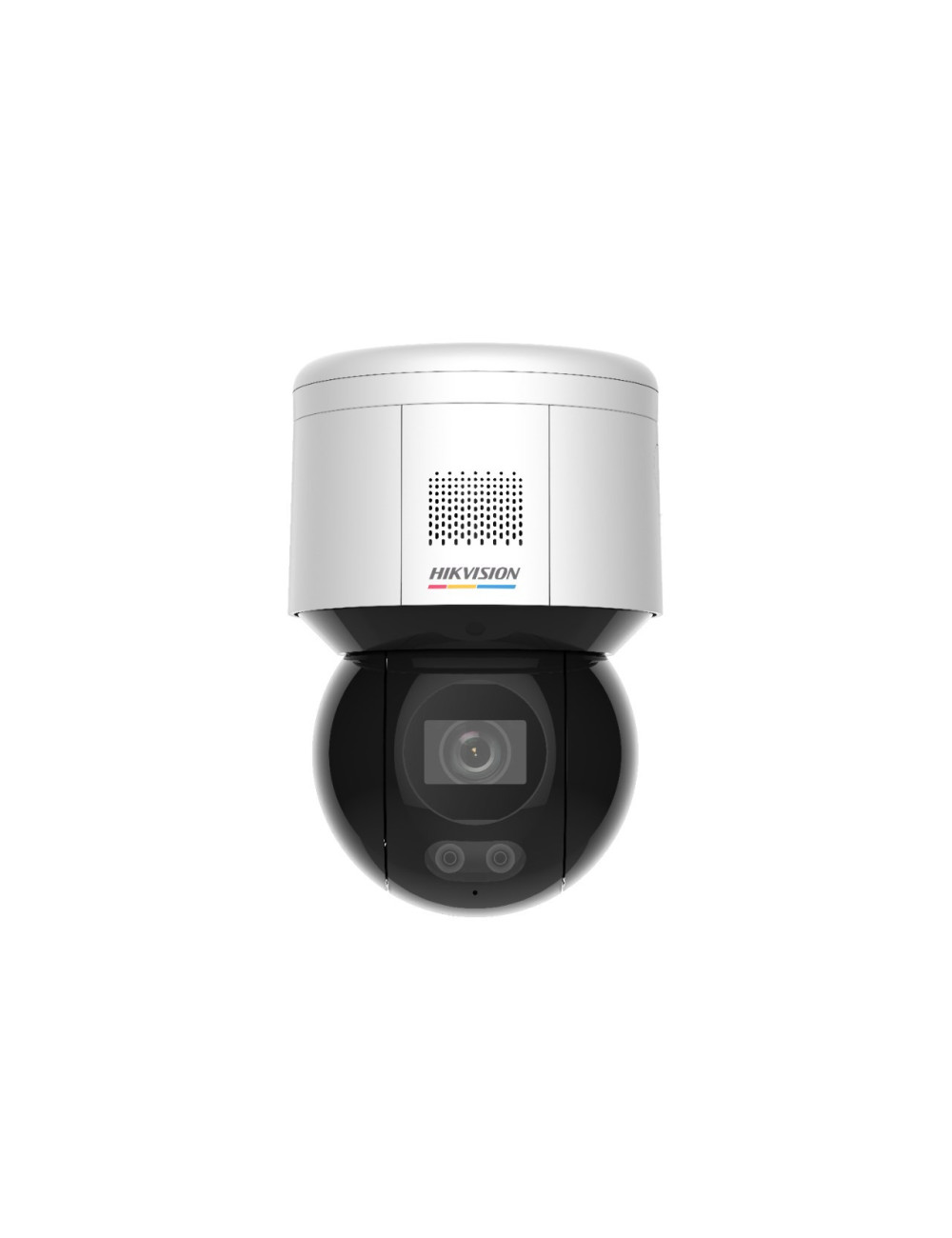

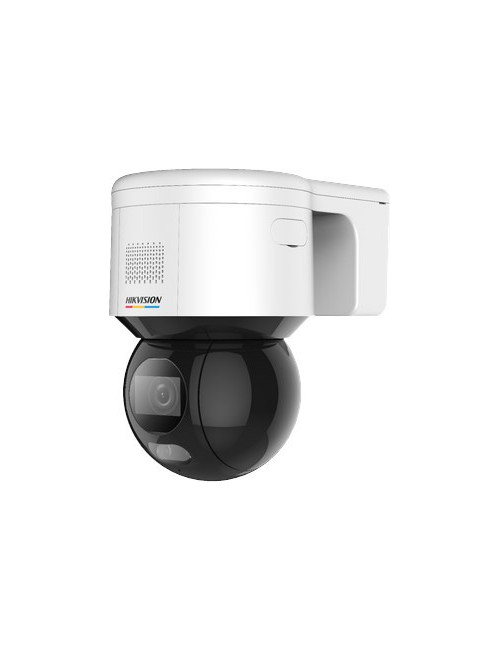

IP PTZ CAMERA HIKVISION DS-2DE3A400BW-DE (T5)

€289.22

Tax included

Product Details
Quick Compare

Product Details

Reference WLONONWCR6897

In stock 7 Items

Data sheet

Type: IP security camera
Width: 120 mm
Height: 182 mm
Depth: 179.3 mm
Connectivity technology: Wired
Weight: 1.12 kg
Power source type: PoC, PoE
Operating temperature (T-T): -30 - 65 °C
Operating relative humidity (H-H): 0 - 90%
Mounting type: Ceiling
Form factor: Dome
Noise reduction: Yes
Sensor type: CMOS
Wi-Fi: No
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 512 GB
Audio formats supported: G.711 A-law
Signal-to-Noise Ratio (SNR): 52 dB
Power consumption: 60 mA
Power consumption (max): 16 W
Maximum resolution: 2560 x 1440 pixels
Placement supported: Indoor & outdoor
Card reader integrated: Yes
Ethernet LAN (RJ-45) ports: 1
Number of languages: 32
Security algorithms: HTTPS
Ethernet LAN: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Diameter: 12 cm
International Protection (IP) code: IP66
Digital zoom: 16x
Number of Users: 32 user(s)
Reset button: Yes
Password protection: Yes
Languages support: Lithuanian
Product colour: White
Tilt angle range: 0 - 90°
Focal length range: 4 mm
Web browser: Yes
Total megapixels: 4 MP
Optical sensor size: 25.4 / 1.8 mm (1 / 1.8")
Minimum illumination: 0.0005 lx
Pan range: 0 - 350°
Dynamic range: 120 dB
Lens viewing angle, diagonal: 105°
Video compression formats: H.265
DC output voltage: 12
Video motion detection: Yes
Number of cameras: 1
Day/night mode: Yes
Built-in HDD: No
Lens viewing angle, vertical: 46.5°
Noise reduction technology: 3D noise reduction
Region of Interest (ROI) encoding: Yes
Maximum aperture number: 1
Lens viewing angle, horizontal: 88.7°
Number of sensors: 1
Wide Dynamic Range (WDR): Yes
Mirror: Yes
Digital watermark: Yes
Active tampering alarm: Yes
IP address filtering: Yes
Intelligent Video Surveillance (IVS) system features: Face detection
Camera shutter speed: 1/1 - 1/30000 s
Privacy masking: Yes
Highlight Compensation (HLC): Yes
Live view: Yes
HTTPS encryption: Yes
Behavior analysis: Line crossing detection, Region entrance detection, Region exiting detection
Image quality adjustment: Sharpness
Number of simultaneous live view channels: 20 channels
User access level: Administrator, Operator, User
Built-in light: Yes
Pan speed: 60 °/sec
Tilt speed: 50 °/sec
Pan preset speed: 60 °/sec
Tilt preset speed: 50 °/sec
RS-485 ports: 1
Warnings: Avoid direct contact with water to prevent electrical damage.

Quick Compare

Product	8MP Hikvision Dome IP Camera	DS-2CD2T67G3-LIS2UY/SL(2.8mm)/BLACK Kamera IP HIKVISION	DS-2CD2T47G3-LIS2UY/SL(2.8mm)BLACK Kamera IP HIKVISION	HIKVISION IP CAMERA DS-2CD2087G2H-LIU/SL(2.8mm)(eF)
Availability
Price	€277.35	€277.55	€277.55	€277.74
Description
Type	IP security camera		IP security camera
Width			93.3 mm
Height	112 mm		91.2 mm
Depth			286.7 mm
Connectivity technology	Wired		Wired
Weight	820 g		1.25 kg
Package depth	174 mm		386 mm
Package height	173 mm		155 mm
Package width	244 mm		156 mm
Package weight	1.2 kg		1.8 kg
Power source type	DC, PoE		DC, PoE
Storage relative humidity (H-H)	0 - 95%		0 - 95%
Operating temperature (T-T)	-30 - 60 °C		-30 - 60 °C
Operating relative humidity (H-H)	0 - 95%		0 - 95%
Storage temperature (T-T)	-30 - 60 °C		-30 - 60 °C
Mounting type	Ceiling		Wall/Pole
Form factor	Turret		Bullet
Built-in microphone	Yes		Yes
Bluetooth	No		No
Bit rate	32 Kbps - 16 Mbps		32 Kbps - 8 Mbps
Noise reduction	Yes		Yes
Output impedance	100 Ω
Protection features	Dust resistant		Wear resistant
Sensor type	CMOS		CMOS
Wi-Fi	No		No
Compatible memory cards	MicroSD (TransFlash)		MicroSDXC
Maximum memory card size	512 GB		512 GB
Audio system			2-way
Audio formats supported	G.711		AAC-LC
Signal-to-Noise Ratio (SNR)	52 dB		52 dB
Power consumption (max)	10.8 W		17 W
Maximum resolution	3840 x 2160 pixels		2688 x 1520 pixels
Built-in speaker(s)			Yes
Placement supported	Outdoor		Indoor & outdoor
Card reader integrated	Yes		Yes
Ethernet LAN (RJ-45) ports	1		1
Number of languages	33		33
Audio output channels	1.0 channels
Housing material	Metal		Metal
Networking standards			IEEE 802.3at
Security algorithms	EAP-TLS		EAP-LEAP
Ethernet LAN	Yes		Yes
Supported graphics resolutions	640 x 480 (VGA)		1920 x 1080 (HD 1080)
Diameter	14.1 cm
International Protection (IP) code	IP67		IP67
Ethernet interface type	Fast Ethernet		Fast Ethernet
Number of Users	32 user(s)		32 user(s)
Web-based management	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes		Yes
Password protection	Yes		Yes
Languages support	Multi		Multi
Frame Rate	30 fps		30 fps
Product colour	White		Black
Tilt angle range	0 - 75°		0 - 90°
Sustainability compliance	Yes
Focal length range	2.8 - 12 mm
Fixed focal length			2.8 mm
Number of microphones			2
Image stabilizer			Yes
LED type	IR/White		IR/White
Night vision	Yes		Yes
Total megapixels	8 MP		4 MP
Optical sensor size	25.4 / 1.8 mm (1 / 1.8")		25.4 / 1.8 mm (1 / 1.8")
Minimum illumination	0 lx		0 lx
Pan range	0 - 355°		0 - 360°
Dynamic range	130 dB		130 dB
Lens viewing angle, diagonal	137.4 - 47.3°		138.5°
Video compression formats	H.264+		H.265+
Angle of rotation	355°		360°
DC output current	0.9 A		1.41 A
DC output voltage	12		12
Video motion detection	Yes		Yes
Number of cameras	1		1
Night vision distance	40 m		60 m
Number of lenses	1		1
Privacy protection	Yes
Day/night mode	Yes		Yes
Infrared (IR) cut-off filter	Yes		Yes
Built-in HDD	No		No
Lens viewing angle, vertical	58.1 - 23.1°		57.6°
Noise reduction technology	3D noise reduction		3D noise reduction
Region of Interest (ROI) encoding	Yes		Yes
Maximum aperture number	1.2		1
Lens viewing angle, horizontal	112 - 41.2°		111.1°
Number of sensors	1
Infra-red wavelength	850 nm		850 nm
Wide Dynamic Range (WDR)	Yes		Yes
Progressive scan	Yes		Yes
Mirror	Yes		Yes
Heartbeat	Yes		Yes
Digital watermark	Yes		Yes
Back Light Compensation (BLC)	Yes		Yes
Video streaming	Yes
Active tampering alarm	Yes		Yes
Alarm input/output	Yes
Terminal block port	Yes
IP address filtering	Yes		Yes
Intelligent Video Surveillance (IVS) system features			Face detection
Camera shutter speed	1/3 - 1/100000 s		1 - 1/100000 s
Bit rate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)		Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Gain control type			Auto
Privacy masking	Yes
Highlight Compensation (HLC)	Yes		Yes
Live view	Yes
Power consumption (Power over Ethernet (PoE))	12.9 W		18 W
HTTPS encryption	Yes		Yes
Behavior analysis	Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
Image quality adjustment	Saturation		Contrast
IK code	IK10
Lens mount interface			M16
Digest authentication	Yes		Yes
Password reset via email	Yes		Yes
Iris	Yes
Number of simultaneous live view channels	6 channels		6 channels
User access level	Administrator, Operator, User		Administrator, Operator, User
Identify distance (wide)	9 m
Recognize distance (wide)	17 m
Built-in light	Yes		Yes
Audio input channels	1.0 channels
Observe distance (wide)	35 m
Detect distance			61 m
Observe distance			24 m
Recognize distance			12 m
Identify distance			6 m
Detect distance (wide)	87 m
Identify distance (tele)	22 m
Pixel counter	Yes		Yes
Human and vehicle targets classification	Yes		Yes
Client interoperability	iVMS-4200, Hik-Connect, Hik-Central
Recognize distance (tele)	43 m
Detect distance (tele)	216 m
Observe distance (tele)	86 m
Bit rate range	8 - 320 Kbit/s		8 - 320 Kbit/s
Alarm output channels	1		2
Alarm input channels	1		2
Compliance certificates	RoHS		RCM
Number of Privacy masking areas	4		4
Sample rates	8 - 48 kHz		8 - 48 kHz
Automatic Network Replenishment (ANR)	Yes		Yes
Network access storage (NAS)	Yes		Yes
Warnings				Avoid direct contact with water to prevent electrical damage.
Audit log	Yes		Yes
Flash log			Yes
