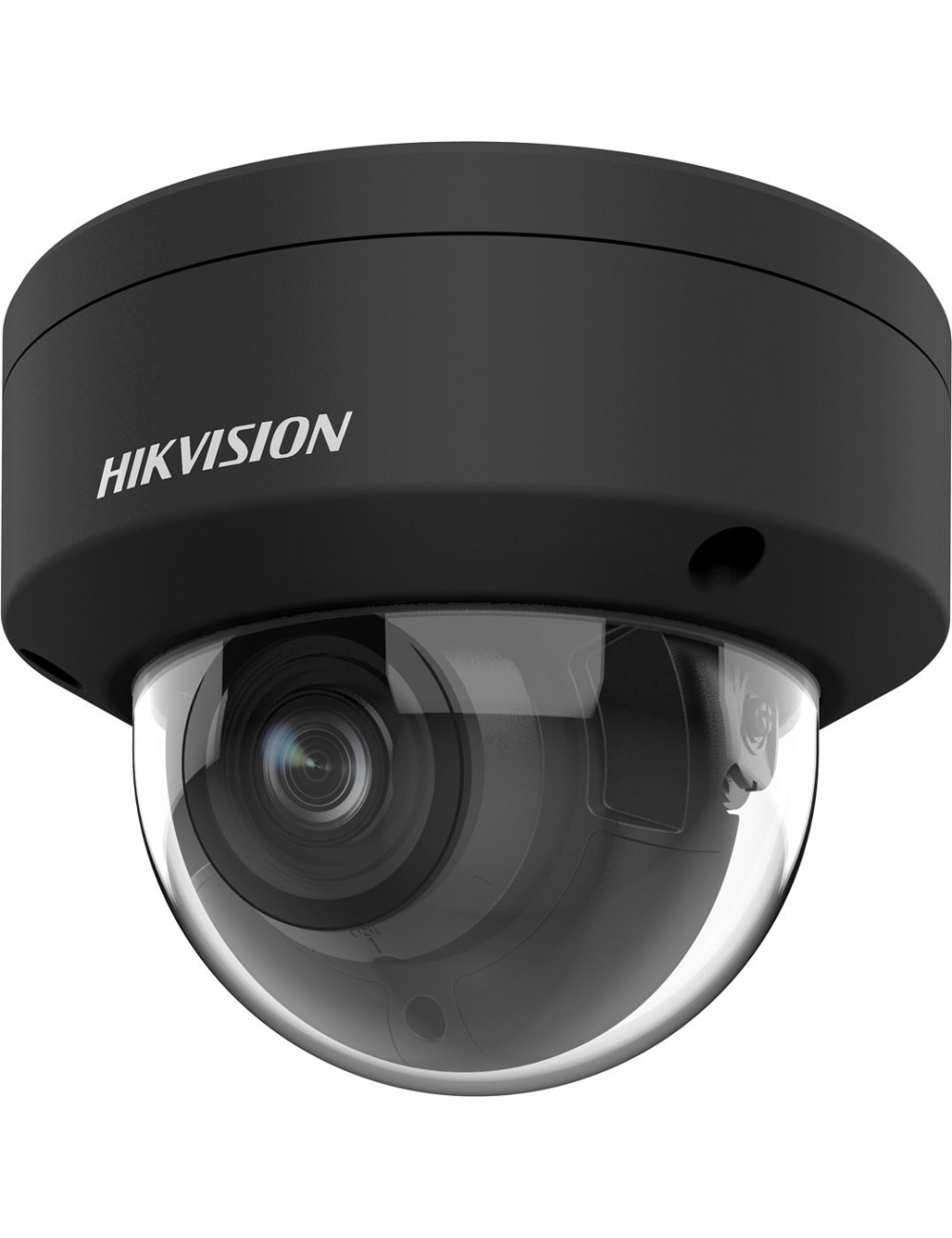

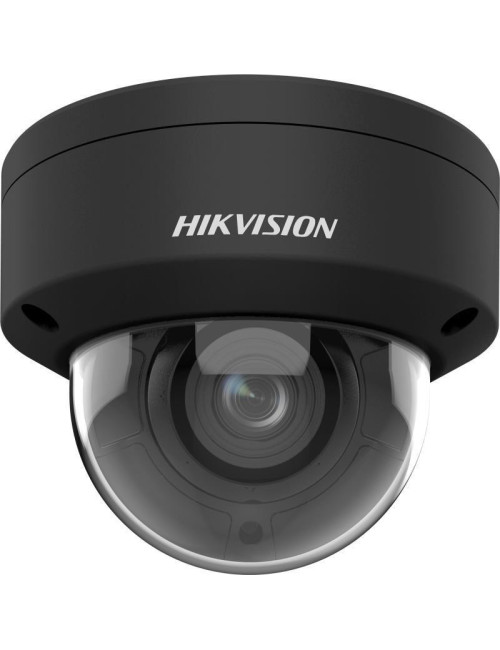

IP CAMERA HIKVISION DS-2CD2766G2HT-IZS(2.8-12mm)eFBLACK

Product Details

Reference WLONONWCRGPHH

In stock 23 Items

Data sheet

Type

IP security camera

Height

112 mm

Connectivity technology

Wired

Weight

840 g

Package depth

203 mm

Package height

230 mm

Package width

203 mm

Package weight

1.45 kg

Power source type

DC, PoE

Storage relative humidity (H-H)

0 - 95%

Operating temperature (T-T)

-30 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-30 - 60 °C

Mounting type

Ceiling/wall

Form factor

Dome

Bluetooth

No

Bit rate

32 Kbps - 16 Mbps

Noise reduction

Yes

Protection features

Water resistant

Sensor type

CMOS

Wi-Fi

No

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

512 GB

Audio formats supported

G.711 μ-law

Signal-to-Noise Ratio (SNR)

52 dB

Power consumption (max)

10.8 W

Maximum resolution

3200 x 1800 pixels

Placement supported

Outdoor

Card reader integrated

Yes

Ethernet LAN (RJ-45) ports

1

Number of languages

33

Audio output channels

1.0 channels

Housing material

Metal

Networking standards

IEEE 802.3af

Security algorithms

EAP-LEAP

Ethernet LAN

Yes

Supported graphics resolutions

640 x 480 (VGA)

Diameter

14.1 cm

International Protection (IP) code

IP67

Ethernet interface type

Fast Ethernet

Number of Users

32 user(s)

Web-based management

Yes

Quality of Service (QoS) support

Yes

Reset button

Yes

Browser supported

IE 10, IE 11, Chrome 57.0+, Firefox 52.0+

Password protection

Yes

Languages support

Multi

Frame Rate

30 fps

Product colour

Black

Tilt angle range

0 - 75°

Focal length range

2.8 - 12 mm

Video recording

Yes

LED type

IR

Night vision

Yes

Total megapixels

6 MP

Optical sensor size

25.4 / 1.8 mm (1 / 1.8")

Minimum illumination

0 lx

Pan range

0 - 355°

Dynamic range

120 dB

Lens viewing angle, diagonal

137.4 - 47.3°

Video compression formats

H.265+

Angle of rotation

355°

DC output current

0.9 A

DC output voltage

12

Video motion detection

Yes

Number of cameras

1

Night vision distance

40 m

Number of lenses

1

Privacy protection

Yes

Day/night mode

Yes

Infrared (IR) cut-off filter

Yes

Built-in HDD

No

Lens viewing angle, vertical

58.1 - 23.1°

Noise reduction technology

3D noise reduction

Smart IR

Yes

Region of Interest (ROI) encoding

Yes

Maximum aperture number

1.2

Lens viewing angle, horizontal

112.3 - 41.2°

Number of sensors

1

Infra-red wavelength

850 nm

Wide Dynamic Range (WDR)

Yes

Progressive scan

Yes

Mirror

Yes

Heartbeat

Yes

Digital watermark

Yes

Back Light Compensation (BLC)

Yes

Video streaming

Yes

Active tampering alarm

Yes

Terminal block port

Yes

IP address filtering

Yes

Intelligent Video Surveillance (IVS) system features

Face detection

Camera shutter speed

1/3 - 1/100000 s

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Gain control type

Auto

Privacy masking

Yes

Highlight Compensation (HLC)

Yes

Live view

Yes

Power consumption (Power over Ethernet (PoE))

12.9 W

HTTPS encryption

Yes

Behavior analysis

Intrusion detection, Line crossing detection

Image quality adjustment

Contrast

IK code

IK10

Digest authentication

Yes

Password reset via email

Yes

Number of simultaneous live view channels

6 channels

User access level

Administrator, Operator, User

Identify distance (wide)

7.4 m

Recognize distance (wide)

14.9 m

Audio input channels

1.0 channels

Observe distance (wide)

29.9 m

Detect distance (wide)

74.3 m

Identify distance (tele)

18.3 m

Pixel counter

Yes

Human and vehicle targets classification

Yes

Client interoperability

iVMS-4200, Hik-Connect, Hik-Central

Recognize distance (tele)

36.7 m

Detect distance (tele)

183.3 m

Observe distance (tele)

72.8 m

Bit rate range

8 - 320 Kbit/s

Alarm output channels

1

Alarm input channels

1

Compliance certificates

CB

Number of Privacy masking areas

4

Sample rates

8 - 48 kHz

Automatic Network Replenishment (ANR)

Yes

Network access storage (NAS)

Yes

Warnings

The product contains electronic components; do not dispose of with the normal household waste.

Audit log

Yes
