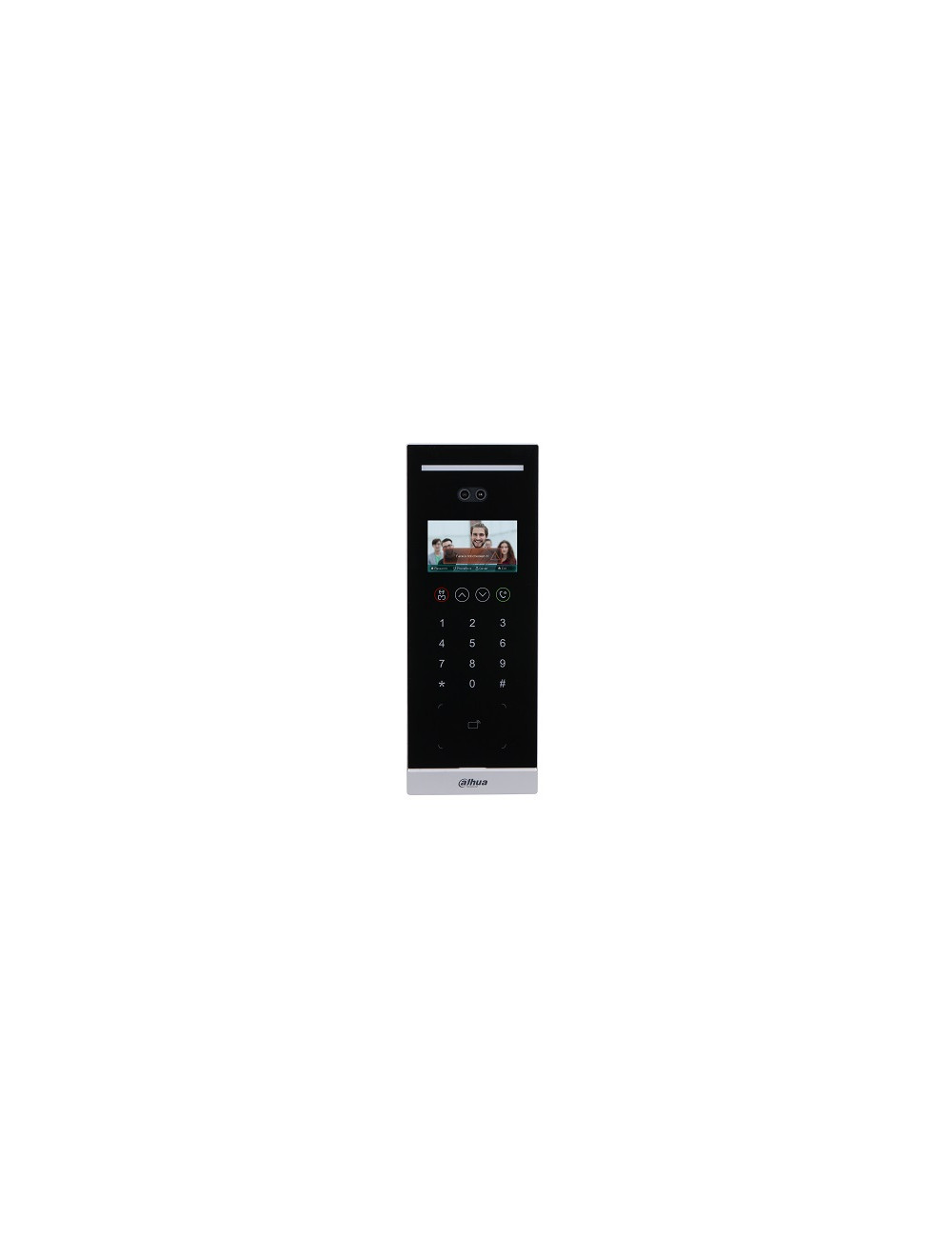

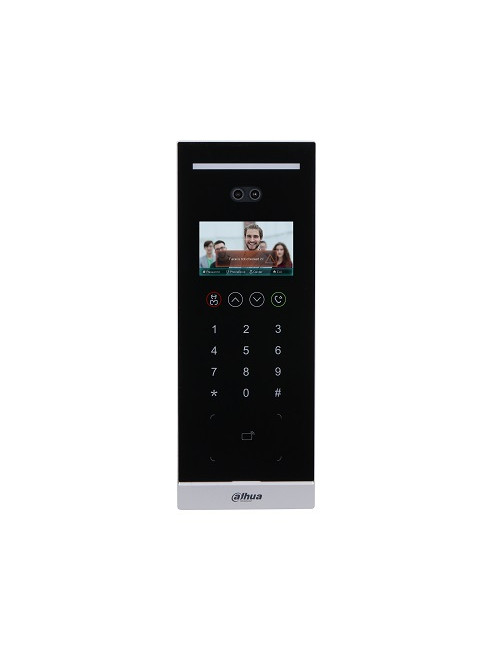

Outdoor Face Recognition Door Station VTO6531H
    DAHUA TECHNOLOGY CO., LTD

    Outdoor Face Recognition Door Station VTO6531H

    €441.23
    Tax included
    Quantity

    Add to favorites Add to compare
    System
    Main Processor Embedded processor
    Operating System Embedded Linux operating system
    Button Type Touch button
    Network Protocol SIP; P2P; IPv4; FTP; UPnP; DNS; DDNS; RTSP; RTP; TCP; UDP
    ROM 4GB
    RAM 1GB
    Basic
    Display Screen 4.3 inch IPS screen
    Resolution 800×480
    Camera 1/2.7" 2MP CMOS high definition, low illumination, white illuminator and IR illuminator
    Field of View Horizontal: 87.42°; vertical: 46.48 °; diagonal: 104.13°
    Focal Length 4.0 mm
    Aperture F1.6
    WDR 120dB
    Noise Reduction 3D noise reduction
    Video Compression H.264
    Video Resolution Main Stream: 720p, sub stream: 1080P
    Frame Rate Main Stream (720P@25fps), sub stream (1080P@25fps)
    Main Stream (720P@30fps), sub stream (1080P@30fps)
    Video Bit Rate 256Kbps–2048Kbps
    Light Compensation Auto white light Auto IR light
    Day/Night ICR auto switch
    Audio Compression G.711u
    Audio Input 1
    Audio Output Built-in speaker
    Audio Mode Full duplex communication
    Audio Enhancement Echo suppression and cancellation/digital noise reduction
    Audio Bit Rate 16KHz, 16Bit
    Function
    Communication Mode Full digital
    Unlock Mode Card/Remote/Password/Face unlock
    Card Reading Type IC card
    Motion Detection Video motion detection
    Auto Snapshot Yes
    Leave Videos or Text Messages Yes
    Web Configuration Yes
    Performance
    Card Reading Distance 1cm–5cm
    Issue Card Locally Yes
    Face Recognition Height Range 1.1m–2.4m is recommended
    Face Recognition Distance 0.3m–2cm
    Face Recognition Configuration Recognition threshold Facial profile angle
    Face Verification Accuracy 99.5%
    Face Recognition Time 0.2s
    Casing Material PC+ABS
    Capacity
    Card 10,000
    Face Image 10,000
    Port
    RS-485 1
    Wiegand 1 input port, 1 output port
    Electric lock 1
    Alarm Input 2 (Digital quantity)
    Alarm Output 2 (Digital quantity)
    Power Output 1 12V/100mA
    Exit Button 1
    Door Status Detection 1
    Lock Control 1, normally open by default
    Network 1 RJ-45 10Mbps/100Mbps self-adaptive
    Alarm
    Tamper Yes
    General
    Unlock Password Mode User password/public password/duress password
    Color Silver
    Power Supply Mode DC 12V2A
    Power Supply Optional
    Installation Surface mount and Flush mount
    Certification CE/FCC
    Accessory Optional
    Product Dimensions 388.5mm×145.5mm×43.5mm (15.30"×5.73"×1.71")
    Protection Grade IP65 (silicone sealant is needed, see the quick start guide)
    Operating Temperature -30°C to +60°C (-22°F to +140°F)
    Operating Humidity 10RH%–90RH% (non-condensing)
    Operating Altitude 86kPa–106kPa
    Power Consumption =5W (standby), =18W (working)
    Net Weight 1.0 kg (2.20 lb)
    Gross Weight 1.29 kg (2.84 lb)

    Product Details

    VTO6531H
