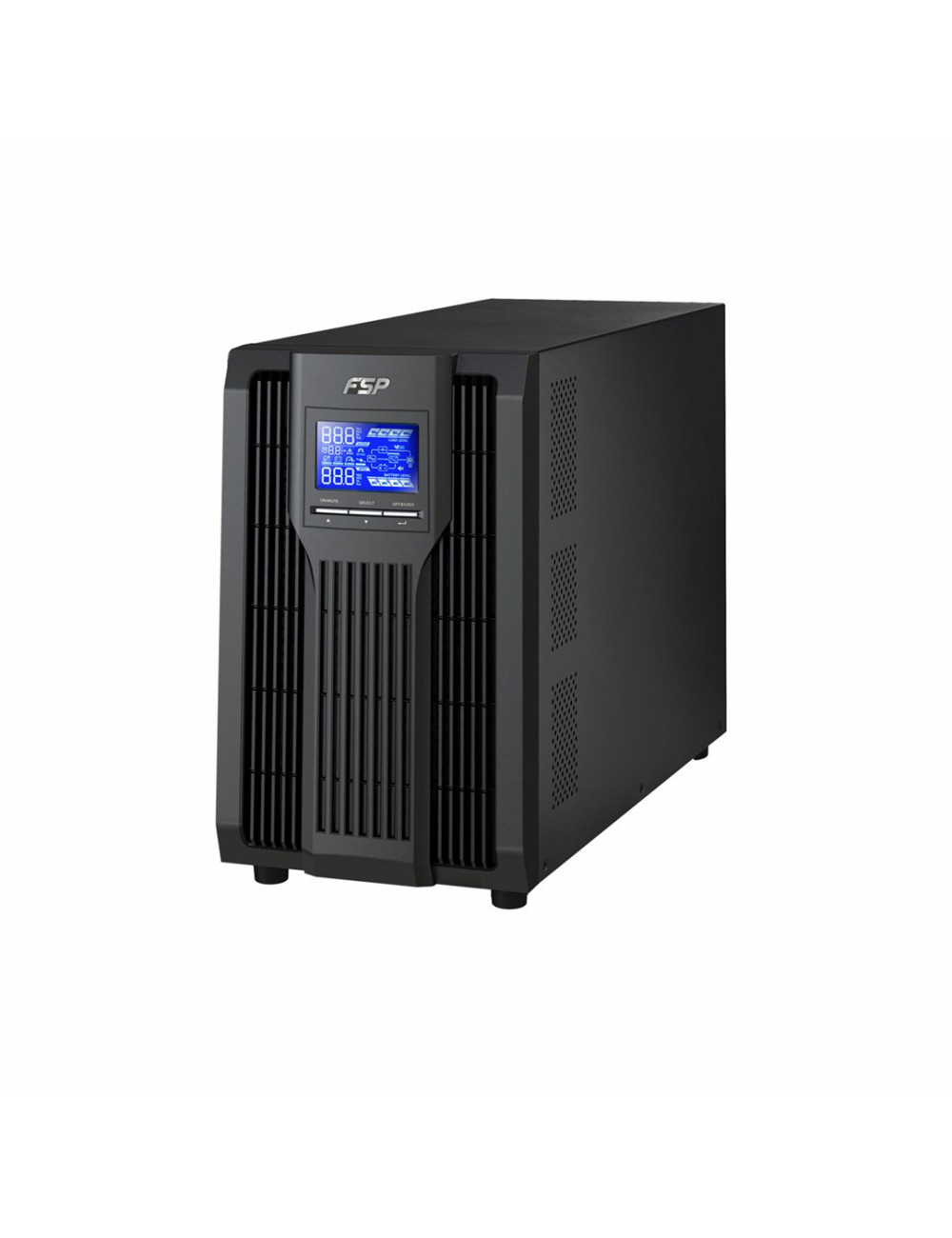

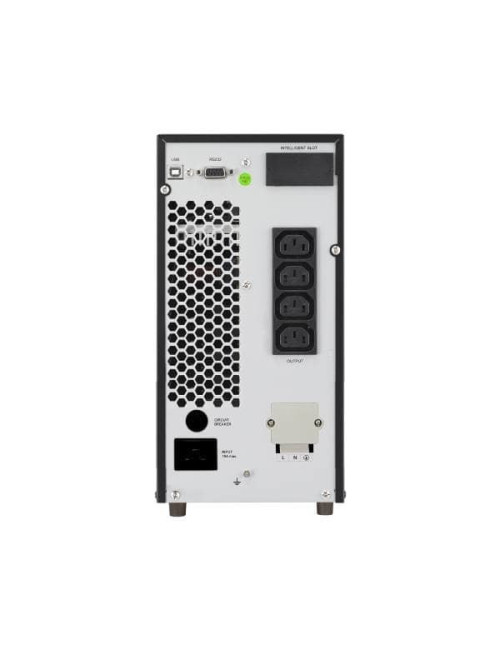

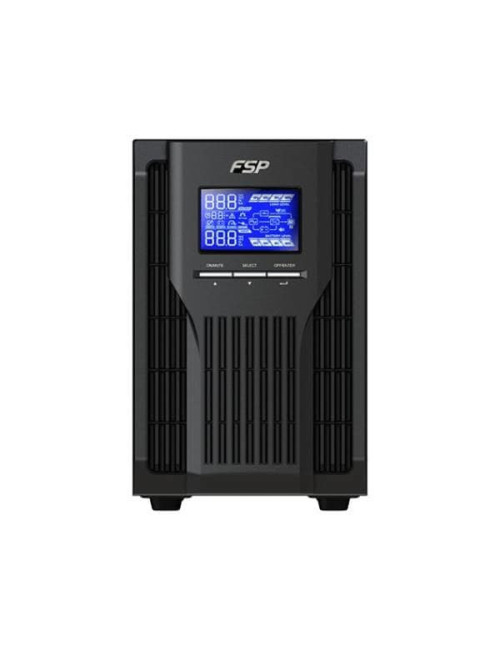

FSP Champ Tower 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W

Prekė detaliau

Charakteristikos

Width

190 mm

Height

318 mm

Depth

421 mm

Weight

27.6 kg

Batteries included

Yes

Cables included

Input power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Form factor

Tower

USB port

Yes

LED indicators

Yes

Battery capacity

9 Ah

Control type

Buttons

Output power

2700 W

Input frequency

40 - 70 Hz

USB 2.0 ports quantity

1

Response time

0 ms

Display type

LCD

Number of battery cells

6

Input operation voltage (min)

120 V

Output power capacity

3 kVA

Output operation voltage (max)

240 V

Waveform

Sine

AC outlet types

C13 coupler

Input operation voltage (max)

300 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

200 V

UPS topology

Double-conversion (Online)

Typical backup time at full load

3.5 min

Typical backup time at half load

9.8 min

Output voltage regulation

1%

RS-232 ports

1

Serial interface type

RS-232

Output frequency

47/63 Hz

Noise Level

50 dB

Product colour

Black

Harmonized System (HS) code

85078000

Serial interface

Yes

USB port type

USB Type-B

Total Harmonic Distortion (THD) (non-linear load)

6%

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm, Overload alarm

Power factor

0.99

Number of output IEC jumpers

4

Crest factor

3:1

Battery recharge time (90%)

4 h

Total Harmonic Distortion (THD) (linear load)

3%

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
