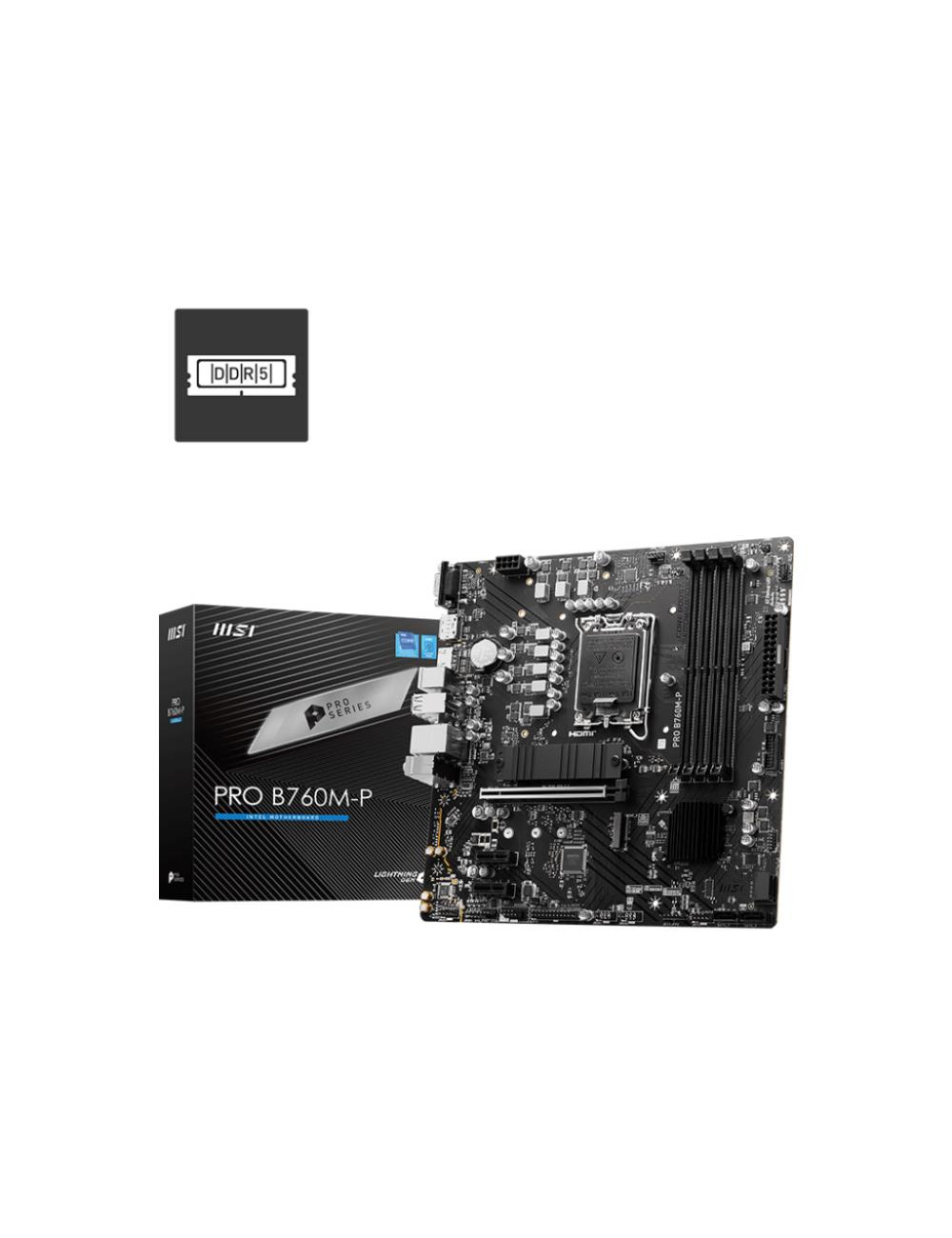

Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D
    MSI

    Mainboard|MSI|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR5|Memory slots 4|2xPCI-Express 1x|1xPCI-Express 16x|2xM.2|1x15pin D

    106,58 €
    Su mokesčiais
    Intel B760 Express | LGA1700 | Micro-ATX | DDR5 | 6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz | Memory slots 4 | Video Depending on CPU | LAN Realtek RTL8111H (Gigabit) | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
    • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
    • Core Boost : With premium layout and digital power design to support more cores and provide better performance
    • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
    • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
    • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
    • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

    Prekė detaliau

    PROB760M-P
    100 Prekės

    Charakteristikos

    Form factor
    Micro-ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    Intel B760 Express
    Garantija
    36
    RAID
    SATA 0, 1, 5, 10
    SOCKET
    LGA1700
    Category Code
    MBI
    Frequency speed
    4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
    Unit Box Height
    0.056
    Unit Box Length
    0.3
    Unit Box Width
    0.275
    Vendor Homepage
    www.msi.com/Motherboard/PRO-B760M-P/Overview
    Interface (SATA)
    Yes
    Input/Output connectors (Audio port)
    3
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Realtek ALC897
    Integrated LAN
    Realtek RTL8111H (Gigabit)
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    2
    Expansion slots (PCI-Express 16x)
    1
    Expansion slots (PCI-Express 1x)
    2
    Input/Output connectors (PS/2)
    2
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    4
    Interface (USB 2.0)
    Yes
    Input/Output connectors (DisplayPort)
    1
    Input/Output connectors (USB 3.2)
    1
    Input/Output connectors (15pin D-sub)
    1
    Interface (USB 3.2)
    Yes
    MODEL
    PRO B760M-P
    Input/Output connectors (USB-C)
    1
    Units per Shipping Box
    1
    Product Net Weight
    0.72 kg
    Unit Calculated Weight
    0.9 kg
    Unit Calculated Volume
    0.00462 cubm
    CnCode
    84733020
