Prekė detaliau
Charakteristikos
- Cable length
- 1.2 m
- Width
- 120 mm
- Height
- 160 mm
- Depth
- 355 mm
- Weight
- 5.4 kg
- Package height
- 250 mm
- Package width
- 197 mm
- Cables included
- Input power cable
- Manual
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage temperature (T-T)
- -15 - 40 °C
- Form factor
- Compact
- USB port
- Yes
- LED indicators
- Yes
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery life (max)
- 2 year(s)
- Battery recharge time
- 6 h
- Output power
- 410 W
- Input frequency
- 50/60 Hz
- USB 2.0 ports quantity
- 1
- Response time
- 6 ms
- Ethernet LAN (RJ-45) ports
- 2
- Input operation voltage (min)
- 140 V

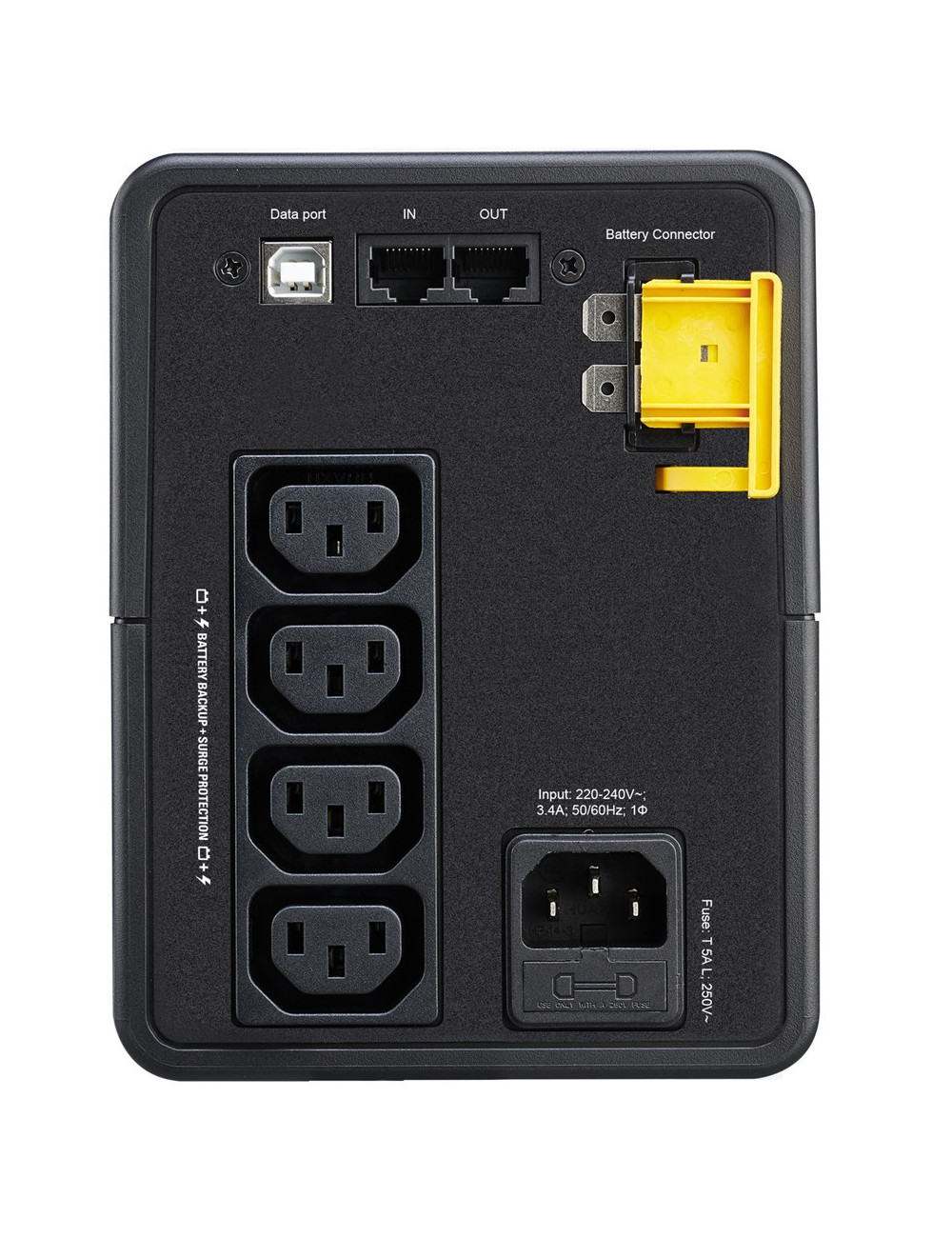

- AC outlets quantity
- 4 AC outlet(s)
- Output power capacity
- 0.75 kVA
- Output operation voltage (max)
- 230 V
- Waveform
- Sine

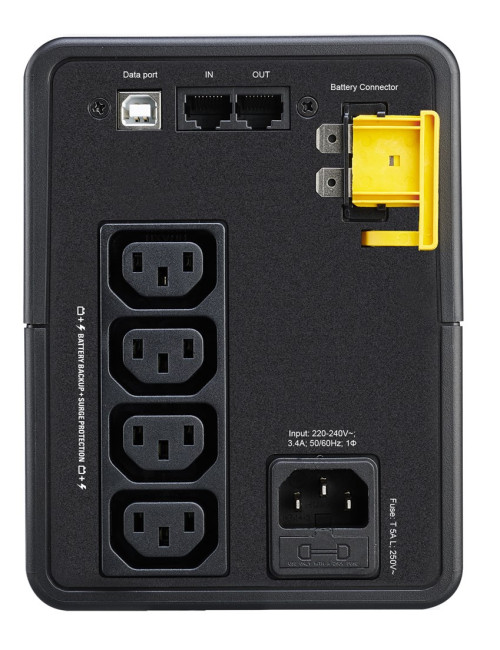

- AC outlet types
- C13 coupler
- Input operation voltage (max)
- 300 V
- Audible alarm(s)
- Yes
- Output operation voltage (min)
- 230 V
- UPS topology
- Line-Interactive

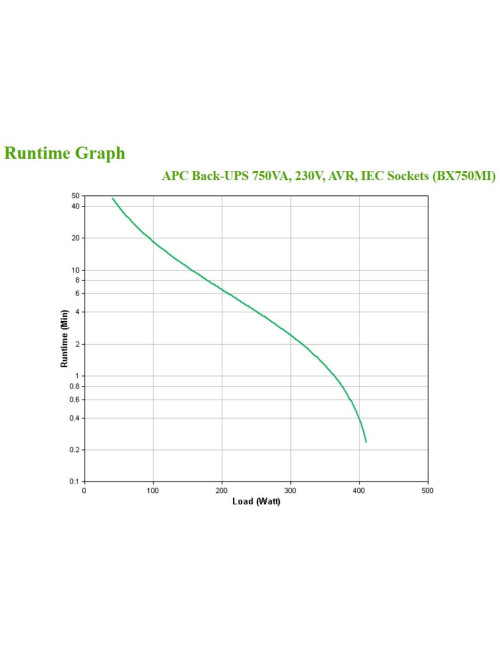

- Typical backup time at full load
- 1 min

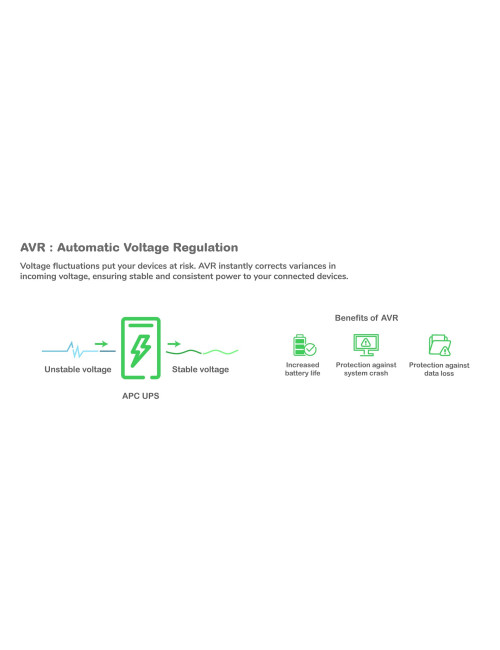

- Automatic Voltage Regulation (AVR)
- Yes
- Typical backup time at half load
- 8.5 min
- Surge protection
- Yes
- Output frequency regulation
- 0.5 Hz
- Output voltage regulation
- 10%
- Operating altitude
- 0 - 3000 m
- International Protection (IP) code
- IP20
- Output frequency
- 50/60 Hz
- Noise Level
- 40 dB
- Surge energy rating
- 273 J
- Power plug
- C14 coupler
- Product colour
- Black
- Harmonized System (HS) code
- 85078000
- USB port type
- USB Type-B
- Compliance certificates
- RoHS
- Audible alarm modes
- Low battery alarm
- Input power factor
- 0.63
