DIGITUS

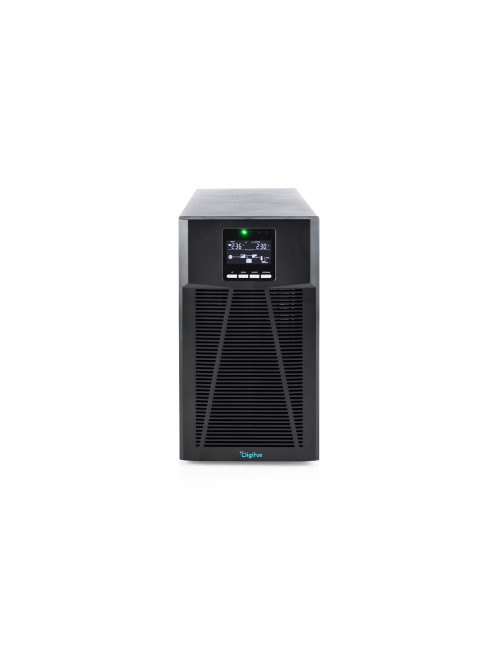

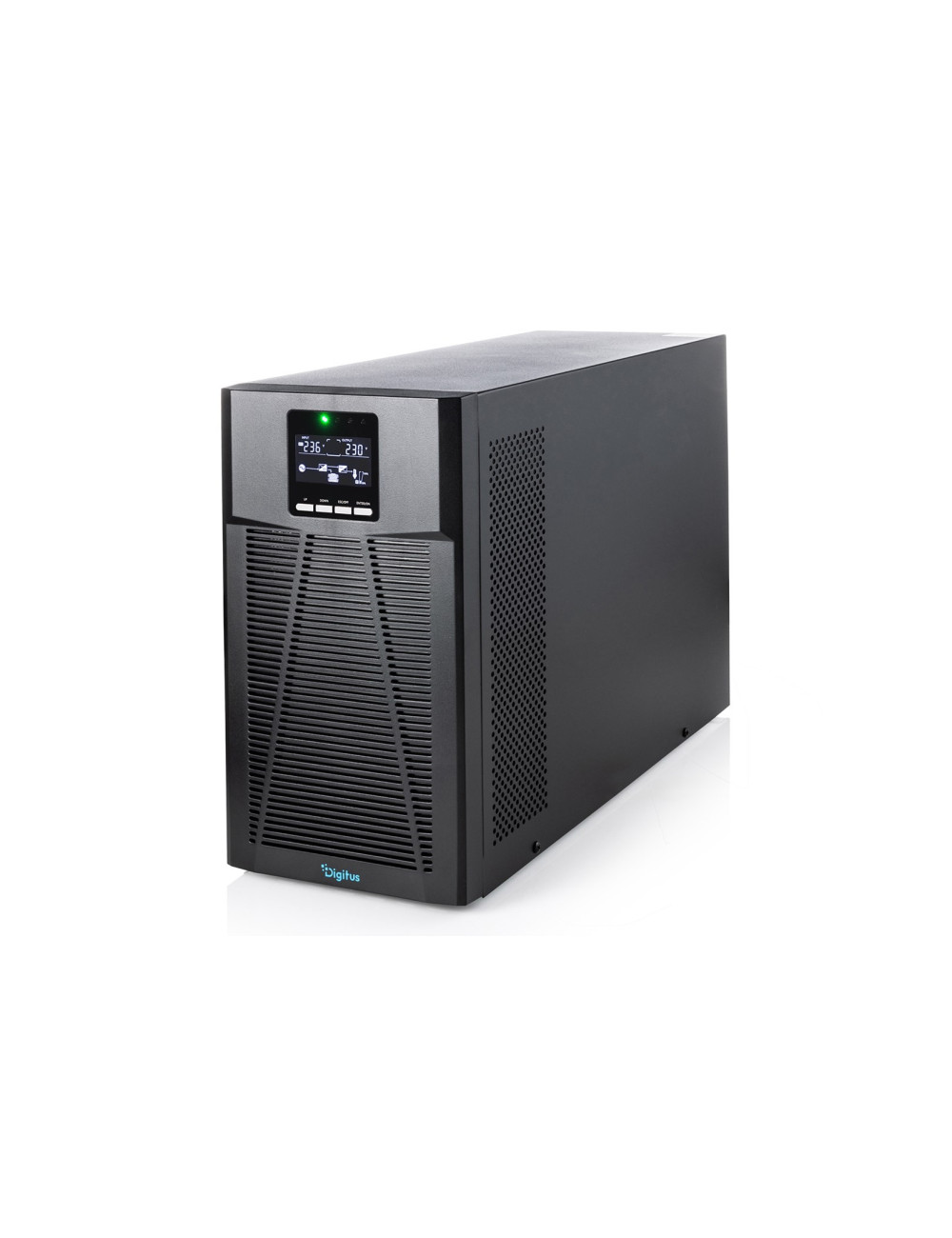

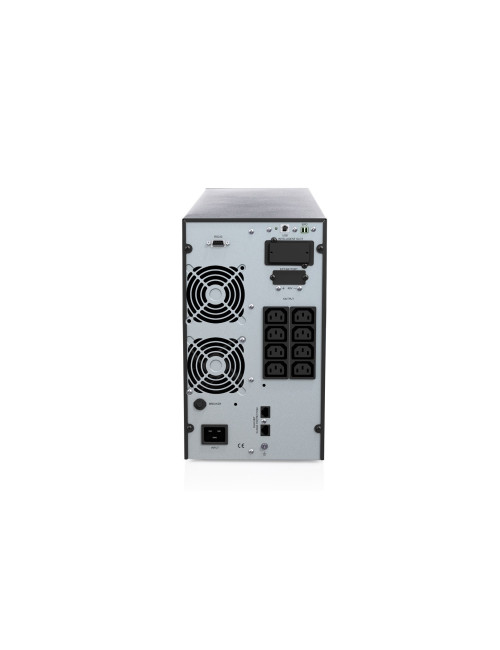

Digitus OnLine UPS systems, tower type, 2000 VA / 2000 W

414,81 €

Su mokesčiais

Prekė detaliau
Greitas palyginimas

Prekė detaliau

Prekės ženklas DIGITUS

Kodas WLONONWCRSPJU

Yra sandėlyje 13 Prekės

Charakteristikos

Package type: Box
Width: 191 mm
Height: 337 mm
Depth: 460 mm
Weight: 10 kg
Package depth: 563 mm
Package height: 446 mm
Package width: 275 mm
Package weight: 21.5 kg
Cables included: USB cable, RS-232, Power load cable
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%
Storage temperature (T-T): -25 - 55 °C
Form factor: Tower
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery recharge time: 4 h
Output power: 2000 W
Input frequency: 40 - 70 Hz
USB 2.0 ports quantity: 1
Response time: 4 ms
Display type: LCD
Number of battery cells: 4
Efficiency: 91%
Input operation voltage (min): 110 V
Power protection features: Under voltage
Cold start: Yes
AC outlets quantity: 8 AC outlet(s)
Output power capacity: 2 kVA
Output operation voltage (max): 240 V
Waveform: Pure sine
AC outlet types: C13 coupler
Input operation voltage (max): 300 V
Audible alarm(s): Yes
Battery voltage: 12 V
Output operation voltage (min): 208 V
UPS topology: Double-conversion (Online)
Output voltage regulation: 1%
RS-232 ports: 1
Operating altitude: 0 - 1000 m
Quick installation guide: Yes
Output frequency: 50/60 Hz
Noise Level: 50 dB
Power plug: C20 coupler
Product colour: Black
Serial interface: Yes
Charging current: 2 A
Output voltage Total Harmonic Distortion (THD): 3%
Power factor: 1
Crest factor: 3:1
Efficiency (ECO mode): 96%
