POWER WALKER

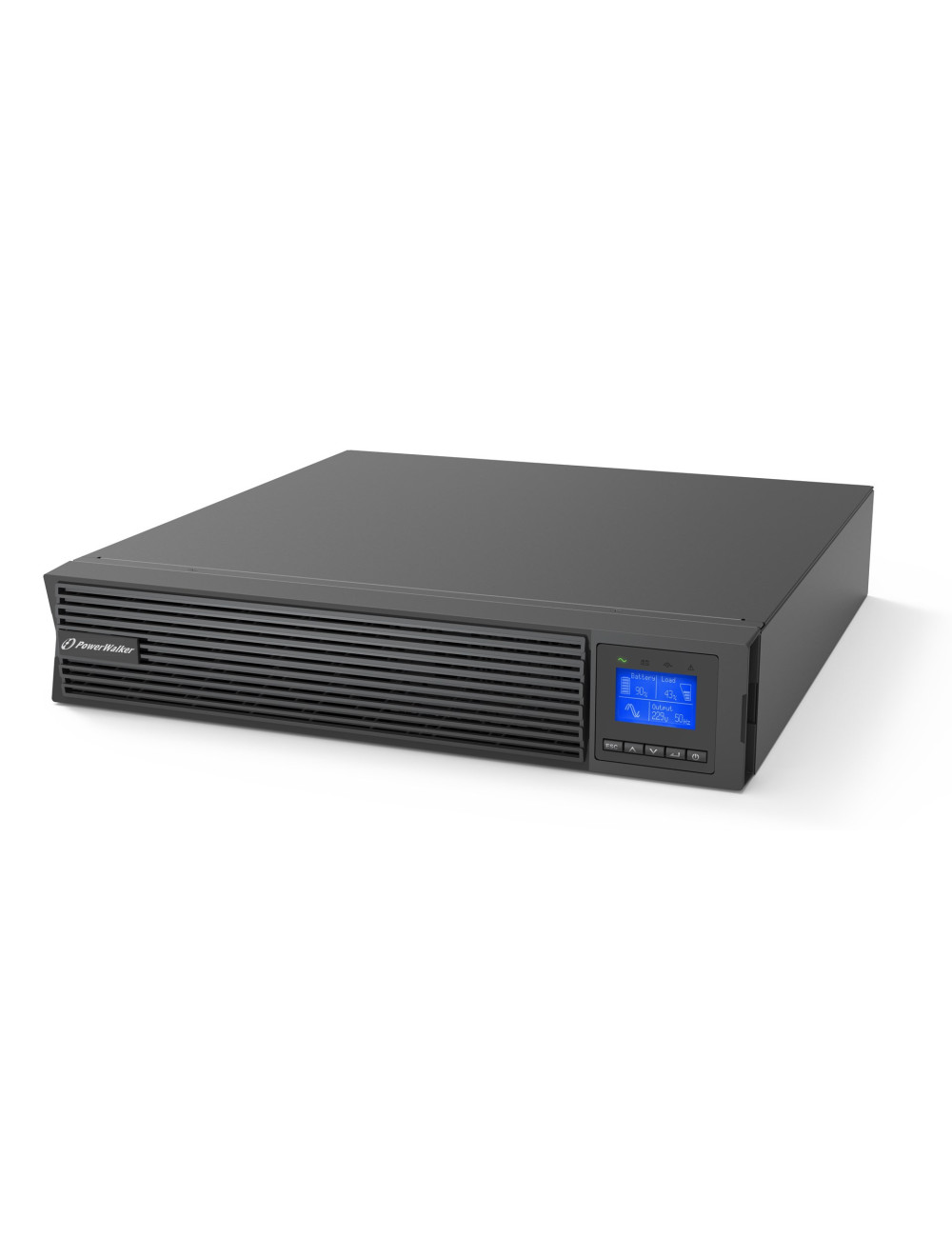

    PowerWalker VFI 1000 ICR IoT uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 1000 W 8 AC outlet(s)

    430,42 €
    Su mokesčiais
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

    Prekė detaliau

    POWER WALKER
    WLONONWCRFRMR
    4 Prekės

    Charakteristikos

    Width
    438 mm
    Height
    85.5 mm
    Depth
    445 mm
    Weight
    14.3 kg
    Package depth
    587 mm
    Package height
    240 mm
    Package width
    498 mm
    Package weight
    17.3 kg
    Number of batteries supported
    3
    Cables included
    Input power cable, Output power cable, USB cable
    Manual
    Yes
    Operating temperature (T-T)
    0 - 45 °C
    Operating relative humidity (H-H)
    0 - 95%
    Form factor
    Rackmount/Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery capacity
    7 Ah
    Battery recharge time
    3 h
    Cooling type
    Active
    Output power
    1000 W
    Input frequency
    40/70 Hz
    Response time
    0 ms
    Display type
    LCD
    Input operation voltage (min)
    160 V
    Power protection features
    Overload
    AC outlets quantity
    8 AC outlet(s)
    Output power capacity
    1 kVA
    Output operation voltage (max)
    240 V
    Waveform
    Pure sine
    AC outlet types
    C13 coupler
    Input operation voltage (max)
    300 V
    Battery voltage
    12 V
    Output operation voltage (min)
    200 V
    UPS topology
    Double-conversion (Online)
    Output voltage regulation
    1%
    Serial interface type
    RS-232
    Noise Level
    45 dB
    Serial ports quantity
    1
    Power plug
    C14 coupler
    Product colour
    Black
    Harmonized System (HS) code
    85078000
    Serial interface
    Yes
    ECO mode
    Yes
    Charging current
    1.5 A
    Output voltage Total Harmonic Distortion (THD)
    1%
    Crest factor
    3:1
    Emergency Power Off (EPO)
    Yes
    Rack capacity
    2U
    Rack mount kit
    Yes
    Output power factor
    1
    Emergency Power Off (EPO) connector
    Yes
    Input power factor
    0.99
    Built-in fan
    Yes
    Efficiency (On-line mode)
    89%
    Input current Total Harmonic Distortion (THD)
    5%
