EATON

UPS|EATON|700 Watts|1000 VA|Wave form type Pure sinewave|LineInteractive|Rack 2U|5SC1000IR

739,05 €

Su mokesčiais

Kiekis

Paskutinė prekė

Išsaugoti prekę Pridėti į palyginimą

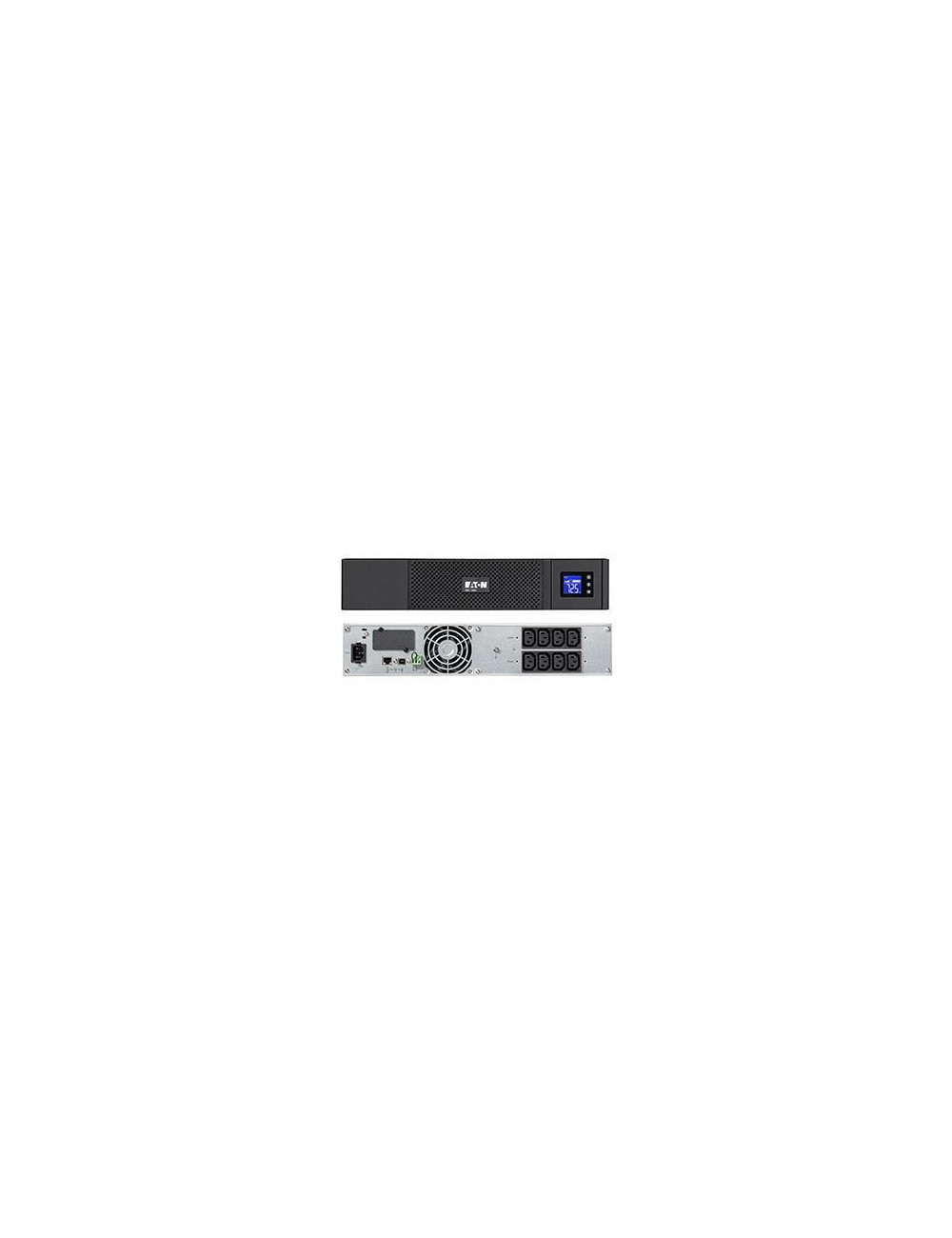

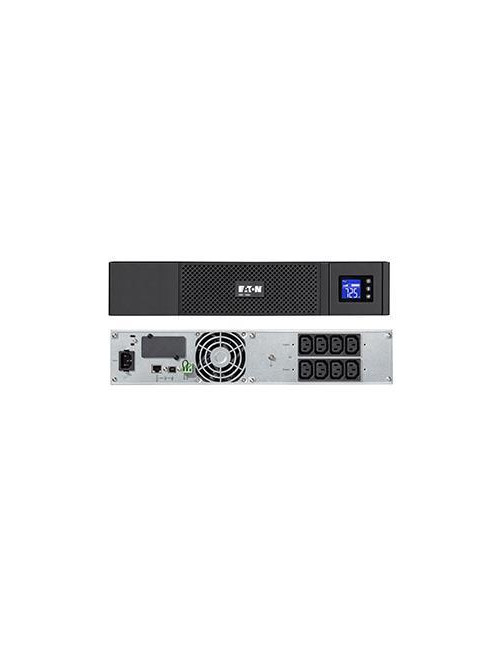

Eaton 5SC 1000 VA Rack 2U
The Eaton 5SC UPS provides line-interactive, affordable and reliable protection for small business server in any kind of installation constraints. Complementing our range of industry leading UPSs, the 5SC includes an LCD interface for real-time status and measurements, implements manageability solutions compatible with most of IT platforms and provides sinewave output for compatibility with most sensitive IT equipments.

Prekė detaliau

Kodas 5SC1000IR

Yra sandėlyje 1 Vienetas

Charakteristikos

Colour: Black
Garantija: 24
Category Code: UPW
Unit Box Height: 0.235
Unit Box Length: 0.54
Unit Box Width: 0.575
Vendor Homepage: powerquality.eaton.com/5SC1000iR.aspx?cx 13&GUID E166D4D1-68A2-40B2-A7B6-B8B940ADAA89
Mounting Type (Rack 2U): Yes
Units per Shipping Box: 1
Product Net Weight: 14.96 kg
Unit Calculated Weight: 19 kg
Unit Calculated Volume: 0.07297 cubm
Output power capacity, W: 700 Watts
Output power capacity, VA: 1000 VA
Wave form type: Pure sinewave
Topology: LineInteractive
Input ports: Single, IEC320 C14 (10AMP)
Output power connector type: IEC 320 C13
Communication ports (USB): 1
Communication ports (RS232): 1
