Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFast Etherne
    Teltonika

    Switch|TELTONIKA|Switch type Unmanaged|Form factor DIN rail|5xRJ-45 ports|RJ-45 Ports Type Fast Ethernet (10/100)|5xFast Etherne

    44,36 €
    Su mokesčiais
    Type Unmanaged | 5xBasic switching RJ-45 Ethernet ports quantity | Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100) | Full duplex Yes | Switching capacity 10 Gbit/s | Form factor DIN rail | Product colour Black | DIN rail mounting Yes | Power source DC | Power consumption (typical) 1 W | Width 113 mm | Depth 50 mm | Height 28 mm | Weight 142 g
    Kiekis

    Išsaugoti prekę Pridėti į palyginimą

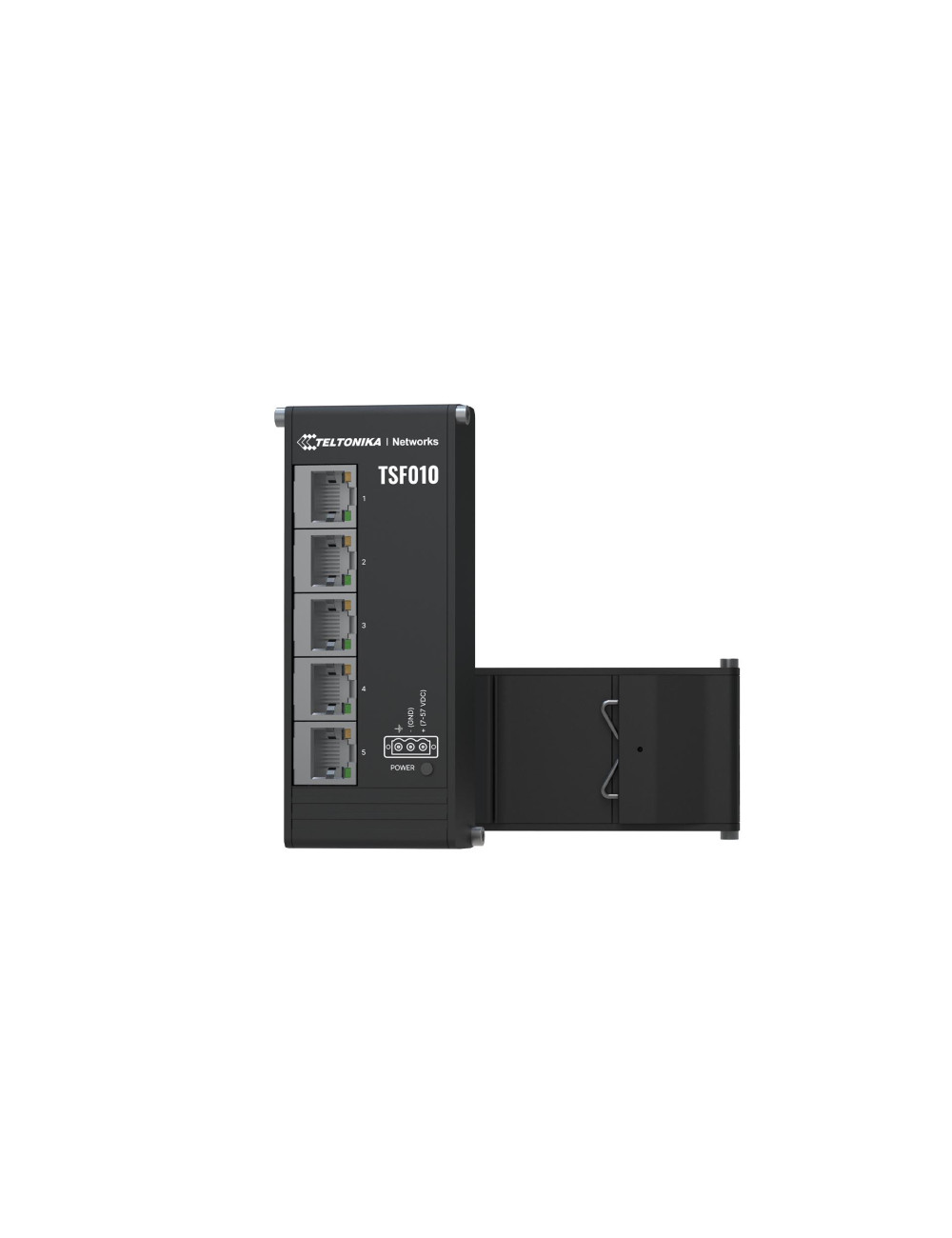

    The TSF010 is an unmanaged Ethernet switch featuring a flat design and integrated DIN rail mounting for plug-and-play deployment in industrial cabinet applications. This Ethernet switch is compact and lightweight, measuring 113 x 28 x 50 mm and weighing only 142 g. Its 3-pin power input and 7-57 VDC voltage range make it a flexible unmanaged switch tailor-made for industrial use. The TSF010 is equipped with five 10/100 Mbps RJ45 ports for reliable connectivity.

    • 3-PIN POWER INPUT
    • Flexible and tailor-made for industrial use
    • FLAT & COMPACT
    • Flat and compact design weighing only 142 g
    • INTEGRATED DIN RAIL BRACKET
    • Easy mounting for plug-and-play deployment
    • 7-57 VDC
    • Suitable voltage range for industrial applications

    Prekė detaliau

    Teltonika
    TSF010000000
    13 Prekės

    Charakteristikos

    Garantija
    24
    Category Code
    SWI
    Unit Box Height
    0.031
    Unit Box Length
    0.139
    Unit Box Width
    0.055
    Vendor Homepage
    https://teltonika-networks.com/products/ethernet-switches/TSF010/
    Units per Shipping Box
    1
    Unit Calculated Weight
    0.15 kg
    Unit Calculated Volume
    0.000237 cubm
    Summary
    Teltonika NETWORKS TSF010 Flat Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity:
    Weight & dimensions (Weight)
    142 g
    Weight & dimensions (Width)
    113 mm
    Weight & dimensions (Depth)
    50 mm
    Weight & dimensions (Height)
    28 mm
    Design (Product colour)
    Black
    Design (Housing material)
    Aluminium
    Power (Power consumption (max))
    1.5 W
    Power (Power consumption (typical))
    1 W
    Operational conditions (Operating relative humidity (H-H))
    10 - 90 %
    Operational conditions (Operating temperature (T-T))
    -40 - 75 C
    Design (Form factor)
    DIN rail
    Power (Power source)
    DC
    Design (International Protection (IP) code)
    IP30
    Management features (Switch type)
    Unmanaged
    Ports & interfaces (Basic switching RJ-45 Ethernet ports quantity)
    5
    Ports & interfaces (Basic switching RJ-45 Ethernet ports type)
    Fast Ethernet (10/100)
    Ports & interfaces (Fast Ethernet (copper) ports quantity)
    5
    Network (10G support)
    No
    Data transmission (MAC address table)
    2048 entries
    Data transmission (Switching capacity)
    10 Gbit/s
    Design (Rack mounting)
    No
    Power over Ethernet (PoE) (Power over Ethernet (PoE))
    No
    Power (Input voltage)
    7 - 57 V
    Network (Auto MDI/MDI-X)
    Yes
    Network (Full duplex)
    Yes
    Network (Networking standards)
    IEEE 802.3/IEEE 802.3ab/IEEE 802.3u/IEEE 802.3x
    Data transmission (Jumbo frames)
    9216
    Data transmission (Jumbo frames support)
    Yes
    Design (DIN rail mounting)
    Yes
    Design (Stackable)
    No
    Power (Power supply included)
    No
