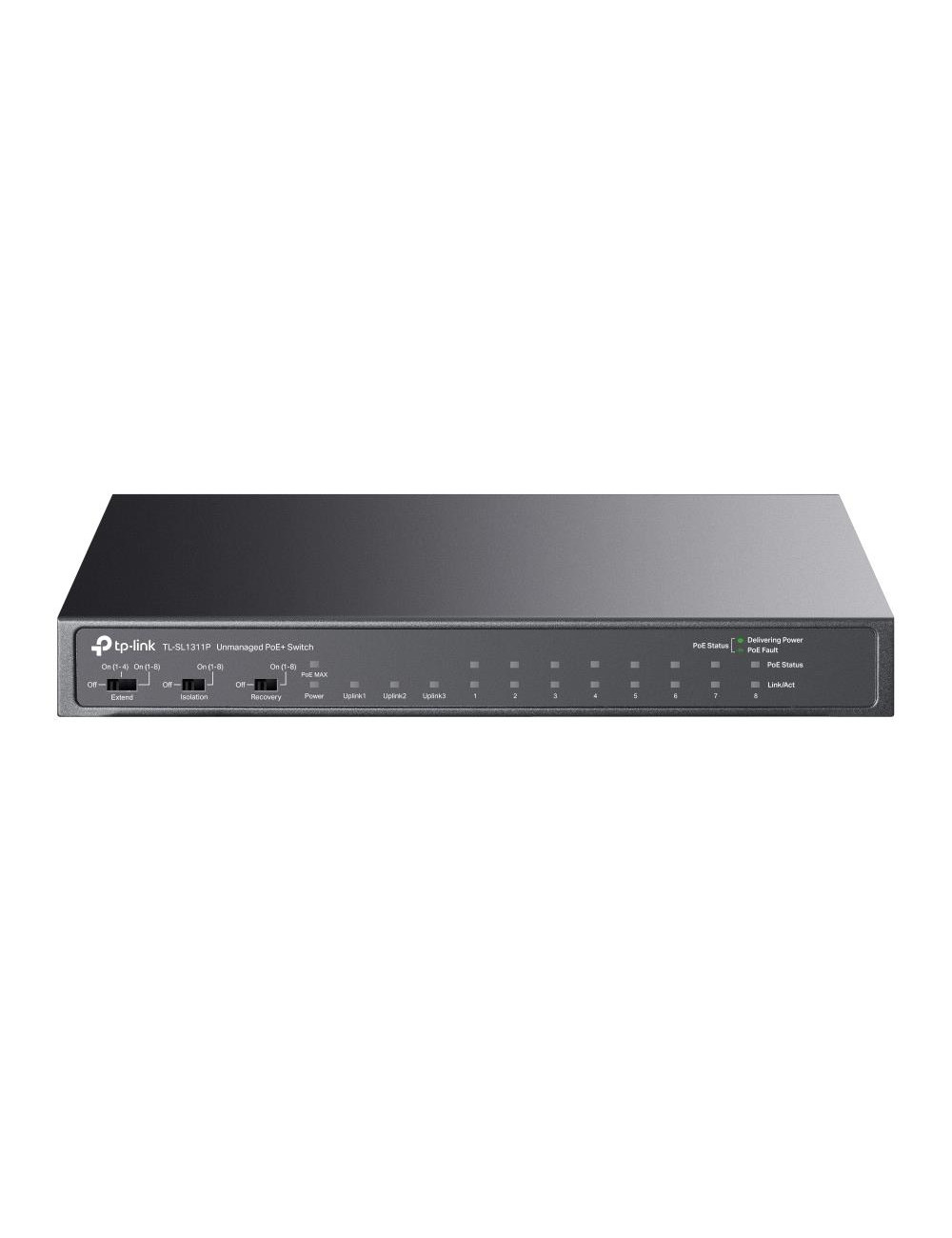

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports
Up to 250 m data and power transmitting range under Extend Mode
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required
8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports
Up to 250 m data and power transmitting range under Extend Mode
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required
Prekė detaliau
Charakteristikos
- Garantija
- 24
- Category Code
- SWI
- Unit Box Height
- 0.073
- Unit Box Length
- 0.315
- Unit Box Width
- 0.24
- Vendor Homepage
- www.tp-link.com/uk/business-networking/poe-switch/tl-sl1311p/
- Included Accessories
- TL-SL1311P, User Manual, Power Supply, Cord, Rubber feet
- Dimensions
- 209 126 26 mm
- MODEL
- TL-SL1311P
- Mounting Type (Desktop/pedestal)
- Yes
- Ports (RJ45)
- 2
- Ports (10Base-T / 100Base-TX)
- 8
- Ports (SFP)
- 1
- Switching capacity
- 7.6 Gbps
- Primary port count
- 8
- Forwarding rate
- 5.6544 Mpps
- PoE power budget
- 65 Watts
- PoE+ ports
- 8
- Units per Shipping Box
- 1
- Product Net Weight
- 1.1 kg
- Unit Calculated Weight
- 1.31 kg
- Unit Calculated Volume
- 0.005519 cubm
Greitas palyginimas
Prekė |
Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX|PoE ports 4|TL-SF1005P
|
Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|PoE ports 1|TL-SG1005LP
|
LANBERG switch PoE 19inch 6-port 100MB
|
TP-LINK Switch TL-SG1005LP Unmanaged, Desktop, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 5, PoE+ ports quantity 4, Power su
|
Prieinamumas |
|
|
|
|
Kaina |
34,03 €
|
34,03 €
|
34,85 €
|
35,02 €
|
Aprašymas |
Desktop/pedestal | 5x10Base-T / 100Base-TX | PoE ports 4 | Switching capacity 1 Gbps | Switching method Store-and-forward | Power supply External | Dimensions 99.8 x 98 x 25 mm | Product Net Weight 0.24 kg | Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.3af|IEEE 802.3at|PoE ports 1|Switching capacity 10 Gbps|Forwarding rate 7.44 Mpps|Switching method Store-and-forward|Included Accessories TL-SG1005LP, Power Adapter, Installation Guide|Dimensions 99.8×98×25 mm|Product Net Weight 0.4 kg |
The PoE+ switch is an essential active networking device in any Ethernet infrastructure using power transmission through the structural cabling. RSFE-4P-2FE-60 is dedicated to all kinds of installations: home, business, low-voltage, surveillance, IP, VoIP, cable TV networks, and in a particular product can be used in alarm, fire, or access control system. Apart from the switch's primary function, i.e., supporting Ethernet frame transfer between ports, the device also provides a power supply for each appliance in PoE/PoE+ standard - 802.3af and at. This means that the switch can supply the devices with a total of up to 60 W. All of this is combined with data transmission at the same time. As a result, such a solution saves resources, space, and time to install a separate electrical |
TP-LINK Switch TL-SG1005LP Unmanaged, Desktop, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 5, PoE+ ports quantity 4, Power supply type External |
Warranty |
60 month(s) | |||
Producer product name |
TL-SG1005LP | |||
Net weight |
0.511 kg | |||
Gross weight |
0.741 kg | |||
WEEE tax |
Yes | |||
Packing quantity |
12 pc(s) | |||
Gross depth master carton |
288 mm | |||
Gross width master carton |
414 mm | |||
Gross height master carton |
390 mm | |||
Net weight master carton |
8.892 kg | |||
Tare weight master carton |
0.791 kg | |||
Volume (m3) |
0.003122647 m | |||
Tare weight (kg) |
0.23 kg | |||
Gross depth (mm) |
121.00 mm | |||
Gross width (mm) |
197 mm | |||
Gross height (mm) |
131.00 mm | |||
WEE classification |
CL109:6:2017-04-01 | |||
Paper/Pasteboard |
184.00 g | |||
Embeeded battery |
No | |||
Dimensions (WxDxH) |
20 cm x 11.8 cm x 4.445 cm | |||
Plastic (No PET) |
46.00 g | |||
Weight |
730 g | |||
Producer product family |
Switch | |||
Device type |
Switch - 6 ports - unmanaged | |||
Form factor |
Desktop | |||
Power |
AC 120/230 V (50/60 Hz) | |||
Power supply type |
External | |||
Features |
4KV ESD Protector, flow control | |||
Switch type |
Unmanaged | |||
Ethernet LAN (RJ-45) ports |
5 | |||
Garantija |
60 | 60 | ||
PRODUCT DESCRIPTION |
Lanberg RSFE-4P-2FE-60 - switch - 6 ports - unmanaged | |||
Category Code |
SWI | |||
Unit Box Height |
0.13 | |||
Unit Box Length |
0.195 | |||
Unit Box Width |
0.12 | |||
Vendor Homepage |
www.tp-link.com/uk/business-networking/poe-switch/tl-sg1005lp/ | |||
Included Accessories |
TL-SG1005LP, Power Adapter, Installation Guide | |||
Performance |
Switching bandwidth: 1.2 Gbps | |||
Dimensions |
99.8 98 25 mm | |||
Ethernet LAN data rates |
10/100/1000 Mbit/s | |||
Compliant Standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x | |||
MODEL |
TL-SG1005LP | |||
Ports |
2 x 10/100 (uplink) + 4 x 10/100 (PoE+) | |||
Enclosure Type |
1U | |||
Power Over Ethernet (PoE) |
PoE+ | Yes | ||
Subtype |
Fast Ethernet | |||
PoE Budget |
60 W | |||
MAC Address Table Size |
1K entries | |||
Mounting Type (Desktop/pedestal) |
Yes | |||
Network standard (IEEE 802.3af) |
Yes | |||
Network standard (IEEE 802.3at) |
Yes | |||
POE |
PoE 802.3 af and PoE+ 802.3 at | |||
Power over Ethernet (PoE) power per port |
30 W | |||
PoE+ ports quantity |
4 | |||
Ports (10Base-T / 100Base-TX / 1000Base-T) |
5 | |||
Switching capacity |
10 Gbps | |||
Primary port count |
5 | |||
PoE ports |
1 | |||
Forwarding rate |
7.44 Mpps | |||
Switching method |
Store-and-forward | |||
Units per Shipping Box |
1 | |||
Product Net Weight |
0.4 kg | |||
Unit Calculated Weight |
0.74 kg | |||
Unit Calculated Volume |
0.003042 cubm | |||
