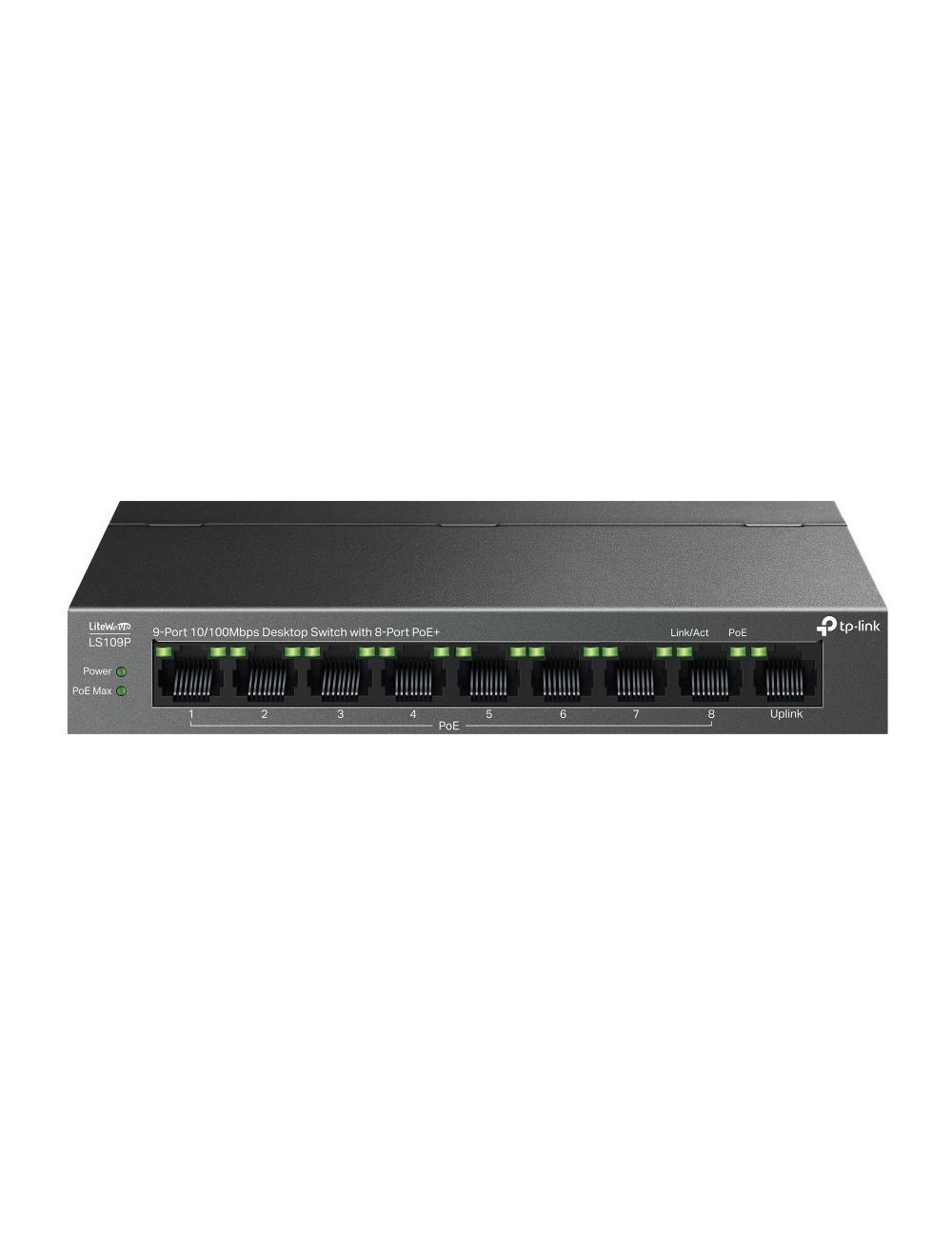

LS109P
9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.
- Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
- Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
- Plug and Play: Simply plug and play for instant connectivity with no configuration required.
- Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
- Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
Type L2 | 8x10/100/1000M | IEEE 802.3ab | IEEE 802.3i | IEEE 802.3u | IEEE 802.3x | Switching capacity 16 Gbps | Forwarding rate 11.9 Mpps | Software included 5V/1A DC (included) | Dimensions 125 mm × 65 mm × 22 mm | Product Net Weight 0.11 kg
8x10/100/1000M | IEEE 802.3ab | IEEE 802.3i | IEEE 802.3u | IEEE 802.3x | Switching capacity 16 Gbps | Forwarding rate 11.9 Mpps | Included Accessories Power Adapter, Installation Guide | Product Net Weight 0.2 kg
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there's no need to worry about the type of cable to use. Increase the speed of your network with the LS1008G 8-port Gigabit desktop switch. Non-blocking, 8× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Warranty
36 month(s)
Producer product name
LS1008G
Net weight
0.153 kg
Gross weight
0.223 kg
WEEE tax
Yes
Packing quantity
20 pc(s)
Gross depth master carton
286 mm
Gross width master carton
475 mm
Gross height master carton
367 mm
Net weight master carton
4.46 kg
Tare weight master carton
0.783 kg
Volume (m3)
0.001016652 m
Tare weight (kg)
0.07 kg
Gross depth (mm)
91 mm
Gross width (mm)
133 mm
Gross height (mm)
84.00 mm
WEE classification
CL109:6:2017-04-01
Paper/Pasteboard
55.00 g
Embeeded battery
No
Dimensions (WxDxH)
12.7 cm x 6.65 cm x 2.3 cm
Plastic (No PET)
15.00 g
Producer product family
Desktop Switch
Device type
Switch - 8 ports - unmanaged
Form factor
Desktop
Power supply type
External
Palette Qty
680 pc(s)
Features
Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, plastic housing, fanless, Green Technology
