Gigabyte

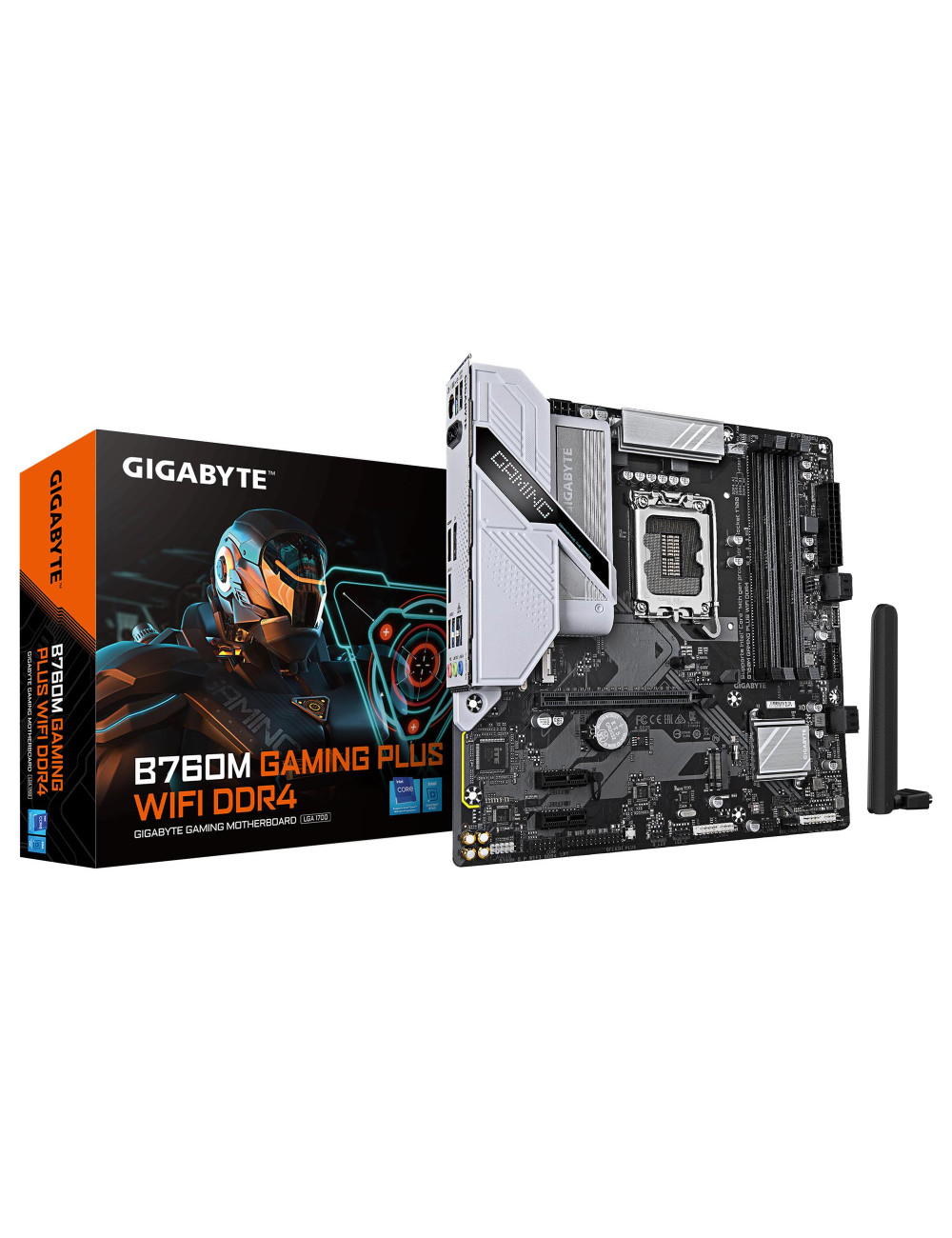

Mainboard|GIGABYTE|B760M GAMING PLUS WIFI DDR4 (REV. 1.1)|Intel B760|LGA 1700|micro ATX|RAM DDR4-SDRAM|4xSlots|Wi-Fi Yes|Bluetoo

117,18 €

Su mokesčiais

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Prekė detaliau

Kodas B760M GAMING PLUS WIFI DDR4 (REV

Yra sandėlyje 20 Prekės

Charakteristikos

Garantija: 36
Category Code: MBI
Unit Box Height: 0.07
Unit Box Length: 0.275
Unit Box Width: 0.27
Vendor Homepage: https://www.gigabyte.com/
MODEL: B760M GAMING PLUS WIFI DDR4 (REV. 1.1)
Units per Shipping Box: 10
Unit Calculated Weight: 1.25 kg
Unit Calculated Volume: 0.00614 cubm
Summary: GIGABYTE B760M GAMING PLUS WIFI DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron® , Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel.... Supported memory types:
Battery (Battery technology): Lithium-Manganese Dioxide (LiMnO2)
Weight & dimensions (Width): 244 mm
Weight & dimensions (Depth): 244 mm
Weight & dimensions (Height): 35 mm
Packaging data (Package width): 270 mm
Packaging data (Package depth): 268 mm
Packaging data (Package height): 68 mm
Packaging data (Package weight): 1200 g
Battery (Battery capacity): 220 mAh
Network (Bluetooth): Yes
Network (Ethernet LAN): Yes
Network (Wi-Fi): Yes
Network (Bluetooth version): 5.3
Network (Wi-Fi standards): 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)
Battery (Battery type): CR2032
Logistics data (Products per shipping (inner) case): 1 pc(s)
Other features (Weight): 1100 g
Packaging content (Batteries included): Yes
Logistics data (Country of origin): China
Network (Top Wi-Fi standard): Wi-Fi 6 (802.11ax)
Processor (Processor manufacturer): Intel
Memory (Maximum internal memory): 128 GB
Memory (Memory channels): Dual-channel
Memory (Memory slots type): DIMM
Memory (Number of memory slots): 4
Memory (Supported memory clock speeds): 2133/2400/2666/2933/3000/3200/3300/3333/3400/3466/3600/3666/3733/3800/3866/4000/4133/4266/4300/4400/4500/4600/4700/4800/4933/5000/5133/5333 MHz
Memory (Supported memory types): DDR4-SDRAM
Network (WLAN controller model): Realtek RTL8851BE
Features (Component for): PC
Battery (Battery weight): 3 g
Network (LAN controller): Realtek RTL8111H
Features (Audio chip): Realtek ALC897
Features (Audio output channels): 7.1 channels
Features (Motherboard chipset): Intel B760
Features (Motherboard chipset family): Intel
Features (Motherboard form factor): micro ATX
Features (PC health monitoring): Fan/Temperature/Voltage/Water cooling
Features (Power source type): ATX
Features (Product colour): Grey
Features (Windows operating systems supported): Windows 10 x64/Windows 11 x64
Processor (Compatible processor series): Intel Core/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Celeron
Processor (Processor socket): LGA 1700
Processor (Supported processor sockets): LGA 1700
Memory (ECC сompatibility): ECC & Non-ECC
Memory (Maximum internal memory per slot): 32 GB
Memory (Supported memory clock speed (max)): 5333 MHz
Memory (Unbuffered memory): Yes
Storage controllers (Number of HDDs supported): 4
Storage controllers (Number of storage drives supported): 6
Storage controllers (RAID levels): 0/1/10/5
Storage controllers (RAID support): Yes
Storage controllers (Supported storage drive interfaces): M.2,SATA III
Storage controllers (Supported storage drive types): HDD & SSD
Graphics (DirectX version): 12.0
Graphics (HDCP): Yes
Graphics (Maximum resolution): 4096 x 2304 pixels
Graphics (Parallel processing technology support): Not supported
Internal I/O (ATX Power connector (24-pin)): Yes
Internal I/O (CPU fan connector): Yes
Internal I/O (EPS power connector (8-pin)): Yes
Internal I/O (Front panel audio connector): Yes
Internal I/O (Front panel connector): Yes
Internal I/O (Number of chassis fan connectors): 3
Internal I/O (Number of CPU fan connectors): 1
Internal I/O (Number of EPS power connectors (8-pin)): 1
Internal I/O (Number of RGB LED pin headers): 2
Internal I/O (Number of SATA III connectors): 4
Internal I/O (RGB LED pin header): Yes
Internal I/O (TPM connector): Yes
Internal I/O (USB 2.0 connectors): 2
Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors): 2
Rear panel I/O ports (DisplayPort version): 1.2
Rear panel I/O ports (Ethernet LAN (RJ-45) ports): 1
Rear panel I/O ports (HDMI ports quantity): 1
Rear panel I/O ports (HDMI version): 2.1
Rear panel I/O ports (Headphone outputs): 1
Rear panel I/O ports (Line-in): Yes
Rear panel I/O ports (WiFi-AP antenna jack): 2
Network (Ethernet interface type): Gigabit Ethernet
Expansion slots (1st M.2 highest PCI Express generation): 4.0
Expansion slots (1st M.2 largest key size): 2280
Expansion slots (2nd M.2 highest PCI Express generation): 4.0
Expansion slots (2nd M.2 largest key size): 2280
Expansion slots (Number of M.2 (M) slots): 2
Expansion slots (PCI Express x16 (Gen 4.x) slots): 1
BIOS (ACPI version): 5.0
BIOS (BIOS memory size): 128 Mbit
BIOS (BIOS type): UEFI AMI
BIOS (Clear CMOS jumper): Yes
BIOS (Desktop Management Interface (DMI) version): 2.7
BIOS (System Management BIOS (SMBIOS) version): 2.7
Battery (Lithium weight per battery): 0.07 g
Battery (Number of battery cells): 1
Packaging content (Antenna included): Yes
Packaging content (Bundled software): Norton Internet Security (OEM version) LAN bandwidth management software
Packaging content (Screws included): Yes
Technical details (Warranty period): 3 year(s)
Internal I/O (Serial port headers): 1
Rear panel I/O ports (DisplayPorts quantity): 1
Rear panel I/O ports (PS/2 ports quantity): 1
Rear panel I/O ports (USB 2.0 ports quantity): 2
Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity): 3
Processor (Maximum internal memory supported by processor): 128 GB
Internal I/O (Parallel connector): Yes
Internal I/O (S/PDIF out connector): Yes
Expansion slots (PCI Express x1 (Gen 3.x) slots): 2
