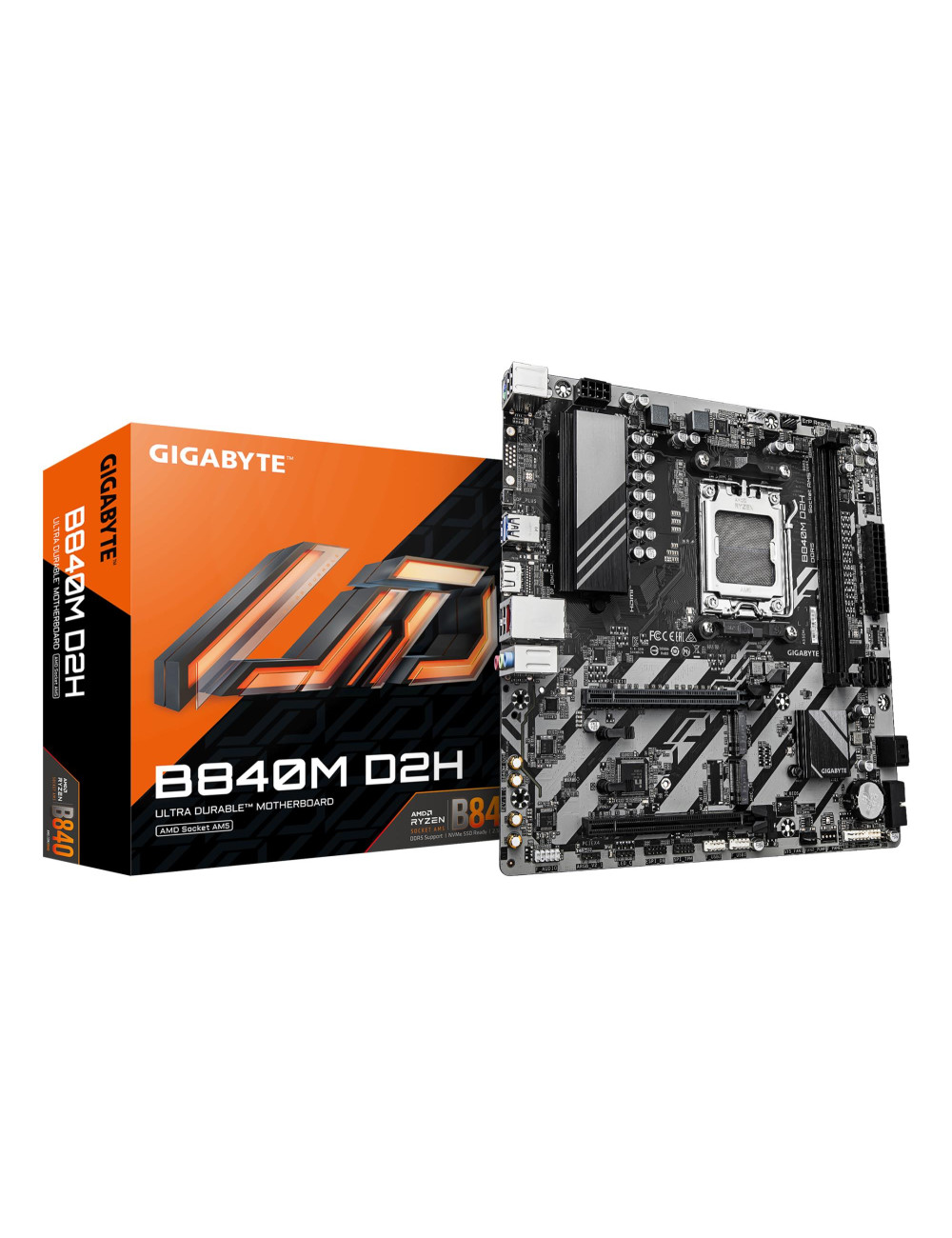

Mainboard|GIGABYTE|AMD B840|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|2xNumber of M.2 (M) slots|B840MD2H1.2

Prekė detaliau

Kodas B840M D2H 1.2

Yra sandėlyje 5 Prekės

Charakteristikos

Garantija

36

Category Code

MBA

Unit Box Height

0.06

Unit Box Length

0.26

Unit Box Width

0.27

Vendor Homepage

https://www.gigabyte.com/

Units per Shipping Box

10

Unit Calculated Weight

1.04 kg

Unit Calculated Volume

0.004669 cubm

Summary

GIGABYTE B840M D2H Motherboard - AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Seri

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

244 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

265 mm

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

1026.4 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

940 g

Packaging content (Batteries included)

Yes

Processor (Processor manufacturer)

AMD

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speeds)

4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600 MHz

Memory (Supported memory types)

DDR5-SDRAM

Features (Component for)

PC

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8125

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

AMD B840

Features (Motherboard chipset family)

AMD

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

Dark brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Processor (Processor socket)

Socket AM5

Processor (Supported processor sockets)

Socket AM5

Memory (ECC сompatibility)

Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Memory (Supported memory clock speed (max))

7600 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

1

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of RGB LED pin headers)

3

Internal I/O (Number of SATA III connectors)

4

Internal I/O (Number of water pump connectors)

1

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2580

Expansion slots (2nd M.2 highest PCI Express generation)

3.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (PS/2 ports quantity)

1

Rear panel I/O ports (USB 2.0 ports quantity)

4

Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2
