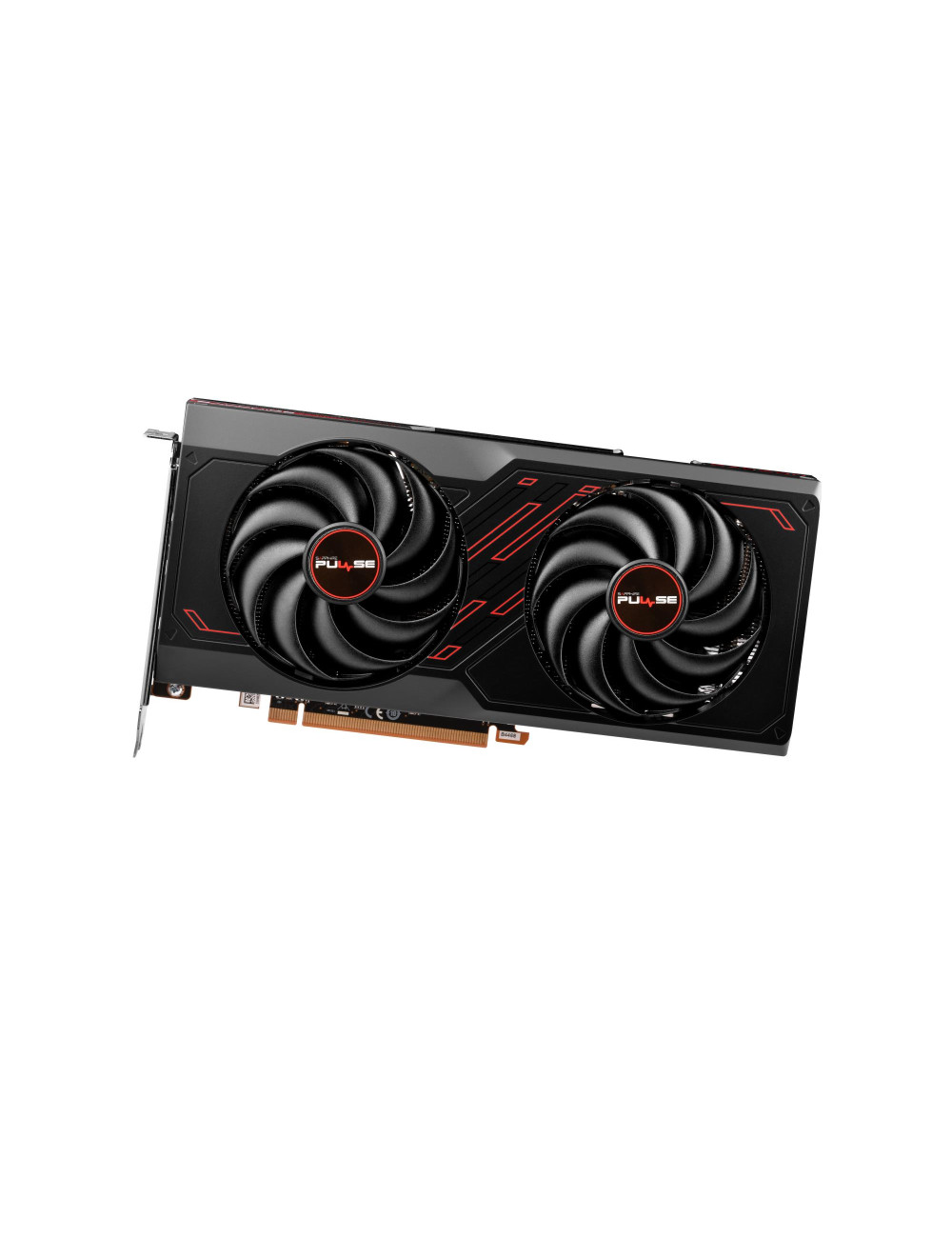

Graphics Card|SAPPHIRE|AMD Radeon RX 7600|8 GB|GDDR6|128 bit|PCIE 4.0 8x|Dual Slot Fansink|1xHDMI|3xDisplayPort|11324-01-20G
    Sapphire

    Graphics Card|SAPPHIRE|AMD Radeon RX 7600|8 GB|GDDR6|128 bit|PCIE 4.0 8x|Dual Slot Fansink|1xHDMI|3xDisplayPort|11324-01-20G

    €319.40
    Tax included
    AMD | Graphics processor Radeon RX 7600 | 2355 MHz | Memory 8 GB | Graphics card memory type GDDR6 | 128 bit | PCI Express x8 4.0 | 1xHDMI | 3xDisplay ports | Cooling type Active | Power consumption (typical) 185 W
    Quantity

    Add to favorites Add to compare

    Fuse Protection
    In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.

    Optimized Composite Heatpipe
    The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.

    Two-Ball Bearing
    These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

    Tough Metal Backplate
    The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.

    Product Details

    Sapphire
    11324-01-20G
    7 Items

    Data sheet

    Garantija
    36
    Category Code
    VGP
    Unit Box Height
    0.085
    Unit Box Length
    0.285
    Unit Box Width
    0.168
    Vendor Homepage
    https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-7600-8g-gddr6 Specification
    MODEL
    11324-01-20G
    Units per Shipping Box
    1
    Product Net Weight
    0.7 kg
    Unit Calculated Weight
    0.893 kg
    Unit Calculated Volume
    0.00407 cubm
    Summary
    Sapphire PULSE 11324-01-20G. Graphics processor family: AMD, Graphics processor: Radeon RX 7600, Processor frequency: 2355 MHz. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pix
    System requirements (Windows operating systems supported)
    Windows 10 x64/Windows 11 x64
    Weight & dimensions (Depth)
    44.07 mm
    Weight & dimensions (Height)
    107.1 mm
    Ports & interfaces (HDMI ports quantity)
    1
    Power (Power consumption (typical))
    185 W
    Performance (AMD FreeSync)
    Yes
    Ports & interfaces (DisplayPort version)
    1.4
    Ports & interfaces (DisplayPorts quantity)
    3
    Processor (CUDA)
    No
    Processor (Graphics processor)
    Radeon RX 7600
    Processor (Graphics processor family)
    AMD
    Processor (Maximum displays per videocard)
    4
    Processor (Maximum resolution)
    7680 x 4320 pixels
    Processor (Processor boost clock speed)
    2755 MHz
    Memory (Data transfer rate)
    18 Gbit/s
    Memory (Discrete graphics card memory)
    8 GB
    Memory (Graphics card memory type)
    GDDR6
    Memory (Memory bus)
    128 bit
    Ports & interfaces (Interface type)
    PCI Express x8 4.0
    Performance (DirectX version)
    12 Ultimate
    Performance (Dual Link DVI)
    No
    Performance (TV tuner integrated)
    No
    Design (Cooling type)
    Active
    Design (Number of fans)
    2 fan(s)
    Power (Minimum system power supply)
    550 W
    Power (Supplementary power connectors)
    1x 8-pin
    Weight & dimensions (Length)
    240 mm
    Design (Number of slots)
    2
    Processor (Processor frequency)
    2355 MHz
    Design (Cooling technology)
    Sapphire Dual-X
    Processor (Stream processors)
    2048
    Logistics data (Country of origin)
    China
    Packaging content (Quick installation guide)
    Yes
    System requirements (Linux operating systems supported)
    Yes
    Processor (Ray accelerators)
    32
    System requirements (Minimum RAM)
    8192 MB
    Processor (Infinity cache)
    32 MB
