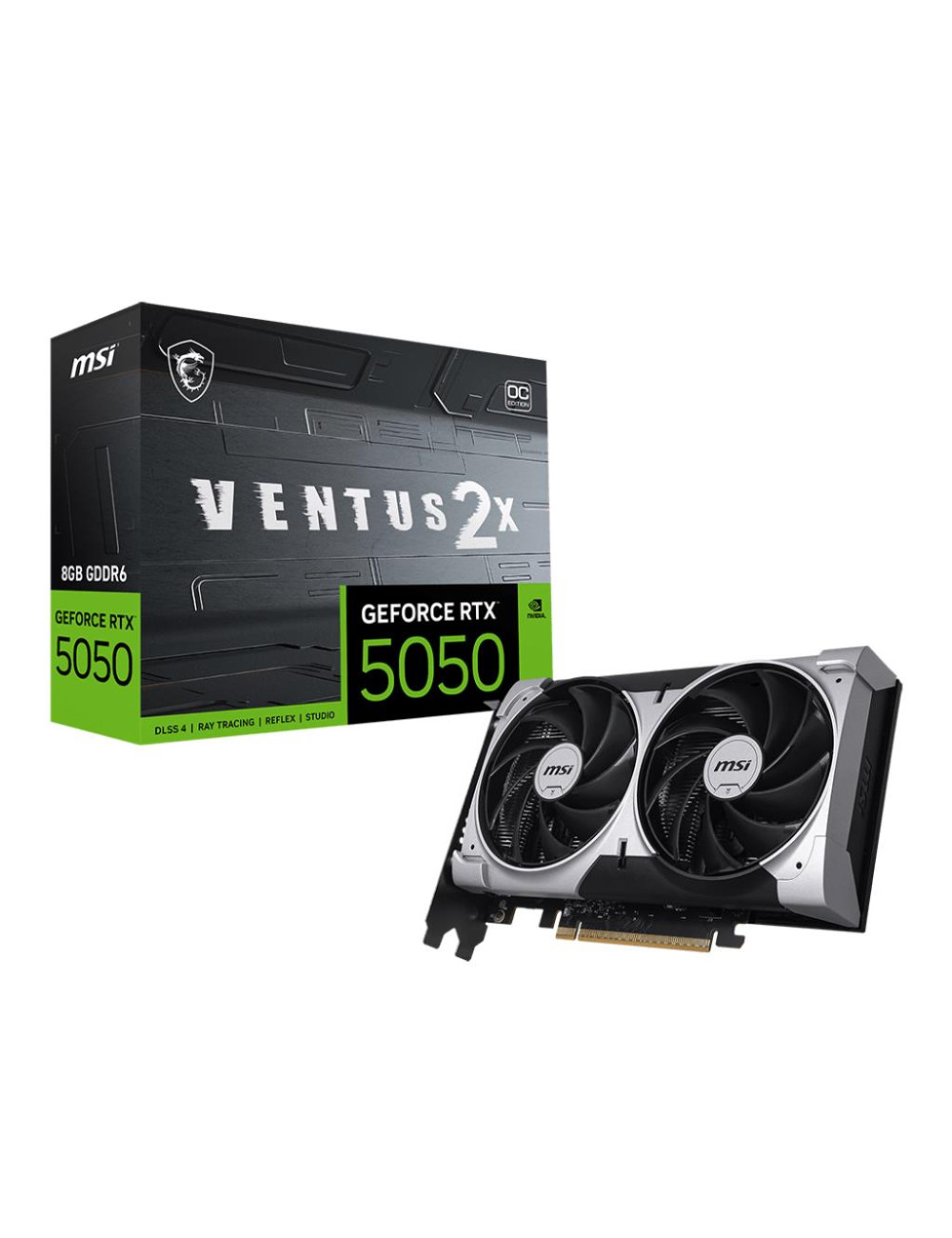

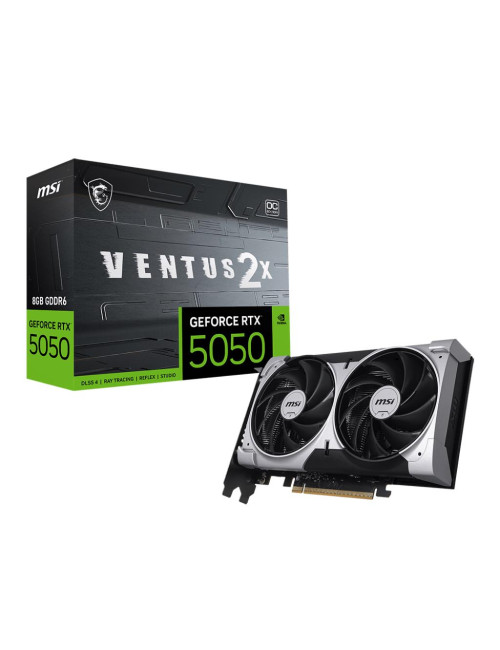

GeForce RTX™ 5050 8G VENTUS 2X OC
Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks:
Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Heat Pipe designed for efficient heat transfer, the heat pipe effectively draw thermal energy away from the GPU, improving overall cooling performance.
Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Product Details
Data sheet
- Chipset
- NVIDIA GeForce RTX 5050
- Memory bus
- 128 bit
- Power consumption
- 130 Watts
- CUDA cores
- 2560
- Garantija
- 36
- Category Code
- VGP
- Unit Box Height
- 0.205
- Unit Box Length
- 0.28
- Unit Box Width
- 0.075
- Vendor Homepage
- www.msi.com/Graphics-Card/GeForce-RTX-5050-8G-VENTUS-2X-OC
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (DisplayPort)
- 3
- Cooling System
- Dual Slot Fansink
- Dimensions
- 197 x 120 x 41 mm
- Card's length
- 160 to 200 mm
- GPU boost clock
- 2602 MHz
- Graphic card features
- Gaming/HDCP/Overclock Edition
- Graphics connector
- PCIE 5.0 16x
- Graphics memory size
- 8 GB
- Graphics memory type
- GDDR6
- Max resolution
- 7680x4320
- Memory CLK
- 20 Gbps
- Power connectors
- 8 pin
- MODEL
- RTX5050 8G VENTUS 2X OC
- Units per Shipping Box
- 12
- Product Net Weight
- 0.491 kg
- Unit Calculated Weight
- 0.983 kg
- Unit Calculated Volume
- 0.005503 cubm
