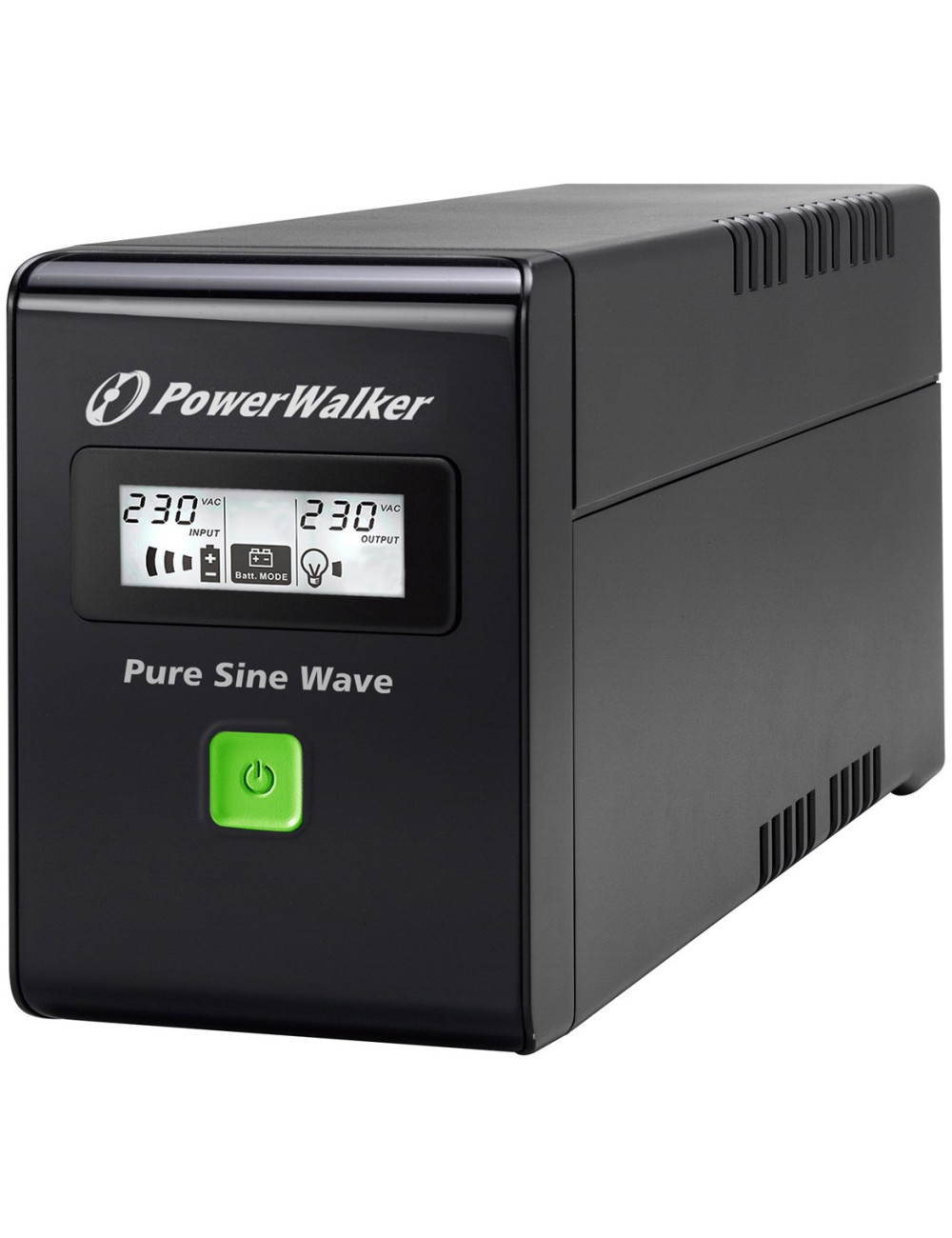

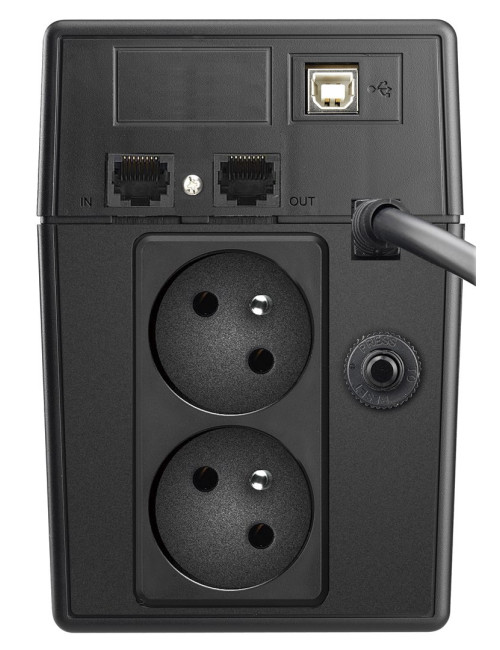

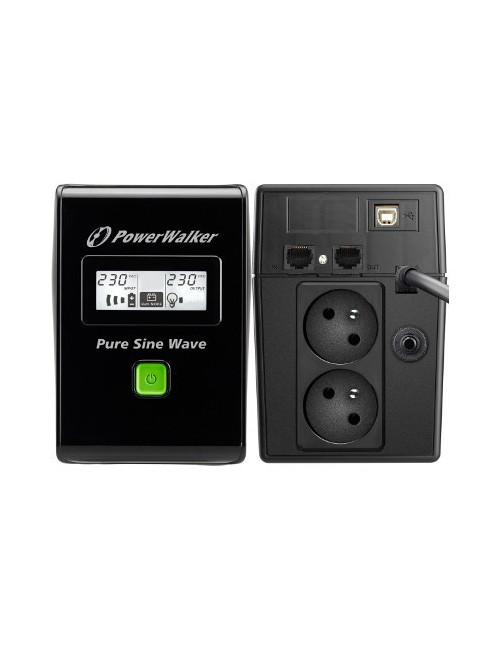

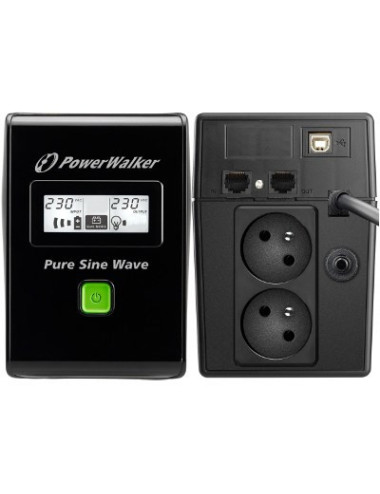

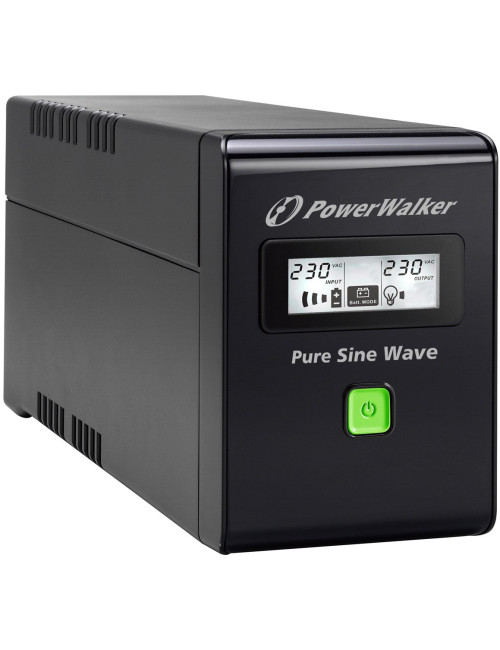

PowerWalker VI 800 SW FR uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 480 W 2 AC outlet(s)

Product Details

Data sheet

Width

100 mm

Height

145 mm

Depth

328 mm

Weight

6 kg

Package depth

385 mm

Package height

228 mm

Package width

140 mm

Number of batteries supported

1

Cables included

Input power cable, USB cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Form factor

Compact

USB port

Yes

Battery capacity

9 Ah

Output power

480 W

Input frequency

50/60 Hz

USB 2.0 ports quantity

1

Display type

LCD

Ethernet LAN (RJ-45) ports

2

Efficiency

96.2%

Input operation voltage (min)

162 V

Power protection features

Short circuit

AC outlets quantity

2 AC outlet(s)

Output power capacity

0.8 kVA

Output operation voltage (max)

240 V

Waveform

Pure sine

AC outlet types

Type E

Input operation voltage (max)

290 V

Audible alarm(s)

Yes

Battery voltage

12 V

Output operation voltage (min)

220 V

UPS topology

Line-Interactive

Automatic Voltage Regulation (AVR)

Yes

Typical backup time at half load

5 min

Surge protection

Yes

Output frequency regulation

1 Hz

Output voltage regulation

10%

Output frequency

50/60 Hz

Product colour

Black

Harmonized System (HS) code

85078000

Products per pallet

128 pc(s)

Software CD

Yes

Products per master (outer) case

4 pc(s)

Master (outer) case gross weight

27.5 kg

Master (outer) case height

250 mm

Master (outer) case length

390 mm

Master (outer) case width

580 mm

Audible alarm modes

Alarm when on battery, Fault, Low battery alarm

Output power factor

0.6

Battery recharge time (90%)

7 h
