ENERGENIE

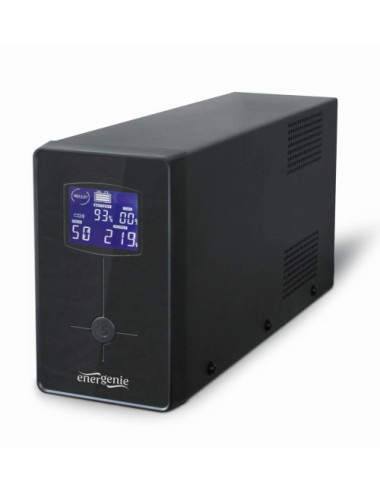

Gembird EG-UPS-035 uninterruptible power supply (UPS) Line-Interactive 2 kVA 1200 W 5 AC outlet(s)

€149.03

Tax included

Product Details
Quick Compare

Product Details

Reference ZSIEEEUPS0021

In stock 8 Items

Data sheet

Package type: Box
Width: 220 mm
Height: 125 mm
Depth: 400 mm
Weight: 12.9 kg
Package height: 180 mm
Package width: 300 mm
Number of batteries supported: 2
Cables included: Input power cable, USB cable
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 90%
Form factor: Tower
USB port: Yes
LED indicators: Yes
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery recharge time: 8 h
Output power: 1200 W
Input frequency: 50/60 Hz
Response time: 10 ms
Display type: LCD
Ethernet LAN (RJ-45) ports: 1
Input operation voltage (min): 162 V
Power protection features: Overcharge
Cold start: Yes
AC outlets quantity: 5 AC outlet(s)
Output power capacity: 2 kVA
Output operation voltage (max): 220 V
Waveform: Sine/Square
AC outlet types: C13 coupler
Input operation voltage (max): 295 V
Battery voltage: 12 V
UPS topology: Line-Interactive
Typical backup time at full load: 20 min
Automatic Voltage Regulation (AVR): Yes
Typical backup time at half load: 8 min
Surge protection: Yes
Output frequency: 50/60 Hz
Noise Level: 45 dB
Power plug: C14 coupler
Product colour: Black
Sustainability compliance: Yes
USB port type: USB Type-B
Charging current: 0.5 A
Customs product code (TARIC): 8504408590
Compliance certificates: RoHS
Warnings: Do not disassemble the unit housing, there may be a risk of electric shock.
