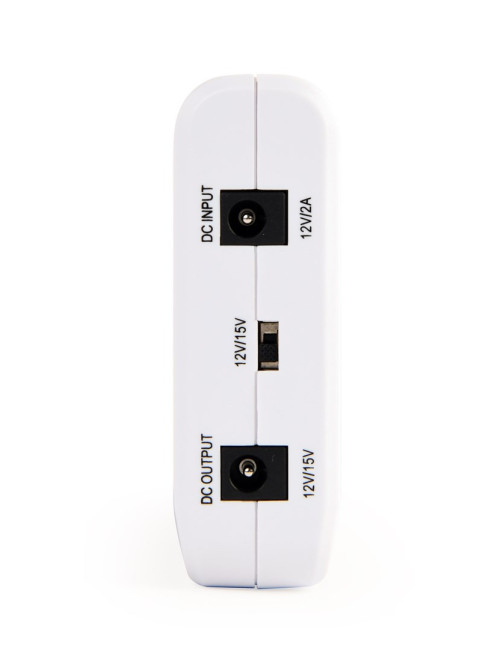

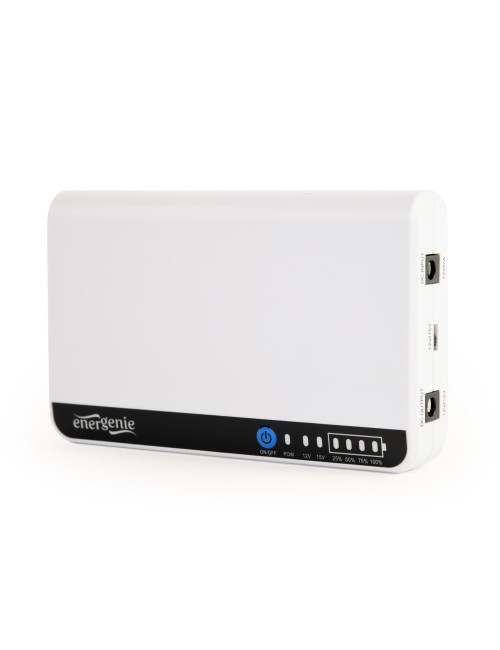

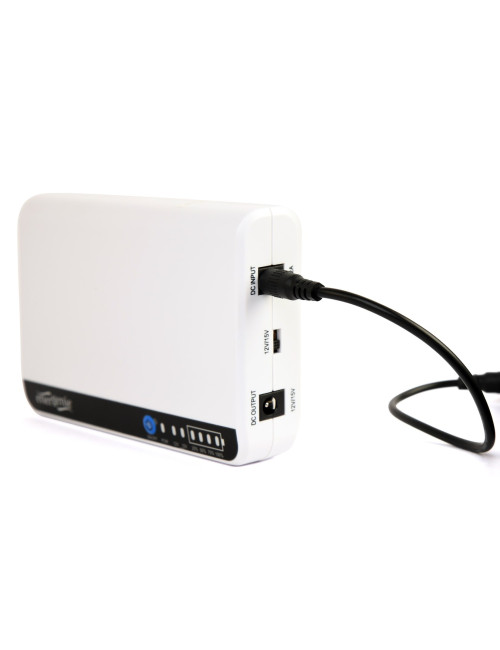

Gembird EG-UPS-DC18 UPS for DC devices, 12 or 15 V, 18 W, white

Product Details

Reference ZSIEEEUPS0027

In stock 7 Items

Data sheet

Package type

Box

Width

88 mm

Height

27 mm

Depth

141 mm

Weight

275 g

Package height

100 mm

Package width

30 mm

Number of batteries supported

3

Power source type

DC

Cables included

Power load cable

Manual

Yes

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 90%

Form factor

Compact

LED indicators

Yes

Battery technology

Lithium-Ion (Li-Ion)

Battery capacity

2200 Ah

Battery recharge time

1 h

Cooling type

Passive

Output power

18 W

Input voltage

12 V

Output voltage

12 V

Input operation voltage (min)

12 V

Output operation voltage (max)

15 V

Input operation voltage (max)

12 V

Battery voltage

12 V

Output operation voltage (min)

12 V

Typical backup time at full load

70 min

Automatic Voltage Regulation (AVR)

No

Output voltage regulation

+-5%

Maximum current

1.5 A

Product colour

White

Compliance certificates

RoHS

Number of input phases

2

Number of output phases

2

Warnings

Do not disassemble the unit housing, there may be a risk of electric shock.
