EATON

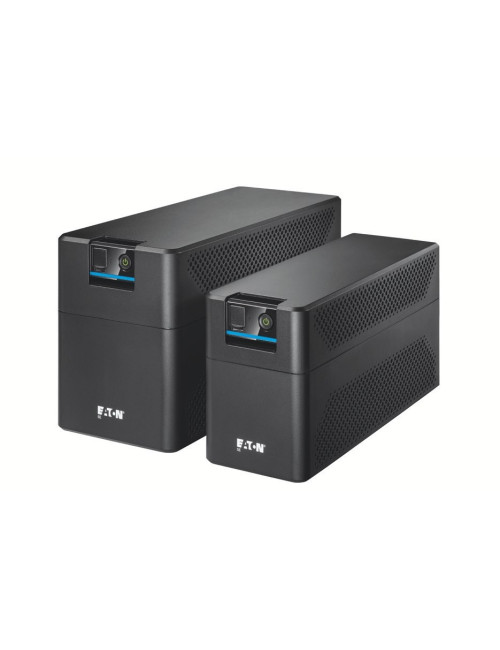

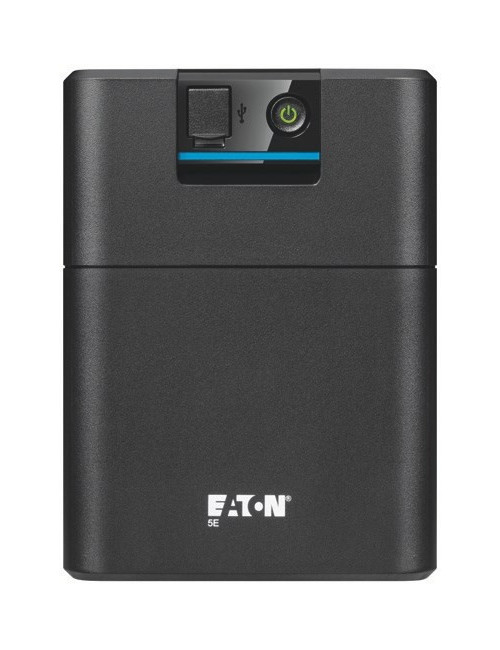

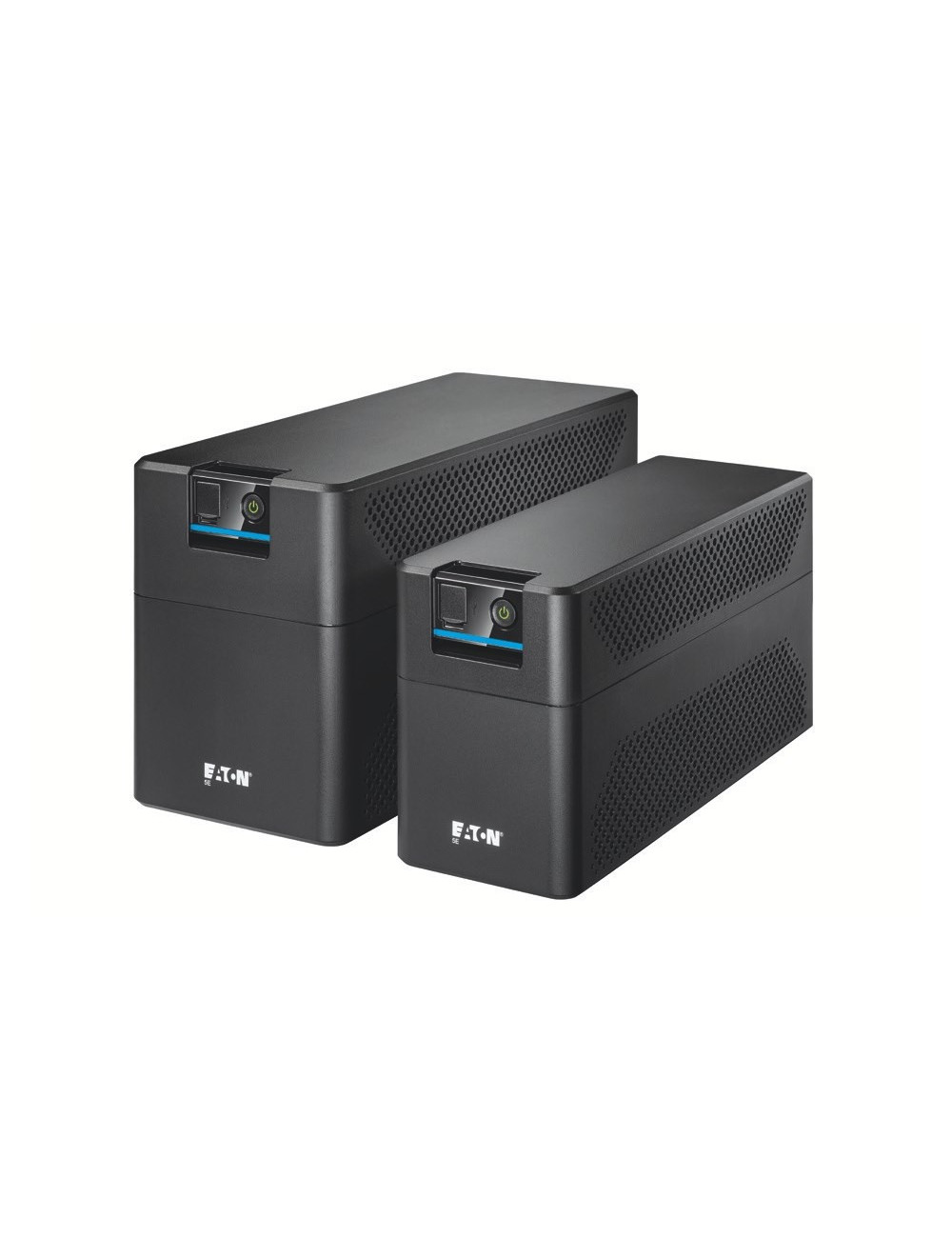

    Eaton 5E Gen2 1600 USB Line-Interactive 1.6 kVA 900 W 6 AC outlet(s)

    €173.47
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    ZSIEATUPS0069
    3 Items

    Data sheet

    Width
    133 mm
    Height
    330 mm
    Depth
    180 mm
    Weight
    9.3 kg
    Power source type
    AC
    Operating temperature (T-T)
    0 - 40 °C
    Form factor
    Tower
    USB port
    Yes
    Control type
    Buttons
    Output power
    900 W
    Input frequency
    50/60 Hz
    USB 2.0 ports quantity
    1
    Input operation voltage (min)
    220 V
    Power protection features
    Over voltage
    Cold start
    Yes
    AC outlets quantity
    6 AC outlet(s)
    Output power capacity
    1.6 kVA
    Output operation voltage (max)
    240 V
    Auto-restart
    Yes

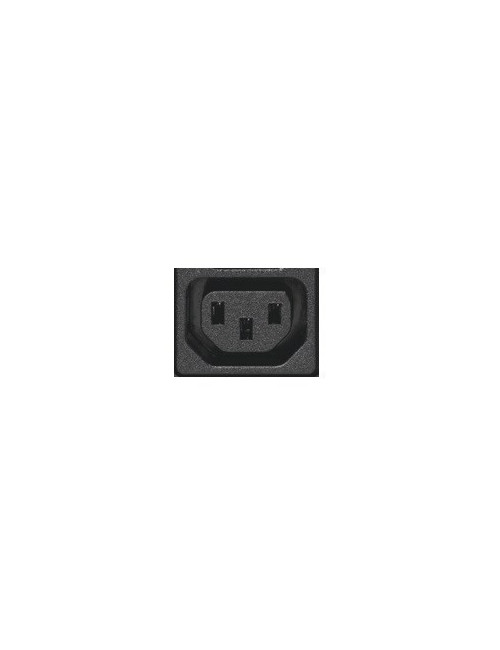

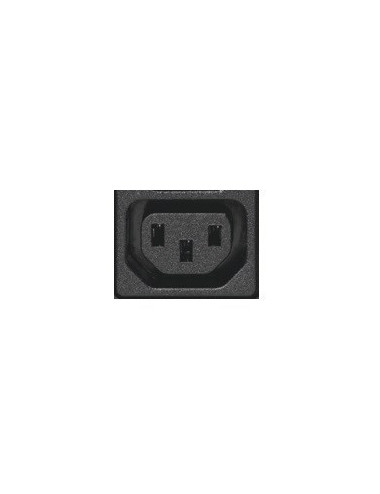

    AC outlet types
    C13 coupler
    Input operation voltage (max)
    240 V
    Audible alarm(s)
    Yes
    Output operation voltage (min)
    220 V
    UPS topology
    Line-Interactive
    Automatic battery test
    Yes
    Noise Level
    25 dB
    Product colour
    Black
    Sustainability certificates
    Low Voltage Directive (LVD)
    Sustainability compliance
    Yes
    Audible alarm modes
    Battery replacement
