EATON

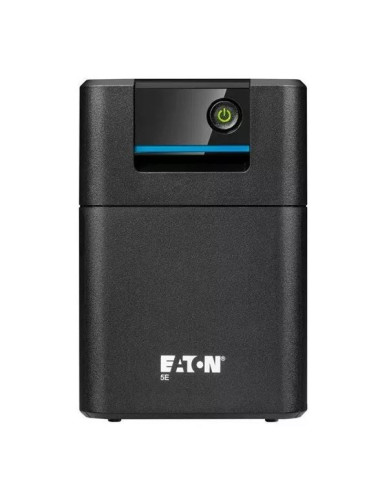

Eaton 5E Gen2 1600 USB uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 900 W 4 AC outlet(s)

€184.33

Tax included

Product Details
Quick Compare

Product Details

Reference ZSIEATUPS0083

In stock 5 Items

Data sheet

Width: 133 mm
Height: 330 mm
Depth: 180 mm
Weight: 9.3 kg
Power source type: AC
Operating temperature (T-T): 0 - 40 °C
Form factor: Tower
USB port: Yes
Control type: Buttons
Output power: 900 W
Input frequency: 50/60 Hz
USB 2.0 ports quantity: 1
Input operation voltage (min): 220 V
Power protection features: Under voltage
Cold start: Yes
AC outlets quantity: 4 AC outlet(s)
Output power capacity: 1.6 kVA
Output operation voltage (max): 240 V
Auto-restart: Yes
AC outlet types: Type F
Input operation voltage (max): 240 V
Audible alarm(s): Yes
Output operation voltage (min): 220 V
UPS topology: Line-Interactive
Automatic battery test: Yes
Noise Level: 25 dB
Product colour: Black
Sustainability certificates: RoHS
Sustainability compliance: Yes
Audible alarm modes: Battery replacement

Quick Compare

Product	UPS\|EATON\|900 Watts\|1600 VA\|Wave form type Pure sinewave\|LineInteractive\|Phase 1phase\|Desktop/pedestal\|5E1600UI	PowerWalker VI 2200 STL uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1320 W 4 AC outlet(s)	APC Back-UPS BE850G2 - UPS - 520 Watt	Eaton 3S850F uninterruptible power supply (UPS) Standby (Offline) 0.85 kVA 510 W 8 AC outlet(s)
Availability
Price	€174.01	€175.26	€175.35	€178.86
Description	900 Watts \| 1600 VA \| Wave form type Pure sinewave \| Topology LineInteractive \| Phase 1phase \| Output power connector type IEC 320 C13 \| Colour Black
Colour	Black
Cable length			1.83 m	1.5 m
Width			130 mm	335 mm
Height			120 mm	86 mm
Depth			365 mm	170 mm
Weight			4.5 kg	4.3 kg
Package height			190 mm
Package width			186 mm
Number of batteries supported		2
Storage relative humidity (H-H)			0 - 95%
Manual			Yes
Operating temperature (T-T)			0 - 40 °C	0 - 40 °C
Operating relative humidity (H-H)			0 - 90%
Storage temperature (T-T)			-15 - 45 °C
Form factor		Tower	Compact
USB port		Yes	Yes	Yes
LED indicators		Yes	Yes	Yes
Battery technology			Sealed Lead Acid (VRLA)	Sealed Lead Acid (VRLA)
Battery life (max)			5 year(s)
Battery capacity		9 Ah	93 Ah
Battery recharge time		8 h	16 h
Cooling type		Active
Output power		1320 W	520 W	510 W
Input frequency		50/60 Hz	47/63 Hz	50/60 Hz
USB 2.0 ports quantity		1	2	2
Response time		4 ms
Display type		LCD
Garantija	24
Category Code	UPW
Unit Box Height	0.32
Unit Box Length	0.47
Unit Box Width	0.245
Vendor Homepage	www.eaton.com/content/dam/eaton/products/backup-power-ups-surge-it-power-distribution/backup-power-ups/eaton_5e_ups/eaton-5e-ups---emea/eaton-dpq-5egen2-ups-datasheet-en-gb.pdf
Dimensions	330 x 180 x 133mm
Efficiency		95.7%
Input operation voltage (min)		162 V	220 V	161 V
Power protection features				Overdischarge
Cold start			Yes	Yes
AC outlets quantity		4 AC outlet(s)	8 AC outlet(s)	8 AC outlet(s)
Output power capacity		2.2 kVA	0.85 kVA	0.85 kVA
Output operation voltage (max)			230 V	240 V
Waveform		Sine	Sine
AC outlet types		Type E	Type F	Type E
Input operation voltage (max)		290 V	230 V	284 V
Audible alarm(s)			Yes
Battery voltage		12 V
Output operation voltage (min)			220 V	220 V
UPS topology		Line-Interactive	Standby (Offline)	Standby (Offline)
Typical backup time at full load		0.25 min	2 min
Automatic Voltage Regulation (AVR)		Yes	No
Automatic battery test			Yes	Yes
Typical backup time at half load		3.9 min	9 min
Surge protection			Yes	Yes
Nominal input voltage				230 V
Nominal output voltage		230 V
Operating altitude			0 - 900 m	0 - 3000 m
MODEL	5E1600UI
Output frequency		50/60 Hz	47/63 Hz	50 Hz
Mounting Type (Desktop/pedestal)	Yes
Noise Level			45 dB
Maximum current			6 A	10 A
Surge energy rating			310 J
Power plug			Type F
Non-operating altitude			0 - 4500 m
Product colour		Black	Black	Black
Harmonized System (HS) code		85078000	85078000	85078000
Sustainability certificates			Green Premium
Safety				IEC 62040-1; IEC 62040-2 C2; IEC 62040-3; IEC 62040-4; IEC 61643-11
Master (outer) case gross weight			16 kg
Hot-swap battery			Yes	No
Compliance certificates			RoHS
Audible alarm modes			Alarm when on battery, Low battery alarm, Overload alarm
Surge protection features			Digital Subscriber Line (DSL)
Number of type F outputs			8
Warnings				Do not disassemble the unit housing, there may be a risk of electric shock.
Units per Shipping Box	1
Product Net Weight	9.3 kg
Unit Calculated Weight	10.5 kg
Unit Calculated Volume	0.036848 cubm
Output power capacity, W	900 Watts
Output power capacity, VA	1600 VA
Wave form type	Pure sinewave
Topology	LineInteractive
Phase	1phase
Output power connector type	IEC 320 C13
Communication ports (USB)	1
Buttons: (On/Off)	YES
