Qoltec

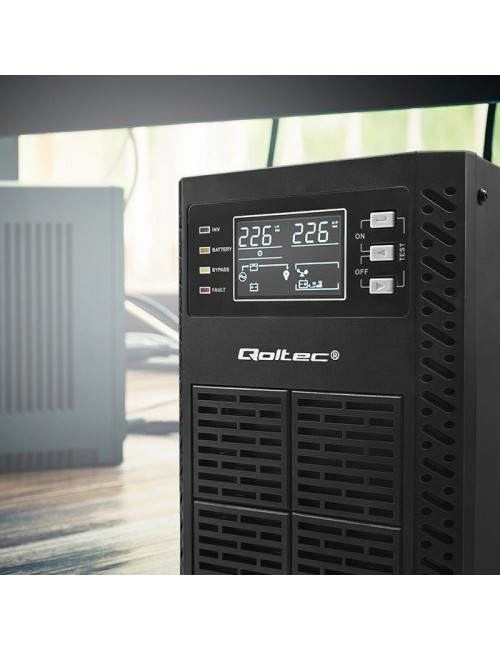

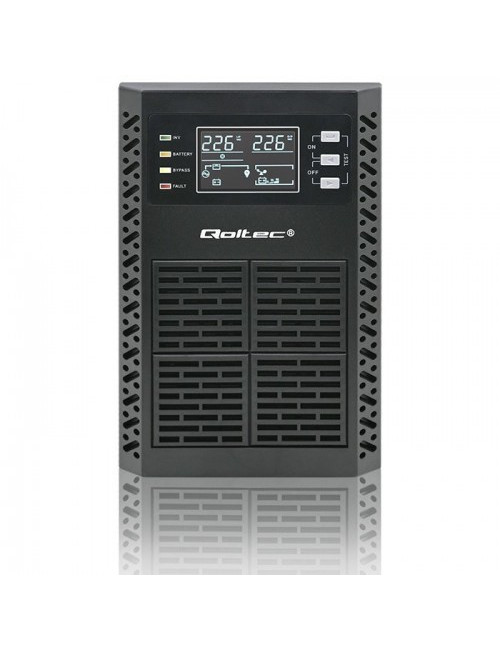

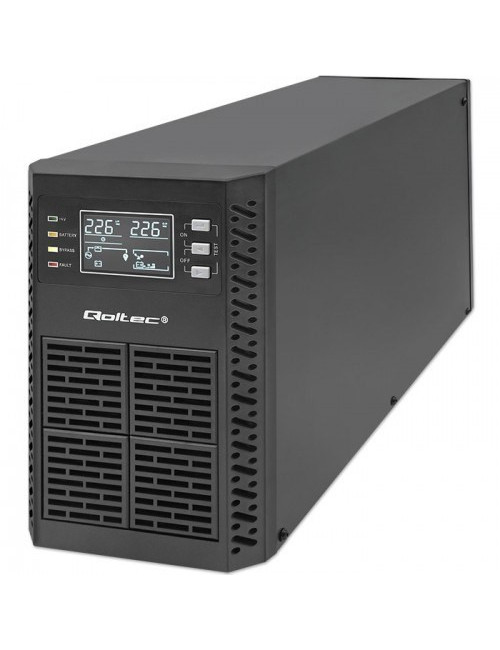

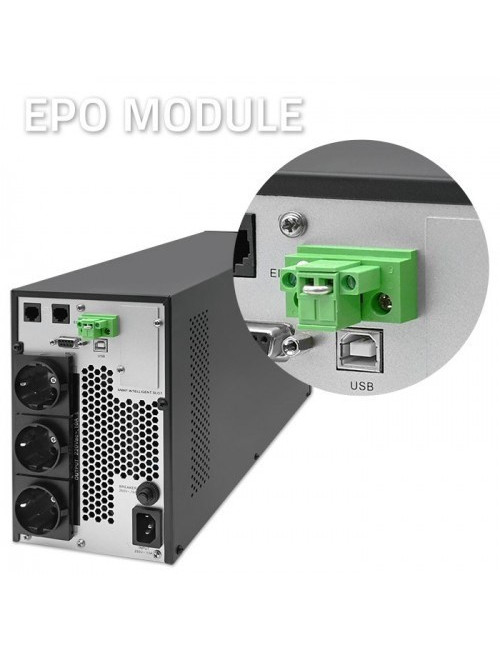

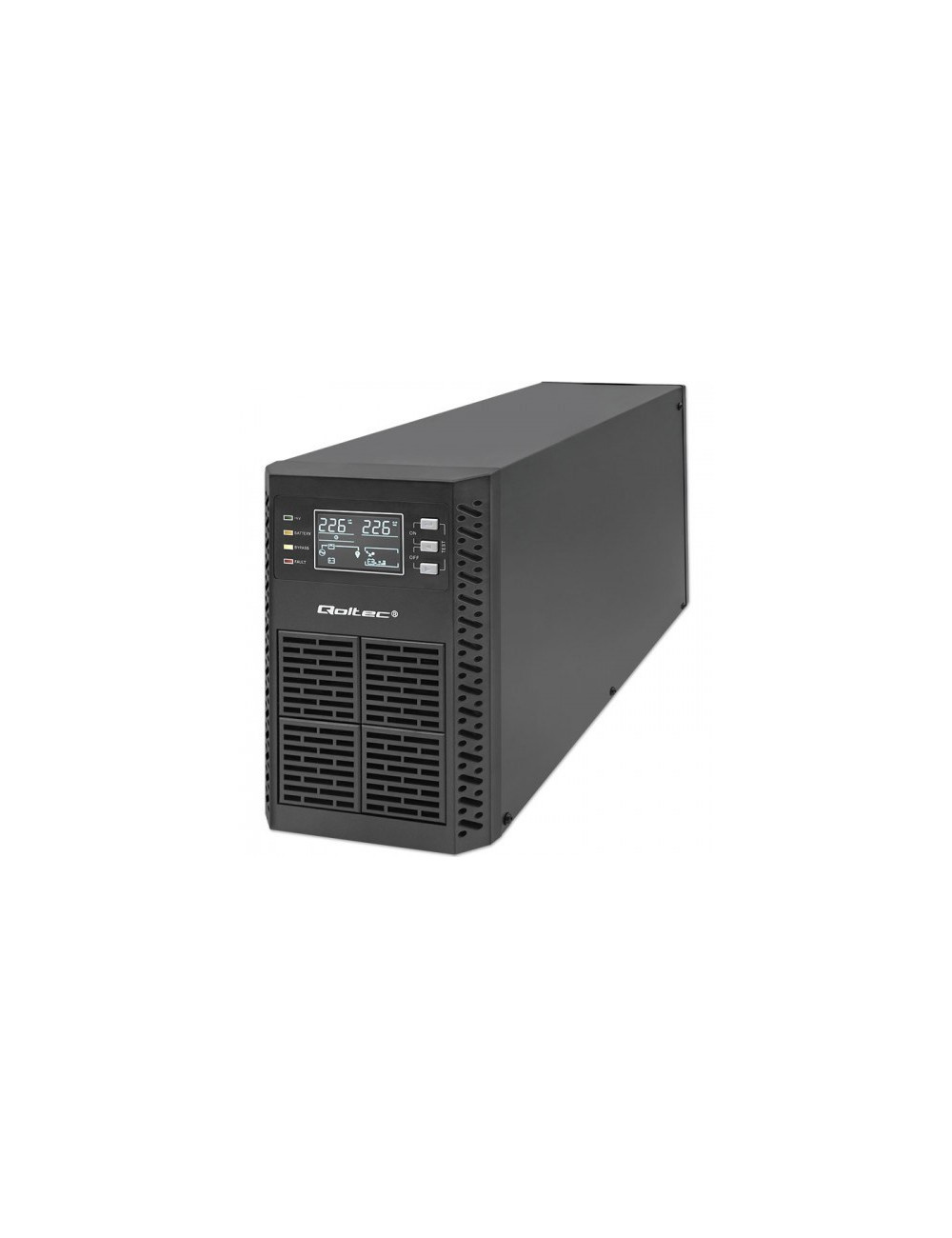

Qoltec Uninterruptible Power Supply (UPS) | 2kVA | 2000W | Power Factor 1.0 | LCD | EPO | USB | Online

€347.27

Tax included

Product Details
Quick Compare

Product Details

Brand Qoltec

Reference WLONONWCROFDD

In stock 45 Items

Data sheet

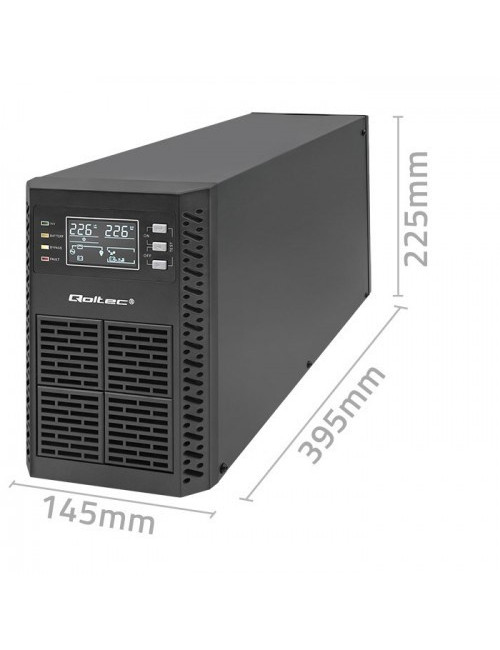

Width: 141 mm
Height: 225 mm
Depth: 395 mm
Weight: 17.1 kg
Package depth: 475 mm
Package height: 330 mm
Package width: 235 mm
Package weight: 18.1 kg
Number of batteries supported: 4
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 95%
Storage temperature (T-T): -15 - 60 °C
Form factor: Compact
USB port: Yes

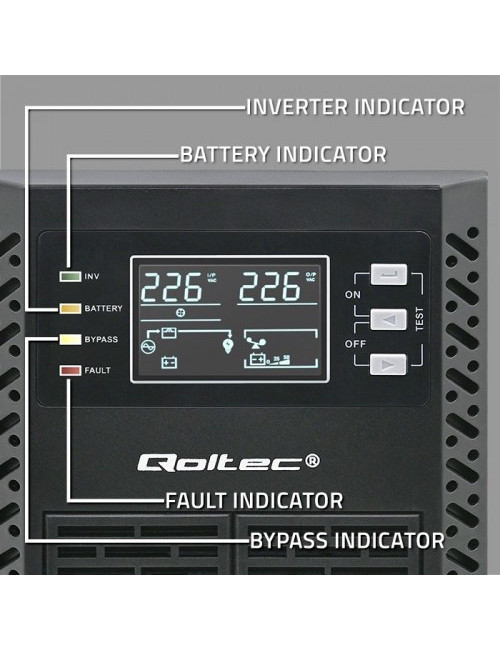

LED indicators: Yes
Battery capacity: 9 Ah
Control type: Buttons
Cooling type: Passive
Output power: 2000 W
USB 2.0 ports quantity: 1

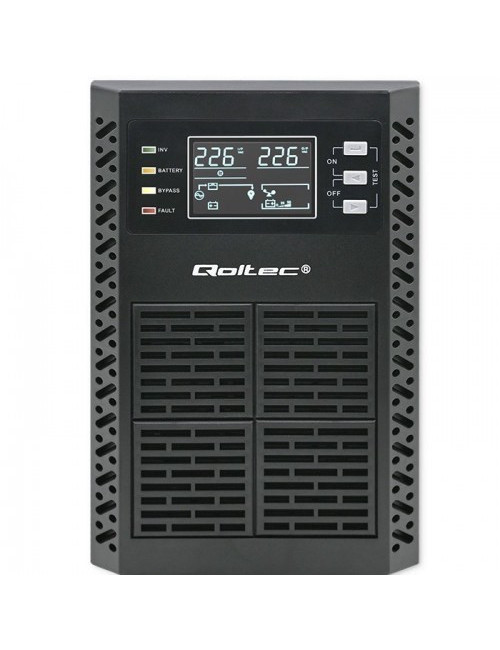

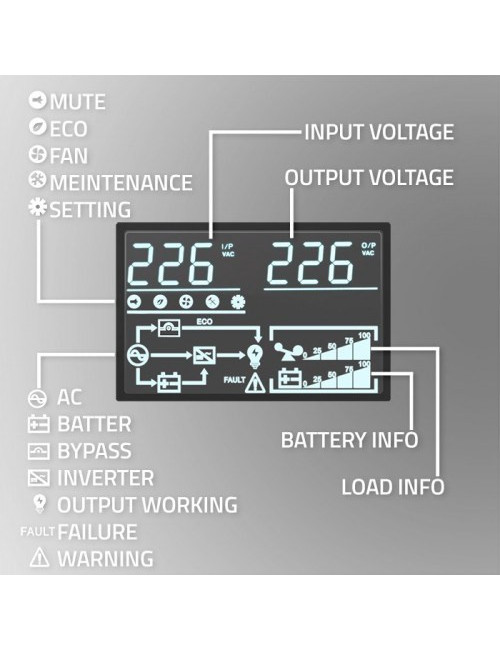

Display type: LCD
Ethernet LAN (RJ-45) ports: 2
Input operation voltage (min): 110 V
Power protection features: Short circuit

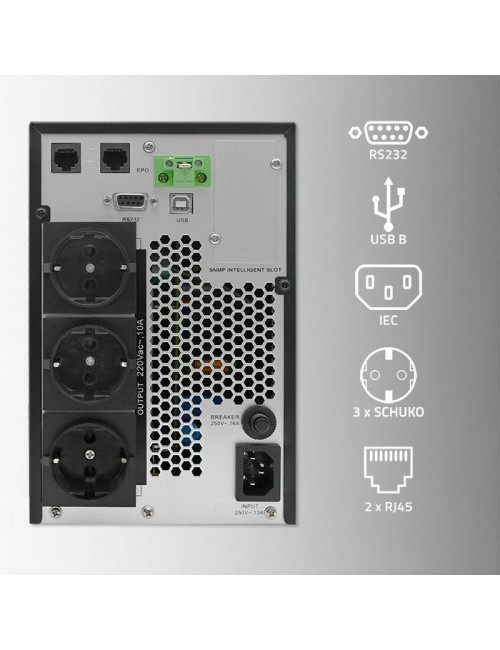

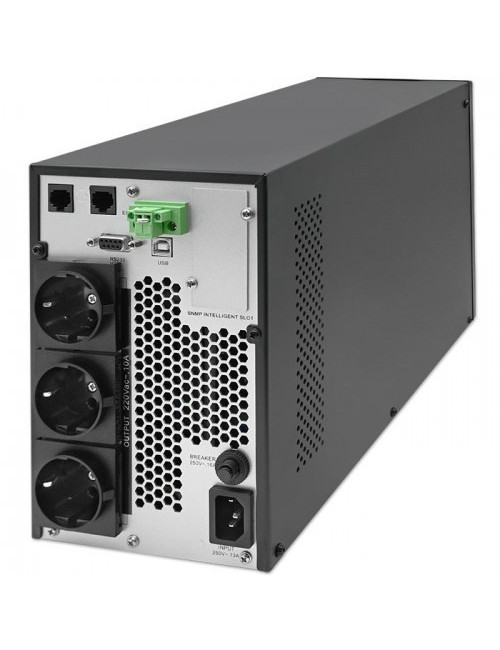

AC outlets quantity: 3 AC outlet(s)
Output power capacity: 2 kVA
Output operation voltage (max): 240 V
Waveform: Pure sine
AC outlet types: Type F
Input operation voltage (max): 300 V
Battery voltage: 48 V
Output operation voltage (min): 220 V
UPS topology: Double-conversion (Online)
Output frequency regulation: 0.05 Hz
Output voltage regulation: 5%
RS-232 ports: 1
Serial interface type: RJ-45, RS-232
Output frequency: 50/60 Hz
Noise Level: 50 dB
Product colour: Black
Serial interface: Yes
USB port type: USB Type-B
Charging current: 5 A
Built-in fan: Yes
