POWER WALKER

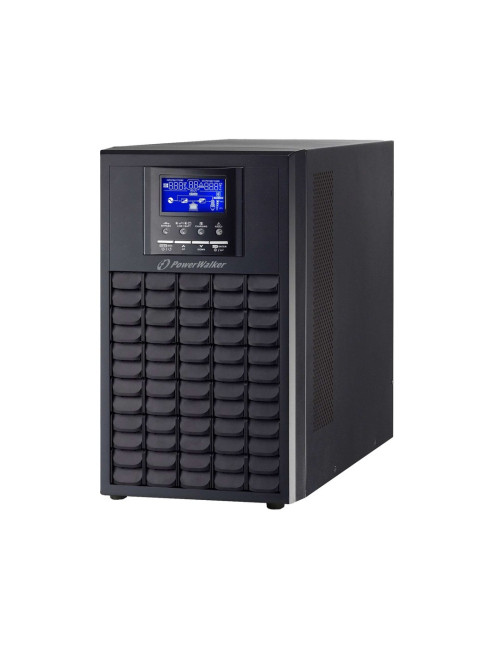

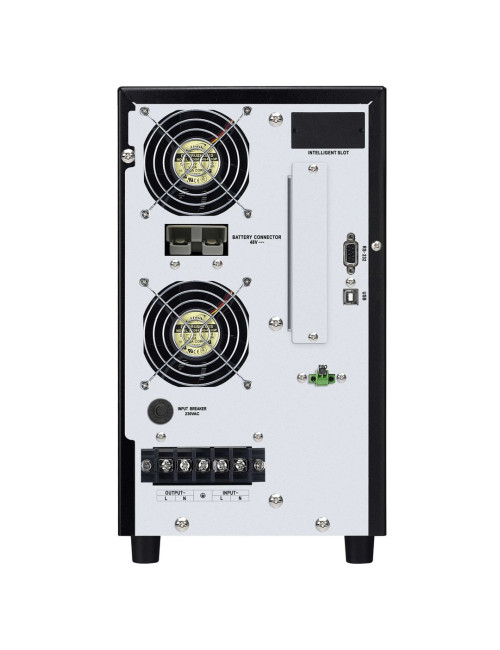

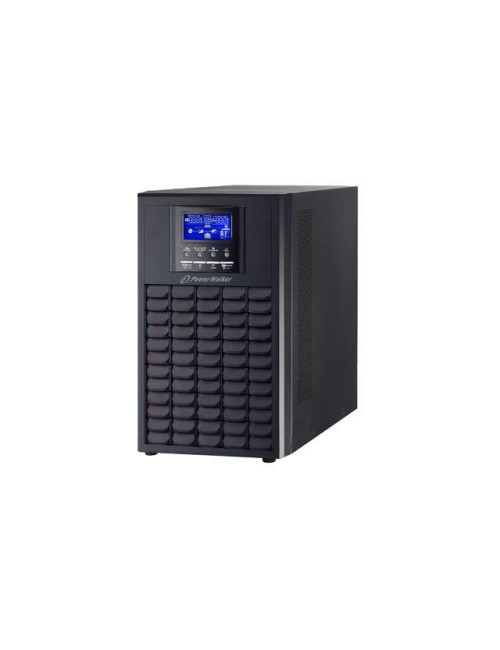

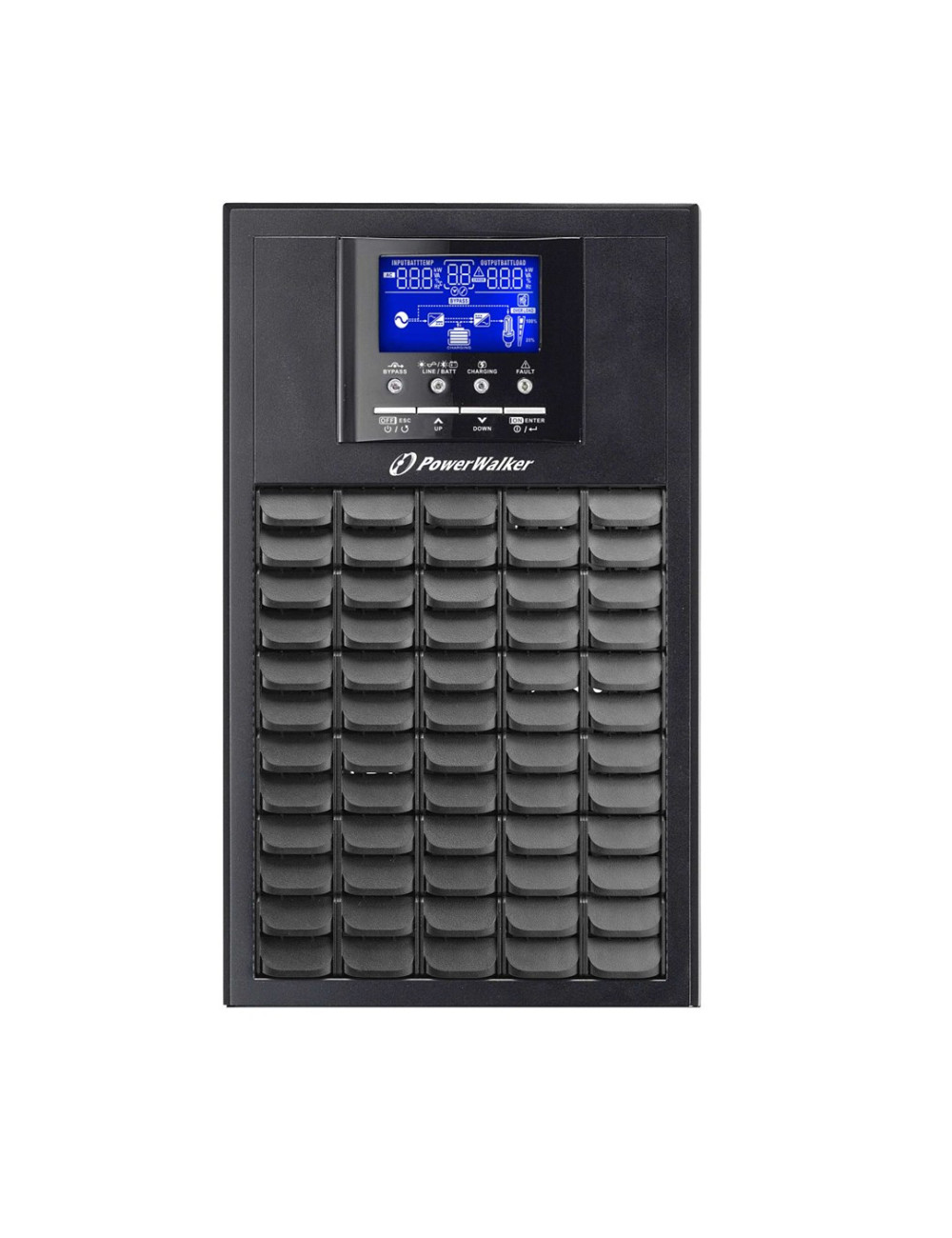

    PowerWalker VFI 5000 EVS uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 5000 W

    €777.96
    Tax included
    Quantity

    Add to favorites Add to compare

    Product Details

    POWER WALKER
    WLONONWCRJEDF
    2 Items

    Data sheet

    Width
    465 mm
    Height
    190 mm
    Depth
    336 mm
    Weight
    14.2 kg
    Package depth
    330 mm
    Package height
    460 mm
    Package width
    560 mm
    Package weight
    15.7 kg
    Batteries included
    No
    Power source type
    AC
    Operating temperature (T-T)
    0 - 50 °C
    Operating relative humidity (H-H)
    5 - 95%
    Form factor
    Tower
    USB port
    Yes
    LED indicators
    Yes
    Battery technology
    Sealed Lead Acid (VRLA)
    Control type
    Buttons
    Cooling type
    Active
    Output power
    5000 W
    Input frequency
    45/66 Hz
    Response time
    0 ms
    Display type
    LCD
    Input operation voltage (min)
    110 V
    Cold start
    Yes
    Output power capacity
    5 kVA
    Waveform
    Pure sine
    AC outlet types
    Terminal
    Input operation voltage (max)
    280 V
    Battery voltage
    48 V
    UPS topology
    Double-conversion (Online)
    Nominal output voltage
    230 V
    Output frequency regulation
    0.1 Hz
    Output voltage regulation
    3%
    International Protection (IP) code
    IP20
    Power plug
    Terminal
    Product colour
    Black
    ECO mode
    Yes
    USB port type
    USB Type-B
    Charging current
    60 A
    Output voltage Total Harmonic Distortion (THD)
    3%
    SmartSlot
    Yes
    Emergency Power Off (EPO)
    Yes
    Output power factor
    1
    Built-in fan
    Yes
    Number of input phases
    1
    Number of output phases
    1
    Efficiency (On-line mode)
    93%
