• New

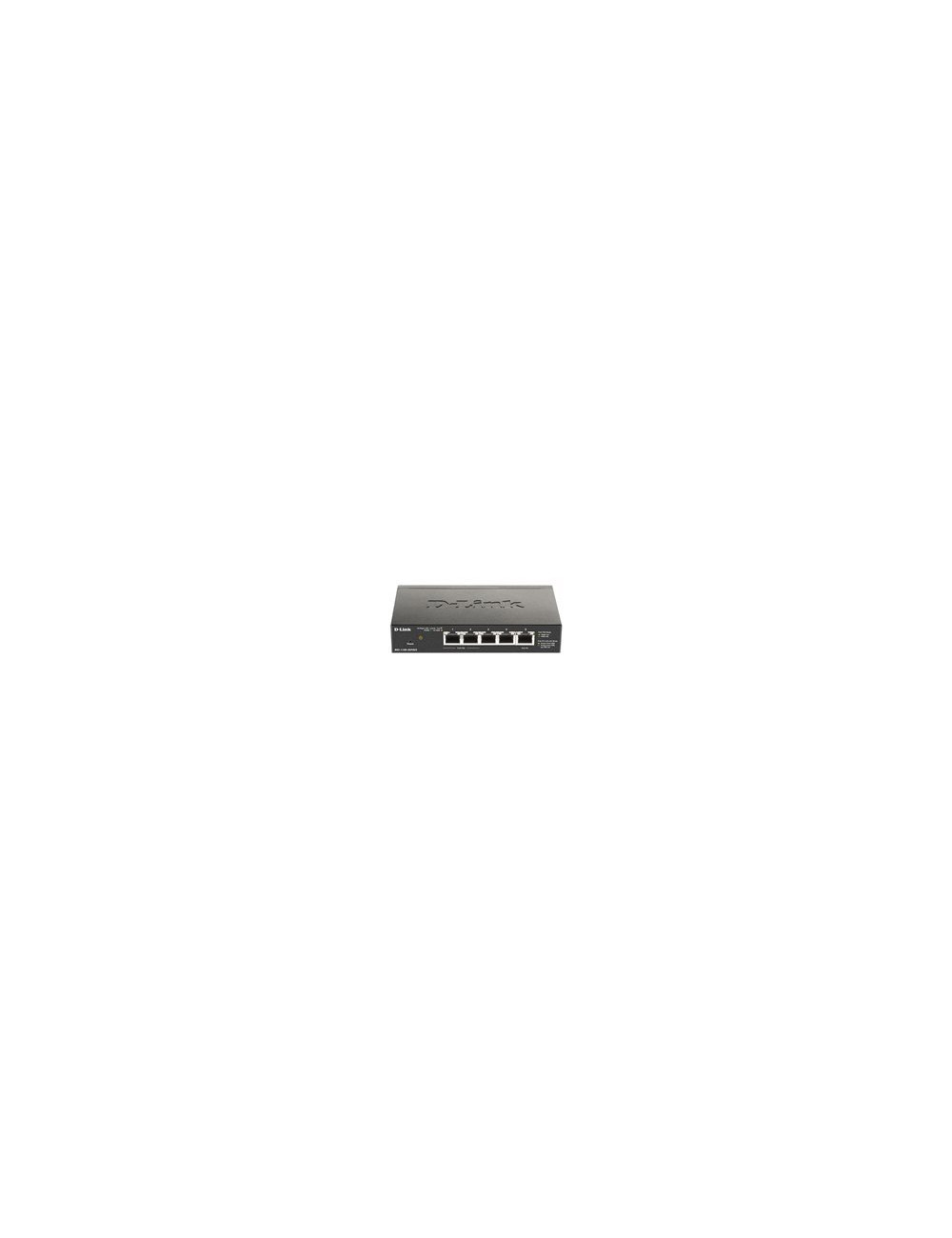

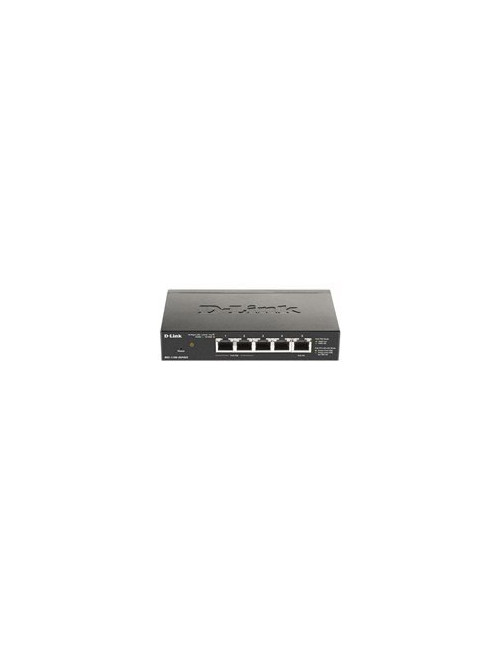

D-LINK 5-Port Gigabit PoE Smart Switch
D-Link

D-LINK 5-Port Gigabit PoE Smart Switch

€84.49
Tax included
The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution to meet your networking requirements.
Quantity

Add to favorites Add to compare
  • Gigabit Ethernet speed
  • Revolutionary energy efficiency
  • Smart and flexible management
  • Surveillance VLAN and bandwidth control
  • Advanced features
  • Easy troubleshooting

Product Details

D-Link
DGS-1100-05PDV2
2 Items

Data sheet

Dimensions (WxDxH)
15 cm x 9.7 cm x 2.8 cm
Weight
840 g
Device type
Switch - 5 ports - smart
Capacity
VLAN groups: 128 VLAN IDs: 4094 IGMP groups: 128
Features
Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP su
PRODUCT DESCRIPTION
D-Link DGS 1100-05PDV2 - switch - 5 ports - smart
Performance
Switching capacity: 10 Gbps Forwarding performance: 7.44 Mpps
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Ports
5 x 10/100/1000 (2 PoE)
Routing Protocol
IGMPv2, IGMP, IGMPv3
Remote Management Protocol
SNMP 2, ICMP
Power Over Ethernet (PoE)
PoE
Subtype
Gigabit Ethernet
PoE Budget
18 W
MAC Address Table Size
2K entries

Quick Compare

Product
 NET SWITCH 16PORT 1000M/TL-SG1016DE TP-LINK NET SWITCH 16PORT 1000M/TL-SG1016DE TP-LINK Switch|TP-LINK|TL-SG1210P|Desktop/pedestal|9x10Base-T / 100Base-TX / 1000Base-T|1xSFP|PoE+ ports 8|TL-SG1210P Switch|TP-LINK|TL-SG1210P|Desktop/pedestal|9x10Base-T / 100Base-TX / 1000Base-T|1xSFP|PoE+ ports 8|TL-SG1210P Switch|DAHUA|PFS3110-8ET-96-V2|PoE ports 8|96 Watts|DH-PFS3110-8ET-96-V2 Switch|DAHUA|PFS3110-8ET-96-V2|PoE ports 8|96 Watts|DH-PFS3110-8ET-96-V2 D-Link | 5-Port Gigabit PoE Smart Managed Switch and PoE Extender | DGS-1100-05PDV2 | Web managed | Desktop | Power supply type D-Link | 5-Port Gigabit PoE Smart Managed Switch and PoE Extender | DGS-1100-05PDV2 | Web managed | Desktop | Power supply type
Availability
Price
€73.89
€73.89
€76.75
€79.51
Description
 16x10Base-T / 100Base-TX / 1000Base-T|IEEE 802.1p|IEEE 802.1Q|IEEE 802.3|IEEE 802.3ab|IEEE 802.3u|IEEE 802.3x|Switching capacity 32 Gbps|Forwarding rate 23.8 Mpps|Switching method Store-and-forward|Included Accessories Power Cord,Installation Guide,Resource CD,Rackmount Kit,Rubber Feet.|Unit Net Weight 1.5 kg Desktop/pedestal|9x10Base-T / 100Base-TX / 1000Base-T|1xSFP|PoE+ ports 8|Switching capacity 20 Gbps|Switching method Store-and-forward|Dimensions 209 × 126 × 26 mm|Unit Net Weight 0.8 kg PoE ports 8|PoE power budget 96 Watts|Switching capacity 3.6 Gbps|Forwarding rate 2.678 Mpps|Dimensions 190 × 100 × 30mm|Unit Net Weight 0.47 kg D-Link | 5-Port Gigabit PoE Smart Managed Switch and PoE Extender | DGS-1100-05PDV2 | Web managed | Desktop | Power supply type External
Warranty
 60 month(s)
Producer product name
 DGS-1100-05PDV2
Net weight
 0.38 kg
Gross weight
 0.48 kg
WEEE tax
 Yes
Packing quantity
 1.00 pc(s)
Gross depth master carton
 500 mm
Gross width master carton
 295 mm
Gross height master carton
 370 mm
Net weight master carton
 10.92 kg
Tare weight master carton
 0.546 kg
Volume (m3)
 0.00 m
Tare weight (kg)
 0.10 kg
Gross depth (mm)
 150.00 mm
Gross width (mm)
 100.00 mm
Gross height (mm)
 30.00 mm
WEE classification
 CL109:5:2017-04-01
Paper/Pasteboard
 90.00 g
Embeeded battery
 No
Other features
 Fanless
Plastic (No PET)
 10.00 g
Producer product family
 5-Port Gigabit PoE Smart Managed Switch and PoE Extender
Form factor
 Desktop
Power supply type
 External
Palette Qty
 2083 pc(s)
Switch type
 Web Managed
Ethernet LAN (RJ-45) ports
 5
Garantija
 60 60 36
Category Code
 SWI SWI SWI
Unit Box Height
 0.08 0.24 0.245
Unit Box Length
 0.41 0.315 0.265
Unit Box Width
 0.25 0.065 0.08
Unit Net Weight
 1.5 kg 0.8 kg 0.47 kg
Vendor Homepage
 http://www.tp-link.com/en/products/details/?categoryid &model TL-SG1016DE www.tp-link.com/en/business-networking/unmanaged-switch/tl-sg1210p/ www.dahuasecurity.com/products/All-Products/Transmission/PoE-Switches/Hardened-PoE-Switch/PFS3110-8ET-96
Included Accessories
 Power Cord, br/ Installation Guide, br/ Resource CD, br/ Rackmount Kit, br/ Rubber Feet.
Dimensions
 209 126 26 mm 190 100 30mm
Model name
 TL-SG1210P PFS3110-8ET-96-V2
Mounting Type (Desktop/pedestal)
 Yes
Network standard (IEEE 802.1Q)
 Yes
Network standard (IEEE 802.3)
 Yes
Network standard (IEEE 802.3ab)
 Yes
Network standard (IEEE 802.3u)
 Yes
Network standard (IEEE 802.3x)
 Yes
Predominant port type
 10/100/1000 Mbps (RJ-45)
POE
 PoE 802.3 af and PoE 802.3 at
Ports (10Base-T / 100Base-TX / 1000Base-T)
 16 9
Ports (SFP)
 1
Switching capacity
 32 Gbps 20 Gbps 3.6 Gbps
Network standard (IEEE 802.1p)
 Yes
Primary port count
 9 8
PoE ports
 8
Forwarding rate
 23.8 Mpps 2.678 Mpps
PoE power budget
 96 Watts
Switching method
 Store-and-forward Store-and-forward
PoE+ ports
 8
Producer
 D-Link
