LANBERG

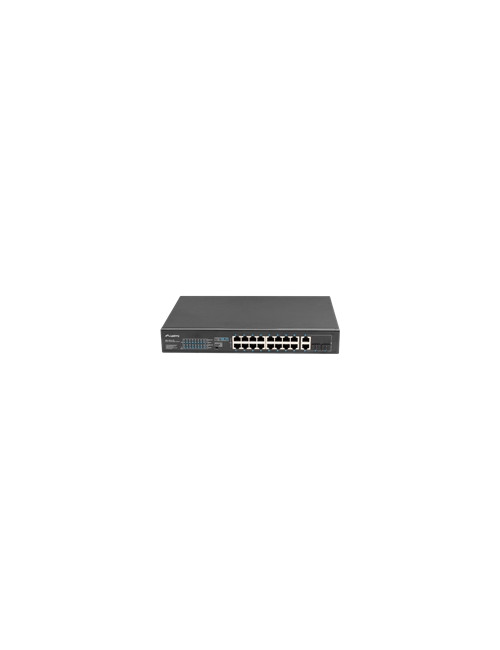

LANBERG RSFE-16P-2C-150 Switch

Name: LANBERG RSFE-16P-2C-150 Switch
Brand: LANBERG
SKU: RSFE-16P-2C-150
Price: 102.89 EUR
Availability: InStock

€102.89

Tax included

PoE+ switch is an indispensable active device in any network structure, using power transmission through structured cabling. RSFE-16P-2C-150 is dedicated to all installations: home, business, low-current, monitoring, IP, VoIP, cable TV networks, and in particular will find use in alarm, fire and access control infrastructure.
In addition to the primary function of the switch, i.e. handling Ethernet frame traffic between ports, it additionally provides power to each device in PoE/PoE+ - 802.3af and at standards. This makes it possible to provide up to 150 watts of total power to devices. And all this together with simultaneous data transmission to them.
This saves resources, space and the time it would take to install a separate electrical and network installation. This is especiall

Quantity

Add to favorites Add to compare

A solution without compromise
Intelligent PoE port disconnect function
Extend mode
6 kV surge protection

Product Details

Brand LANBERG

Reference RSFE-16P-2C-150

In stock 2 Items

Data sheet

Dimensions (WxDxH): 32 cm x 20.8 cm x 4.5 cm
Weight: 1.9 kg
Device type: Switch - 16 ports - unmanaged
Power: AC 100-240 V
Features: Metal housing, 4Mbit packet buffer, 6KV ESD Protector
PRODUCT DESCRIPTION: Lanberg RSFE-16P-2C-150 - switch - 16 ports - unmanaged - rack-mountable
Performance: Switching bandwidth: 7.2 Gbps
Compliant Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at
Ports: 16 x 10/100 (PoE+) + 2 x combo Gigabit SFP/RJ-45 (uplink)
Enclosure Type: Rack-mountable 1U
Power Over Ethernet (PoE): PoE+
Subtype: Fast Ethernet
PoE Budget: 150 W
MAC Address Table Size: 16K entries
