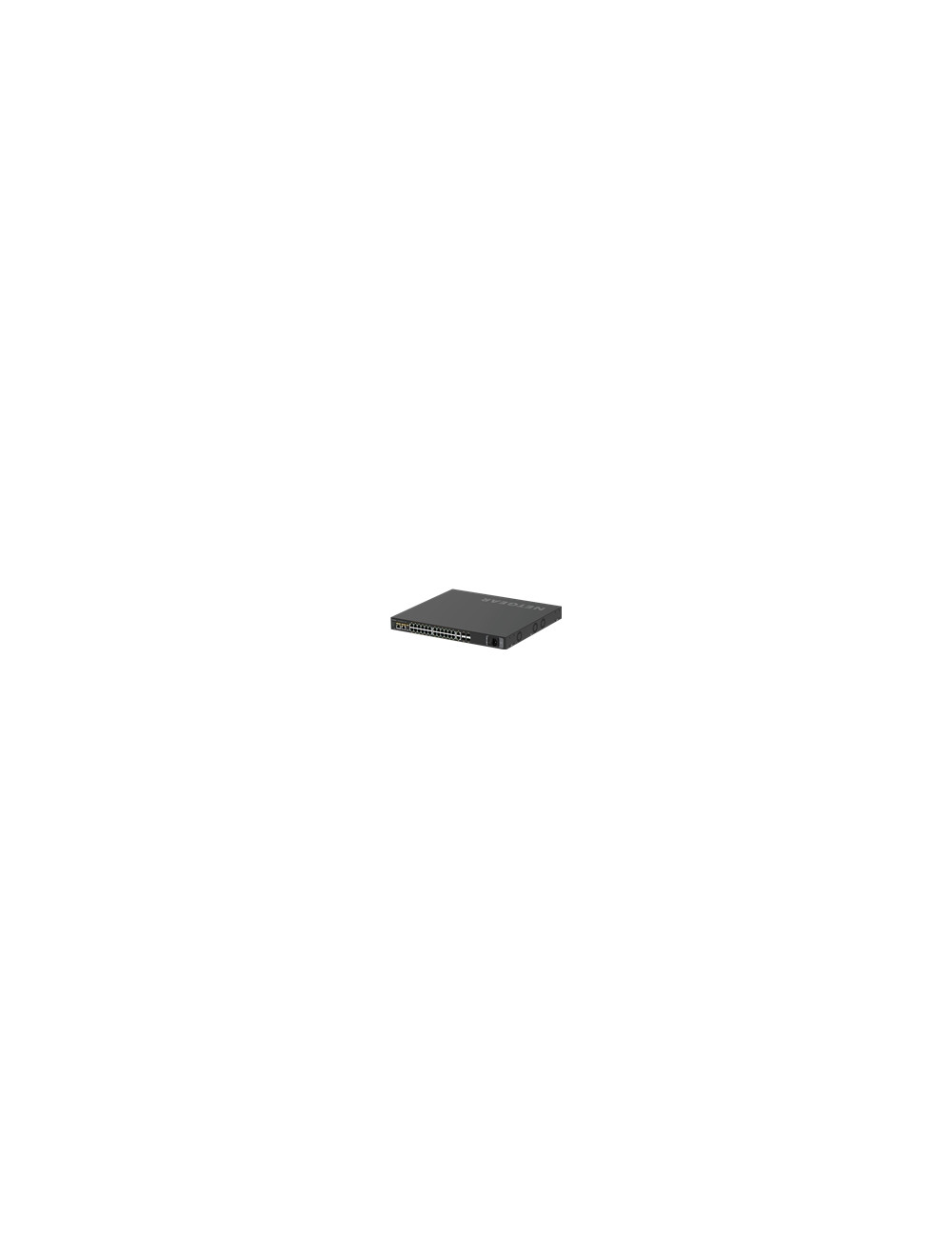

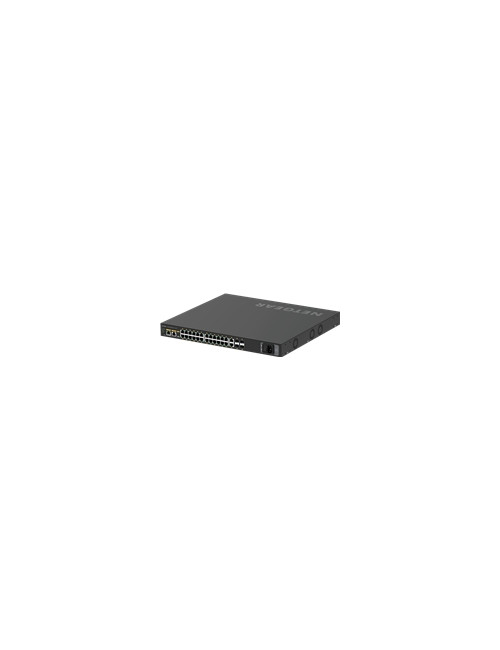

NETGEAR M4250-26G4XF-POE+ Managed Switch
    NETGEAR

    NETGEAR M4250-26G4XF-POE+ Managed Switch

    €2,754.94
    Tax included
    The NETGEAR AV Line M4250 series was designed with input from AV Professionals. The result is a line of switches built from the ground up to support 1Gb audio and video over IP with customized hardware and software along with dedicated service and support.
    Quantity

    Add to favorites Add to compare
    • Uplink options include 1G for audio installations or standalone video installations as well as 10G uplinks for larger scale video deployments
    • Designed for a clean integration with traditional, rack-mounted, AV equipment
    • The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
    • Reversed mounting is possible when ports are desired on the front of the rack
    • A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
    • Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
    • Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting options outside the rack as well

    Product Details

    NETGEAR
    GSM4230PX-100EUS
    2 Items

    Data sheet

    Dimensions (WxDxH)
    44 cm x 40 cm x 4.32 cm
    Weight
    5.453 kg
    Device type
    Switch - 24 ports - L3 - Managed
    Capacity
    ARP entries: 4000 NDP entries: 4000 Packet buffer size: 16 MB VLANs supported: 4093 IGMP multicast groups: 4000 QoS hardware queues: 8 IPv4 routes (static): 64 IPv6 routes (static): 64 RIP application route scaling (IPv4): 32 IPv4 groups (Multicast): 512
    Features
    LAG, PIM, DHCP server, PTP, AVB, IPTV support, sFlow, RSPAN, auto-sensing per device, LLDP support, dual firmware images, Energy Efficient Ethernet, store and forward, Voice VLAN, 802.1x authentication, TPID, GARP, GVRP, GMRP, MRP, MVRP, MVR, LACP support
    PRODUCT DESCRIPTION
    NETGEAR AV Line M4250-26G4XF-PoE+ - switch - 24 ports - Managed - rack-mountable
    Performance
    Switching capacity: 132 Gbps Firewall throughput (64-byte packet size): 98.21 Mpps 1 Gbps fibre latency (64-byte packets): 1.13 μs 1 Gbps fibre latency (512-byte packets): 1.123 μs 1 Gbps fibre latency (1024-byte packets): 1.119 μs 1 Gbps fibre latency (1
    Manufacturer Warranty
    ProSAFE lifetime warranty
    Compliant Standards
    IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1x, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.1v, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac
    Localisation
    Europe
    Ports
    24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
    Enclosure Type
    Side to side airflow rack-mountable 1U
    Routing Protocol
    IGMP, STP, MSTP, RSTP, IGMPv2, IGMPv3, MLD, MLDv2, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), RIP-1, RIP-2, PIM-SSM
    Remote Management Protocol
    HTTP, Telnet, SSH, DHCP, CLI, RADIUS, ICMP, SNMP 1, SNMP 2, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, TACACS+, SSH-2, TFTP, HTTPS, SCP, SFTP
    Power Over Ethernet (PoE)
    PoE+
    Subtype
    Gigabit Ethernet
    PoE Budget
    480 W
    MAC Address Table Size
    16K entries
    Jumbo Frame Support
    12KB
