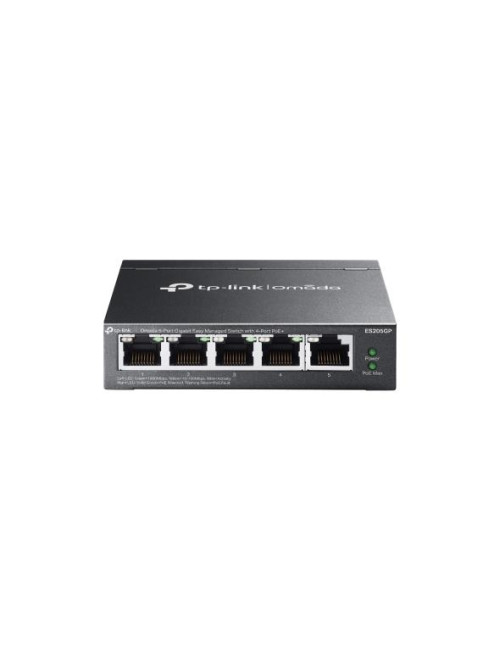

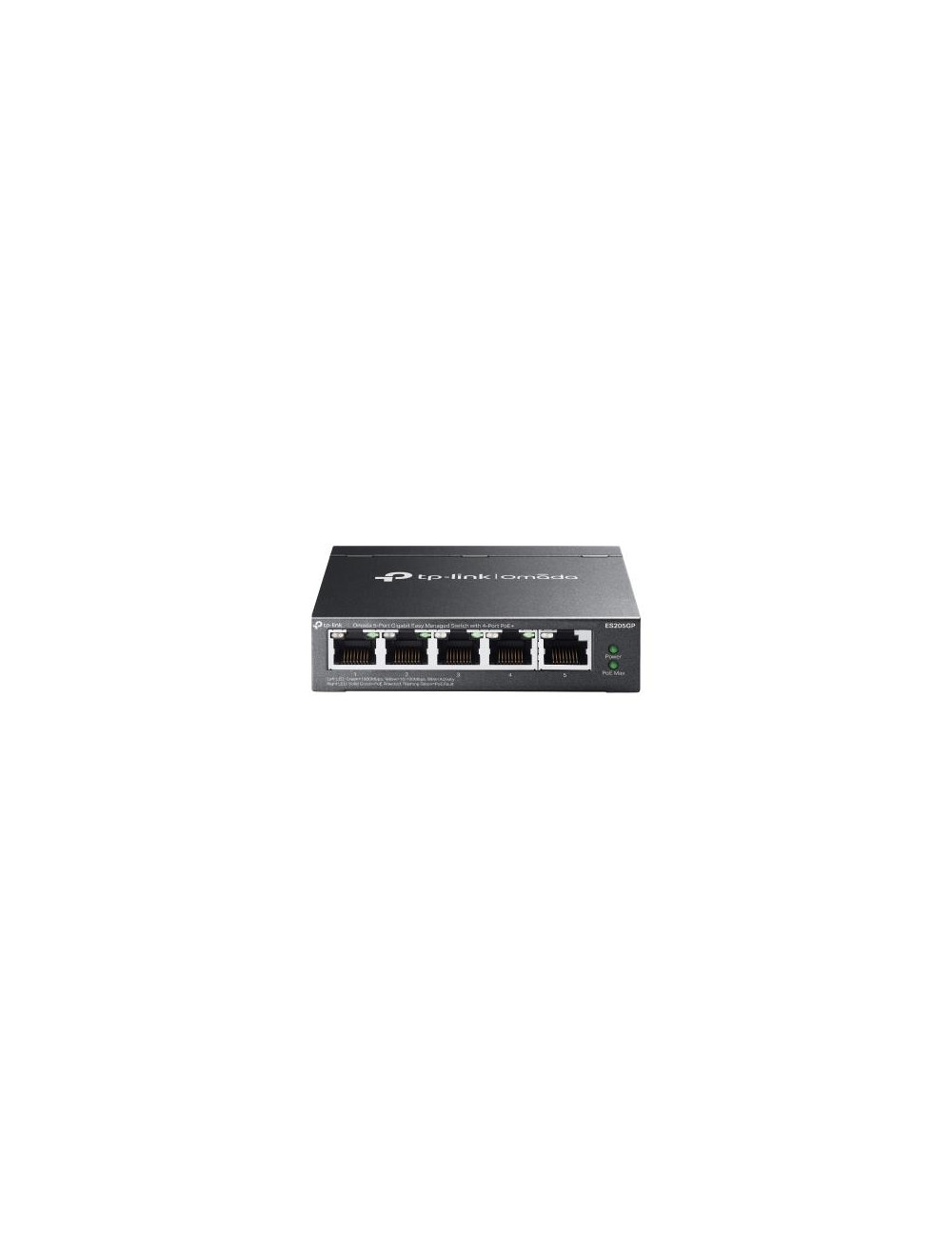

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ - 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Product Details
Data sheet
- Garantija
- 60
- Category Code
- SWI
- Unit Box Height
- 0.127
- Unit Box Length
- 0.195
- Unit Box Width
- 0.12
- Vendor Homepage
- www.tp-link.com/en/business-networking/omada-switch-easy-managed/es205gp/
- Dimensions
- 100 98 25 mm
- MODEL
- ES205GP
- Mounting Type (Desktop/pedestal)
- Yes
- LAN Ports (10/100/1000M)
- 5
- Network standard (IEEE 802.3af)
- Yes
- Network standard (IEEE 802.3at)
- Yes
- Ports (10Base-T / 100Base-TX / 1000Base-T)
- 5
- Switching capacity
- 10 Gbps
- Primary port count
- 5
- PoE ports
- 4
- Forwarding rate
- 7.4 Mpps
- Power supply
- External
- Units per Shipping Box
- 1
- Product Net Weight
- 0.3 kg
- Unit Calculated Weight
- 0.76 kg
- Unit Calculated Volume
- 0.0029718 cubm
