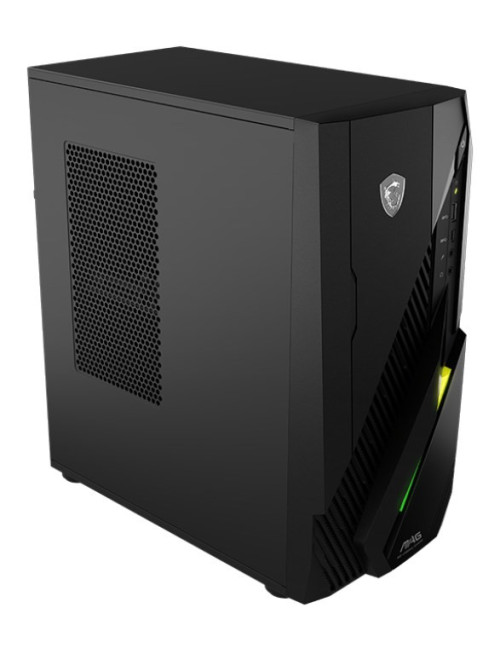

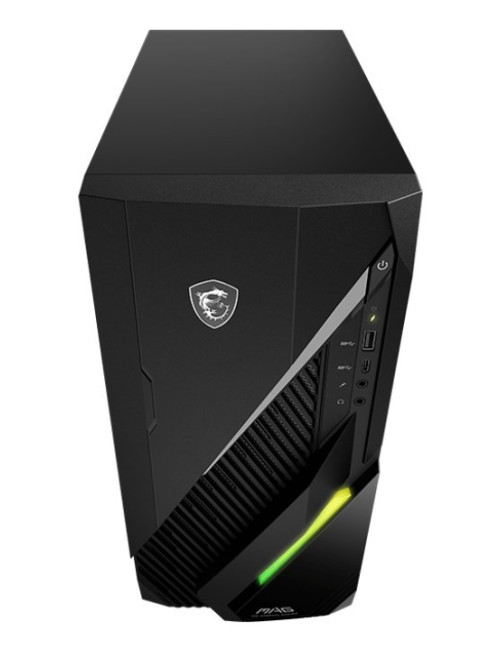

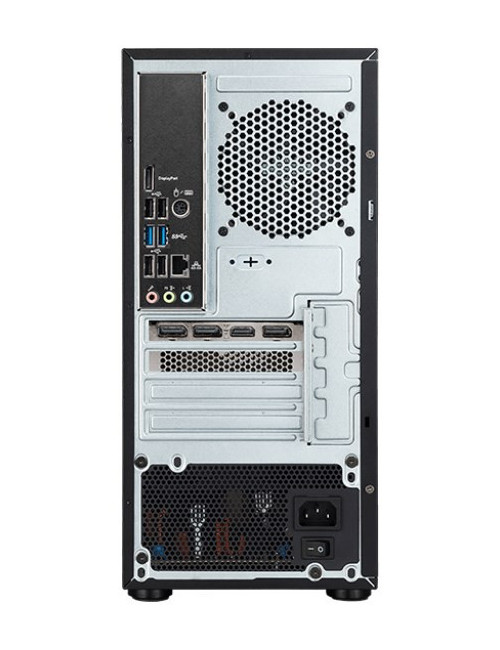

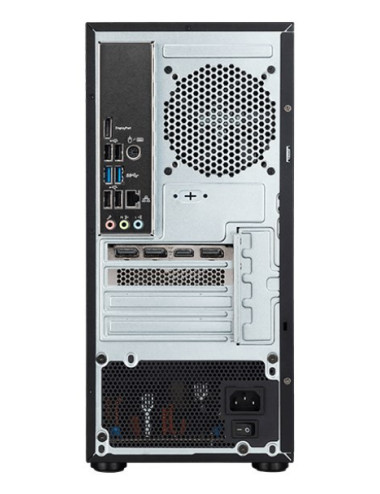

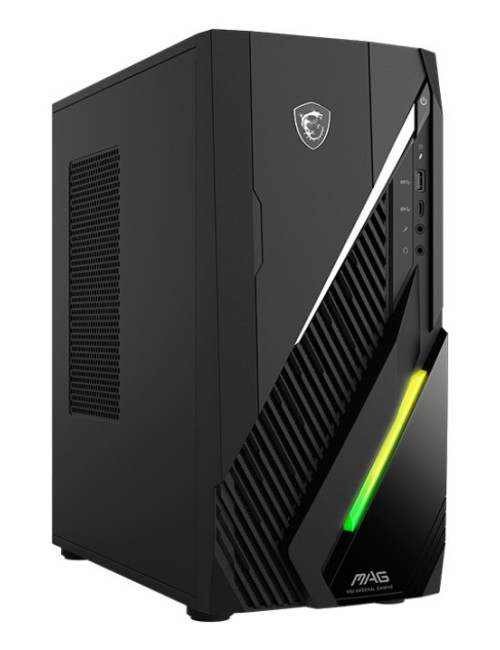

MSI MAG Infinite E1 14NVL5-231XEU i5-14400F 16GB DDR5 SSD1TB GeForce RTX 5060 SHADOW 2X 8GB AX211 (WIFI 6E) Bluetooth 5.3 500W

Product Details

Reference KOMMISGAM0050

In stock 8 Items

Data sheet

Width

168 mm

Height

369 mm

Depth

323 mm

Weight

7.59 kg

Product type

PC

Package depth

242 mm

Package height

510 mm

Package width

565 mm

Package weight

9.03 kg

Storage relative humidity (H-H)

0 - 90%

Operating temperature (T-T)

0 - 35 °C

Operating relative humidity (H-H)

0 - 85%

Storage temperature (T-T)

-20 - 60 °C

Optical drive type

No

Bluetooth

Yes

Bluetooth version

5.3

Power supply

500 W

Microphone in

Yes

SSD form factor

M.2

Display included

No

Memory clock speed

5600 MHz

Internal memory type

DDR5-SDRAM

Processor family

Intel® Core™ i5

Processor model

i5-14400F

Processor threads

16

Processor cores

10

Processor boost frequency

4.7 GHz

HDMI ports quantity

1

DisplayPorts quantity

1

Wi-Fi

Yes

Internal memory

16 GB

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Operating system installed

No

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

Placement supported

Vertical

HDMI version

1.4

DisplayPort version

1.4a

Ethernet LAN (RJ-45) ports

1

Chassis type

Desktop

Storage media

SSD

Memory layout (slots x size)

2 x 8 GB

Total storage capacity

1 TB

Maximum internal memory

64 GB

Discrete graphics memory type

GDDR7

MOTHERBOARD CHIPSET

Intel H610

SSD Capacity

1 TB

Audio output channels

7.1 channels

DC-in jack

Yes

Ethernet LAN

Yes

Headphone outputs

1

Antenna type

2x2

80 PLUS certification

80 PLUS Bronze

NVMe

Yes

Volume

18 L

Processor cache

20 MB

Product colour

Black

Market positioning

Gaming

Discrete graphics card memory

8 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Processor manufacturer

Intel

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

Processor generation

Intel® Core™ i5 (14th gen)

Processor cache type

Smart Cache

On-board graphics card

No

On-board graphics card model

Not available

Discrete graphics card model

NVIDIA GeForce RTX 5060

Discrete graphics card

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Audio chip

Realtek ALC897

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD interface

PCI Express 3.0

Combo headphone/mic port

Yes

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX210

Discrete GPU manufacturer

NVIDIA

Efficient-core base frequency

1.8 GHz

LAN controller

Intel® I219-V

Performance cores

6

Performance-core base frequency

2.5 GHz

Maximum turbo power

148 W

Processor base power

65 W

Efficient cores

4

Performance-core Max Turbo Frequency

4.7 GHz

Efficient-core Max Turbo Frequency

3.5 GHz

M.2 SSD size

2280 (22 x 80 mm)
