Product Details
Data sheet
- Width
- 36 mm
- Height
- 182 mm
- Depth
- 178 mm
- Weight
- 1.16 kg
- Product type
- Mini PC
- Storage relative humidity (H-H)
- 5 - 95%
- Operating temperature (T-T)
- 10 - 35 °C
- Operating relative humidity (H-H)
- 20 - 80%
- Storage temperature (T-T)
- -40 - 65 °C
- Optical drive type
- No
- Bluetooth
- Yes
- Power supply
- 90 W
- SSD form factor
- M.2
- Operating shock
- 40 G
- Operating vibration
- 0.26 G
- Display included
- No
- Internal memory type
- DDR5-SDRAM
- Memory slots
- 2x SO-DIMM
- Processor family
- Intel Core Ultra 5
- Non-ECC
- Yes
- Processor model
- 235T
- Processor threads
- 14
- Processor cores
- 14
- Processor boost frequency
- 5 GHz
- HDMI ports quantity
- 1
- DisplayPorts quantity
- 1
- Wi-Fi
- Yes
- Internal memory
- 8 GB
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Operating system installed
- Windows 11 Pro
- Audio system
- High Definition Audio
- USB 2.0 ports quantity
- 2
- Cable lock slot
- Yes
- Placement supported
- Horizontal/Vertical
- HDMI version
- 2.1
- DisplayPort version
- 1.4a
- Ethernet LAN (RJ-45) ports
- 1
- Chassis type
- Micro PC
- Storage media
- SSD
- Memory layout (slots x size)
- 1 x 8 GB
- Operating system architecture
- 64-bit
- Total storage capacity
- 512 GB
- Maximum internal memory
- 64 GB
- MOTHERBOARD CHIPSET
- Intel Q870
- SSD Capacity
- 512 GB
- Power supply input frequency
- 50 / 60 Hz
- Cabling technology
- 10/100/1000Base-T(X)
- DC-in jack
- Yes
- Ethernet LAN data rates
- 1000
- Ethernet LAN
- Yes
- Cable lock slot type
- Kensington
- Operating altitude
- -15.2 - 3048 m
- Antenna type
- 2x2
- NVMe
- Yes
- Processor cache
- 24 MB
- Non-operating shock
- 105 G
- Non-operating vibration
- 1.37 G
- Non-operating altitude
- -15.2 - 10668 m
- Product colour
- Black
- Market positioning
- Business
- Sustainability certificates
- ENERGY STAR
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- Memory channels
- Single-channel
- Processor manufacturer
- Intel
- Processor generation
- Intel Core Ultra (Series 2)
- Processor cache type
- Smart Cache
- On-board graphics card
- Yes
- On-board graphics card model
- Intel Graphics
- Discrete graphics card model
- Not available
- Discrete graphics card
- No
- Trusted Platform Module (TPM) version
- 2.0
- Trusted Platform Module (TPM)
- Yes
- Top Wi-Fi standard
- Wi-Fi 6E (802.11ax)
- Audio chip
- Realtek ALC3204
- Total SSDs capacity
- 512 GB
- Number of SSDs installed
- 1
- SSD interface
- PCI Express 4.0
- Combo headphone/mic port
- Yes
- WLAN controller manufacturer
- Intel
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 1
- On-board graphics card family
- Intel Graphics
- WLAN controller model
- Intel Wi-Fi 6E AX211
- Trial software
- McAfee® Business Protection 1-year,Activate Your Microsoft 365 For A 30 Day Trial
- Efficient-core base frequency
- 1.6 GHz
- On-board GPU manufacturer
- Intel
- Number of storage drives installed
- 1
- Number of processors installed
- 1
- Power supply input voltage
- 100 - 240 V
- LAN controller
- Intel WGI219LM
- Performance cores
- 6
- Performance-core base frequency
- 2.2 GHz
- Maximum turbo power
- 114 W
- Processor base power
- 35 W
- Efficient cores
- 8
- Performance-core Max Turbo Frequency
- 5 GHz
- Efficient-core Max Turbo Frequency
- 4.4 GHz
- PAIA version
- GaBi version 1, 2024
- Number of front USB ports
- 2
- Number of rear USB ports
- 4
- Number of front audio ports
- 1
- Sparsity support
- Yes
- AI software frameworks supported by NPU
- ONNX RT
- Windows Studio effects support
- Yes
- Neural processor unit (NPU)
- Intel AI Boost
- NPU performance up to
- 13 TOPs
- Total processor performance up to
- 27 TOPs
- Carbon emissions, logistics (kg of CO2e)
- 2.1728
- Carbon emissions, end-of-life (kg of CO2e)
- 0.54
- Total carbon footprint (kg of CO2e)
- 77.6
- Carbon emissions, manufacturing (kg of CO2e)
- 41.516
- Carbon emissions, energy usage (kg of CO2e)
- 33.4456
- Memory data transfer rate
- 5600 MT/s
- GPU performance up to
- 6 TOPs
- Antenna design
- Internal
- Mouse included on selected markets
- Dell Optical Mouse-MS116 - Black
- Keyboard included on selected markets
- Dell Wired Keyboard - KB216 - UK (QWERTY) - Black
Quick Compare
Product |
Sale!
Dell Pro | QCM1255 | Desktop | Micro | AMD Ryzen 7 PRO | 8700GE | Internal memory 16 GB | 512 GB | Keyboard language No keyboard
|
|
|

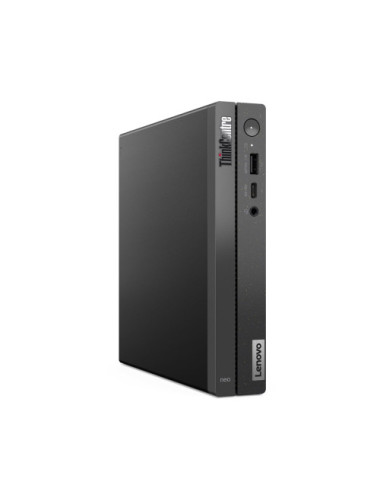

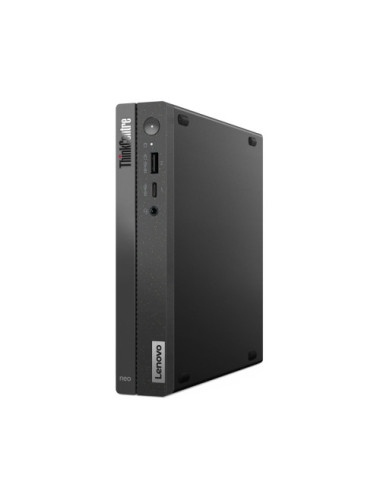

Lenovo ThinkCentre M75q G2 Tiny R5-5655GE 16/5
|
Availability |
|
|
|
|
Price |
€917.43
€869.52
|
€907.60
|
€907.83
|
€916.79
|
Description |
Dell Pro | QCM1255 | Desktop | Micro | AMD Ryzen 7 PRO | 8700GE | Internal memory 16 GB | 512 GB | Keyboard language No keyboard | Windows 11 Pro | Warranty 36 month(s) | MSI PRO DP180 14A-1045EU i7-14700 16GB | ||
Colour of product |
Black | |||
Type |
Desktop | |||
Warranty |
Basic OnSite | |||
Producer product name |
QCM1255 | |||
Net weight |
3.70 kg | |||
Gross weight |
4.68 kg | |||
WEEE tax |
Yes | |||
Packing quantity |
1.00 pc(s) | |||
Volume (m3) |
0.02 m | |||
Tare weight (kg) |
0.98 kg | |||
Gross depth (mm) |
300.00 mm | |||
Gross width (mm) |
167.00 mm | |||
Gross height (mm) |
367.00 mm | |||
WEE classification |
CL109:6:2017-04-01 | |||
Paper/Pasteboard |
980.00 g | |||
Embeeded battery |
Yes | |||
Mouse included |
Yes | |||
Keyboard language |
No keyboard | |||
TI weight (kg) |
0.00 kg | |||
Width |
179 mm | |||
Height |
36.5 mm | |||
Depth |
182.9 mm | |||
Composition of battery |
CL127:KT:2016-12-09 | |||
Classification of battery |
CL126:NE:2016-12-09 | |||
Type of battery |
Battery | |||
Weight |
1.25 kg | |||
Product type |
Mini PC | |||
Producer product family |
Pro | |||
Storage relative humidity (H-H) |
10 - 90% | |||
Operating temperature (T-T) |
5 - 35 °C | |||
Operating relative humidity (H-H) |
20 - 80% | |||
Storage temperature (T-T) |
-40 - 60 °C | |||
Optical drive type |
No | |||
Bluetooth |
Yes | |||
Bluetooth version |
5.3 | |||
Power supply |
65 W | |||
SSD form factor |
M.2 | |||
Display included |
No | |||
Memory clock speed |
4800 MHz | 5200 MHz | ||
Internal memory type |
DDR5-SDRAM | |||
Memory slots |
2x SO-DIMM | |||
Processor family |
AMD Ryzen 7 PRO | AMD Ryzen™ 5 | ||
Processor model |
8700GE | 8500GE | ||
Processor threads |
12 | |||
Processor frequency |
3.4 GHz | |||
Processor cores |
8 | 6 | ||
Processor boost frequency |
5 GHz | |||
HDMI ports quantity |
1 | |||
DisplayPorts quantity |
2 | |||
Wi-Fi |
Yes | Yes | ||
Internal memory |
16 GB | 16 GB | ||
Wi-Fi standards |
802.11ax | Wi-Fi 6 (802.11ax) | ||
Operating system installed |
Windows 11 Pro | Windows 11 Pro | ||
Audio system |
High Definition Audio | |||
USB 2.0 ports quantity |
3 | |||
Cable lock slot |
Yes | |||
HDMI version |
2.1 | |||
Card reader integrated |
No | |||
Ethernet LAN (RJ-45) ports |
1 | |||
Chassis type |
Micro | mini PC | ||
Storage media |
SSD | SSD | ||
Memory layout (slots x size) |
2x8 GB | 1 x 16 GB | ||
Operating system architecture |
64-bit | |||
Total storage capacity |
512 GB | |||
Maximum internal memory |
32 GB | |||
OPERATING SYSTEM LANGUAGE |
German | |||
SSD Capacity |
512 GB | |||
Power supply input frequency |
50/60 Hz | |||
Ethernet LAN data rates |
1000 | |||
Ethernet LAN |
Yes | |||
Cable lock slot type |
Kensington | |||
Operating altitude |
0 - 3048 m | |||
Antenna type |
2x2 | |||
Storage drive capacity |
512 GB | |||
NVMe |
Yes | |||
Volume |
1 L | |||
Serial ports quantity |
1 | |||
Non-operating altitude |
0 - 12192 m | |||
Product colour |
Black | |||
Processor manufacturer |
AMD | |||
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 | |||
On-board graphics card |
Yes | |||
On-board graphics card model |
AMD Radeon 740M | |||
Discrete graphics card model |
Not available | |||
Discrete graphics card |
No | |||
Trusted Platform Module (TPM) |
Yes | |||
Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) | |||
Audio chip |
Realtek ALC233 | |||
Total SSDs capacity |
512 GB | |||
Number of SSDs installed |
1 | |||
SSD interface |
PCI Express 4.0 | |||
Combo headphone/mic port |
Yes | |||
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 | |||
On-board graphics card family |
AMD Radeon | |||
Keyboard included |
Yes | |||
On-board GPU manufacturer |
AMD | |||
Mouse connectivity |
Wired | |||
Keyboard connectivity |
Wired | |||
Power supply input voltage |
100 - 240 V | |||
Producer |
Dell | |||
