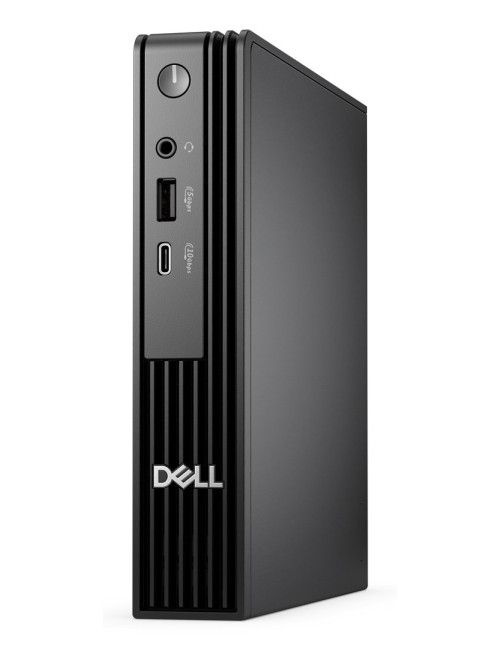

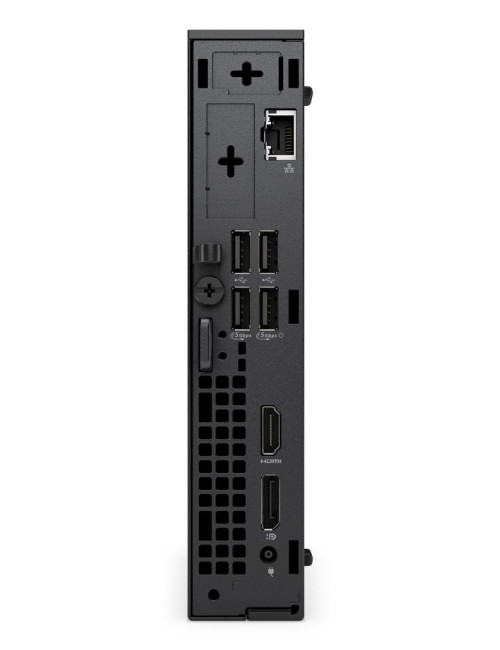

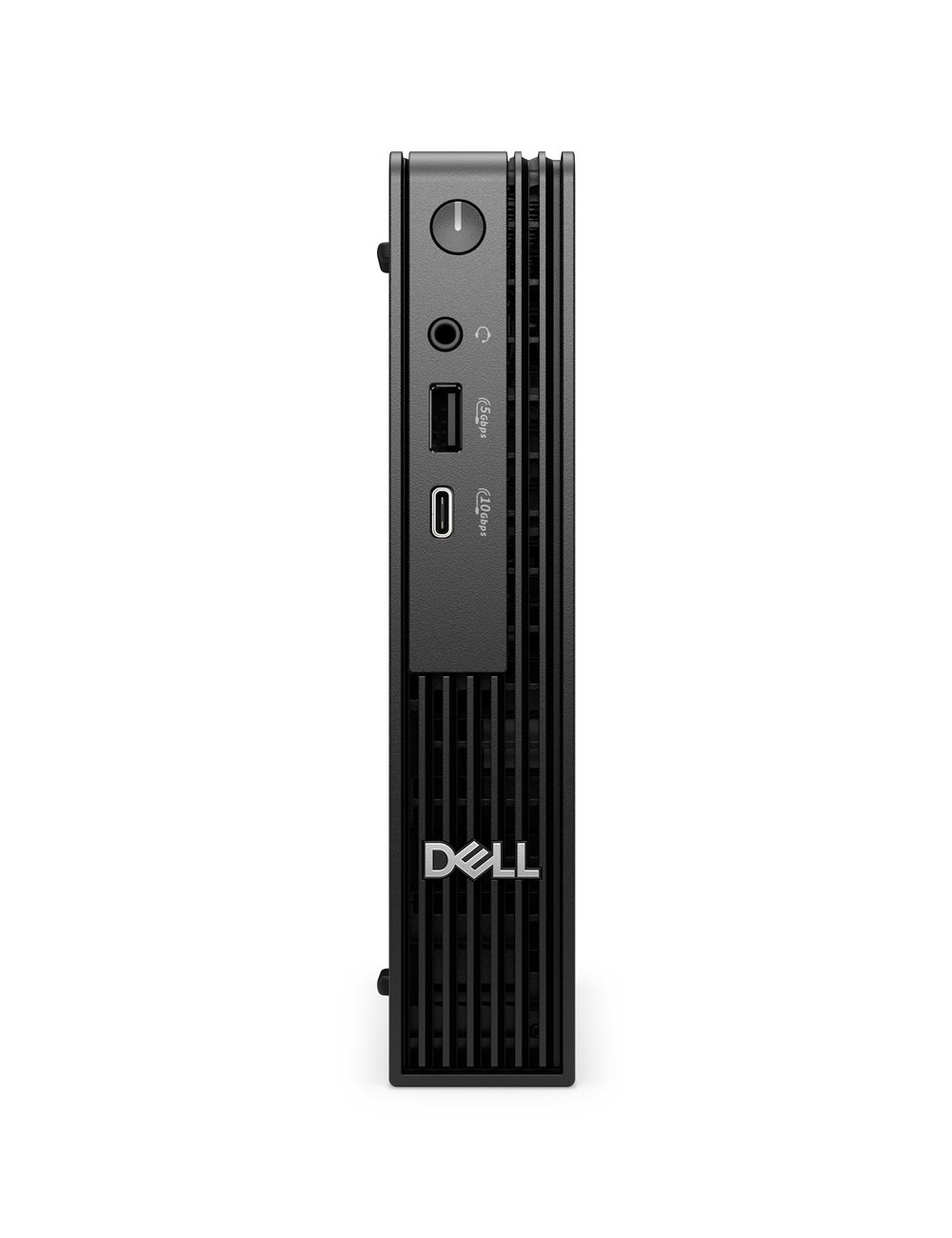

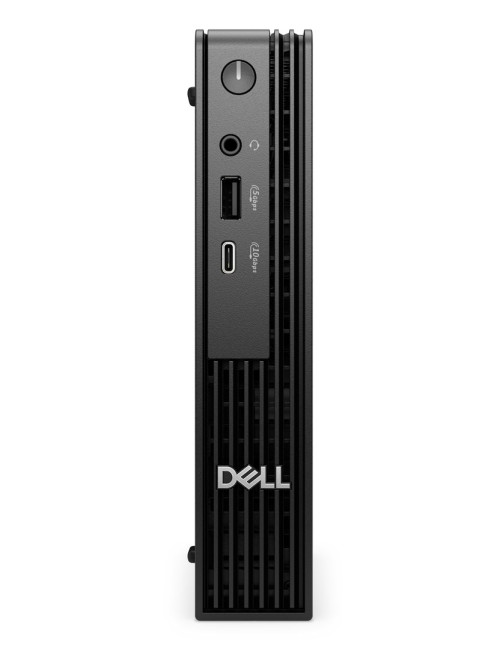

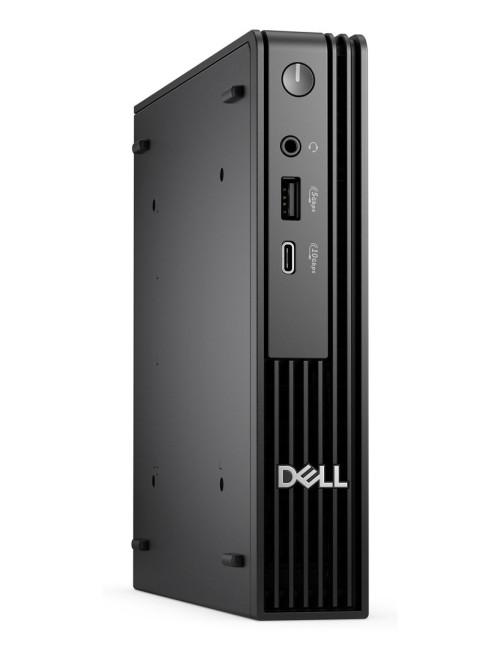

Dell Pro Micro QCM1250 i5-14500T Komplettsystem

Product Details

Reference WLONONWCROKPY

In stock 20 Items

Data sheet

Width

36 mm

Height

182 mm

Depth

178 mm

Weight

1.16 kg

Product type

Mini PC

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

10 - 35 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-40 - 65 °C

Optical drive type

No

Bluetooth

Yes

Power supply

90 W

SSD form factor

M.2

Operating shock

40 G

Operating vibration

0.26 G

Display included

No

Internal memory type

DDR5-SDRAM

Memory slots

2x SO-DIMM

Processor family

Intel® Core™ i5

Non-ECC

Yes

Processor model

i5-14500T

Processor threads

20

Processor cores

14

Processor boost frequency

4.8 GHz

HDMI ports quantity

1

DisplayPorts quantity

1

Wi-Fi

Yes

Internal memory

16 GB

Wi-Fi standards

802.11b

Operating system installed

Windows 11 Pro

Audio system

High Definition Audio

USB 2.0 ports quantity

2

Cable lock slot

Yes

Placement supported

Horizontal/Vertical

HDMI version

2.1

DisplayPort version

1.4a

Ethernet LAN (RJ-45) ports

1

Chassis type

Micro PC

Storage media

SSD

Memory layout (slots x size)

1 x 16 GB

Operating system architecture

64-bit

Total storage capacity

512 GB

Maximum internal memory

64 GB

MOTHERBOARD CHIPSET

Intel® Q870

SSD Capacity

512 GB

Power supply input frequency

50 / 60 Hz

Cabling technology

10/100/1000Base-T(X)

DC-in jack

Yes

Ethernet LAN data rates

1000 Mbit/s

Ethernet LAN

Yes

Cable lock slot type

Kensington

Operating altitude

-15.2 - 3048 m

Antenna type

2x2

NVMe

Yes

Processor cache

24 MB

Non-operating shock

105 G

Non-operating vibration

1.37 G

Non-operating altitude

-15.2 - 10668 m

Product colour

Black

Market positioning

Business

Sustainability certificates

ENERGY STAR

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Single-channel

Processor manufacturer

Intel

Processor generation

Intel® Core™ i5 (14th gen)

Processor cache type

Smart Cache

On-board graphics card

Yes

On-board graphics card model

Intel UHD Graphics 770

Discrete graphics card model

Not available

Discrete graphics card

No

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Audio chip

Realtek ALC3204

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Combo headphone/mic port

Yes

WLAN controller manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

On-board graphics card family

Intel® UHD Graphics

WLAN controller model

Intel Wi-Fi 6E AX211

Trial software

Activate Your Microsoft 365 For A 30 Day Trial

Efficient-core base frequency

1.2 GHz

On-board GPU manufacturer

Intel

Number of storage drives installed

1

Number of processors installed

1

Power supply input voltage

100 - 240 V

LAN controller

Intel WGI219LM

Performance cores

6

Performance-core base frequency

1.7 GHz

Maximum turbo power

92 W

Processor base power

35 W

Efficient cores

8

Performance-core Max Turbo Frequency

4.8 GHz

Efficient-core Max Turbo Frequency

3.4 GHz

PAIA version

GaBi version 1, 2024

Number of front USB ports

2

Number of rear USB ports

4

Number of front audio ports

1

AI software frameworks supported by NPU

WebNN

Carbon emissions, logistics (kg of CO2e)

2.1728

Carbon emissions, end-of-life (kg of CO2e)

0.54

Total carbon footprint (kg of CO2e)

77.6

Carbon emissions, manufacturing (kg of CO2e)

41.516

Carbon emissions, energy usage (kg of CO2e)

33.4456

Memory data transfer rate

4800 MT/s

Antenna design

Internal
