- Built with the latest PCIe 3 x 4 controller
- 2280 M.2 PCIe Gen3 x 4, NVMe 1.3
- End to end data path protection
- SmartECC technology
- Thermal throttling technology
- Operating temperature: 0 ~ 70°C
- Power consumption: full: 2.38W idle: 0.38W
- TBW: 960TB
- 4K aligned random read: up to 280K IOPs
- 4K aligned random write: up to 250K IOPs
- Sequential Read (ATTO): up to 2,100MB/s
- Sequential Write (ATTO): up to 1,800MB/S
- Sequential Read (CDM): up to 2,100MB/s
- Sequential Write (CDM): up to 1,800MB/s
- O/S supported: Windows 7 /8.0 /8.1/10
- May require driver
Product Details
Data sheet
- Type
- Solid state drive - internal
- Dimensions (WxDxH)
- 22 mm x 80 mm x 3.8 mm
- Weight
- 9 g
- Interface
- PCIe 3.0 x4 (NVMe)
- Form factor
- M.2 2280
- Capacity
- 960 GB
- Features
- NVM Express (NVMe) 1.3, End-to-end data path protection, SmartECC, Thermal throttling
- PRODUCT DESCRIPTION

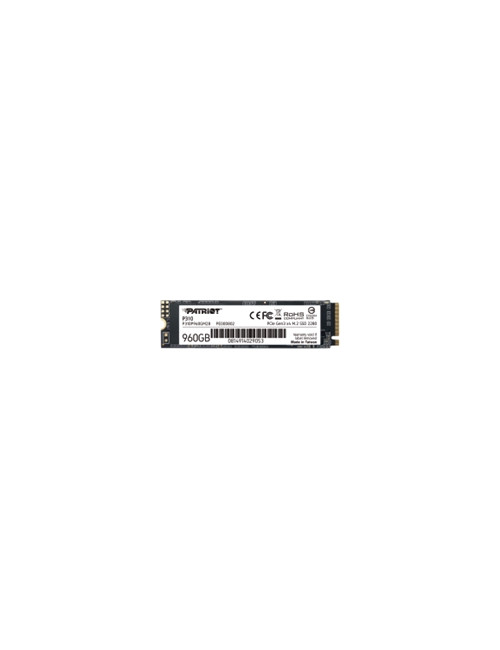

- Patriot P310 - SSD - 960 GB - PCIe 3.0 x4 (NVMe)
- Manufacturer Warranty
- 3-year warranty
