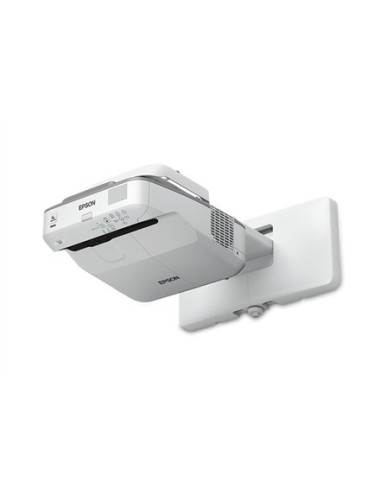

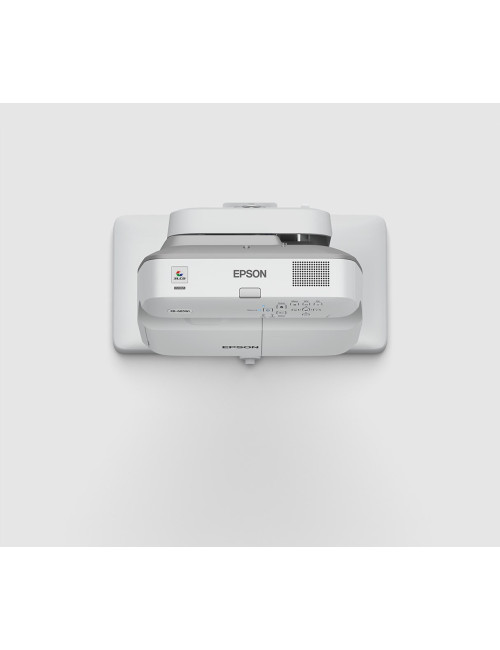

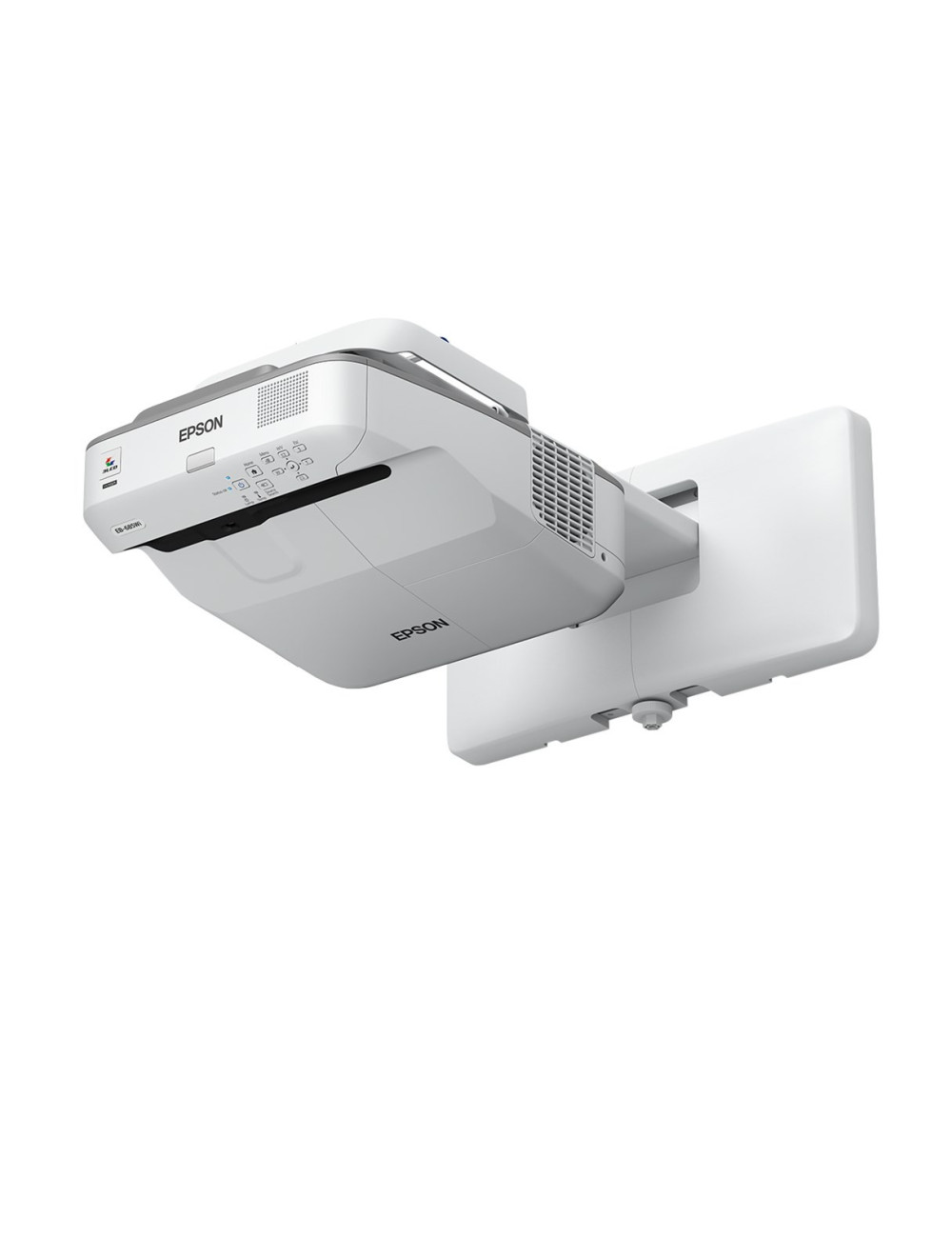

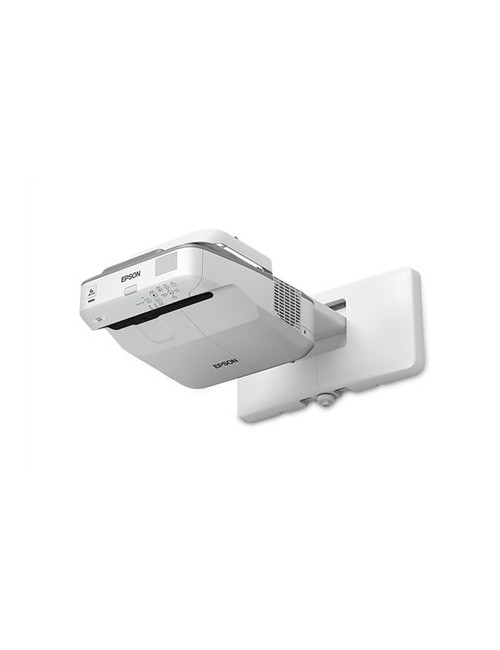

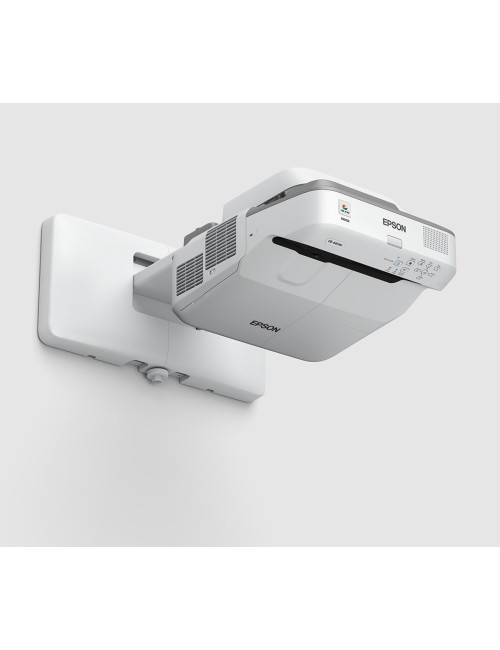

Epson EB-685W data projector 3500 ANSI lumens 3LCD WXGA (1280x800) Wall-mounted projector Gray, White

Product Details

Data sheet

Mac operating systems supported

Mac OS X 10.9 Mavericks

Windows operating systems supported

Windows 8

Colour

Yes

Width

367 mm

Height

149 mm

Depth

400 mm

Weight

5.7 kg

Product type

Ultra short throw projector

Package depth

730 mm

Package height

335 mm

Package width

490 mm

Package weight

18.5 kg

Batteries included

Yes

Cables included

AC

Storage relative humidity (H-H)

10 - 90%

Manual

Yes

Operating temperature (T-T)

5 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-10 - 60 °C

Mac compatibility

Yes

Power source

AC

Built-in display

No

Microphone in

Yes

Quick start guide

Yes

Country of origin

Philippines

HDMI ports quantity

3

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

3

Power consumption (typical)

354 W

Contrast ratio (typical)

14000:1

Native aspect ratio

16:10

Built-in speaker(s)

Yes

Cable lock slot

Yes

Vertical scan range

100 - 120 Hz

RMS rated power

16 W

Power consumption (standby)

0.37 W

Contrast ratio (dynamic)

14000:1

Card reader integrated

No

DVI port

No

3D

No

Ethernet LAN (RJ-45) ports

1

FULL HD

No

Mobile High-Definition Link (MHL)

Yes

Quantity per pack

1 pc(s)

AC (power) in

Yes

Placement

Wall

Remote control type

IR

Ethernet LAN data rates

100 Mbit/s

Ethernet LAN

Yes

USB connector type

USB Type-B

Headphone outputs

1

AC input voltage

100-240 V

Cable lock slot type

Kensington

Keystone correction, vertical

-3 - 3°

Throw ratio

0.28 - 0.37:1

Noise level (economic mode)

30 dB

RS-232 ports

1

Power consumption (PowerSave)

310 W

Focus

Manual

Screen size compatibility

1524 - 2540 mm (60 - 100")

Projector native resolution

WXGA (1280x800)

Projection distance

0.4 - 0.6 m

Projection technology

3LCD

Number of colours

1.07 billion colours

Keystone correction, horizontal

-3 - 3°

Zoom ratio

1.35:1

Composite video in

1

Video processing

10 bit

HD-Ready

Yes

AC input frequency

50 - 60 Hz

Projection distance (tele)

0 - 0.6 m

Projection distance (wide)

0 - 0.4 m

Projector brightness (economic mode)

2900 ANSI lumens

Projector brightness

3500 ANSI lumens

Zoom capability

Yes

Power consumption (economy mode)

309 W

Number of built-in speakers

1

Digital zoom

1.35x

Serial interface type

RS-232

On Screen Display (OSD)

Yes

Light Source Type

Lamp

Noise Level

35 dB

Supported aspect ratios

16:10

Matrix size

1.5 cm (0.59")

Colour modes (2D)

Cinema

Password protection

Yes

Product colour

White

Market positioning

Ulta short throw

Harmonized System (HS) code

85286200

Sustainability certificates

TCO

Remote control included

Yes

Pallet gross length

120 cm

Products per pallet

12 pc(s)

Pallet gross width

80 cm

Pallet gross height

141 cm

Pallet gross weight

0 g

Focal length range

3.7 mm

Lamp power

250 W

Service life of light source

5000 h

Zoom type

Auto

Service life of light source (economic mode)

10000 h

Video colour modes

sRGB

Fixed focal length

3.7 mm

Audio (L/R) in

1

2D/3D frequency image

100 - 120 Hz

WLAN adapter included

Yes

Products per pallet (UK)

12 pc(s)

Products per pallet layer (UK)

2 pc(s)

Products per pallet layer

2 pc(s)

Interactive

No

Air filter

Yes

USB display function

3 in 1: Image / Mouse / Sound

Software support

via: AMX, Crestron (Network), Control4

Pallet height (UK)

141 cm

Pallet length (UK)

120 cm

Pallet width (UK)

100 cm

Pallet weight (UK)

0 g
