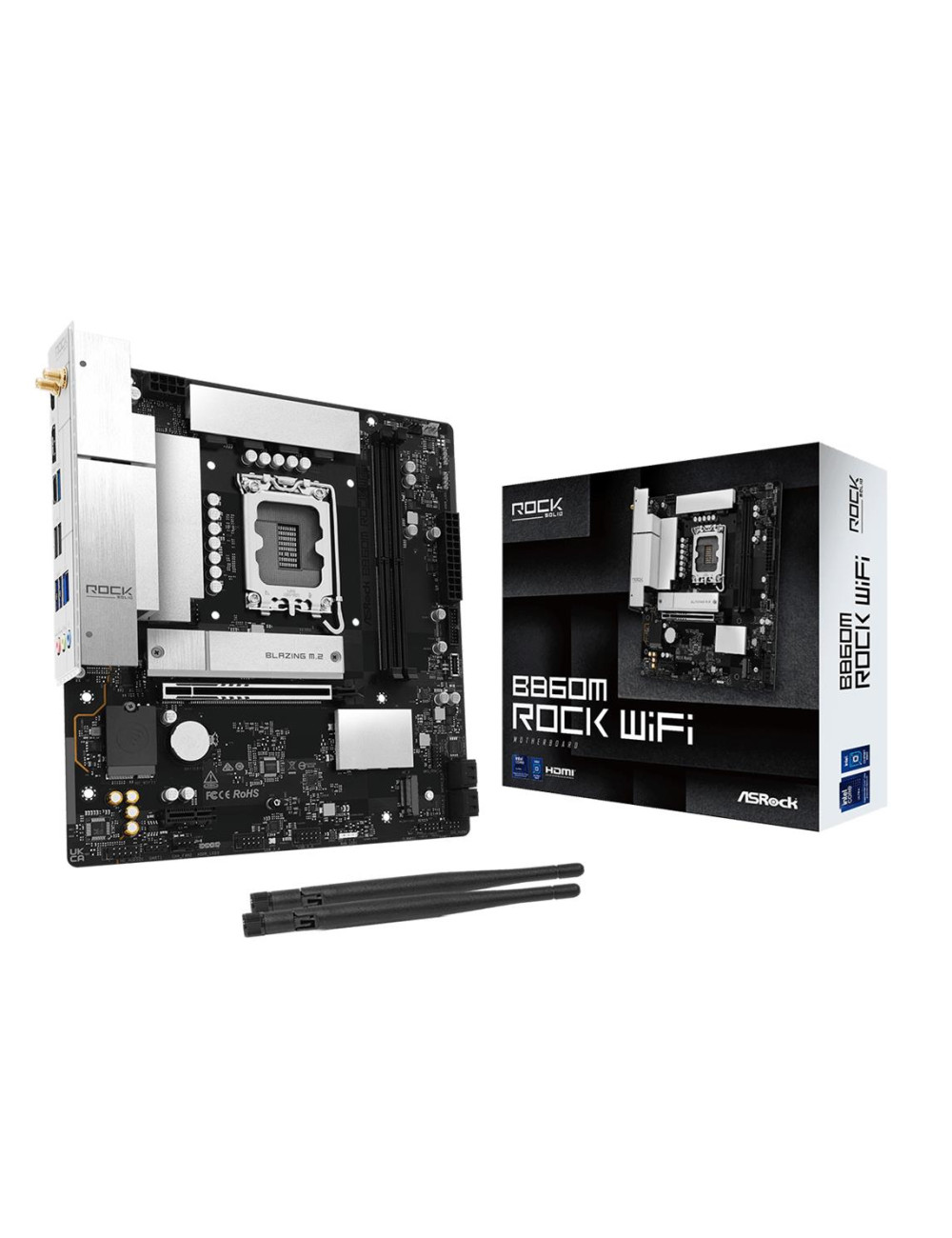

Mainboard|ASROCK|Intel B860|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) sl

Product Details

Reference B860M ROCK WIFI

In stock 5 Items

Data sheet

Garantija

36

Category Code

MBI

Unit Box Height

0.265

Unit Box Length

0.3

Unit Box Width

0.06

Vendor Homepage

https://www.asrock.com/mb/Intel/B860M%20Rock%20WiFi/index.asp Specification

Units per Shipping Box

10

Unit Calculated Weight

1.27 kg

Unit Calculated Volume

0.005842 cubm

CnCode

84733020

Summary

Asrock B860M Rock WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supporte

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

218 mm

Packaging content (Cables included)

SATA

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Bluetooth version)

5.3

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Processor (Processor manufacturer)

Intel

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory types)

DDR5-SDRAM

Features (Component for)

PC

Network (LAN controller)

Dragon RTL8125AG

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel B860

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (Windows operating systems supported)

Windows 11 x64

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Memory (ECC сompatibility)

Non-ECC

Memory (Unbuffered memory)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Graphics (HDCP)

Yes

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Number of chassis fan connectors)

2

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of RGB LED pin headers)

1

Internal I/O (Number of SATA III connectors)

4

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

2

Rear panel I/O ports (DisplayPort version)

1.4

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (USB 3.2 Gen 2x2 Type-C ports quantity)

1

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (Number of M.2 (M) slots)

1

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

Packaging content (Antenna included)

Yes

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3

Expansion slots (PCI Express x1 (Gen 4.x) slots)

1

Graphics (HDCP version)

2.3
