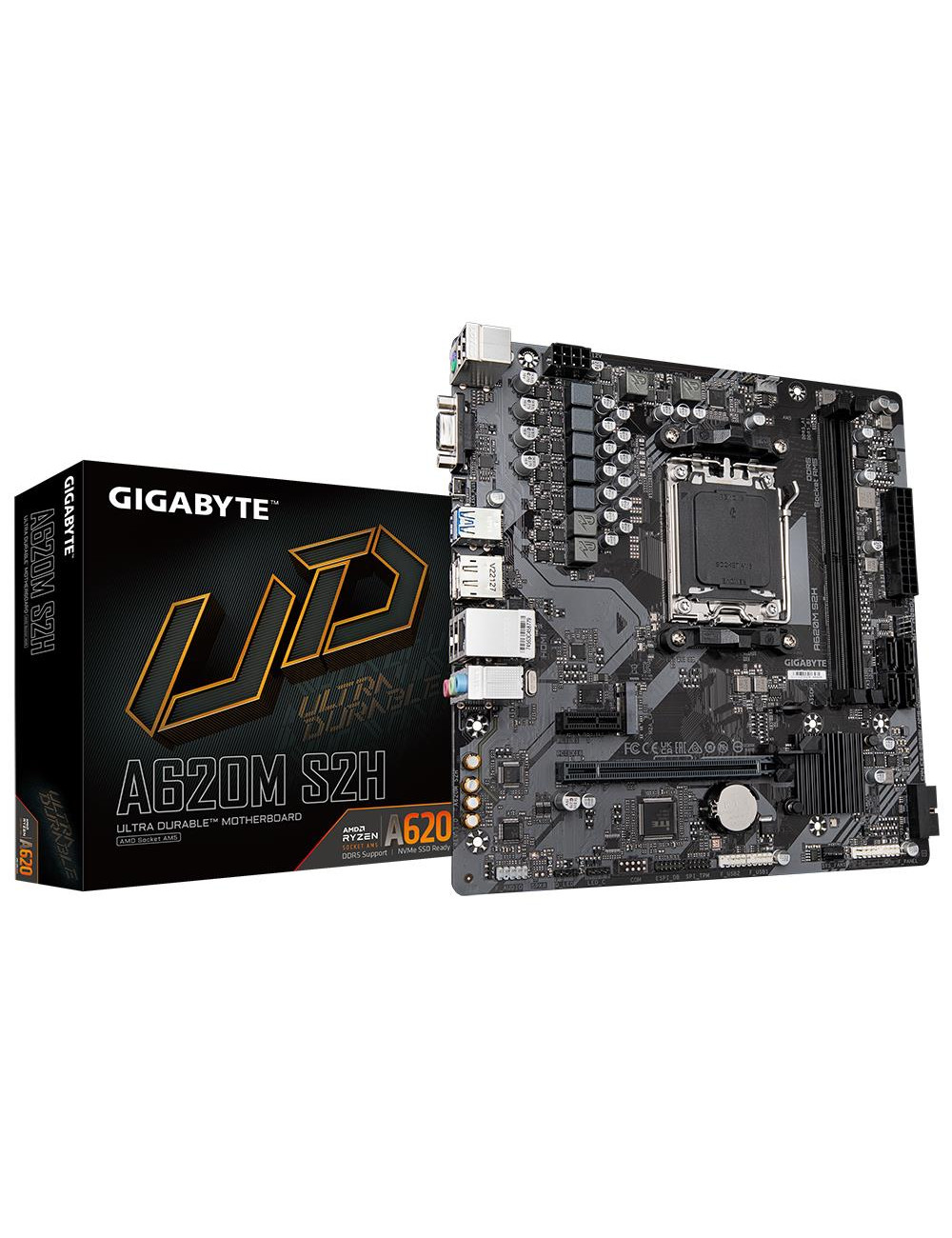

Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber
    Gigabyte

    Mainboard|GIGABYTE|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|1xPCI Express x1 slots|1xPCI Express x16 slots|1xNumber

    €92.93
    Tax included
    AMD A620 | micro ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Series AMD Ryzen 7000 Series | Supported memory types DDR5-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4096 x 2160 pixels | 4xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity
    Quantity

    Add to favorites Add to compare

    Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

    • AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
    • Unparalleled Performance：5+2+2 Phases Digital VRM Solution
    • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
    • SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
    • EZ-Latch：PCIe x16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：DP, HDMI, D-Sub
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
    • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    Product Details

    A620M S2H 2.2
    10 Items

    Data sheet

    Garantija
    36
    Category Code
    MBA
    Unit Box Height
    0.055
    Unit Box Length
    0.27
    Unit Box Width
    0.27
    Vendor Homepage
    https://www.gigabyte.com
    Units per Shipping Box
    10
    Unit Calculated Weight
    0.95 kg
    Unit Calculated Volume
    0.005034 cubm
    Summary
    GIGABYTE A620M S2H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 700
    Battery (Battery technology)
    Lithium-Manganese Dioxide (LiMnO2)
    Weight & dimensions (Width)
    230 mm
    Weight & dimensions (Depth)
    225 mm
    Weight & dimensions (Height)
    35 mm
    Packaging data (Package width)
    265 mm
    Packaging data (Package depth)
    265 mm
    Packaging data (Package height)
    54 mm
    Packaging data (Package weight)
    907 g
    Packaging content (Cables included)
    SATA
    Network (Ethernet LAN)
    Yes
    Network (Wi-Fi)
    No
    Battery (Battery type)
    CR2032
    Logistics data (Products per shipping (inner) case)
    1 pc(s)
    Packaging content (Batteries included)
    Yes
    Logistics data (Country of origin)
    China
    Processor (Processor manufacturer)
    AMD
    Memory (Maximum internal memory)
    96 GB
    Memory (Memory channels)
    Dual-channel
    Memory (Memory slots type)
    DIMM
    Memory (Number of memory slots)
    2
    Memory (Supported memory clock speeds)
    4400/4800/5200/5600/6000/6200/6400/6600/6800/7200 MHz
    Memory (Supported memory types)
    DDR5-SDRAM
    Features (Component for)
    PC
    Battery (Battery weight)
    3 g
    Features (Audio output channels)
    7.1 channels
    Features (Motherboard chipset)
    AMD A620
    Features (Motherboard chipset family)
    AMD
    Features (Motherboard form factor)
    micro ATX
    Features (PC health monitoring)
    Fan/Temperature/Voltage/Water cooling
    Features (Product colour)
    Brown
    Features (Windows operating systems supported)
    Windows 10 x64/Windows 11 x64
    Processor (Compatible processor series)
    AMD Ryzen 7000 Series
    Processor (Processor socket)
    Socket AM5
    Processor (Supported processor sockets)
    Socket AM5
    Memory (ECC сompatibility)
    Non-ECC
    Memory (Supported memory clock speed (max))
    7200 MHz
    Memory (Unbuffered memory)
    Yes
    Storage controllers (Number of HDDs supported)
    4
    Storage controllers (Number of storage drives supported)
    5
    Storage controllers (RAID levels)
    0/1/10
    Storage controllers (RAID support)
    Yes
    Storage controllers (Supported storage drive interfaces)
    M.2,SATA III
    Storage controllers (Supported storage drive types)
    HDD & SSD
    Graphics (DirectX version)
    12.0
    Graphics (HDCP)
    Yes
    Graphics (Maximum resolution)
    4096 x 2160 pixels
    Graphics (Parallel processing technology support)
    Not supported
    Internal I/O (ATX Power connector (24-pin))
    Yes
    Internal I/O (CPU fan connector)
    Yes
    Internal I/O (EPS power connector (8-pin))
    Yes
    Internal I/O (Front panel audio connector)
    Yes
    Internal I/O (Front panel connector)
    Yes
    Internal I/O (Number of SATA III connectors)
    4
    Internal I/O (RGB LED pin header)
    Yes
    Internal I/O (TPM connector)
    Yes
    Internal I/O (USB 2.0 connectors)
    2
    Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
    1
    Rear panel I/O ports (DisplayPort version)
    1.4
    Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
    1
    Rear panel I/O ports (HDMI ports quantity)
    1
    Rear panel I/O ports (HDMI version)
    2.1
    Rear panel I/O ports (Headphone outputs)
    3
    Network (Ethernet interface type)
    Gigabit Ethernet
    Expansion slots (Number of M.2 (M) slots)
    1
    BIOS (ACPI version)
    5.0
    BIOS (BIOS memory size)
    256 Mbit
    BIOS (BIOS type)
    UEFI AMI
    BIOS (Clear CMOS jumper)
    Yes
    BIOS (Desktop Management Interface (DMI) version)
    2.7
    BIOS (System Management BIOS (SMBIOS) version)
    2.7
    Battery (Lithium weight per battery)
    0.07 g
    Battery (Number of battery cells)
    1
    Packaging content (Bundled software)
    Norton Internet Security LAN bandwidth management software
    Technical details (Warranty period)
    3 year(s)
    Internal I/O (12V power connector)
    Yes
    Rear panel I/O ports (DisplayPorts quantity)
    1
    Rear panel I/O ports (Microphone in)
    Yes
    Rear panel I/O ports (PS/2 ports quantity)
    1
    Rear panel I/O ports (USB 2.0 ports quantity)
    4
    Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
    2
    Processor (Maximum internal memory supported by processor)
    96 GB
    Memory (Supported memory module capacities)
    12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
    Internal I/O (Total number of SATA connectors)
    4
    Rear panel I/O ports (USB connector type)
    USB Type-A/USB Type-C
    Expansion slots (PCI Express x1 slots)
    1
    Expansion slots (PCI Express x16 slots)
    1
    Rear panel I/O ports (VGA (D-Sub) ports quantity)
    1
