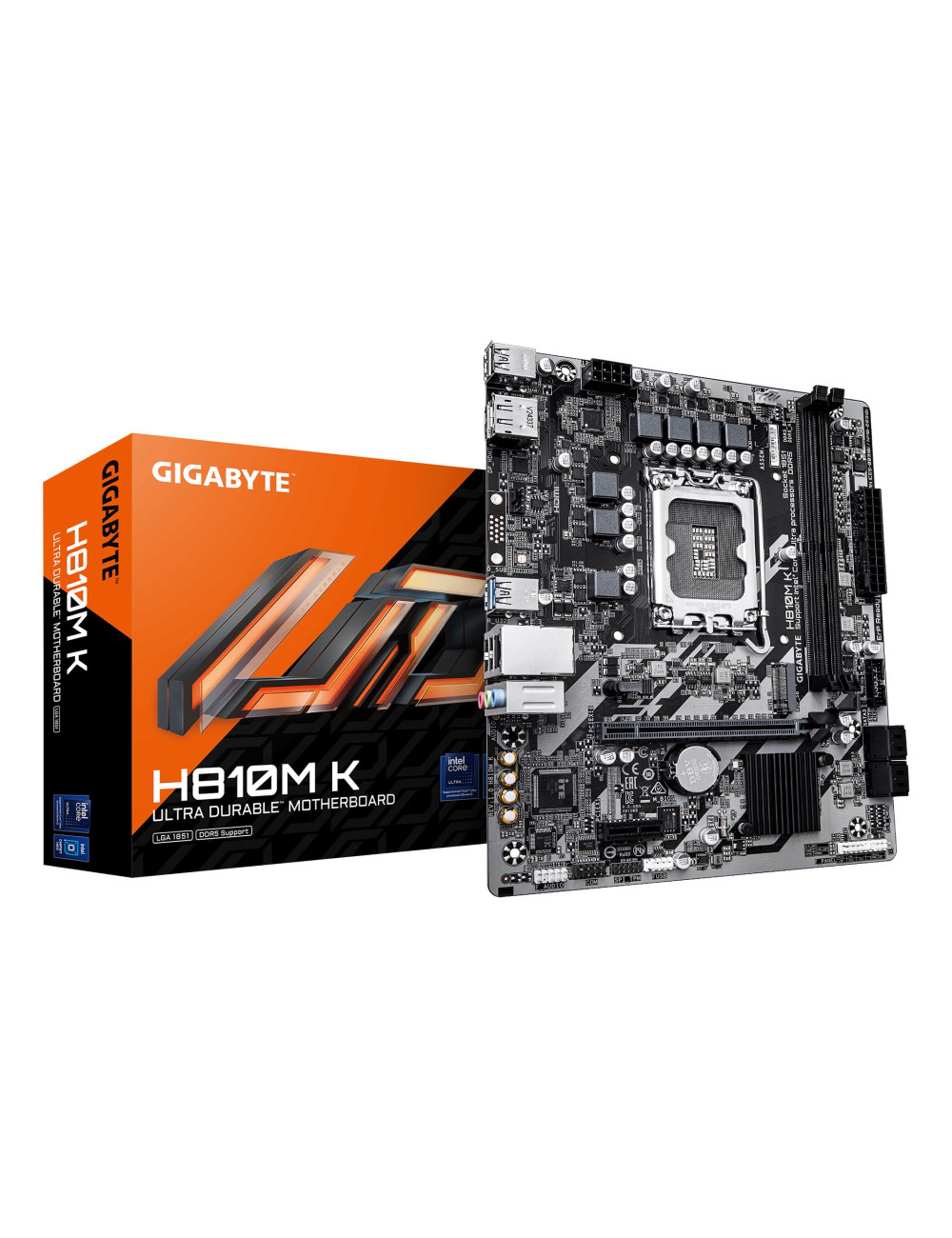

Mainboard|GIGABYTE|Intel H810|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|H810MK1.0

Product Details

Reference H810M K 1.0

In stock 18 Items

Data sheet

Garantija

36

Category Code

MBI

Unit Box Height

0.055

Unit Box Length

0.265

Unit Box Width

0.235

Vendor Homepage

https://www.gigabyte.com/

MODEL

H810M K

Units per Shipping Box

1

Product Net Weight

0.58 kg

Unit Calculated Weight

0.687 kg

Unit Calculated Volume

0.003425 cubm

CnCode

84733020

Summary

GIGABYTE H810M K Motherboard - Intel Core Ultra (Series 2) CPUs, 3+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

226 mm

Weight & dimensions (Depth)

185 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

265 mm

Packaging data (Package depth)

265 mm

Packaging data (Package height)

54 mm

Packaging data (Package weight)

766.6 g

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

No

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

688 g

Packaging content (Batteries included)

Yes

Logistics data (Country of origin)

China

Processor (Processor manufacturer)

Intel

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speeds)

5600/6400 MHz

Memory (Supported memory types)

DDR5-SDRAM

Features (Component for)

PC

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8111H

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset)

Intel H810

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

Dark brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

Intel Core Ultra (Series 2)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (Maximum internal memory per slot)

64 GB

Memory (Supported memory clock speed (max))

6400 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

5

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,PCI Express 4.0,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

1

Internal I/O (Number of CPU fan connectors)

1

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of SATA III connectors)

4

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

1

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPort version)

2.1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Network (Ethernet interface type)

Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

4.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (Number of M.2 (M) slots)

1

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content (Screws included)

Yes

Technical details (Warranty period)

3 year(s)

Internal I/O (Serial port headers)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

4

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

2

Expansion slots (PCI Express x1 (Gen 3.x) slots)

1

Memory (ECC ?ompatibility)

ECC & Non-ECC
