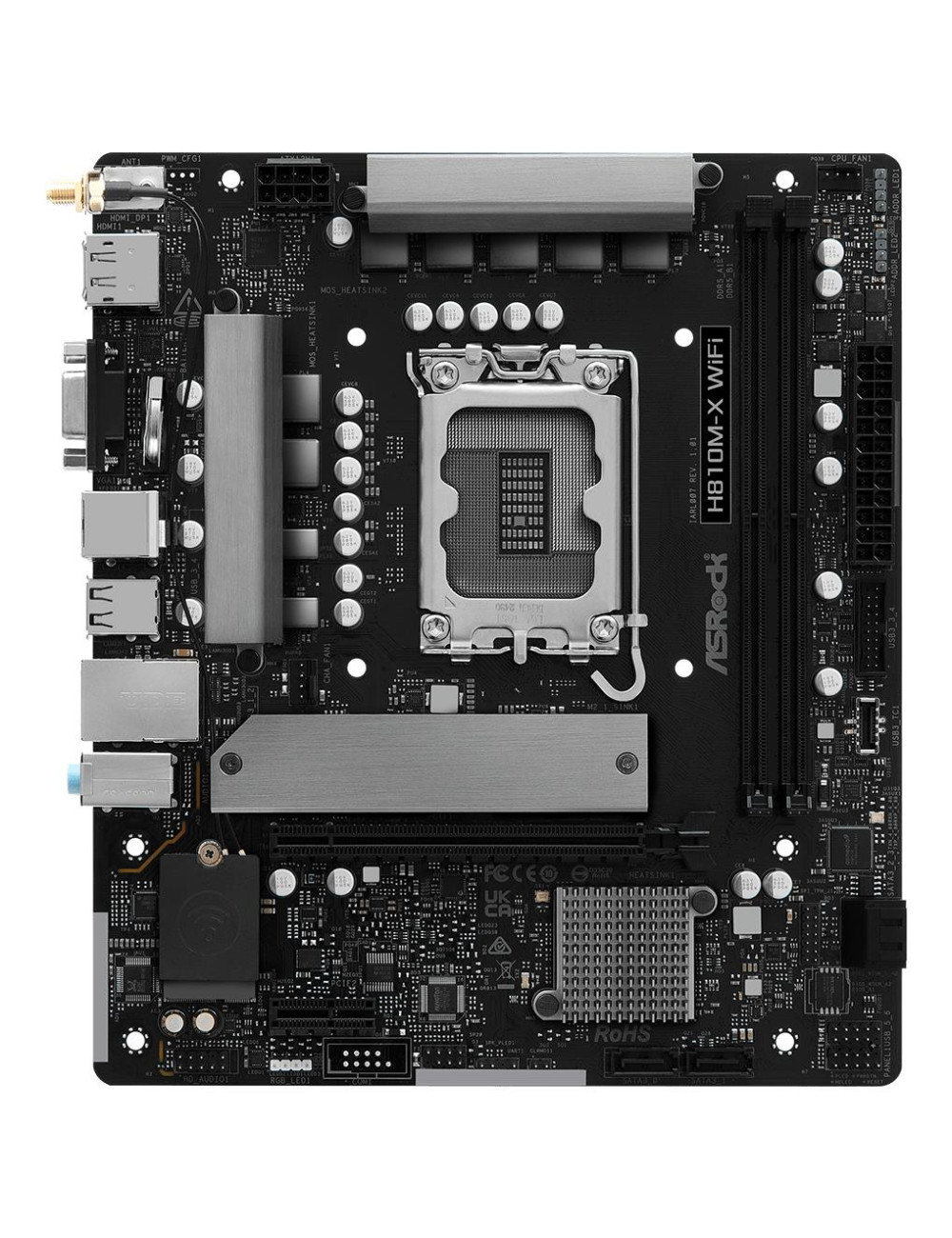

Mainboard|ASROCK|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) sl
    Asrock

    Mainboard|ASROCK|Intel H810|LGA 1851 (Socket V1)|micro ATX|RAM DDR5-SDRAM|2xSlots|Wi-Fi Yes|Bluetooth Yes|1xNumber of M.2 (M) sl

    €97.05
    Tax included
    Intel H810 | micro ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1851 (Socket V1) | Series Intel Core Ultra (Series 2) | Supported memory types DDR5-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 4xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xVGA (D-Sub) ports quantity | 1xHDMI ports quantity | Wi-Fi Yes | Bluetooth Yes
    Quantity

    Add to favorites Add to compare

    X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

    The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

    High Speed M.2 Solution

    Hyper M.2 Gen4 x4
    Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

    Intelligent Cooling Design

    Aluminum Heatsink
    The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

    Dual Band 802.11ac WiFi
    No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.

    Dragon 2.5 Gb/s LAN
    The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

    Front USB 3.2 Gen1 Type-C
    Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

    POLYCHROME RGB
    This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
    *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
    *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

    SignalRGB
    SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

    3 Graphics Outputs
    Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
    *Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

    Auto Driver Installer
    No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
    step1: Install Auto Driver Installer
    step2: Update drivers needed
    step3: Done!

    • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    • 6+1+1+1+1 Power Phase
    • 2 x DDR5 DIMMs
    • Supports Dual Channel, up to 6400
    • 1 PCIe 4.0 x16, 1 PCIe 4.0 x1
    • Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 4 SATA3
    • 1 Hyper M.2 (PCIe Gen4x4)
    • 1 USB 3.2 Gen1 Type-C (Front)
    • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    • 6 USB 2.0 (4 Rear, 2 Front)
    • Realtek 2.5G LAN
    • Dual Band 802.11ac Wi-Fi + Bluetooth

    This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
    The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
    The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
    The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

    Product Details

    H810M-X WIFI
    20 Items

    Data sheet

    Garantija
    36
    Category Code
    MBI
    Unit Box Height
    0.06
    Unit Box Length
    0.28
    Unit Box Width
    0.24
    Vendor Homepage
    https://www.asrock.com/MB/Intel/H810M-X%20WiFi/index.asp
    Units per Shipping Box
    1
    Unit Calculated Weight
    0.92 kg
    Unit Calculated Volume
    0.004032 cubm
    Summary
    Asrock H810M-X WiFi. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported s
    Weight & dimensions (Width)
    220 mm
    Weight & dimensions (Depth)
    193 mm
    Network (Bluetooth)
    Yes
    Network (Ethernet LAN)
    Yes
    Network (Wi-Fi)
    Yes
    Network (Bluetooth version)
    5.0
    Network (Wi-Fi standards)
    802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)
    Network (Top Wi-Fi standard)
    Wi-Fi 5 (802.11ac)
    Processor (Processor manufacturer)
    Intel
    Memory (Maximum internal memory)
    128 GB
    Memory (Memory channels)
    Dual-channel
    Memory (Memory slots type)
    DIMM
    Memory (Number of memory slots)
    2
    Memory (Supported memory types)
    DDR5-SDRAM
    Features (Component for)
    PC
    Network (LAN controller)
    Dragon RTL8125BG
    Features (Audio output channels)
    7.1 channels
    Features (Motherboard chipset)
    Intel H810
    Features (Motherboard chipset family)
    Intel
    Features (Motherboard form factor)
    micro ATX
    Features (Product colour)
    Multicolour
    Features (Windows operating systems supported)
    Windows 11 x64
    Processor (Compatible processor series)
    Intel Core Ultra (Series 2)
    Processor (Processor socket)
    LGA 1851 (Socket V1)
    Memory (ECC сompatibility)
    Non-ECC
    Memory (Supported memory clock speed (max))
    6400 MHz
    Memory (Unbuffered memory)
    Yes
    Storage controllers (Number of HDDs supported)
    4
    Storage controllers (Number of storage drives supported)
    5
    Storage controllers (Supported storage drive interfaces)
    M.2,SATA III
    Storage controllers (Supported storage drive types)
    HDD & SSD
    Graphics (Parallel processing technology support)
    Not supported
    Internal I/O (ATX Power connector (24-pin))
    Yes
    Internal I/O (CPU fan connector)
    Yes
    Internal I/O (EPS power connector (8-pin))
    Yes
    Internal I/O (Front panel audio connector)
    Yes
    Internal I/O (Number of chassis fan connectors)
    1
    Internal I/O (Number of CPU fan connectors)
    1
    Internal I/O (Number of SATA III connectors)
    4
    Internal I/O (RGB LED pin header)
    Yes
    Internal I/O (TPM connector)
    Yes
    Internal I/O (USB 2.0 connectors)
    1
    Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
    2
    Rear panel I/O ports (DisplayPort version)
    1.4
    Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
    1
    Rear panel I/O ports (HDMI ports quantity)
    1
    Rear panel I/O ports (Line-in)
    Yes
    Network (Ethernet interface type)
    2.5 Gigabit Ethernet
    Expansion slots (Number of M.2 (M) slots)
    1
    Expansion slots (PCI Express x16 (Gen 4.x) slots)
    1
    BIOS (BIOS memory size)
    256 Mbit
    BIOS (BIOS type)
    UEFI AMI
    Internal I/O (12V power connector)
    Yes
    Rear panel I/O ports (DisplayPorts quantity)
    1
    Rear panel I/O ports (Microphone in)
    Yes
    Rear panel I/O ports (PS/2 ports quantity)
    1
    Rear panel I/O ports (USB 2.0 ports quantity)
    4
    Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
    2
    Rear panel I/O ports (VGA (D-Sub) ports quantity)
    1
    Expansion slots (PCI Express x1 (Gen 4.x) slots)
    1
    Features (Certification)
    - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
    Features (Compatible operating systems)
    Microsoft Windows 11 64-bit
