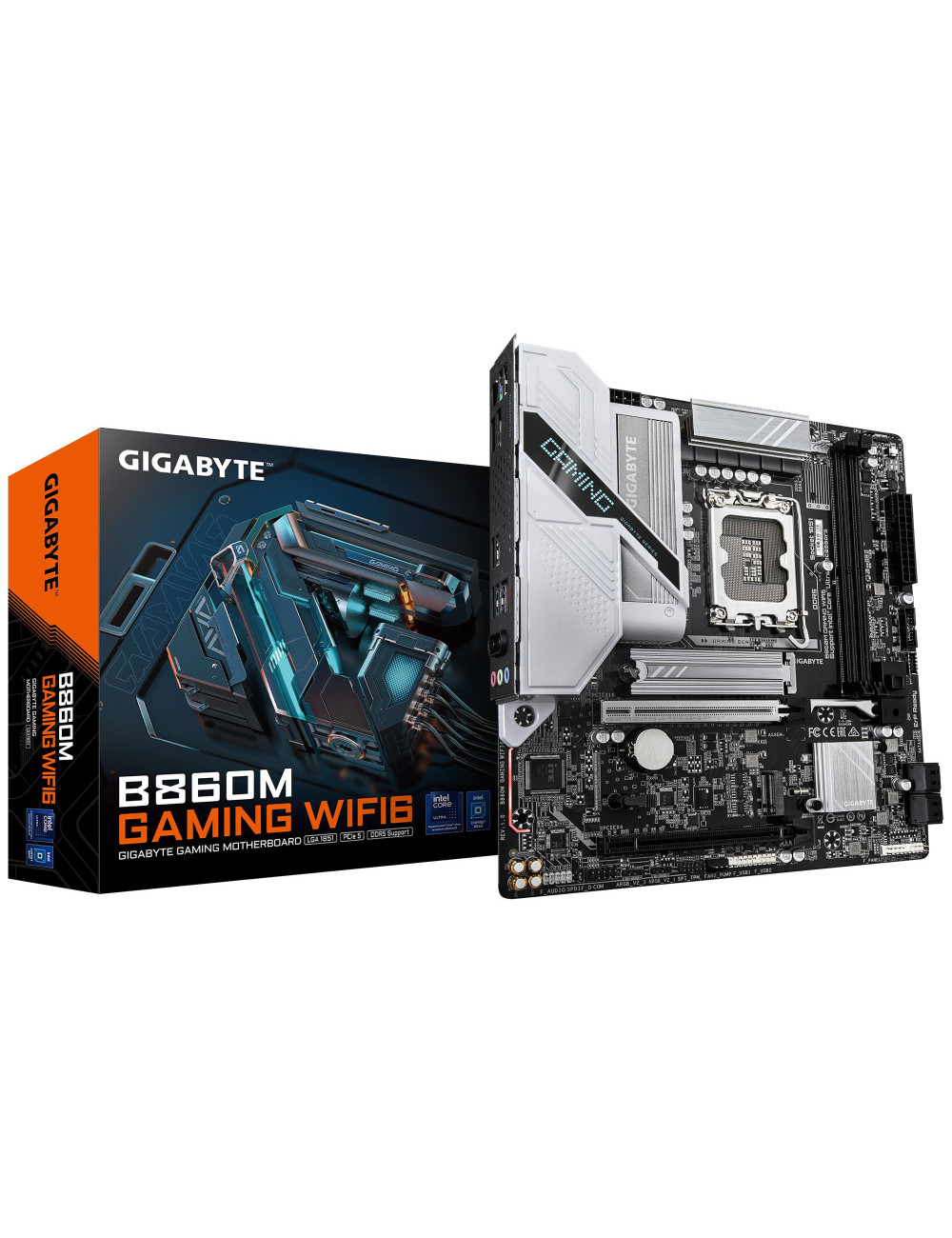

Mainboard|GIGABYTE|Intel B860 Express|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|B860MGAMINGWIFI6

Product Details

Reference B860M GAMING WIFI6

In stock 18 Items

Data sheet

Garantija

36

Category Code

MBI

Unit Box Height

0.265

Unit Box Length

0.27

Unit Box Width

0.07

Vendor Homepage

https://www.gigabyte.com/

MODEL

B860M GAMING WIFI6

Units per Shipping Box

1

Unit Calculated Weight

1.16 kg

Unit Calculated Volume

0.005008 cubm

Summary

GIGABYTE B860M GAMING WIFI6 Motherboard - Intel Core Ultra Series CPUs, 8+1+2 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible process

Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Weight & dimensions (Width)

244 mm

Weight & dimensions (Depth)

225 mm

Weight & dimensions (Height)

35 mm

Packaging data (Package width)

270 mm

Packaging data (Package depth)

268 mm

Packaging data (Package height)

68 mm

Packaging data (Package weight)

1293 g

Battery (Battery capacity)

220 mAh

Network (Bluetooth)

Yes

Network (Ethernet LAN)

Yes

Network (Wi-Fi)

Yes

Network (Bluetooth version)

5.3

Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Battery (Battery type)

CR2032

Logistics data (Products per shipping (inner) case)

1 pc(s)

Other features (Weight)

1225 g

Packaging content (Batteries included)

Yes

Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Processor (Processor manufacturer)

Intel

Memory (Maximum internal memory)

128 GB

Memory (Memory channels)

Dual-channel

Memory (Memory slots type)

DIMM

Memory (Number of memory slots)

2

Memory (Supported memory clock speeds)

5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz

Memory (Supported memory types)

DDR5-SDRAM

Network (WLAN controller model)

Intel Wi-Fi 6E AX211

Features (Component for)

PC

Features (Cooling type)

Passive

Battery (Battery weight)

3 g

Network (LAN controller)

Realtek RTL8125

Features (Audio chip)

Realtek ALC897

Features (Audio output channels)

7.1 channels

Features (Motherboard chipset family)

Intel

Features (Motherboard form factor)

micro ATX

Features (PC health monitoring)

Fan/Temperature/Voltage/Water cooling

Features (Power source type)

ATX

Features (Product colour)

Brown

Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Processor (Compatible processor series)

Intel Core Ultra (Series 2)/Intel Core Ultra (Series 1)

Processor (Processor socket)

LGA 1851 (Socket V1)

Processor (Supported processor sockets)

LGA 1851

Memory (ECC сompatibility)

ECC & Non-ECC

Memory (Maximum internal memory per slot)

64 GB

Memory (Supported memory clock speed (max))

9066 MHz

Memory (Unbuffered memory)

Yes

Storage controllers (Number of HDDs supported)

4

Storage controllers (Number of storage drives supported)

6

Storage controllers (RAID levels)

0/1/10/5

Storage controllers (RAID support)

Yes

Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Storage controllers (Supported storage drive types)

HDD & SSD

Graphics (DirectX version)

12.0

Graphics (HDCP)

Yes

Graphics (Maximum resolution)

4096 x 2160 pixels

Graphics (Parallel processing technology support)

Not supported

Internal I/O (ATX Power connector (24-pin))

Yes

Internal I/O (CPU fan connector)

Yes

Internal I/O (EPS power connector (8-pin))

Yes

Internal I/O (Front panel audio connector)

Yes

Internal I/O (Front panel connector)

Yes

Internal I/O (Number of chassis fan connectors)

2

Internal I/O (Number of CPU fan connectors)

2

Internal I/O (Number of EPS power connectors (8-pin))

1

Internal I/O (Number of RGB LED pin headers)

4

Internal I/O (Number of SATA III connectors)

4

Internal I/O (Number of water pump connectors)

2

Internal I/O (RGB LED pin header)

Yes

Internal I/O (TPM connector)

Yes

Internal I/O (USB 2.0 connectors)

2

Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Rear panel I/O ports (DisplayPort version)

2.1

Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Rear panel I/O ports (HDMI ports quantity)

1

Rear panel I/O ports (HDMI version)

2.1

Rear panel I/O ports (Headphone outputs)

1

Rear panel I/O ports (Line-in)

Yes

Rear panel I/O ports (WiFi-AP antenna jack)

2

Network (Ethernet interface type)

2.5 Gigabit Ethernet

Expansion slots (1st M.2 highest PCI Express generation)

5.0

Expansion slots (1st M.2 largest key size)

2280

Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Expansion slots (2nd M.2 largest key size)

2280

Expansion slots (Number of M.2 (M) slots)

2

Expansion slots (PCI Express x16 (Gen 4.x) slots)

1

Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

BIOS (ACPI version)

5.0

BIOS (BIOS memory size)

256 Mbit

BIOS (BIOS type)

UEFI AMI

BIOS (Clear CMOS jumper)

Yes

BIOS (Desktop Management Interface (DMI) version)

2.7

BIOS (System Management BIOS (SMBIOS) version)

2.7

Battery (Lithium weight per battery)

0.07 g

Battery (Number of battery cells)

1

Packaging content (Antenna included)

Yes

Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Packaging content (Screws included)

Yes

Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)

1

Rear panel I/O ports (DisplayPorts quantity)

1

Rear panel I/O ports (Microphone in)

Yes

Rear panel I/O ports (USB 2.0 ports quantity)

3

Internal I/O (Thunderbolt headers)

2

Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

3
