Mainboard|GIGABYTE|AMD B850|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B850MAELTWF6EICE1.1

Product Details

Reference B850M A ELT WF6E ICE 1.1

In stock 3 Items

Data sheet

Garantija

36

Category Code

MBA

Unit Box Height

0.07

Unit Box Length

0.27

Unit Box Width

0.27

Vendor Homepage

https://www.gigabyte.com/

MODEL

B850M A ELT WF6E ICE

Units per Shipping Box

8

Unit Calculated Weight

1.98 kg

Unit Calculated Volume

0.007068 cubm

Summary

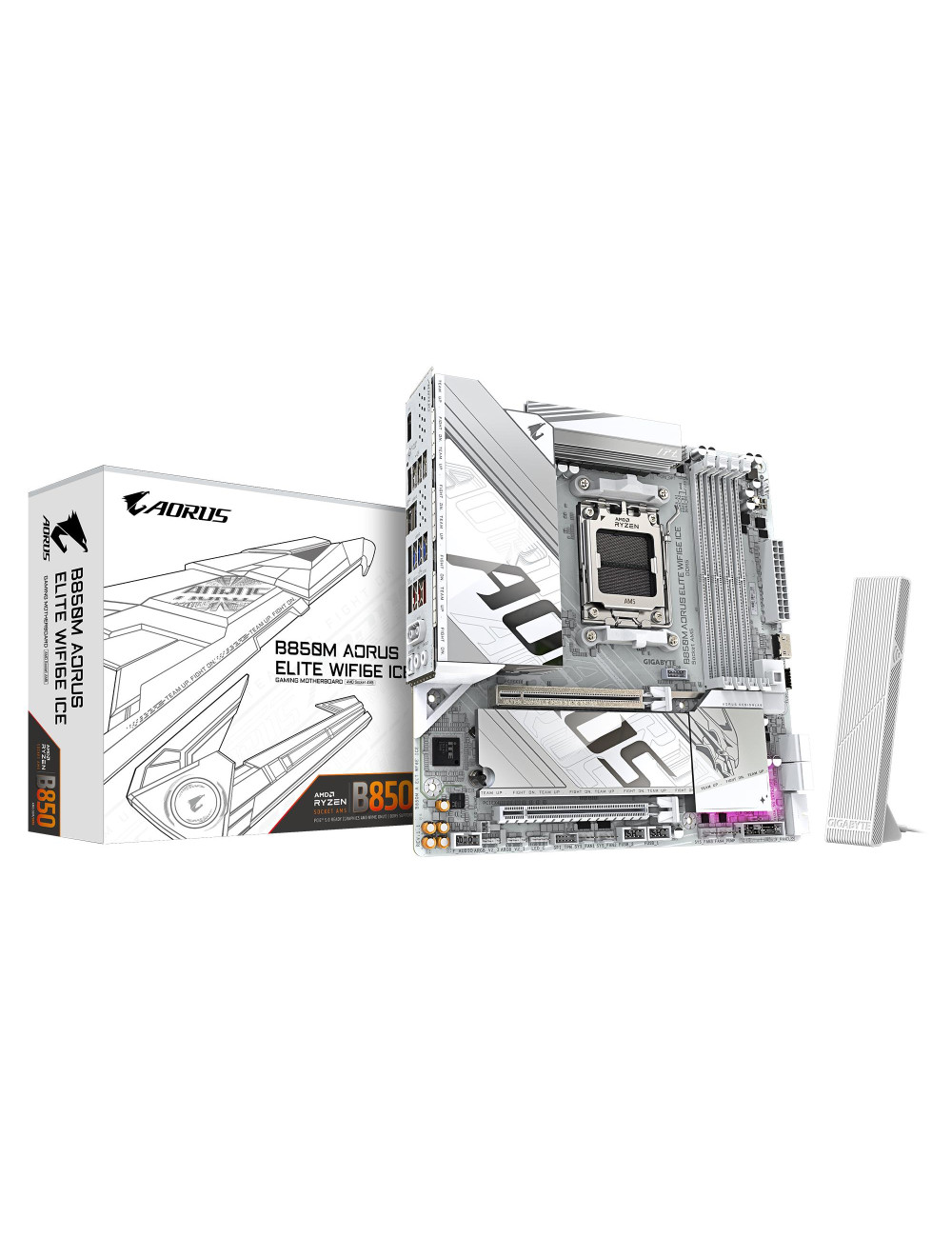

GIGABYTE B850M AORUS ELITE WIFI6E ICE Motherboard- AMD Ryzen 9000 Series CPUs, 12+2+1 Phases Digital VRM, up to 8200MHz DDR5 (OC), 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5LAN, WIFI 7, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compa

Mainboards for AMD CPUs | Processor (Compatible processor series)

AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series

Mainboards for AMD CPUs | Processor (Processor manufacturer)

AMD

Mainboards for AMD CPUs | Processor (Processor socket)

Socket AM5

Mainboards for AMD CPUs | Processor (Supported processor sockets)

Socket AM5

Mainboards for AMD CPUs | Memory (ECC ?ompatibility)

non-ECC

Mainboards for AMD CPUs | Memory (Maximum internal memory)

256 GB

Mainboards for AMD CPUs | Memory (Maximum internal memory per slot)

64 GB

Mainboards for AMD CPUs | Memory (Memory channels)

Dual-channel

Mainboards for AMD CPUs | Memory (Memory slots type)

DIMM

Mainboards for AMD CPUs | Memory (Number of memory slots)

4

Mainboards for AMD CPUs | Memory (Supported memory clock speed (max))

8200 MHz

Mainboards for AMD CPUs | Memory (Supported memory clock speeds)

4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz

Mainboards for AMD CPUs | Memory (Supported memory types)

DDR5-SDRAM

Mainboards for AMD CPUs | Memory (Unbuffered memory)

Y

Mainboards for AMD CPUs | Storage controllers (Number of HDDs supported)

4

Mainboards for AMD CPUs | Storage controllers (Number of storage drives supported)

6

Mainboards for AMD CPUs | Storage controllers (RAID levels)

0/1/10

Mainboards for AMD CPUs | Storage controllers (RAID support)

Y

Mainboards for AMD CPUs | Storage controllers (Supported storage drive interfaces)

M.2,SATA III

Mainboards for AMD CPUs | Storage controllers (Supported storage drive types)

HDD & SSD

Mainboards for AMD CPUs | Graphics (DirectX version)

12.0

Mainboards for AMD CPUs | Graphics (HDCP)

Y

Mainboards for AMD CPUs | Graphics (Maximum resolution)

4096 x 2160 pixels

Mainboards for AMD CPUs | Graphics (On-board graphics card)

N

Mainboards for AMD CPUs | Graphics (Parallel processing technology support)

Not supported

Mainboards for AMD CPUs | Internal I/O (12V power connector)

Y

Mainboards for AMD CPUs | Internal I/O (ATX Power connector (24-pin))

Y

Mainboards for AMD CPUs | Internal I/O (CPU fan connector)

Y

Mainboards for AMD CPUs | Internal I/O (EPS power connector (8-pin))

Y

Mainboards for AMD CPUs | Internal I/O (Front panel audio connector)

Y

Mainboards for AMD CPUs | Internal I/O (Front panel connector)

Y

Mainboards for AMD CPUs | Internal I/O (Number of chassis fan connectors)

3

Mainboards for AMD CPUs | Internal I/O (Number of CPU fan connectors)

2

Mainboards for AMD CPUs | Internal I/O (Number of EPS power connectors (8-pin))

1

Mainboards for AMD CPUs | Internal I/O (Number of RGB LED pin headers)

4

Mainboards for AMD CPUs | Internal I/O (Number of SATA III connectors)

4

Mainboards for AMD CPUs | Internal I/O (Number of water pump connectors)

2

Mainboards for AMD CPUs | Internal I/O (Peripheral (Molex) power connectors (4-pin))

1

Mainboards for AMD CPUs | Internal I/O (RGB LED pin header)

Y

Mainboards for AMD CPUs | Internal I/O (Serial port headers)

1

Mainboards for AMD CPUs | Internal I/O (TPM connector)

Y

Mainboards for AMD CPUs | Internal I/O (USB 2.0 connectors)

2

Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)

1

Mainboards for AMD CPUs | Internal I/O (USB 3.2 Gen 2x2 connectors)

1

Mainboards for AMD CPUs | Rear panel I/O ports (DisplayPort version)

1.4

Mainboards for AMD CPUs | Rear panel I/O ports (DisplayPorts quantity)

1

Mainboards for AMD CPUs | Rear panel I/O ports (Ethernet LAN (RJ-45) ports)

1

Mainboards for AMD CPUs | Rear panel I/O ports (HDMI ports quantity)

1

Mainboards for AMD CPUs | Rear panel I/O ports (HDMI version)

1.4

Mainboards for AMD CPUs | Rear panel I/O ports (Headphone outputs)

1

Mainboards for AMD CPUs | Rear panel I/O ports (Microphone in)

Y

Mainboards for AMD CPUs | Rear panel I/O ports (USB 2.0 ports quantity)

4

Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)

5

Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity)

2

Mainboards for AMD CPUs | Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)

1

Mainboards for AMD CPUs | Rear panel I/O ports (WiFi-AP antenna jack)

2

Mainboards for AMD CPUs | Network (Bluetooth)

Y

Mainboards for AMD CPUs | Network (Bluetooth version)

5.3

Mainboards for AMD CPUs | Network (Ethernet interface type)

2.5 Gigabit Ethernet

Mainboards for AMD CPUs | Network (Ethernet LAN)

Y

Mainboards for AMD CPUs | Network (Top Wi-Fi standard)

Wi-Fi 6E (802.11ax)

Mainboards for AMD CPUs | Network (Wi-Fi)

Y

Mainboards for AMD CPUs | Network (Wi-Fi standards)

802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)

Mainboards for AMD CPUs | Network (WLAN controller model)

Realtek RTL8852CE

Mainboards for AMD CPUs | Features (Audio chip)

Realtek ALC897

Mainboards for AMD CPUs | Features (Audio output channels)

7.1 channels

Mainboards for AMD CPUs | Features (Component for)

PC

Mainboards for AMD CPUs | Features (Motherboard chipset)

AMD B850

Mainboards for AMD CPUs | Features (Motherboard chipset family)

AMD

Mainboards for AMD CPUs | Features (Motherboard form factor)

Micro ATX

Mainboards for AMD CPUs | Features (PC health monitoring)

FAN/Temperature/Voltage/Water cooling

Mainboards for AMD CPUs | Features (Power source type)

ATX

Mainboards for AMD CPUs | Features (Product colour)

White

Mainboards for AMD CPUs | Features (Windows operating systems supported)

Windows 10 x64/Windows 11 x64

Mainboards for AMD CPUs | Expansion slots (1st M.2 highest PCI Express generation)

5.0

Mainboards for AMD CPUs | Expansion slots (1st M.2 largest key size)

25110

Mainboards for AMD CPUs | Expansion slots (2nd M.2 highest PCI Express generation)

4.0

Mainboards for AMD CPUs | Expansion slots (2nd M.2 largest key size)

22110

Mainboards for AMD CPUs | Expansion slots (Number of M.2 (M) slots)

2

Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 3.x) slots)

1

Mainboards for AMD CPUs | Expansion slots (PCI Express x16 (Gen 5.x) slots)

1

Mainboards for AMD CPUs | BIOS (ACPI version)

5.0

Mainboards for AMD CPUs | BIOS (BIOS memory size)

256 Mbit

Mainboards for AMD CPUs | BIOS (BIOS type)

UEFI AMI

Mainboards for AMD CPUs | BIOS (Clear CMOS button)

Y

Mainboards for AMD CPUs | BIOS (Clear CMOS jumper)

Y

Mainboards for AMD CPUs | BIOS (Desktop Management Interface (DMI) version)

2.7

Mainboards for AMD CPUs | BIOS (System Management BIOS (SMBIOS) version)

2.7

Mainboards for AMD CPUs | Battery (Battery technology)

Lithium-Manganese Dioxide (LiMnO2)

Mainboards for AMD CPUs | Battery (Battery type)

CR2032

Mainboards for AMD CPUs | Battery (Battery weight)

3 g

Mainboards for AMD CPUs | Logistics data (Country of origin)

China

Mainboards for AMD CPUs | Battery (Lithium weight per battery)

0.07 g

Mainboards for AMD CPUs | Battery (Number of battery cells)

1

Mainboards for AMD CPUs | Packaging data (Package depth)

268 mm

Mainboards for AMD CPUs | Packaging data (Package height)

68 mm

Mainboards for AMD CPUs | Packaging data (Package weight)

1972 g

Mainboards for AMD CPUs | Packaging data (Package width)

270 mm

Mainboards for AMD CPUs | Logistics data (Products per shipping (inner) case)

1 pc(s)

Mainboards for AMD CPUs | Weight & dimensions (Depth)

244 mm

Mainboards for AMD CPUs | Weight & dimensions (Height)

35 mm

Mainboards for AMD CPUs | Weight & dimensions (Width)

244 mm

Mainboards for AMD CPUs | Packaging content (Antenna included)

Y

Mainboards for AMD CPUs | Packaging content (Batteries included)

Y

Mainboards for AMD CPUs | Packaging content (Bundled software)

Norton Internet Security (OEM version) LAN bandwidth management software

Mainboards for AMD CPUs | Packaging content (Screws included)

Y

Mainboards for AMD CPUs | Technical details (Warranty period)

3 year(s)

Mainboards for AMD CPUs | Other features (Weight)

1770 g
