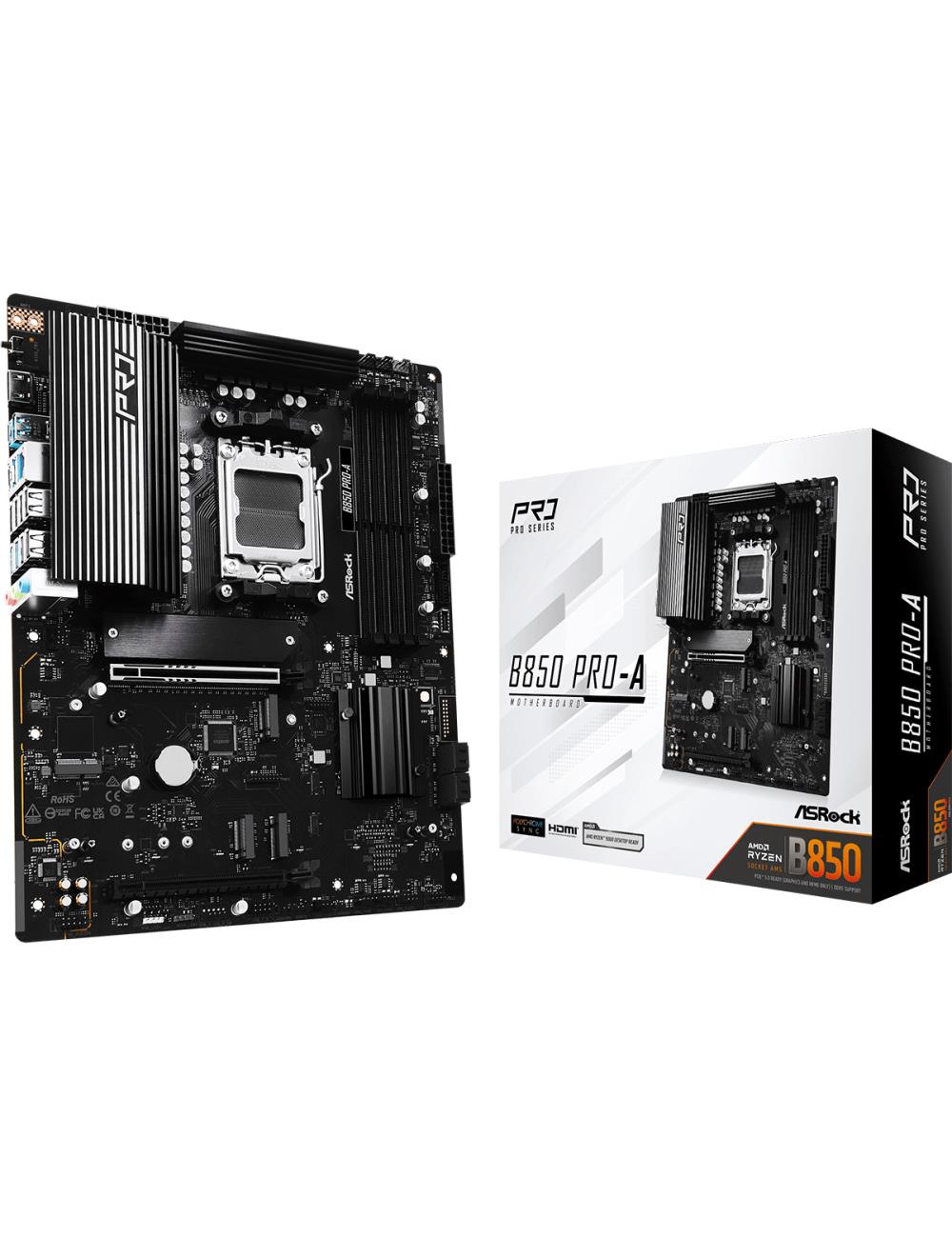

Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-I
    Asrock

    Mainboard|ASROCK|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|1xM.2|1xHDMI|1xAudio-I

    €155.65
    Tax included
    AMD B850 | SAM5 | ATX | DDR5 | 8000 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC897 | LAN 2.5 Gigabit | RAID SATA 0, 1, 10 | TPM Header
    Quantity
      Last items in stock

    Add to favorites Add to compare

    Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
    Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
    14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC+MISC
    4 x DDR5 DIMMs
    Supports Dual Channel, up to 8000+ (OC)
    1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key E for WiFi
    Graphics Output Options: 1 HDMI, 1 USB Type-C (DP-alt)
    Realtek ALC897 7.1 CH HD Audio Codec
    1 Blazing M.2 (PCIe Gen5x4)
    2 Hyper M.2 (PCIe Gen4x4)
    1 Ultra M.2 (PCIe Gen3x4)
    4 SATA3
    1 USB 3.2 Gen2x2 Type-C (Front)
    1 USB 3.2 Gen2 Type-C (Rear)
    1 USB 3.2 Gen1 Type-C (Rear)
    6 USB 3.2 Gen1 (4 Rear, 2 Front)
    9 USB 2.0 (6 Rear, 3 Front)
    Realtek 2.5G LAN
    Supports BIOS Flashback

    Product Details

    B850 PRO-A
    1 Item

    Data sheet

    Form factor
    ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    AMD B850
    Garantija
    36
    RAID
    SATA 0, 1, 10
    SOCKET
    SAM5
    Category Code
    MBA
    Frequency speed
    8000 MHz
    Unit Box Height
    0.075
    Unit Box Length
    0.35
    Unit Box Width
    0.28
    Vendor Homepage
    www.asrock.com/MB/AMD/B850%20Pro-A/index.asp Overview
    Interface (SATA 3.0)
    Yes
    Interface (SATA)
    Yes
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Realtek ALC897
    Integrated LAN
    2.5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    1
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    6
    Interface (USB 2.0)
    Yes
    Input/Output connectors (Audio-In)
    1
    Input/Output connectors (Audio-Out)
    1
    Expansion slots (PCI-Express 4.0 16x)
    1
    Input/Output connectors (USB 3.2)
    4
    Input/Output connectors (Microphone)
    1
    Expansion slots (PCI-Express 5.0 16x)
    1
    Interface (USB 3.2)
    Yes
    MODEL
    B850 Pro-A
    Interface (USB-C)
    Yes
    Input/Output connectors (USB-C)
    2
    Units per Shipping Box
    5
    Product Net Weight
    1.3 kg
    Unit Calculated Weight
    1.98 kg
    Unit Calculated Volume
    0.008784 cubm
    CnCode
    84733020
