Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|PROX870E-PWIFI
    MSI

    Mainboard|MSI|AMD X870E|SAM5|ATX|Memory DDR5|Memory slots 4|PROX870E-PWIFI

    €248.28
    Tax included
    AMD X870E | SAM5 | ATX | DDR5 | 8200/5600/4800 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC897 | LAN 5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 5
    Quantity

    Add to favorites Add to compare

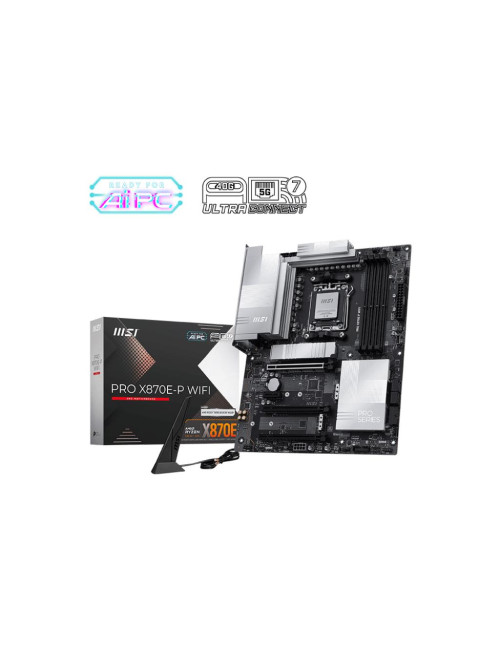

    PRO X870E-P WIFI
    PRO X870E-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.

    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
    • Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
    • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
    • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
    • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
    • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
    • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
    • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

    Product Details

    PRO X870E-P WIFI
    30 Items

    Data sheet

    Form factor
    ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    AMD X870E
    Garantija
    36
    RAID
    SATA 0, 1, 10 NVMe 0, 1, 5
    SOCKET
    SAM5
    Category Code
    MBA
    Frequency speed
    4800/5600/8200 MHz
    Unit Box Height
    0.275
    Unit Box Length
    0.345
    Unit Box Width
    0.075
    Vendor Homepage
    www.msi.com/Motherboard/PRO-X870E-P-WIFI/Overview
    Interface (SATA)
    Yes
    Input/Output connectors (Audio port)
    3
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Realtek ALC897
    Integrated LAN
    5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    3
    Input/Output connectors (RJ45)
    1
    Input/Output connectors (USB 2.0)
    4
    Interface (Bluetooth)
    Yes
    Input/Output connectors (USB 3.2)
    4
    Interface (WiFi)
    Yes
    Expansion slots (PCI-Express 4.0 4x)
    1
    Expansion slots (PCI-Express 5.0 16x)
    1
    MODEL
    PRO X870E-P WIFI
    Input/Output connectors (USB-C)
    2
    Units per Shipping Box
    5
    Product Net Weight
    1 kg
    Unit Calculated Weight
    2.15 kg
    Unit Calculated Volume
    0.007909 cubm
    CnCode
    84733020

    Quick Compare

    Product
    		 Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x Mainboard|MSI|Intel Z890|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850GAMINGPLUSWIFIPZ Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850GAMINGPLUSWIFIPZ Mainboard|MSI|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z890G Mainboard|MSI|Intel Z890|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z890G MSI Z890 GAMING WIFI LGA 1851
    Availability
    Price
    €238.72
    €238.72
    €238.72
    €238.84
    Description
    		 Intel Z890|LGA1851|ATX|DDR5|9200/7200/6400/4800 MHz|Memory slots 4|1xPCI-Express 4.0 1x|2xPCI-Express 4.0 4x |1xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xUSB-C w/Thunderbolt|1xPS/2|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Thunderbolt|Bluetooth|WiFi|Video Depending on CPU|LAN 5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header AMD B850 | SAM5 | ATX | DDR5 | 8200/5600/4800 MHz | Memory slots 4 | Video Depending on CPU | Audio Realtek ALC897 | LAN 5 Gigabit | RAID SATA 0, 1, 10; NVMe 0, 1, 5 | TPM Header Intel Z890 | ATX | Audio 7.1 channels | CPU Intel | Socket LGA 1851 (Socket V1) | Series Intel Core Ultra (Series 2) | Supported memory types DDR5-SDRAM | 4xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,SATA III | 6xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | 1xThunderbolt ports quantity | Wi-Fi Yes | Bluetooth Yes MSI Z890 GAMING WIFI LGA 1851
    Form factor
    		 ATX ATX
    Memory type
    		 DDR5 DDR5
    Memory slots
    		 4 4
    Chipset
    		 Intel Z890 AMD B850
    Garantija
    		 36 36 36
    RAID
    		 SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10 SATA 0, 1, 10 NVMe 0, 1, 5
    SOCKET
    		 LGA1851 SAM5
    Category Code
    		 MBI MBA
    Frequency speed
    		 4800/6400/7200/9200 MHz 4800/5600/8200 MHz
    Unit Box Height
    		 0.073
    Unit Box Length
    		 0.342
    Unit Box Width
    		 0.27
    Unit Net Weight
    		 2 kg
    Vendor Homepage
    		 www.msi.com/Motherboard/PRO-Z890-P-WIFI www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI-PZ https://www.msi.com/Motherboard/Z890-GAMING-WIFI
    Interface (SATA)
    		 Yes Yes
    Input/Output connectors (Audio port)
    		 3 2
    Input/Output connectors (HDMI)
    		 1
    Integrated audio
    		 Realtek ALC897 Realtek ALC897
    Integrated LAN
    		 5 Gigabit 5 Gigabit
    Integrated video
    		 Depending on CPU Depending on CPU
    Expansion slots (M.2)
    		 4 3
    Input/Output connectors (PS/2)
    		 1
    Input/Output connectors (RJ45)
    		 1 1
    TPM
    		 Header Header
    Input/Output connectors (USB 2.0)
    		 4 4
    Interface (USB 2.0)
    		 Yes
    Interface (Bluetooth)
    		 Yes Yes
    Input/Output connectors (DisplayPort)
    		 1 1
    Input/Output connectors (Optical S/PDIF)
    		 1
    Expansion slots (PCI-Express 3.0 1x)
    		 2
    Input/Output connectors (USB 3.2)
    		 3 2
    Interface (WiFi)
    		 Yes Yes
    Expansion slots (PCI-Express 4.0 4x)
    		 2
    Expansion slots (PCI-Express 4.0 1x)
    		 1 1
    Expansion slots (PCI-Express 5.0 16x)
    		 1 1
    Input/Output connectors (USB-C w/Thunderbolt)
    		 1
    Interface (USB 3.2)
    		 Yes
    MODEL
    		 PRO Z890-P WIFI B850 GAMING PLUS WIFI PZ
    Interface (USB-C)
    		 Yes Yes
    Interface (Thunderbolt)
    		 Yes
    CnCode (CnCode)
    		 84733020
    Input/Output connectors (USB-C)
    		 1 2
    Units per Shipping Box
    		 1 5
    Product Net Weight
    		 0.5 kg
    Unit Calculated Weight
    		 1.9 kg 1.9 kg
    Unit Calculated Volume
    		 0.008086 cubm 0.008014 cubm
    CnCode
    		 84733020
    Weight & dimensions (Width)
    		 243.84 mm
    Weight & dimensions (Depth)
    		 304.8 mm
    Network (Bluetooth)
    		 Yes
    Network (Ethernet LAN)
    		 Yes
    Network (Wi-Fi)
    		 Yes
    Network (Bluetooth version)
    		 5.4
    Network (Wi-Fi standards)
    		 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
    Network (Top Wi-Fi standard)
    		 Wi-Fi 7 (802.11be)
    Processor (Processor manufacturer)
    		 Intel
    Graphics (On-board graphics card)
    		 No
    Memory (Maximum internal memory)
    		 256 GB
    Memory (Memory channels)
    		 Dual-channel
    Memory (Memory slots type)
    		 DIMM
    Memory (Number of memory slots)
    		 4
    Memory (Supported memory clock speeds)
    		 4800/5600/6400/7200/8800 MHz
    Memory (Supported memory types)
    		 DDR5-SDRAM
    Network (WLAN controller model)
    		 Killer Wi-Fi 7 BE1750
    Features (Component for)
    		 PC
    Features (Audio chip)
    		 Realtek ALC897
    Features (Audio output channels)
    		 7.1 channels
    Features (Motherboard chipset)
    		 Intel Z890
    Features (Motherboard chipset family)
    		 Intel
    Features (Motherboard form factor)
    		 ATX
    Features (Product colour)
    		 Black
    Features (Windows operating systems supported)
    		 Windows 11
    Processor (Compatible processor series)
    		 Intel Core Ultra (Series 2)
    Processor (Processor socket)
    		 LGA 1851 (Socket V1)
    Processor (Supported processor sockets)
    		 Intel LGA1851
    Memory (ECC сompatibility)
    		 Non-ECC
    Memory (Supported memory clock speed (max))
    		 8800 MHz
    Storage controllers (Number of HDDs supported)
    		 7
    Storage controllers (Number of storage drives supported)
    		 4
    Storage controllers (RAID levels)
    		 0/1/10/5
    Storage controllers (RAID support)
    		 Yes
    Storage controllers (Supported storage drive interfaces)
    		 M.2,SATA III
    Storage controllers (Supported storage drive types)
    		 HDD & SSD
    Internal I/O (ATX Power connector (24-pin))
    		 Yes
    Internal I/O (EPS power connector (8-pin))
    		 Yes
    Internal I/O (Number of EPS power connectors (8-pin))
    		 1
    Internal I/O (Number of SATA III connectors)
    		 4
    Internal I/O (USB 2.0 connectors)
    		 4
    Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors)
    		 2
    Rear panel I/O ports (DisplayPort version)
    		 1.4
    Rear panel I/O ports (Ethernet LAN (RJ-45) ports)
    		 1
    Rear panel I/O ports (HDMI ports quantity)
    		 1
    Rear panel I/O ports (HDMI version)
    		 2.1
    Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity)
    		 1
    Network (Ethernet interface type)
    		 5 Gigabit Ethernet
    Expansion slots (1st M.2 highest PCI Express generation)
    		 5.0
    Expansion slots (1st M.2 largest key size)
    		 2280
    Expansion slots (2nd M.2 highest PCI Express generation)
    		 4.0
    Expansion slots (2nd M.2 largest key size)
    		 2280
    Expansion slots (3rd M.2 highest PCI Express generation)
    		 4.0
    Expansion slots (3rd M.2 largest key size)
    		 2280
    Expansion slots (Number of M.2 (M) slots)
    		 3
    Expansion slots (PCI Express x16 (Gen 5.x) slots)
    		 1
    BIOS (ACPI version)
    		 6.5
    BIOS (BIOS memory size)
    		 256 Mbit
    BIOS (BIOS type)
    		 UEFI AMI
    BIOS (System Management BIOS (SMBIOS) version)
    		 3.7
    Internal I/O (USB 3.2 Gen 2 (3.1 Gen 2) connectors)
    		 1
    Rear panel I/O ports (DisplayPorts quantity)
    		 1
    Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity)
    		 6
    Internal I/O (Total number of SATA connectors)
    		 4
    Expansion slots (PCI Express x1 (Gen 4.x) slots)
    		 1
    Expansion slots (PCI Express x4 (Gen 4.x) slots)
    		 2
    Rear panel I/O ports (Thunderbolt ports quantity)
    		 1
    Long Description
    		 MSI Z890 GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported
    Bullet Points
    		 ul li Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket /li li Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC) /li li Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost,
