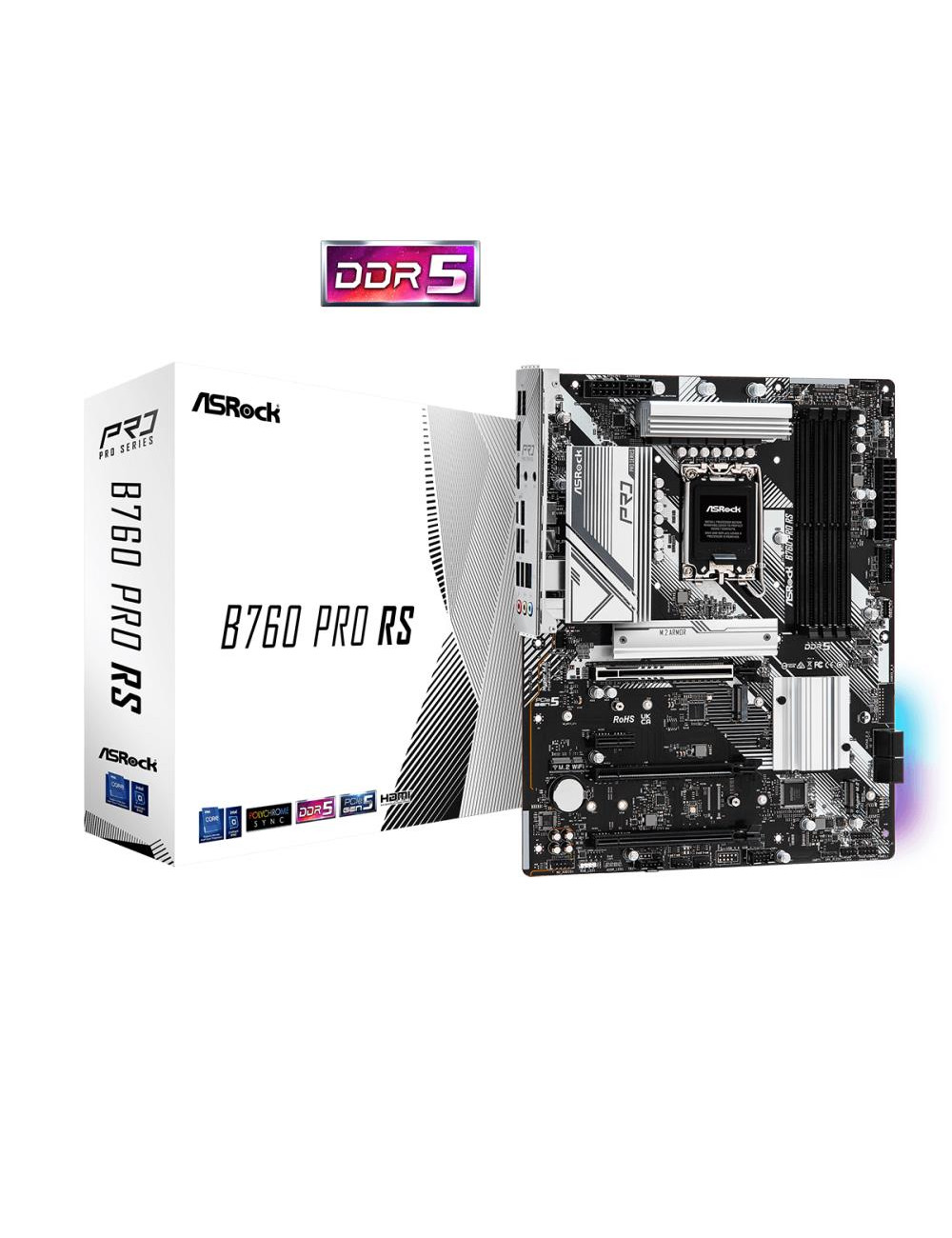

Mainboard|ASROCK|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Expr
    Asrock

    Mainboard|ASROCK|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xPCI-Expr

    €120.13
    Tax included
    Intel B760 Express | LGA1700 | ATX | DDR5 | 7200/6000/5600/4800 MHz | Memory slots 4 | Video Depending on CPU | LAN 2.5 Gigabit | Audio Realtek ALC897 | RAID SATA 0, 1, 5, 10 | TPM Header
    Quantity

    Add to favorites Add to compare

    • Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    • 10+1+1 Power Phase, Dr.MOS for VCore+GT
    • Supports DDR5 7200MHz (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
    • Graphics Output Options: HDMI, DisplayPort, eDP
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2)
    • 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),1 USB 3.2 Gen2 Type-A (Rear),6 USB 3.2 Gen1 (4 Rear, 2 Front),4 USB 2.0 (2 Rear, 2 Front)
    • Dragon 2.5G LAN
    • Supports ASRock Auto Driver Installer

    Product Details

    B760PRORS
    30 Items

    Data sheet

    Form factor
    ATX
    Memory type
    DDR5
    Memory slots
    4
    Chipset
    Intel B760 Express
    Garantija
    36
    RAID
    SATA 0, 1, 5, 10
    SOCKET
    LGA1700
    Category Code
    MBI
    Frequency speed
    4800/5600/6000/7200 MHz
    Unit Box Height
    0.075
    Unit Box Length
    0.36
    Unit Box Width
    0.305
    Vendor Homepage
    www.asrock.com/mb/Intel/B760%20Pro%20RS/index.asp
    Interface (SATA)
    Yes
    Input/Output connectors (Audio port)
    3
    Input/Output connectors (HDMI)
    1
    Integrated audio
    Realtek ALC897
    Integrated LAN
    2.5 Gigabit
    Integrated video
    Depending on CPU
    Expansion slots (M.2)
    3
    Input/Output connectors (RJ45)
    1
    TPM
    Header
    Input/Output connectors (USB 2.0)
    2
    Interface (USB 2.0)
    Yes
    Expansion slots (PCI-Express 3.0 16x)
    1
    Input/Output connectors (DisplayPort)
    1
    Expansion slots (PCI-Express 3.0 1x)
    1
    Expansion slots (PCI-Express 4.0 16x)
    1
    Input/Output connectors (USB 3.2)
    5
    Included Accessories
    - 1 x User Manual - 2 x SATA Data Cables - 4 x Screws for M.2 Sockets - 1 x Standoff for M.2 Socket
    Expansion slots (PCI-Express 5.0 16x)
    1
    Interface (USB 3.2)
    Yes
    MODEL
    B760 Pro RS
    Input/Output connectors (USB-C)
    1
    Units per Shipping Box
    1
    Product Net Weight
    1.2 kg
    Unit Calculated Weight
    1.58 kg
    Unit Calculated Volume
    0.008235 cubm
    CnCode
    84733020
