MSI

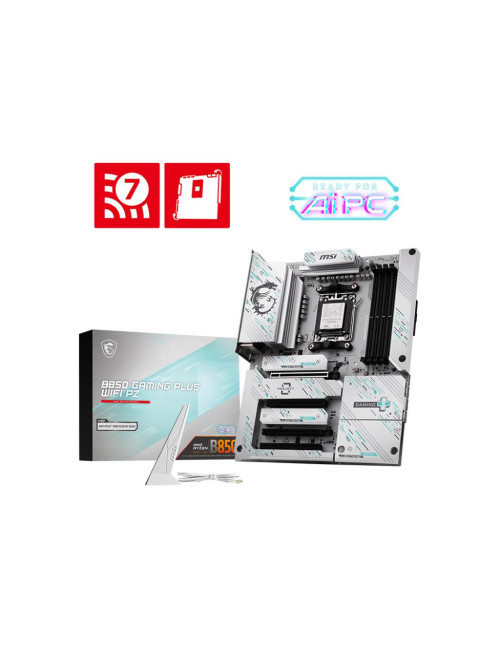

Mainboard|MSI|AMD B850|SAM5|ATX|Memory DDR5|Memory slots 4|B850GAMINGPLUSWIFIPZ

€233.58

Tax included

B850 GAMING PLUS WIFI PZ
The B850 GAMING PLUS WIFI PZ is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen™ 9000 series processors.

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
High-Speed Connectivity: 5G LAN with full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience

Product Details

Reference B850 GAMING PLUS WIFI PZ

In stock 7 Items

Data sheet

Form factor: ATX
Memory type: DDR5
Memory slots: 4
Chipset: AMD B850
Garantija: 36
RAID: SATA 0, 1, 10 NVMe 0, 1, 5
SOCKET: SAM5
Category Code: MBA
Frequency speed: 4800/5600/8200 MHz
Vendor Homepage: www.msi.com/Motherboard/B850-GAMING-PLUS-WIFI-PZ
Interface (SATA): Yes
Input/Output connectors (Audio port): 2
Integrated audio: Realtek ALC897
Integrated LAN: 5 Gigabit
Integrated video: Depending on CPU
Expansion slots (M.2): 3
Input/Output connectors (RJ45): 1
TPM: Header
Input/Output connectors (USB 2.0): 4
Interface (Bluetooth): Yes
Input/Output connectors (DisplayPort): 1
Input/Output connectors (Optical S/PDIF): 1
Expansion slots (PCI-Express 3.0 1x): 2
Input/Output connectors (USB 3.2): 2
Interface (WiFi): Yes
Expansion slots (PCI-Express 4.0 1x): 1
Expansion slots (PCI-Express 5.0 16x): 1
MODEL: B850 GAMING PLUS WIFI PZ
Interface (USB-C): Yes
Input/Output connectors (USB-C): 2
Units per Shipping Box: 1
Product Net Weight: 0.5 kg
Unit Calculated Weight: 1.9 kg
Unit Calculated Volume: 0.008086 cubm
CnCode: 84733020

Quick Compare

Product	Mainboard\|MSI\|Intel Z890\|LGA1851\|ATX\|Memory DDR5\|Memory slots 4\|1xPCI-Express 4.0 1x\|2xPCI-Express 4.0 4x \|1xPCI-Express 5.0 16x	Asus ROG STRIX B650-A GAMING WIFI Processor family AMD, Processor socket AM5, DDR5 DIMM, Memory slots 4, Supported hard disk dri	Mainboard\|GIGABYTE\|AMD B850\|SAM5\|ATX\|Memory DDR5\|2xPCI-Express 3.0 1x\|1xPCI-Express 4.0 4x \|1xPCI-Express 4.0 8x\|1xPCI-Express 5	MSI PRO Z890-P WIFI \| Processor family Intel \| Processor socket LGA1851 \| DDR5 UDIMM \| Supported hard disk drive interfaces SATA
Availability
Price	€221.62	€221.75	€222.28	€222.80
Description	Intel Z890\|LGA1851\|ATX\|DDR5\|9200/7200/6400/4800 MHz\|Memory slots 4\|1xPCI-Express 4.0 1x\|2xPCI-Express 4.0 4x \|1xPCI-Express 5.0 16x\|4xM.2\|1xHDMI\|1xDisplayPort\|4xUSB 2.0\|3xUSB 3.2\|1xUSB-C\|1xUSB-C w/Thunderbolt\|1xPS/2\|1xRJ45\|3xAudio port\|SATA\|USB-C\|USB 2.0\|USB 3.2\|Thunderbolt\|Bluetooth\|WiFi\|Video Depending on CPU\|LAN 5 Gigabit\|Audio Realtek ALC897\|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10\|TPM Header	Asus ROG STRIX B650-A GAMING WIFI Processor family AMD, Processor socket AM5, DDR5 DIMM, Memory slots 4, Supported hard disk drive interfaces SATA, M.2, Number of SATA connectors 4, Chipset AMD B650, ATX	AMD B850 \| SAM5 \| ATX \| DDR5 \| 8200/8000/7950/7900/7800/7600/7400/7200/7000/6800/6600/6400/6200/6000/5800/5600/5200/4800/4400 MHz \| 2xPCI-Express 3.0 1x \| 1xPCI-Express 4.0 4x \| 1xPCI-Express 4.0 8x \| 1xPCI-Express 5.0 16x \| 3xM.2 \| 1xDisplayPort \| 4xUSB 2.0 \| 5xUSB 3.2 \| 1xUSB-C \| 1xOptical S/PDIF \| 1xRJ45 \| 2xAudio port \| SATA \| USB-C \| USB 2.0 \| USB 3.2 \| Bluetooth \| WiFi \| Video Depending on CPU \| Audio Realtek ALC1220 \| LAN 2.5 Gigabit \| RAID SATA 0, 1, 10; NVMe 0, 1, 5, 10 \| TPM Header	MSI PRO Z890-P WIFI \| Processor family Intel \| Processor socket LGA1851 \| DDR5 UDIMM \| Supported hard disk drive interfaces SATA, M.2 \| Number of SATA connectors 4
Warranty		36 month(s)		36 month(s)
Producer product name		ROG STRIX B650-A GAMING WIFI		PRO Z890-P WIFI
Net weight		1.00 kg		1.36 kg
Gross weight		1.30 kg		1.77 kg
WEEE tax		Yes		No
Packing quantity		1.00 pc(s)		1.00 pc(s)
Gross depth master carton		286 mm
Gross width master carton		380 mm
Gross height master carton		370 mm
Net weight master carton		9.665 kg
Tare weight master carton		0.684 kg
Volume (m3)		0.01 m		0.01 m
Tare weight (kg)		0.30 kg		0.41 kg
Gross depth (mm)		340.00 mm		342.00 mm
Gross width (mm)		270.00 mm		268.00 mm
Gross height (mm)		60.00 mm		70.00 mm
WEE classification		CL109:5:2017-04-01
Paper/Pasteboard		250.00 g		350.00 g
Embeeded battery		No		Yes
TI weight (kg)		0.05 kg		0.05 kg
Plastic (No PET)		50.00 g		56.00 g
Composition of battery		CL127:KT:2016-12-09		CL127:KT:2016-12-09
Classification of battery		CL126:NE:2016-12-09		CL126:NE:2016-12-09
Type of battery		Accumulator		Accumulator
Form factor	ATX		ATX
Palette Qty				135 pc(s)
Memory type	DDR5		DDR5
Memory slots	4	4
Chipset	Intel Z890	AMD B650	AMD B850
Supported hard disk drive interfaces		SATA, M.2		SATA, M.2
Compatible processor series		Supports AMD Ryzen 7000 Series Desktop Processors
Processor family		AMD		Intel
Motherboard form factor		ATX
Supported memory types		DDR5 DIMM		DDR5 UDIMM
Processor socket		AM5		LGA1851
Number of SATA connectors		4		4
Garantija	36		36
RAID	SATA 0, 1, 5, 10 NVMe 0, 1, 5, 10		SATA 0, 1, 10 NVMe 0, 1, 5, 10
SOCKET	LGA1851		SAM5
Category Code	MBI		MBA
Frequency speed	4800/6400/7200/9200 MHz		4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 MHz
Unit Box Height	0.073		0.081
Unit Box Length	0.342		0.34
Unit Box Width	0.27		0.27
Unit Net Weight	2 kg
Vendor Homepage	www.msi.com/Motherboard/PRO-Z890-P-WIFI		www.gigabyte.com/Motherboard/B850-AORUS-ELITE-WIFI7-ICE-rev-1x
Interface (SATA)	Yes		Yes
Input/Output connectors (Audio port)	3		2
Input/Output connectors (HDMI)	1
Integrated audio	Realtek ALC897		Realtek ALC1220
Integrated LAN	5 Gigabit		2.5 Gigabit
Integrated video	Depending on CPU		Depending on CPU
Expansion slots (M.2)	4		3
Input/Output connectors (PS/2)	1
Input/Output connectors (RJ45)	1		1
TPM	Header		Header
Input/Output connectors (USB 2.0)	4		4
Interface (USB 2.0)	Yes		Yes
Interface (Bluetooth)	Yes		Yes
Input/Output connectors (DisplayPort)	1		1
Input/Output connectors (Optical S/PDIF)			1
Expansion slots (PCI-Express 3.0 1x)			2
Input/Output connectors (USB 3.2)	3		5
Interface (WiFi)	Yes		Yes
Expansion slots (PCI-Express 4.0 4x)	2		1
Expansion slots (PCI-Express 4.0 8x)			1
Expansion slots (PCI-Express 4.0 1x)	1
Expansion slots (PCI-Express 5.0 16x)	1		1
Input/Output connectors (USB-C w/Thunderbolt)	1
Interface (USB 3.2)	Yes		Yes
MODEL	PRO Z890-P WIFI		B850 AORUS ELITE WIFI7 ICE
Interface (USB-C)	Yes		Yes
Interface (Thunderbolt)	Yes
CnCode (CnCode)	84733020
Input/Output connectors (USB-C)	1		1
Producer				MSI
Units per Shipping Box			6
Product Net Weight			1 kg
Unit Calculated Weight			3 kg
Unit Calculated Volume			0 cubm
CnCode			84733020

In the same category

ASUS

MB AMD B850 SAM5 ATX/B850 MAX GAMING WIFI W ASUS

€238.07

MSI

MSI B760 GAMING PLUS WIFI LGA 1700

€151.38

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

MSI

Mainboard|MSI|Intel B860 Express|LGA1851|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 4.0 1x|1xPCI-Express 4.0 4x |1xPCI-Express

€247.62

MSI

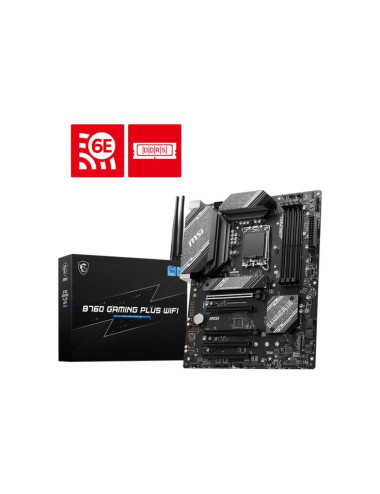

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR5|Memory slots 4|5xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|2
