MSI

Mainboard|MSI|Intel B760 Express|LGA1700|ATX|Memory DDR4|Memory slots 4|5xPCI-Express 5.0 16x|2xM.2|1xHDMI|1xDisplayPort|4xUSB 2

€141.07

Tax included

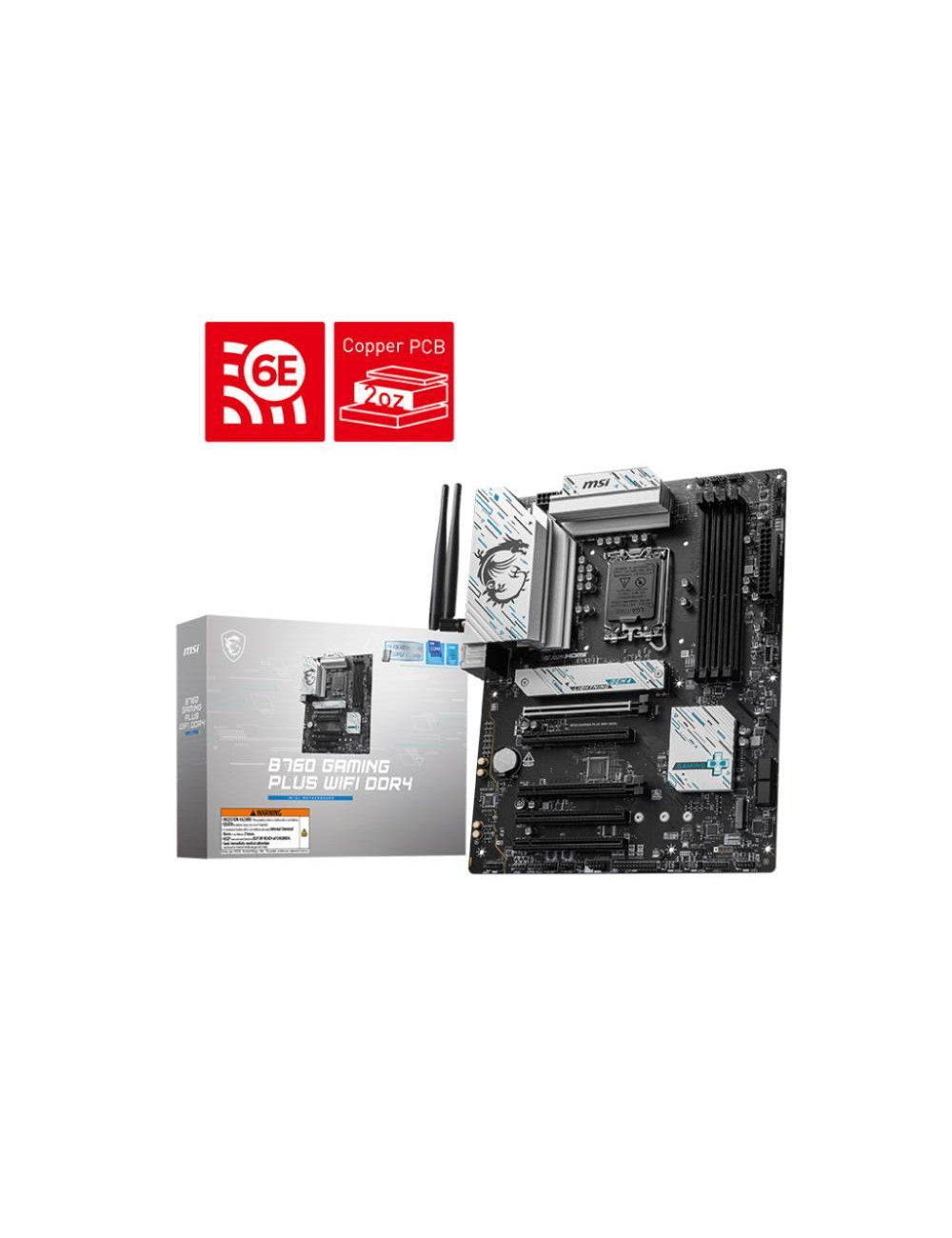

MSI B760 GAMING PLUS WIFI DDR4
Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz

Enhanced Power Design
12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost

Premium Thermal Solution
Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience

Lightning Fast Game experience
PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G

2.5G LAN with Wi-Fi 6E Solution
Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

High Quality PCB
6-layer PCB made by 2oz thickened copper

Audio Boost
Reward your ears with studio grade sound quality for the most immersive gaming experience

Product Details

Reference B760 GAMING PLUS WIFI DDR4

In stock 9 Items

Data sheet

Form factor: ATX
Memory type: DDR4
Memory slots: 4
Chipset: Intel B760 Express
Garantija: 36
RAID: SATA 0, 1, 5, 10
SOCKET: LGA1700
Category Code: MBI
Frequency speed: 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800/5000/5066/5200/5333 MHz
Unit Box Height: 0.348
Unit Box Length: 0.27
Unit Box Width: 0.066
Vendor Homepage: www.msi.com/Motherboard/B760-GAMING-PLUS-WIFI-DDR4
Interface (SATA 3.0): Yes
Interface (SATA): Yes
Input/Output connectors (Audio port): 5
Input/Output connectors (HDMI): 1
Integrated audio: Realtek ALC897
Integrated LAN: 2.5 Gigabit
Integrated video: Yes
Expansion slots (M.2): 2
Input/Output connectors (PS/2): 1
Input/Output connectors (RJ45): 1
TPM: Header
Input/Output connectors (USB 2.0): 4
Input/Output connectors (DisplayPort): 1
Input/Output connectors (Optical S/PDIF): 1
Input/Output connectors (USB 3.2): 2
Expansion slots (PCI-Express 5.0 16x): 5
MODEL: B760 GAMING PLUS WIFI DDR4
Input/Output connectors (USB-C): 1
Units per Shipping Box: 1
Product Net Weight: 1.2 kg
Unit Calculated Weight: 1.7 kg
Unit Calculated Volume: 0.006521 cubm
CnCode: 84733020
