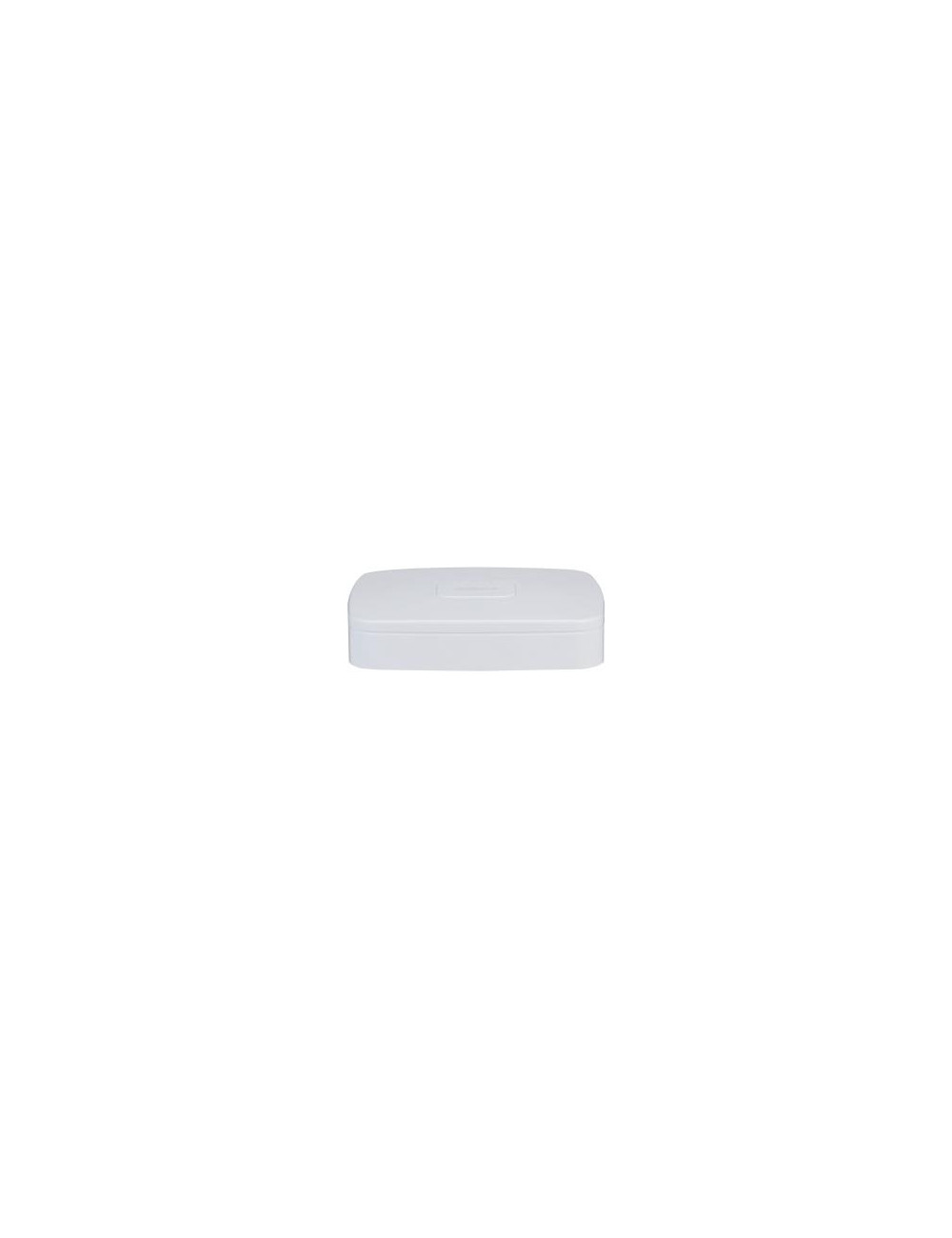

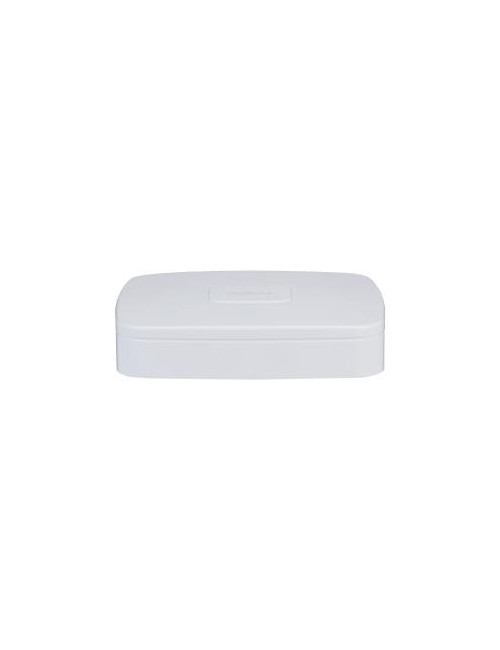

8CH Smart 1U 1HDD Lite Network Video Recorder> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 6 × 1080p@30 fps.
> Max. 80/80/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 4-channel SMD Plus.
> AI by Camera supports perimeter protection and SMD Plus.
> Supports one-click arming and disarming.
Product Details
Data sheet
- Colour
- White
- Power consumption
- 10 Watts
- Garantija
- 36
- Category Code
- NVR
- Unit Box Height
- 0.31
- Unit Box Length
- 0.335
- Unit Box Width
- 0.085
- Vendor Homepage
- www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2108-4KS3
- Input/Output connectors (HDMI)
- 1
- Input/Output connectors (RJ45)
- 1
- Input/Output connectors (USB 2.0)
- 2
- Input/Output connectors (Audio-In)
- 1
- Input/Output connectors (Audio-Out)
- 1
- Input/Output connectors (15pin D-sub)
- 1
- Dimensions
- 204.6 206.4 45.6 mm
- MODEL
- NVR2108-4KS3
- CPU
- Industrial-grade
- Mounting Type (Desktop/pedestal)
- Yes
- Power supply requirements
- 12 VDC, 1.5 A
- Operating temperature range
- 10 C to +55 C
- PoE ports
- 8
- Mounting Type (Rack)
- Yes
- Number of Channels
- 8
- Units per Shipping Box
- 1
- Product Net Weight
- 0.45 kg
- Unit Calculated Weight
- 1.39 kg
- Unit Calculated Volume
- 0.008827 cubm
