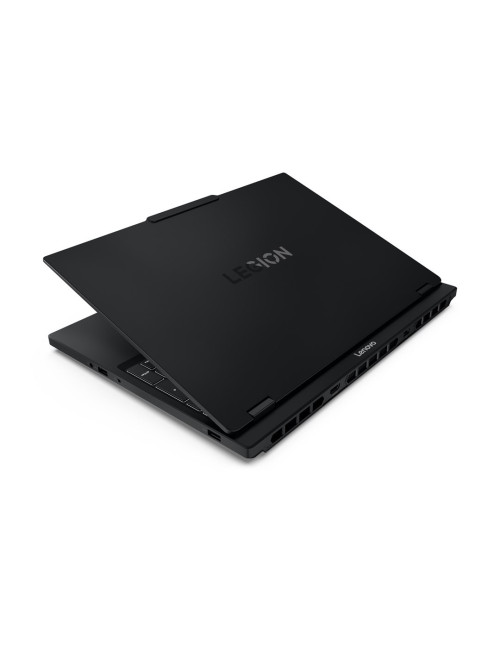

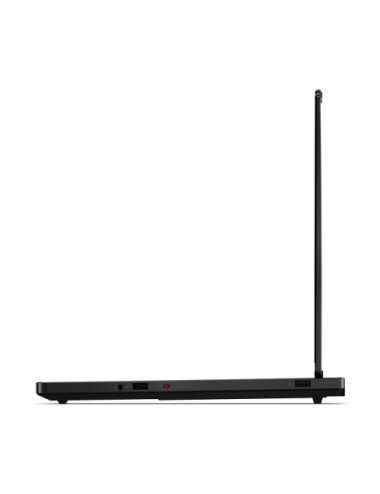

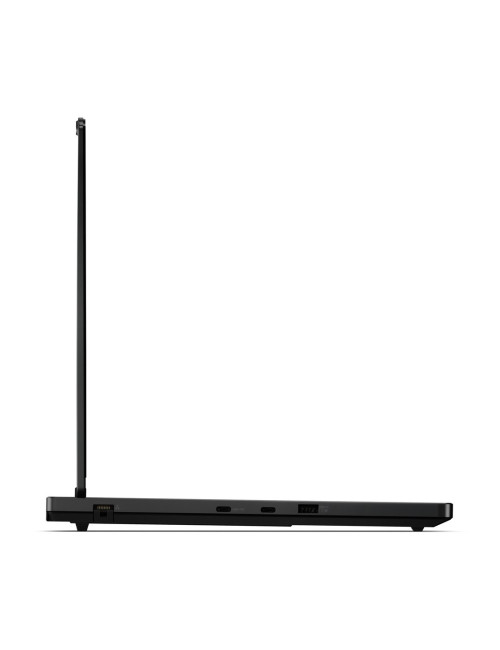

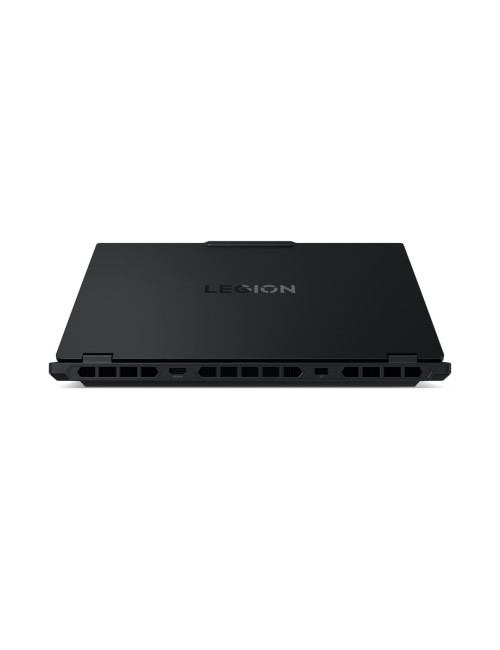

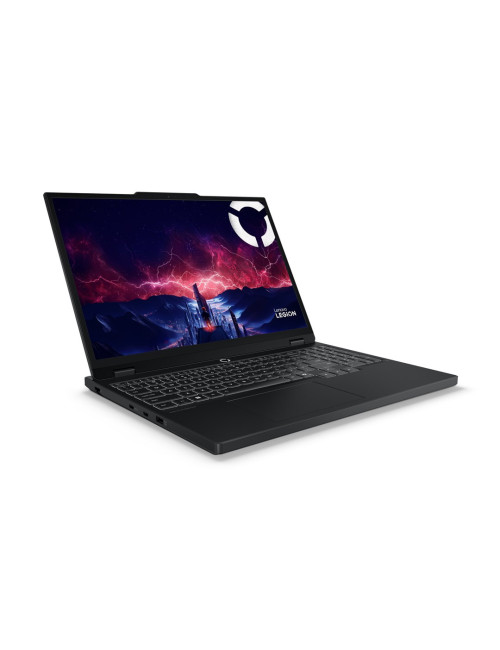

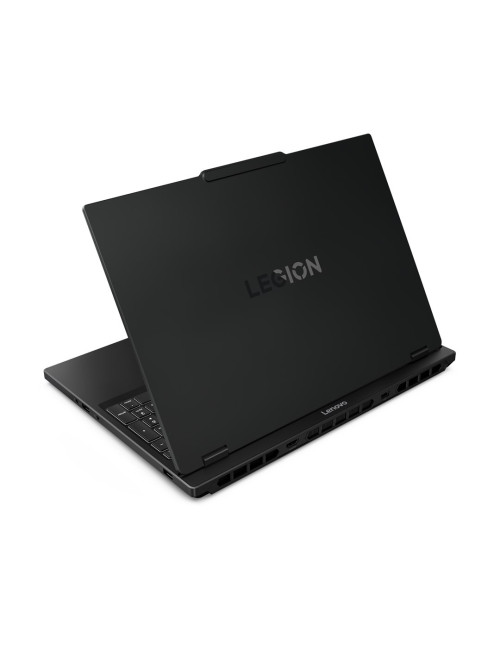

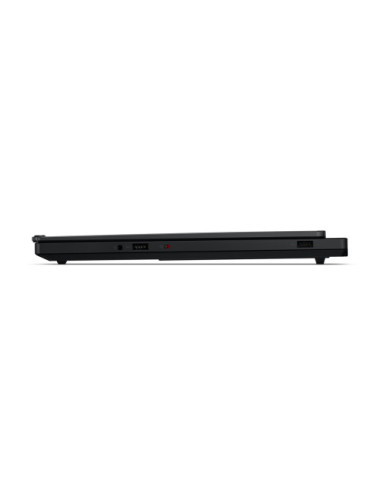

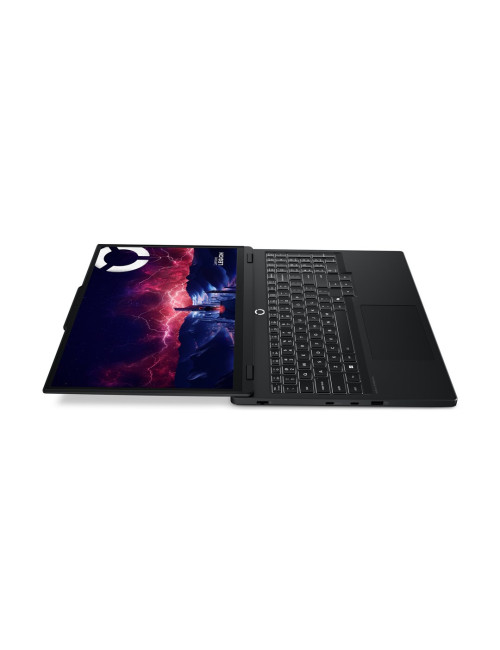

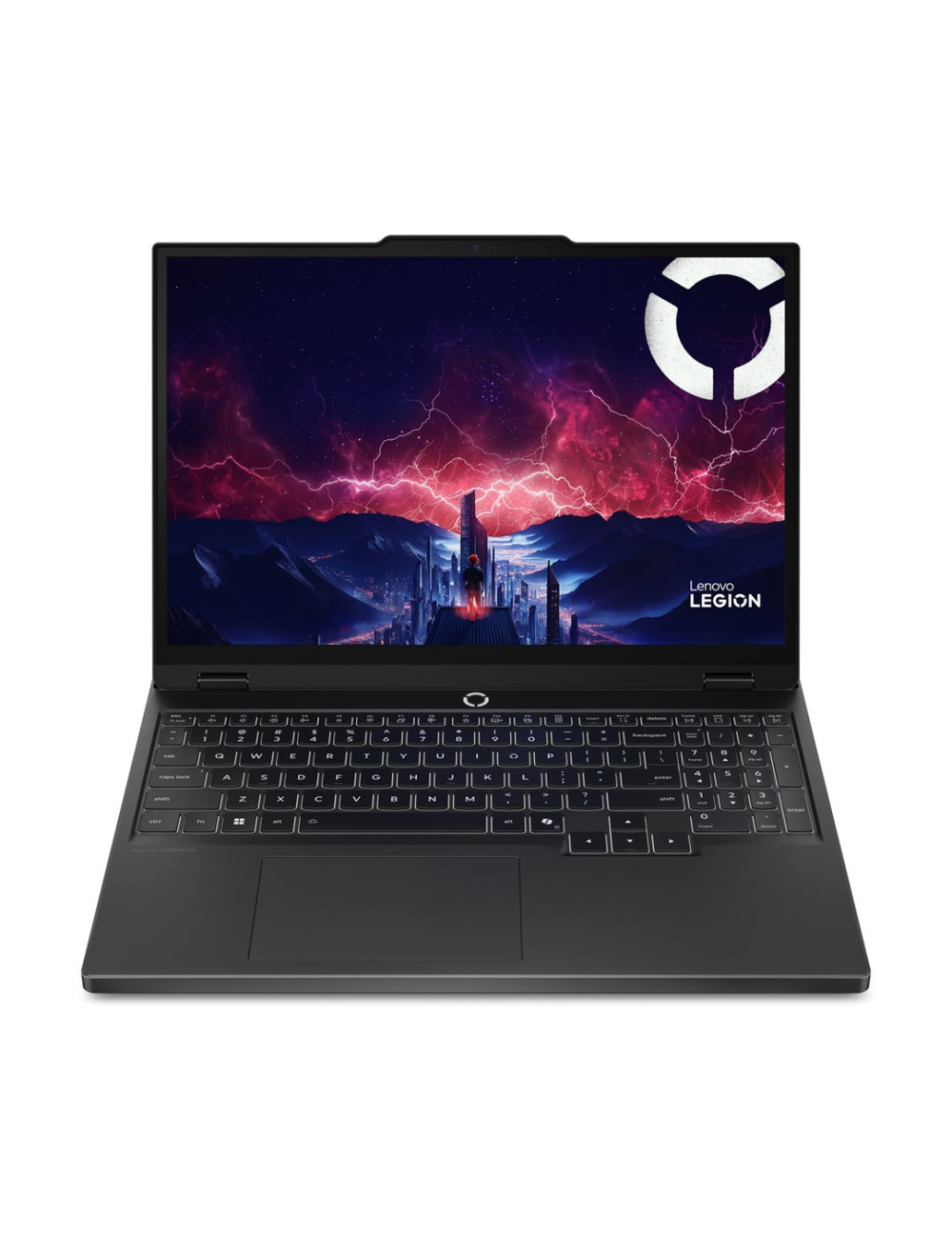

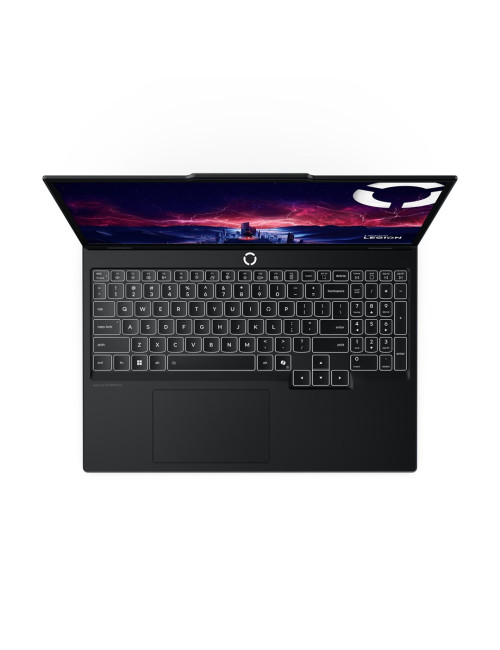

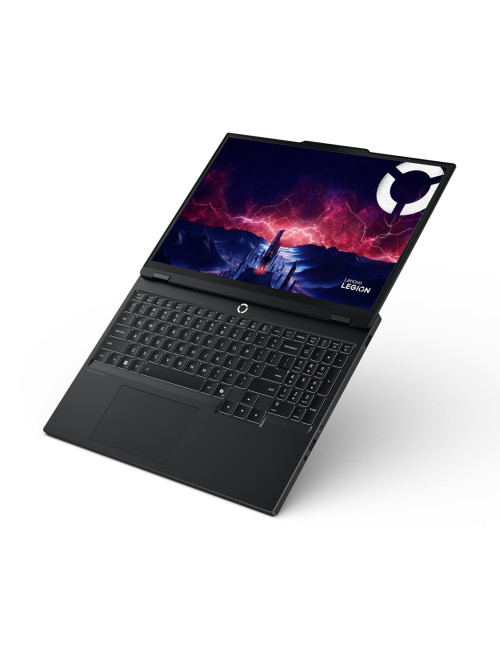

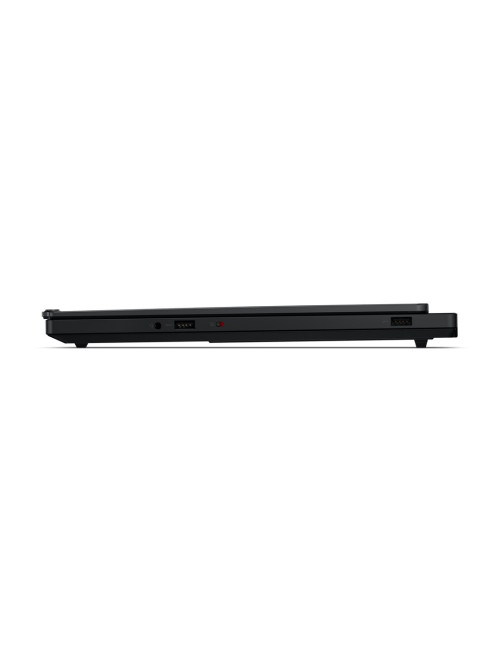

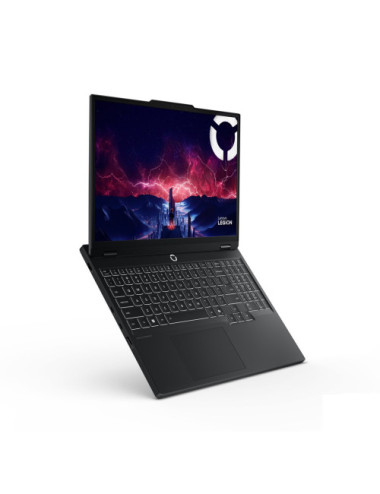

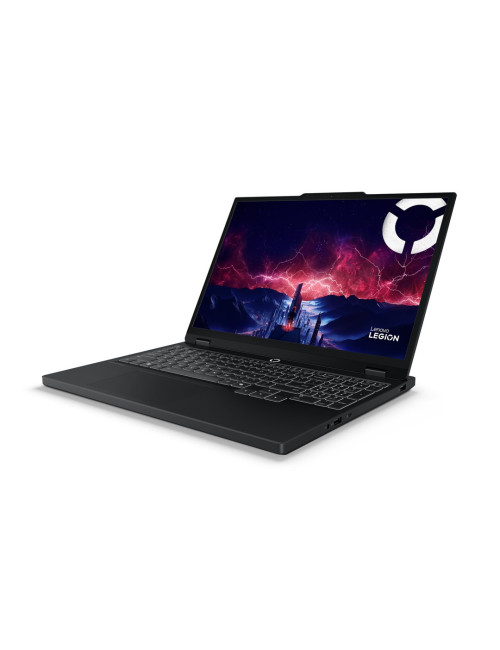

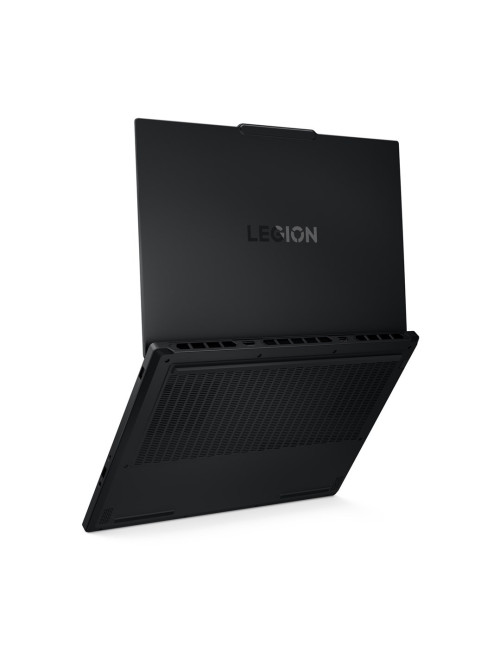

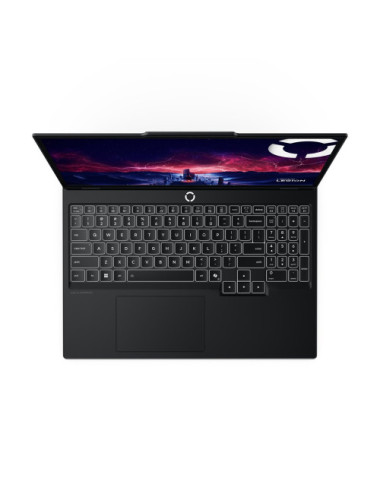

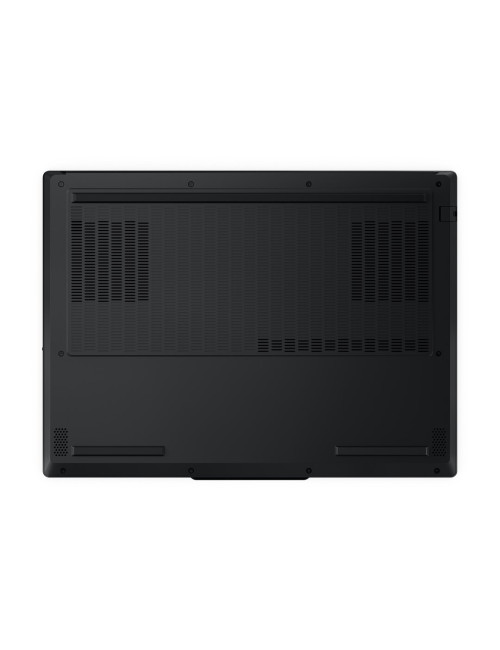

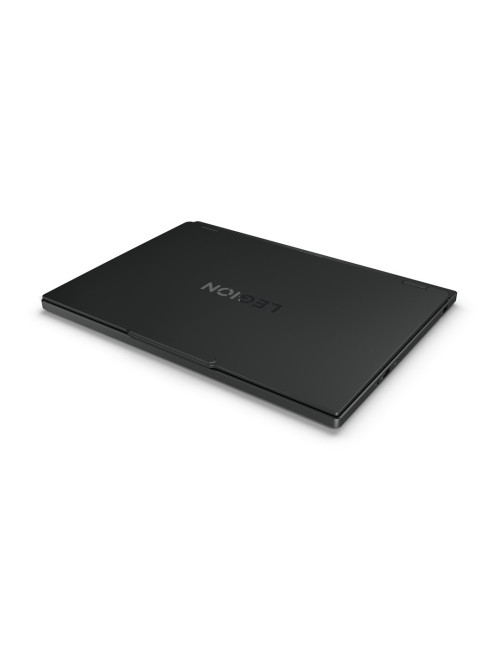

Lenovo Legion 5 15AHP10 Ryzen 7 260 15.1" WQXGA OLED 500nits 165Hz Glossy 16GB DDR5 5600 SSD512 GeForce RTX 5060 8GB Cam 5.0MP

Product Details

Reference MOBLEVGAM0184

In stock 9 Items

Data sheet

Width

344.9 mm

Depth

255.3 mm

Numeric keypad

Yes

Weight

1.9 kg

Product type

Laptop

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

8 - 95%

Storage temperature (T-T)

5 - 43 °C

Optical drive type

No

Built-in microphone

Yes

Battery technology

Lithium-Ion (Li-Ion)

Bluetooth

Yes

Bluetooth version

5.4

AC adapter included

Yes

Battery life (max)

4.2 h

Battery capacity

80 Wh

SSD form factor

M.2

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Internal memory type

DDR5-SDRAM

Memory slots

2x SO-DIMM

Processor family

AMD Ryzen™ 7

Processor model

260

Processor threads

16

Processor frequency

3.8 GHz

Processor cores

8

Processor boost frequency

5.1 GHz

HDMI ports quantity

1

Front camera

Yes

Internal memory

16 GB

Wi-Fi standards

Wi-Fi 7 (802.11be)

Operating system installed

N

Display diagonal

38.4 cm (15.1")

Audio system

Nahimic Audio

Keyboard backlit

Yes

Fingerprint reader

No

LED backlight

Yes

WWAN

Not installed

Display brightness

500 cd/m²

HD type

WQXGA

Native aspect ratio

16:10

Panel type

OLED

Display surface

Gloss

Maximum refresh rate

165 Hz

HDMI version

2.1

Card reader integrated

No

Touchscreen

No

Ethernet LAN (RJ-45) ports

1

Storage media

SSD

Memory layout (slots x size)

1 x 16 GB

Total storage capacity

512 GB

Maximum internal memory

32 GB

Discrete graphics memory type

GDDR7

MOTHERBOARD CHIPSET

AMD SoC

SSD Capacity

512 GB

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Ethernet LAN data rates

100

Ethernet LAN

Yes

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Number of built-in speakers

2

Antenna type

2x2

Colour Gamut

100%

Pointing Device

Touchpad

NVMe

Yes

Speaker power

2 W

Password protection

Yes

Product colour

Black

Display resolution

2560 x 1600 pixels

RGB colour space

DCI-P3

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

DisplayHDR True Black 600

Fast charging

Yes

USB Type-C DisplayPort Alternate Mode

Yes

Discrete graphics card memory

8 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

Memory channels

Dual-channel

Processor manufacturer

AMD

Processor generation

AMD Ryzen 200 Series

On-board graphics card

Yes

On-board graphics card model

AMD Radeon 780M

Discrete graphics card model

NVIDIA GeForce RTX 5060

Discrete graphics card

Yes

Colour name

Eclipse Black

AC adapter power

245 W

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Maximum shipping altitude

3048 m

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Number of microphones

2

Audio chip

Realtek ALC3287

Total SSDs capacity

512 GB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Combo headphone/mic port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Keyboard backlit colour

RGB

On-board graphics card family

AMD Radeon

Continuous video playback time

9.6 h

Height (front)

2 cm

Height (rear)

2.15 cm

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Speakers manufacturer

Harman Kardon

Discrete GPU manufacturer

NVIDIA

USB4 Gen 3x2 ports quantity

1

On-board GPU manufacturer

AMD

Maximum turbo power

54 W

Processor base power

35 W

Compliance certificates

RoHS

M.2 SSD size

2242 (22 x 42 mm)

Neural processor unit (NPU)

AMD Ryzen AI

NPU performance up to

16 TOPs

Total processor performance up to

38 TOPs

Copilot key

Yes

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Hazard pictogram(s)

GHS07: Harmful

Warnings

Keep out of reach of children to avoid risk of electric shock.

USB Type-C required charging power (max)

100 W

USB Type-C required charging power (min)

65 W

L2 cache

8 MB

L3 cache

16 MB
