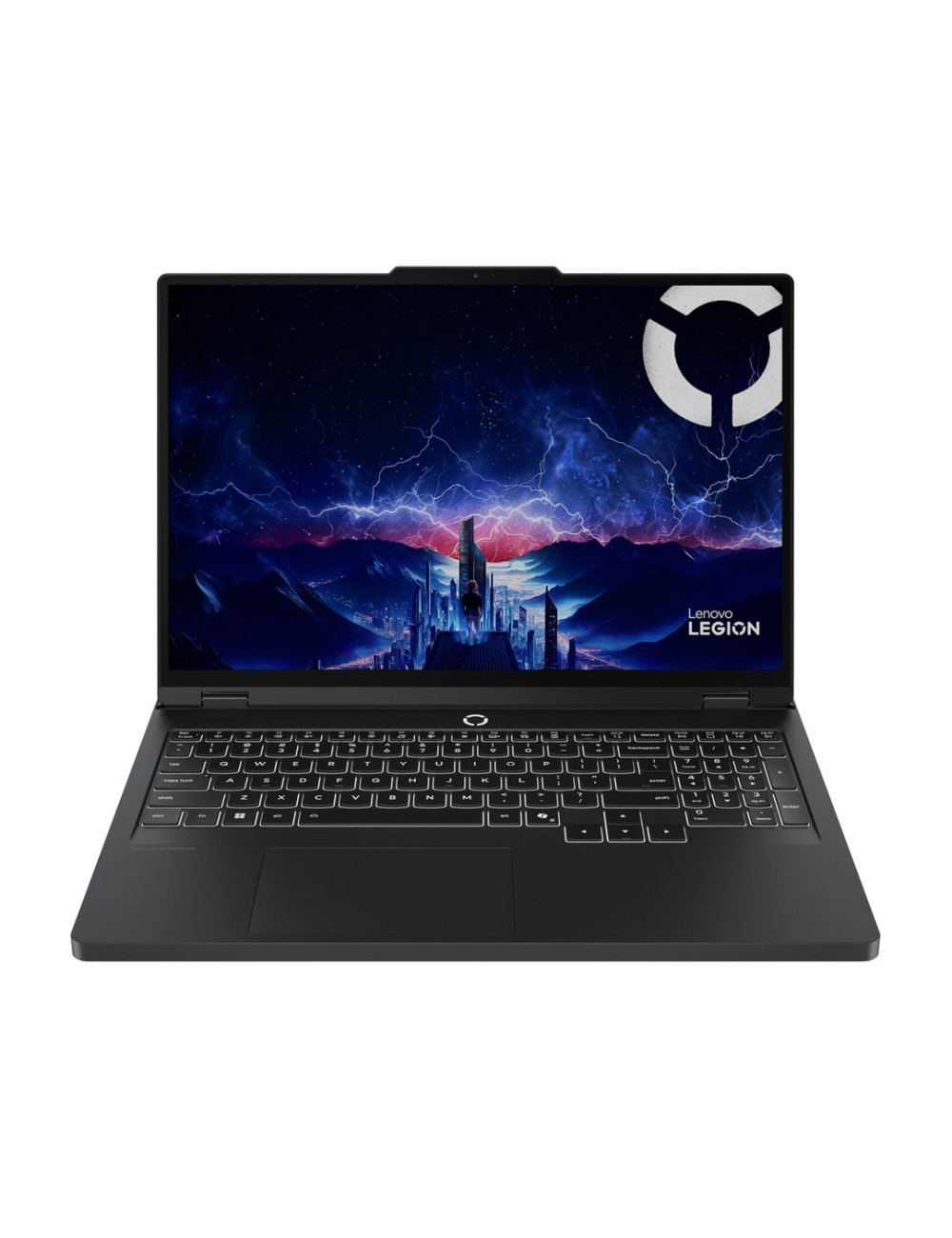

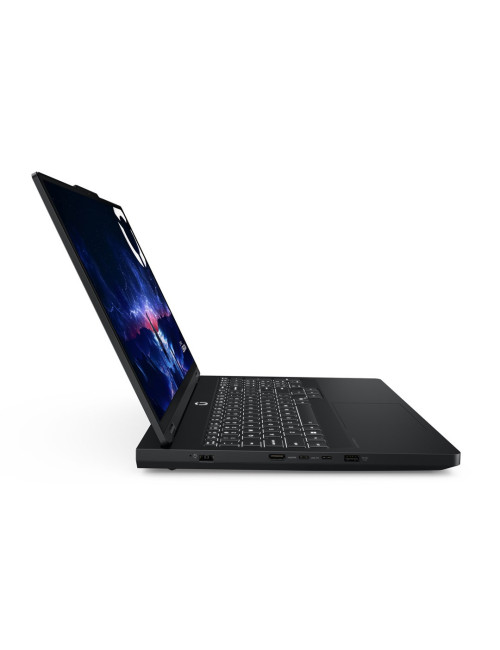

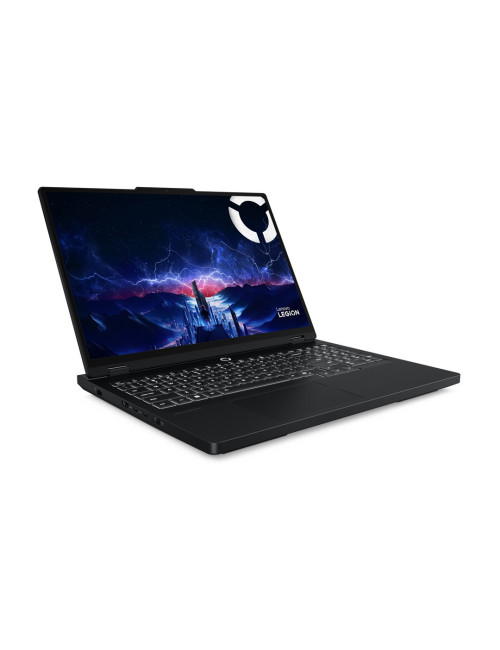

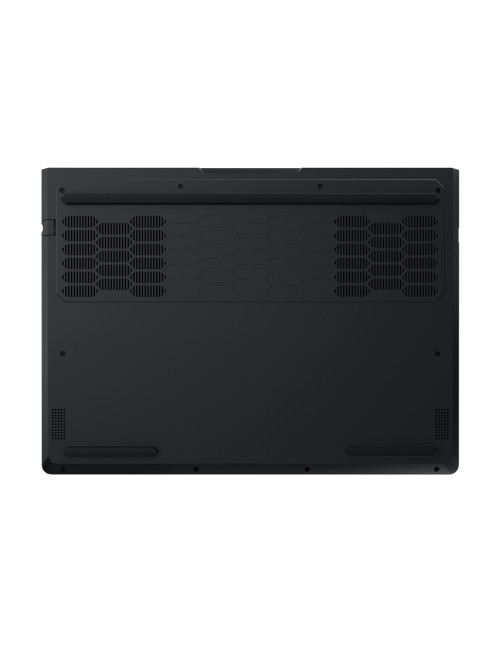

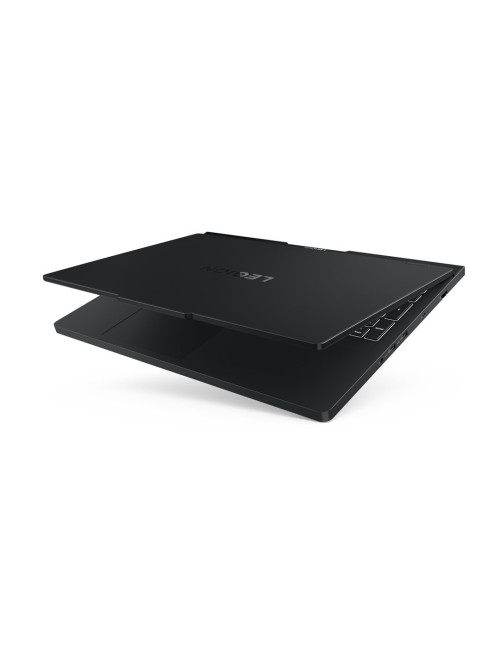

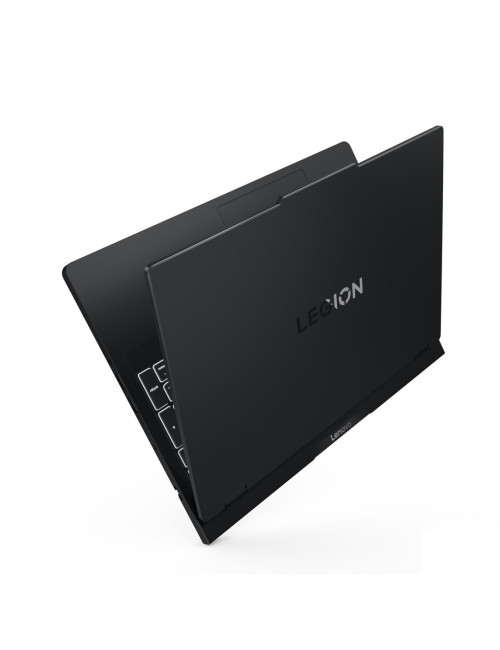

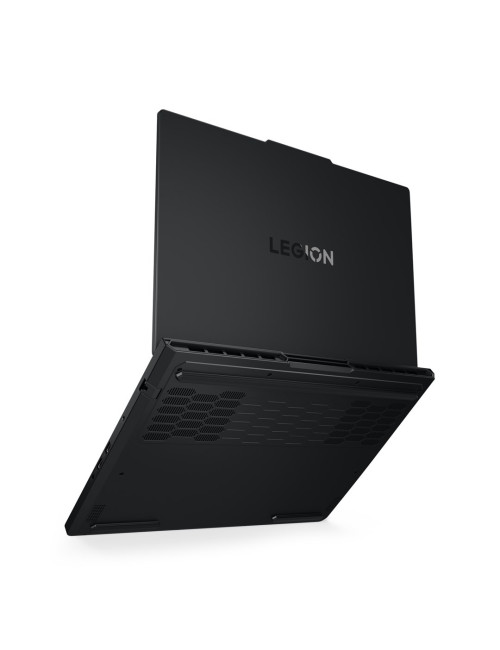

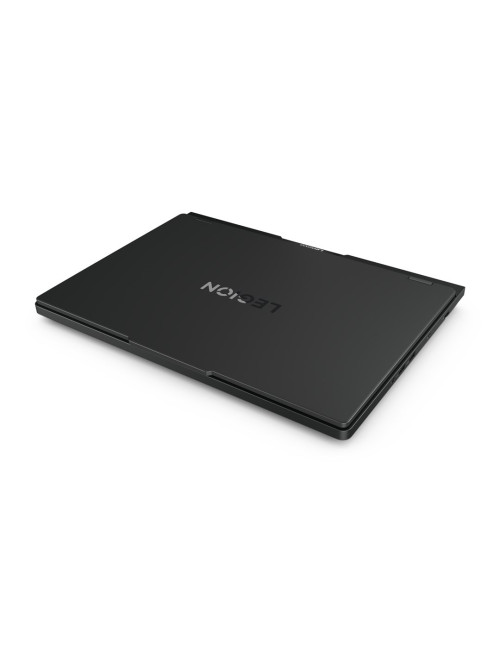

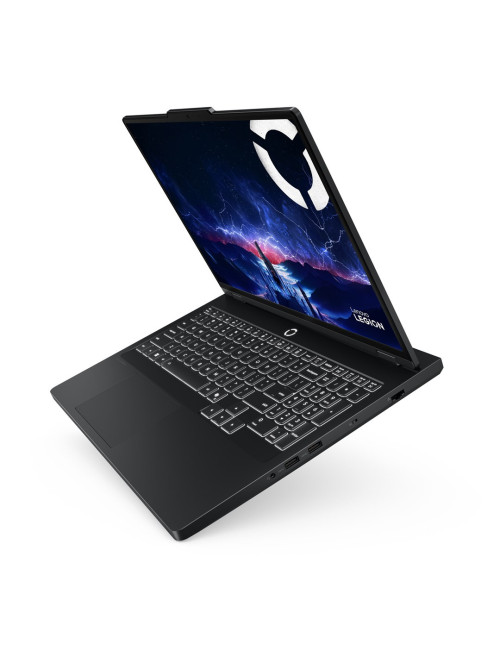

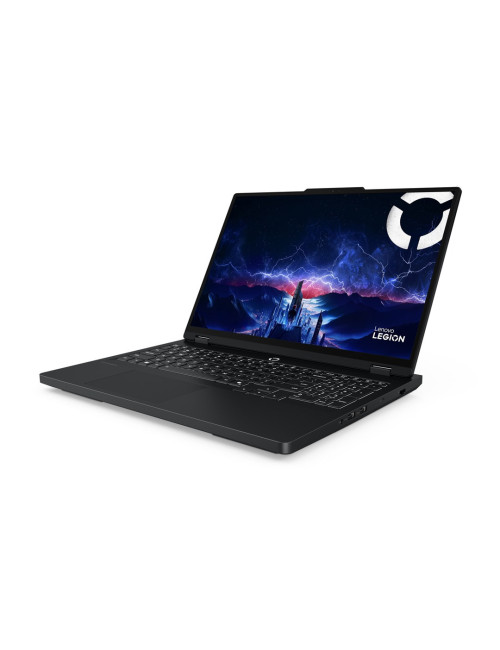

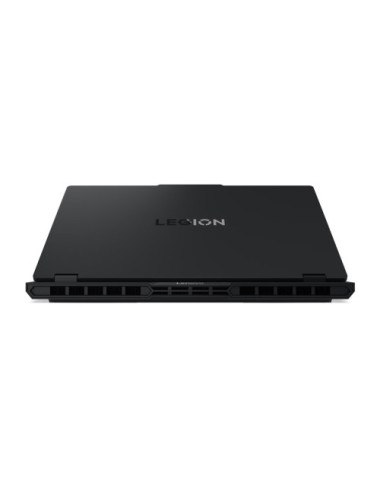

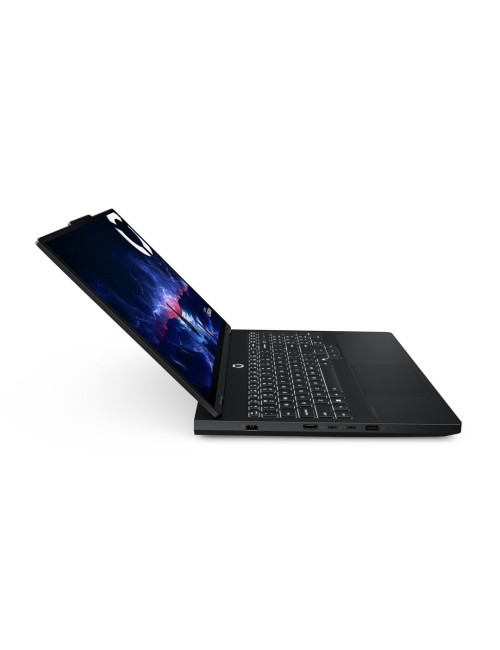

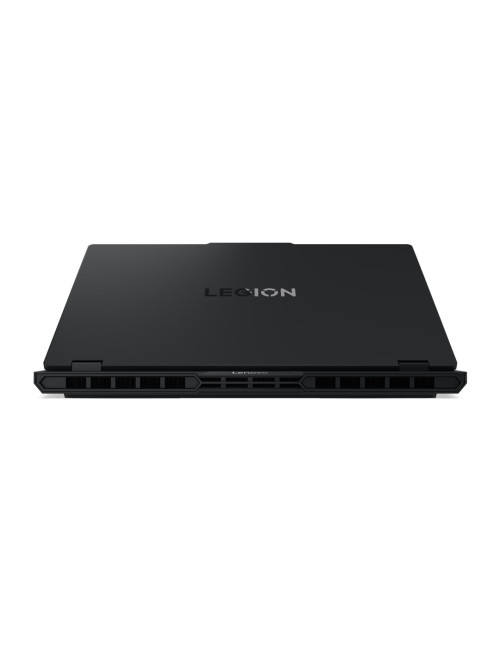

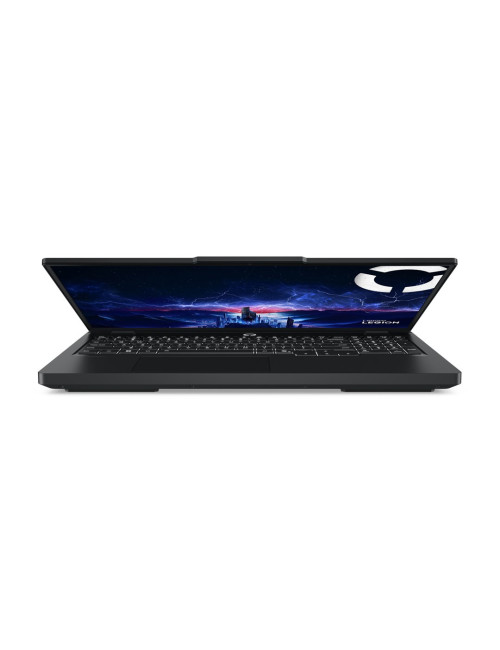

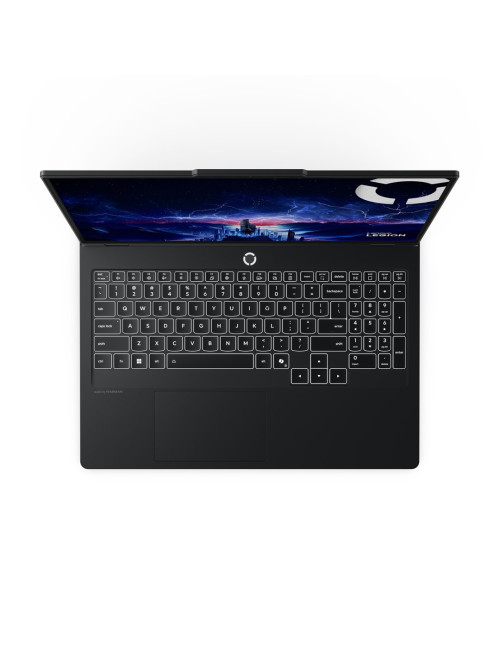

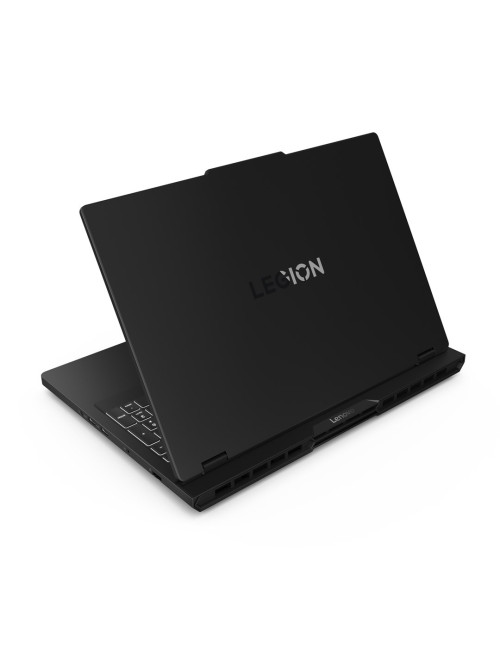

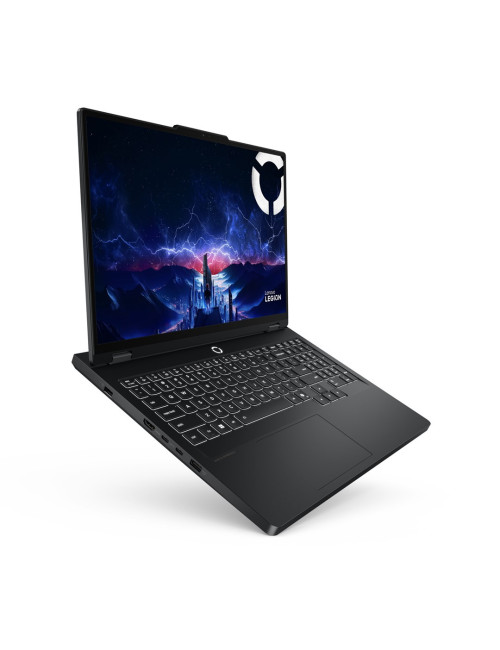

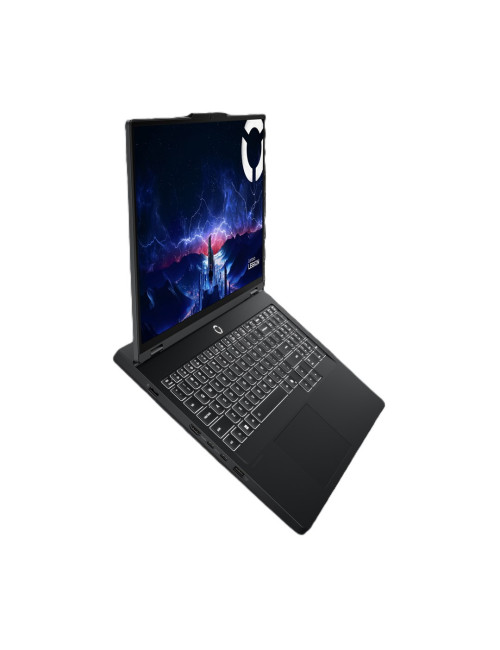

Lenovo Legion Pro 5 16IAX10H Ultra 9 275HX 16" WQXGA OLED 500nits Glossy 165Hz 32GB DDR5 5600 SSD1TB GeForce RTX 5070 Ti 12GB 8

Product Details

Reference MOBLEVGAM0114

In stock 5 Items

Data sheet

Width

364.4 mm

Depth

268.1 mm

Numeric keypad

Yes

Weight

2.42 kg

Product type

Laptop

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

8 - 95%

Storage temperature (T-T)

5 - 43 °C

Optical drive type

No

Built-in microphone

Yes

Bluetooth

Yes

Bluetooth version

5.2

AC adapter included

Yes

Battery capacity

80 Wh

SSD form factor

M.2

Memory clock speed

5600 MHz

Memory form factor

SO-DIMM

Internal memory type

DDR5-SDRAM

Memory slots

2x SO-DIMM

Processor family

Intel Core Ultra 9

Processor model

275HX

Processor threads

24

Processor cores

24

Processor boost frequency

5.4 GHz

HDMI ports quantity

1

Internal memory

32 GB

Wi-Fi standards

Wi-Fi 6 (802.11ax)

Operating system installed

Windows 11 Pro

Display diagonal

40.6 cm (16")

Front camera resolution (numeric)

5 MP

Keyboard backlit

Yes

Fingerprint reader

No

LED backlight

Yes

WWAN

Not installed

Display brightness

500 cd/m²

HD type

WQXGA

Native aspect ratio

16:10

Panel type

OLED

Display surface

Gloss

Maximum refresh rate

165 Hz

HDMI version

2.1

Card reader integrated

No

Touchscreen

No

Ethernet LAN (RJ-45) ports

1

Storage media

SSD

Memory layout (slots x size)

2 x 16 GB

Operating system architecture

64-bit

Total storage capacity

1 TB

Maximum internal memory

32 GB

Discrete graphics memory type

GDDR7

MOTHERBOARD CHIPSET

Intel HM870

SSD Capacity

1 TB

Housing material

Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)

Ethernet LAN data rates

100

Ethernet LAN

Yes

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Number of built-in speakers

2

Antenna type

2x2

Colour Gamut

100%

Pointing Device

Touchpad

NVMe

Yes

Speaker power

2 W

Processor cache

36 MB

Product colour

Black

Display resolution

2560 x 1600 pixels

RGB colour space

DCI-P3

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

DisplayHDR True Black 1000

Discrete graphics card memory

12 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Processor manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Processor generation

Intel Core Ultra (Series 2)

On-board graphics card

Yes

On-board graphics card model

Intel® Graphics

Discrete graphics card model

NVIDIA GeForce RTX 5070 Ti

Discrete graphics card

Yes

Colour name

Eclipse Black

AC adapter power

300 W

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Number of microphones

2

Audio chip

Realtek ALC3306

Total SSDs capacity

1 TB

Number of SSDs installed

1

SSD interface

PCI Express 4.0

Combo headphone/mic port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Keyboard backlit colour

RGB

On-board graphics card family

Intel® Graphics

USB Sleep-and-Charge

Yes

Thunderbolt 4 ports quantity

1

Discrete GPU manufacturer

NVIDIA

Efficient-core base frequency

2.1 GHz

On-board GPU manufacturer

Intel

Performance cores

8

Performance-core base frequency

2.7 GHz

Maximum turbo power

160 W

Processor base power

55 W

Efficient cores

16

Keyboard backlit zone

24-zone RGB

Performance-core Max Turbo Frequency

5.4 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Sparsity support

Yes

AI software frameworks supported by NPU

ONNX RT

Windows Studio effects support

Yes

Neural processor unit (NPU)

Intel AI Boost

NPU performance up to

13 TOPs

Total processor performance up to

36 TOPs

GPU performance up to

8 TOPs

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Hazard pictogram(s)

GHS09: Environmental hazard

Warnings

Keep out of reach of children to avoid risk of electric shock.
