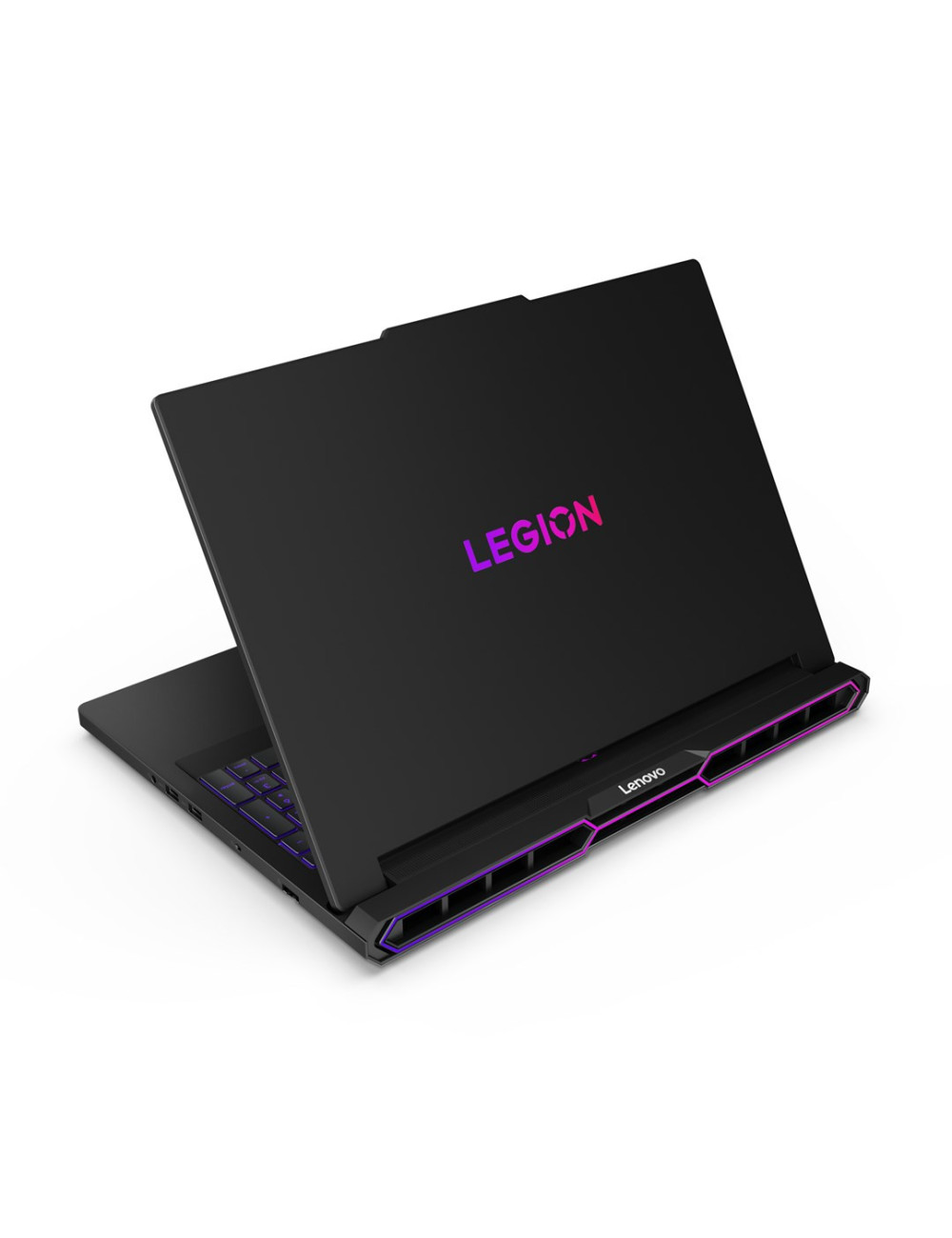

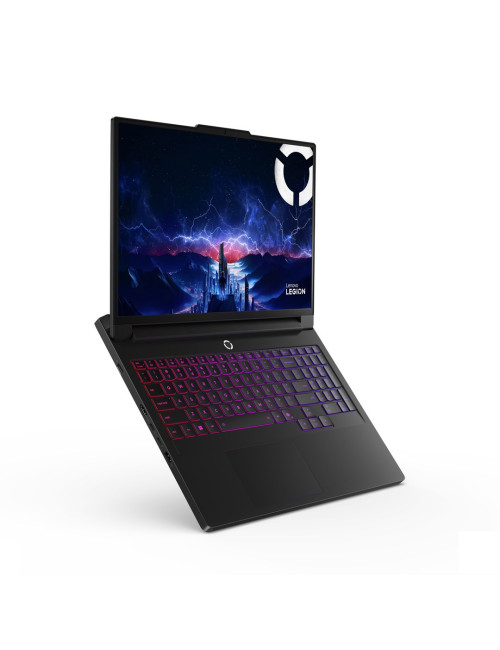

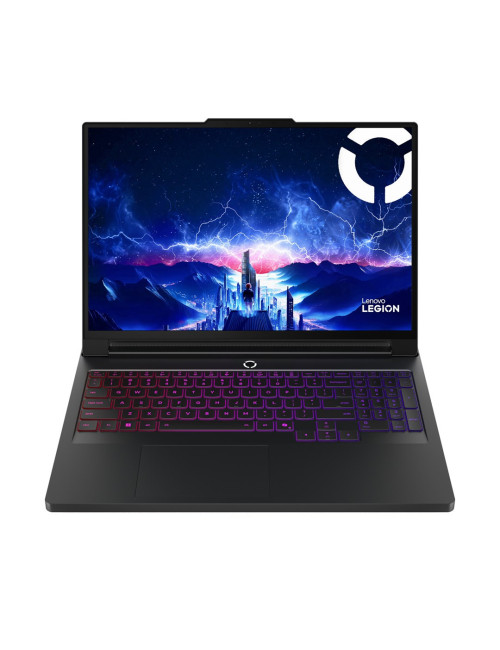

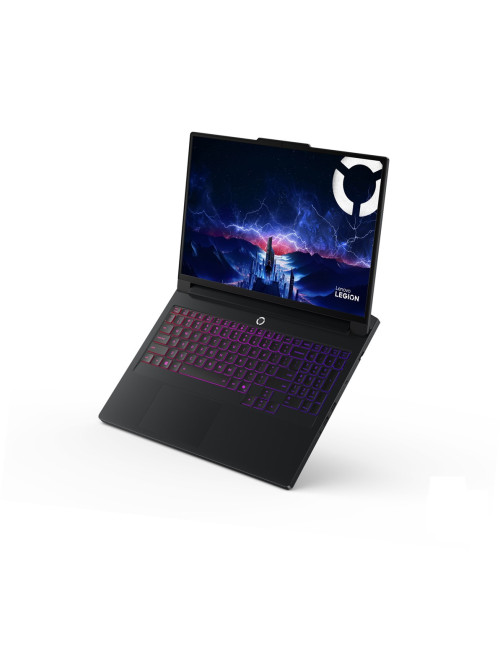

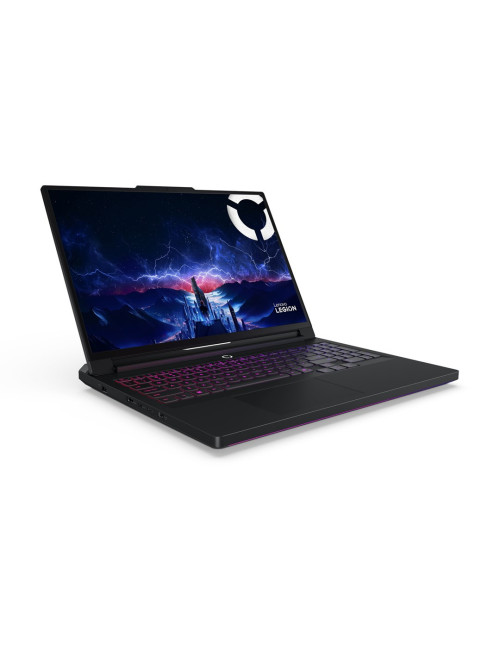

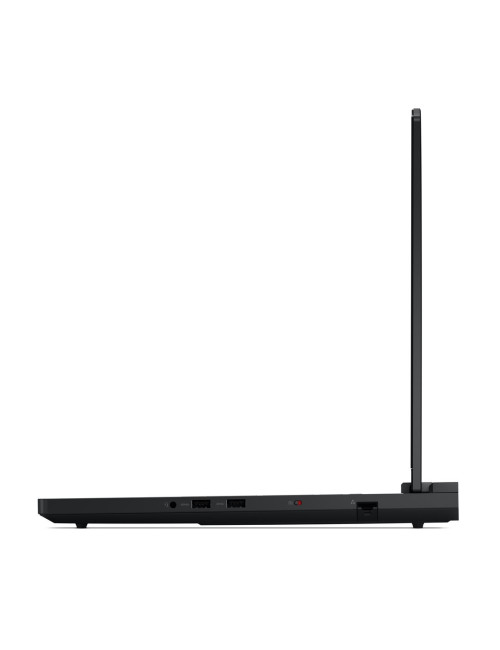

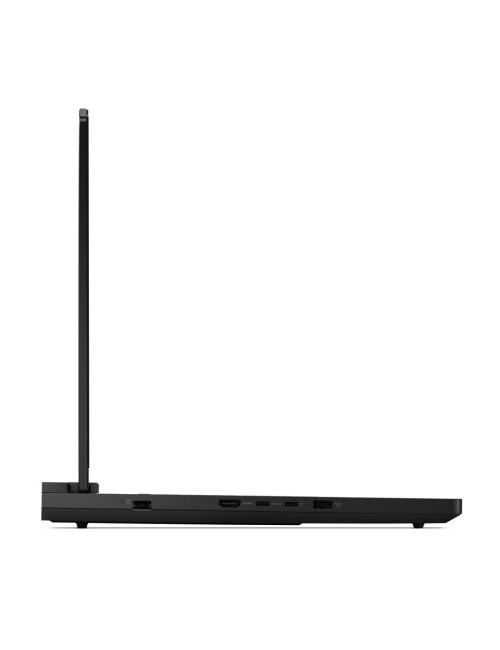

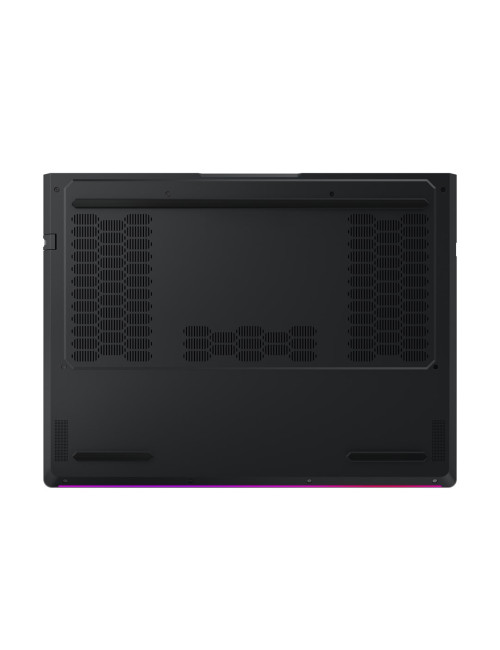

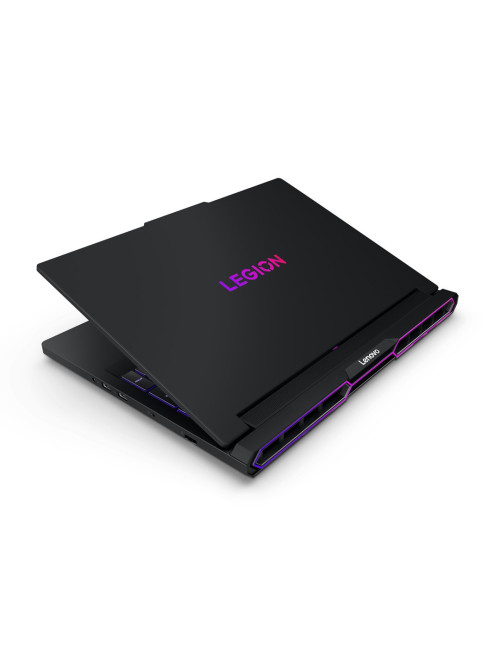

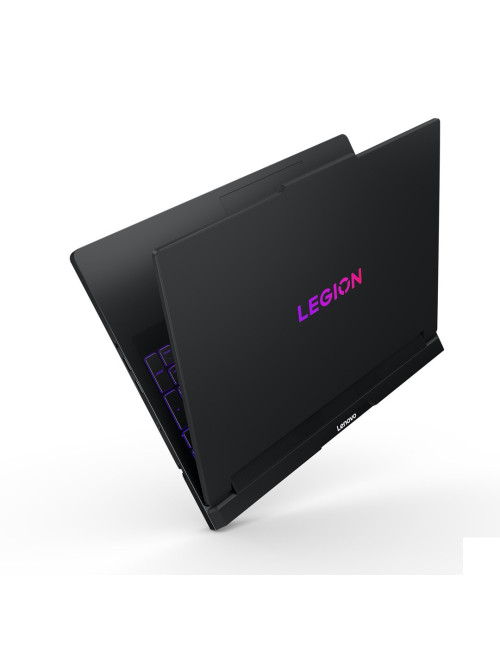

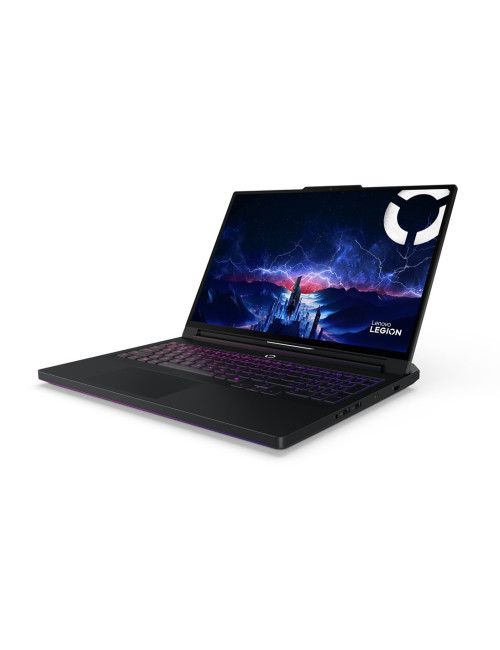

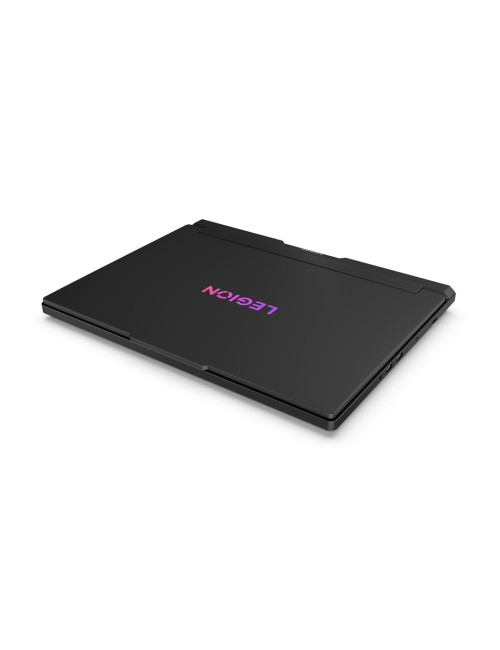

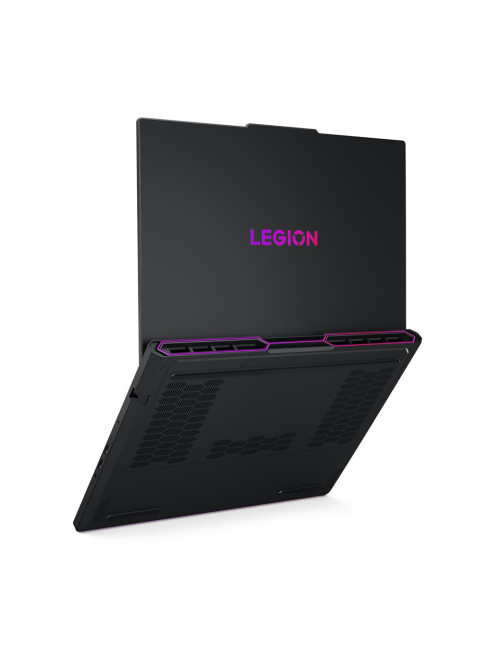

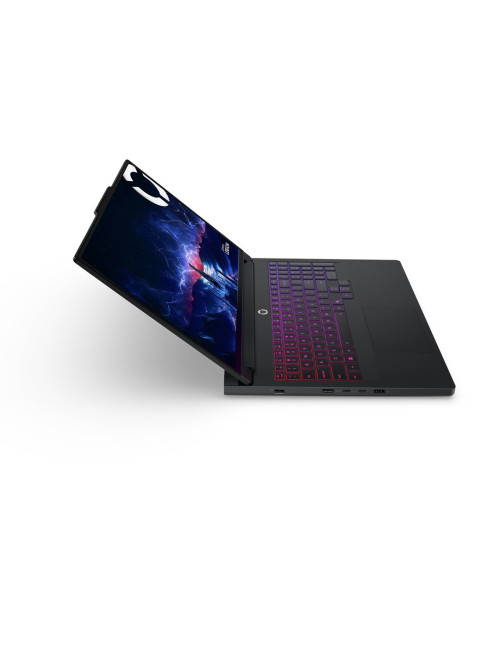

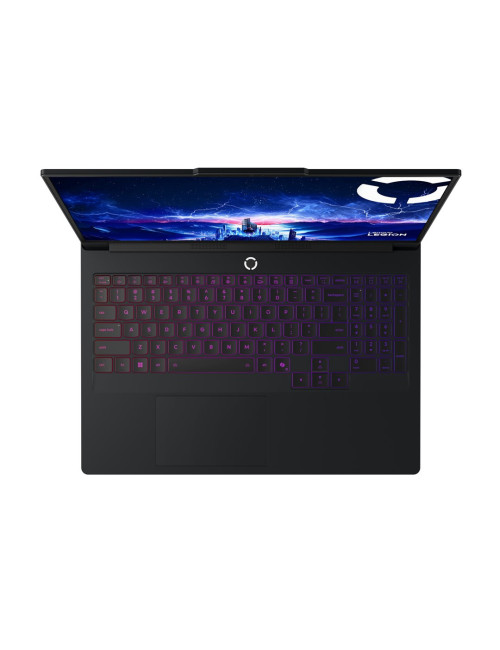

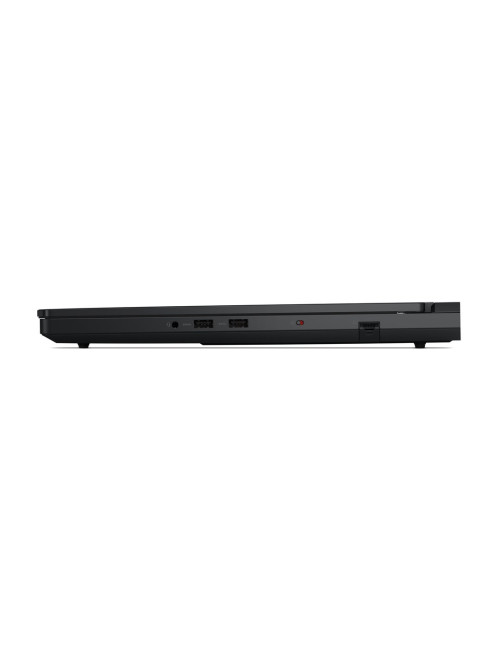

Lenovo Legion Pro 7 16IAX10H Ultra 9 275HX 16" WQXGA OLED 500nits Glossy 240Hz 64GB DDR5 2xSSD1TB GeForce RTX 5080 16GB NoOS Ec

Product Details

Reference MOBLEVGAM0089

In stock 1 Item

Data sheet

Width

364.4 mm

Depth

275.9 mm

Numeric keypad

Yes

Weight

2.57 kg

Product type

Laptop

Storage relative humidity (H-H)

5 - 95%

Operating temperature (T-T)

5 - 35 °C

Operating relative humidity (H-H)

8 - 95%

Storage temperature (T-T)

5 - 43 °C

Optical drive type

No

Built-in microphone

Yes

Battery technology

Lithium Polymer (LiPo)

Bluetooth

Yes

Bluetooth version

5.4

AC adapter included

Yes

Battery capacity

99.9 Wh

SSD form factor

M.2

Memory clock speed

6400 MHz

Memory form factor

SO-DIMM

Internal memory type

DDR5-SDRAM

Memory slots

2x SO-DIMM

Processor family

Intel Core Ultra 9

Processor threads

24

Processor cores

24

Processor boost frequency

5.4 GHz

HDMI ports quantity

1

Front camera

Yes

Internal memory

64 GB

Wi-Fi standards

Wi-Fi 7 (802.11be)

Operating system installed

N

Display diagonal

40.6 cm (16")

Audio system

Nahimic Audio

Front camera resolution (numeric)

5 MP

Keyboard backlit

Yes

Fingerprint reader

No

LED backlight

Yes

WWAN

Not installed

Display brightness

500 cd/m²

HD type

WQXGA

Contrast ratio (typical)

1000000:1

Native aspect ratio

16:10

NVIDIA G-SYNC

Yes

Panel type

OLED

Display surface

Gloss

Maximum refresh rate

240 Hz

HDMI version

2.1

Card reader integrated

No

Touchscreen

No

Ethernet LAN (RJ-45) ports

1

Storage media

SSD

Memory layout (slots x size)

2 x 32 GB

Total storage capacity

2 TB

Discrete graphics memory type

GDDR7

Housing material

Aluminium

Ethernet LAN data rates

2500 Mbit/s

Ethernet LAN

Yes

AC adapter input voltage

100 - 240 V

AC adapter frequency

50/60 Hz

Number of built-in speakers

4

Antenna type

2x2

Colour Gamut

100%

Pointing Device

Touchpad

PACKAGE CONTENTS

4 x interchangeable keycaps

NVMe

Yes

Processor cache

36 MB

Password protection

Yes

Product colour

Black

Display resolution

2560 x 1600 pixels

RGB colour space

DCI-P3

High Dynamic Range (HDR) supported

Yes

High Dynamic Range (HDR) technology

Dolby Vision

Fast charging

Yes

Discrete graphics card memory

16 GB

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

Memory channels

Dual-channel

Processor manufacturer

Intel

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

Processor generation

Intel Core Ultra (Series 2)

On-board graphics card

Yes

On-board graphics card model

Intel® Graphics

Discrete graphics card model

NVIDIA GeForce RTX 5080

Discrete graphics card

Yes

Colour name

Eclipse Black

AC adapter power

400 W

Trusted Platform Module (TPM) version

2.0

Trusted Platform Module (TPM)

Yes

Maximum shipping altitude

3048 m

Mobile network connection

No

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Number of microphones

2

Audio chip

Realtek ALC3306

Total SSDs capacity

2 TB

Number of SSDs installed

2

SSD interface

PCI Express 4.0

Combo headphone/mic port

Yes

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Keyboard backlit colour

RGB

On-board graphics card family

Intel® Graphics

Continuous video playback time

6.25 h

Height (front)

2.19 cm

Height (rear)

2.66 cm

USB Sleep-and-Charge ports

1

USB Sleep-and-Charge

Yes

Discrete GPU manufacturer

NVIDIA

On-board GPU manufacturer

Intel

Performance cores

8

Processor base power

55 W

Efficient cores

16

Keyboard backlit zone

Per-key RGB

Performance-core Max Turbo Frequency

5.4 GHz

Efficient-core Max Turbo Frequency

4.6 GHz

Compliance certificates

RoHS

M.2 SSD size

2280 (22 x 80 mm)

Sparsity support

Yes

AI software frameworks supported by NPU

WebNN

Windows Studio effects support

Yes

Neural processor unit (NPU)

Intel AI Boost

NPU performance up to

13 TOPs

Total processor performance up to

36 TOPs

Copilot key

Yes

GPU performance up to

8 TOPs

USB Power Delivery (USB PD)

Yes

USB Type-C charging port

Yes

Hazard pictogram(s)

GHS07: Harmful

Warnings

The device may become hot during operation; use caution to avoid burns.
