- 34-inch curved desktop monitor for immersive viewing
- UWQHD resolution of 3440 x 1440 pixels for detailed images
- Response time of 0.4 ms to minimize motion blur
- Multiple connectivity options including HDMI and USB-C
- Ergonomic adjustments for optimal viewing comfort
Product Details
Data sheet
- Colour
- Matte black
- Device type
- LED-backlit LCD monitor - 34"
- Features
- KVM Switch, USB-C hub, USB 3.2 Gen 1 hub
- Voltage
- AC 100-240 V (50 Hz)
- Response time
- 0.4 ms (MPRT)
- Panel type
- VA
- Aspect ratio
- 21:9
- Pixel pitch
- 0.232 mm
- Contrast ratio
- 3000:1 / 80000000:1 (dynamic)
- PRODUCT DESCRIPTION

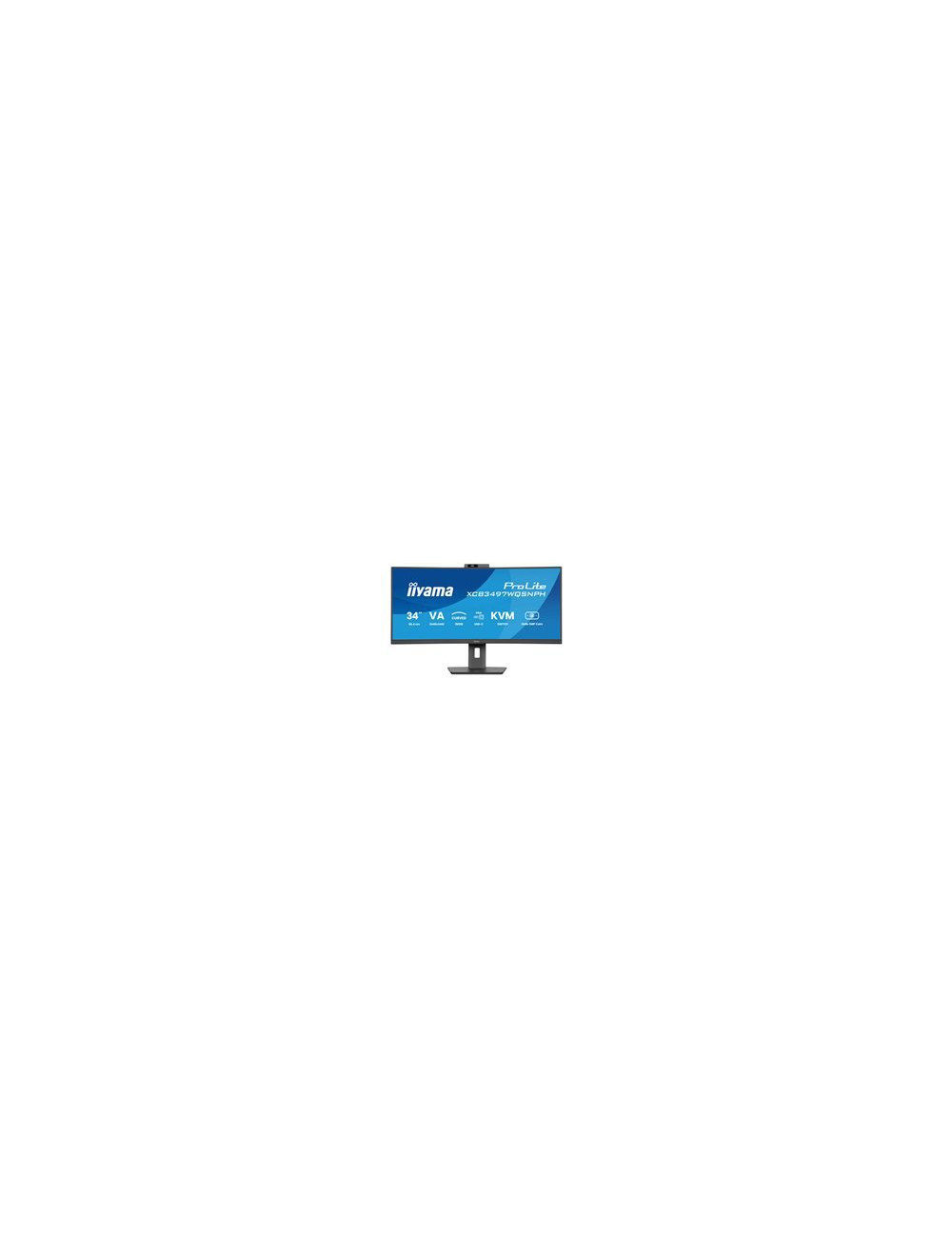

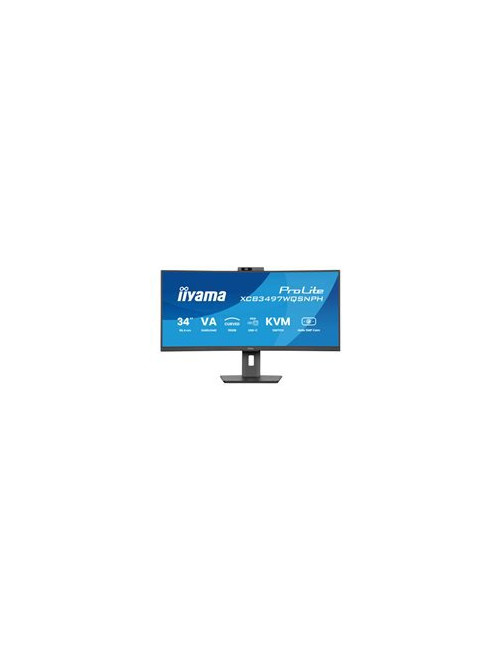

- iiyama ProLite XCB3497WQSNPH-B1 - LED monitor - curved - 34"
- Native resolution
- UWQHD 3440 x 1440 (DisplayPort: 120 Hz, HDMI: 100 Hz, USB-C: 120 Hz)
- Brightness
- 300 cd/m
- Energy Class
- Class F
- Power Consumption (On mode)
- 31.7 W
- Adaptive-Sync Technology
- AMD FreeSync Premium
- Colour Support
- 16.7 million colours
- Input Connectors
- 2xHDMI, DisplayPort, USB-C
- Display Position Adjustments
- Height, swivel, tilt
- Compliant Standards
- TUV GS, VCCI, DDC-2B, RoHS, WEEE, PSE Mark, REACH, ERP, EAC, UKCA
- Environmental Standards
- TCO Certified, generation 10, for displays
- Screen Coating
- Matte
- Colour Gamut
- 72% NTSC, 99% sRGB
- Curved Screen
- Yes
- Dimensions (WxDxH) - with stand (lowest position)
- 80.7 cm x 44.3 cm x 23.95 cm
- Energy Label QR Code URL
- Https://eprel.ec.europa.eu/qr/2245779
Quick Compare
Product |
LCD FHD 32IN 1920x1080 IPS panel 1 Haze
|
|
iiyama XCB3497WQSNP-B1 34" - Flat screen - 86.4 cm
|
elo Non-Touch Monitor 1004L 10,1" HD 1280 x 800
|
Availability |
|
|
|
|
Price |
€406.61
|
€406.83
|
€407.40
|
€408.02
|
Description |
Gigabyte GO27Q24G | 27 " | WOLED | QHD | 240 Hz | 0.03 ms | 2560 x 1440 pixels | HDMI ports quantity 2 | |||
Warranty |
36 month(s) | |||
Producer product name |
GO27Q24G | |||
Net weight |
5.60 kg | |||
Gross weight |
8.00 kg | |||
WEEE tax |
No | |||
Packing quantity |
1.00 pc(s) | |||
Volume (m3) |
0.05 m | |||
Tare weight (kg) |
2.40 kg | |||
Gross depth (mm) |
131.00 mm | |||
Gross width (mm) |
795.00 mm | |||
Gross height (mm) |
475.00 mm | |||
Paper/Pasteboard |
2000.00 g | |||
Embeeded battery |
No | |||
Package type |
Box | |||
Purpose |
Commercial | Universal | ||
Width |
725.5 mm | 807 mm | ||
Height |
422 mm | |||
Depth |
54 mm | 245.5 mm | ||
Plastic (No PET) |
400.00 g | |||
Weight |
5.1 kg | 9.7 kg | ||
Package depth |
119 mm | 186 mm | 143 mm | |
Package height |
554 mm | 480 mm | 223 mm | |
Package width |
824 mm | 928 mm | 308 mm | |
Package weight |
14.1 kg | 2.2 kg | ||
Cables included |
HDMI | USB Type-C | HDMI | |
Storage relative humidity (H-H) |
10 - 95% | |||
Operating temperature (T-T) |
0 - 40 °C | 0 - 40 °C | ||
Operating relative humidity (H-H) |
-20 - 60% | 20 - 80% | ||
Storage temperature (T-T) |
-20 - 60 °C | -20 - 60 °C | ||
USB port |
Yes | Yes | ||
Headphone out |
Yes | |||
Power supply type |
Internal | Internal | ||
Quick start guide |
Yes | |||
Control panel |
Joystick: Power/Menu (Centre), Forward/Signal Select, Backward, Left/i-Style colour/ECO/BlueLight Reducer, Right/Volume | |||
Palette Qty |
17 pc(s) | |||
Mean time between failures (MTBF) |
50000 h | 50000 h | ||
HDMI ports quantity |
3 | 2 | 2 | 1 |
DisplayPorts quantity |
1 | 1 | 1 | |
Display technology |
LED | LED | LED | |
Wi-Fi |
No | |||
Display diagonal |
80 cm (31.5") | 27 " | 86.4 cm (34") | 25.6 cm (10.1") |
Display |
2560 x 1440 pixels | |||
USB version |
2.0 | |||
USB ports quantity |
1 | 1 | ||
Power consumption (typical) |
39 W | 32 W | 6.5 W | |
HDCP |
Yes | Yes | ||
Display brightness |
350 cd/m² | 400 cd/m² | ||
Response time |
8 ms | 0.03 ms | 30 ms | |
HD type |
Full HD | QHD | UltraWide Quad HD | WXGA |
Contrast ratio (typical) |
1200:1 | 3000:1 | 800:1 | |
Viewing angle, horizontal |
178° | 178 | 178° | 170° |
Viewing angle, vertical |
178° | 178 | 178° | 170° |
Native aspect ratio |
16:9 | 21:9 | 16:10 | |
Built-in speaker(s) |
Yes | No | Yes | Yes |
TV tuner integrated |
No | |||
VESA mounting |
Yes | Yes | Yes | Yes |
Swivelling |
Yes | Yes | ||
Tilt adjustment |
Yes | Yes | ||
Height adjustment |
YES | YES | ||
Cable lock slot |
Yes | |||
Horizontal scan range |
30 - 80 kHz | 30 - 180 kHz | 30 - 80 kHz | |
Viewable size, horizontal |
79.7 cm | |||
Viewable size, vertical |
33.4 cm | |||
USB hub version |
3.2 Gen 1 (3.1 Gen 1) | |||
USB Type-A downstream ports quantity |
2 | |||
RMS rated power |
20 W | 10 W | 4 W | |
Swivel angle range |
-45 - 45° | |||
Pivot |
YES | |||
On Screen Display (OSD) languages |
Japanese | German | Japanese | |
Power consumption (standby) |
0.4 W | 32 W | ||
Width (with stand) |
807 mm | |||
Depth (with stand) |
245.5 mm | |||
Height (with stand) |
576 mm | |||
Placement supported |
Indoor | |||
Panel type |
IPS | WOLED | VA | TFT-LCD |
Display surface |
Glossy | Matt | ||
Maximum refresh rate |
240 Hz | 120 Hz | ||
HDMI version |
1.4/2.0 | |||
Contrast ratio (dynamic) |
80000000:1 | |||
VESA mounting interfaces |
100x100 mm | |||
Number of speakers |
2 | |||
DVI port |
No | No | ||
HDMI |
Yes | |||
Touchscreen |
No | No | No | |
Display number of colours |
16.7 million colours | 16.7 million colours | 16.7 million colours | |
Power consumption (off) |
0.3 W | 0.3 W | 0.25 W | |
Pixel pitch |
0.364 x 0.364 mm | 0.232 x 0.232 mm | ||
Display diagonal (metric) |
80 cm | 86.7 cm | 26 cm | |
Ethernet LAN (RJ-45) ports |
1 | No | 1 | |
USB-C |
Yes | |||
USB-C power delivery |
N/A | |||
USB upstream port type |
USB Type-C | |||
CONNECTIVITY |
HDMI, DisplayPort, USB-C | |||
DC-in jack |
Yes | |||
Ethernet LAN |
Yes | Yes | No | |
USB connector type |
USB Type-C | |||
AC input voltage |
100 - 240 V | 100 - 240 V | ||
Cable lock slot type |
Kensington | |||
AC input frequency |
50/60 Hz | 50/60 Hz | ||
RS-232C |
Yes | |||
Number of built-in speakers |
2 | 2 | ||
International Protection (IP) code |
IP54 | |||
Cable management |
Yes | Yes | ||
On Screen Display (OSD) |
Yes | Yes | Yes | |
Orientation |
Horizontal/Vertical | Horizontal/Vertical | ||
Built-in processor |
No | |||
Power consumption (sleep) |
1 W | |||
Wall mountable |
Yes | |||
Screen shape |
Curved | Flat | ||
Built-in USB hub |
Yes | |||
Product colour |
Black | Black | Black | |
Energy consumption (SDR) per 1000 hours |
39.2 kWh | 31.7 kWh | 7 kWh | |
Energy efficiency class (SDR) |
G | F | D | |
Width (without stand) |
807 mm | |||
Weight (with stand) |
9.7 kg | |||
Height (without stand) |
426 mm | |||
Depth (without stand) |
110 mm | |||
Flicker-free technology |
Yes | |||
AMD FreeSync |
Yes | |||
Low Blue Light technology |
Yes | |||
Display resolution |
1920 x 1080 pixels | 3440 x 1440 pixels | 1280 x 800 pixels | |
Display brightness (typical) |
350 cd/m² | |||
Tilt angle range |
5 - 23° | |||
Panel mounting interface |
200 x 200 mm | 100 x 100 mm | 75 x 75 mm | |
Sustainability certificates |
ErP | TCO | ||
sRGB coverage (typical) |
99% | |||
Energy efficiency scale |
A to G | A to G | A to G | |
AMD FreeSync type |
FreeSync Premium | |||
Anti-glare screen |
Yes | |||
Screen curvature rating |
1500R | |||
Energy efficiency class (HDR) |
Not available | Not available | ||
NTSC coverage (typical) |
93% | |||
Number of OSD languages |
8 | |||
HDCP version |
2.2 | |||
VESA Adaptive Sync support |
Yes | |||
Number of USB Type-C upstream ports quantity |
1 | |||
Bezel width (bottom) |
7.5 cm | |||
Bezel width (side) |
1.48 cm | |||
Bezel width (top) |
1.4 cm | |||
Active display area (W x H) |
698.4 x 392.9 mm | 216.96 x 135.6 mm | ||
USB Type-C DisplayPort Alternate Mode |
Yes | |||
USB Power Delivery up to |
95 W | 18 W | ||
Haze rate |
1% | |||
Remote control included |
Yes | |||
Audio in (mini jack) |
Yes | |||
Audio (L/R) in |
1 | |||
Product design |
Kiosk design | Digital signage flat panel | ||
Operating hours (hours/days) |
24/7 | |||
VGA (D-Sub) input ports |
1 | |||
Computer system |
No | |||
Remote (IR) input |
1 | |||
Remote (IR) output |
1 | |||
Built-in KVM switch |
Yes | |||
Mini HDMI ports quantity |
1 | |||
Number of speaker outputs |
1 | |||
Colour gamut standard |
sRGB | |||
Producer |
Gigabyte | |||
Compliance certificates |
RoHS | REACH | ||
DisplayPort out version |
1.4 | |||
Native refresh rate |
60 Hz | 60 Hz | ||
Display depth |
54 mm | 168 mm | ||
Display weight |
5.1 kg | 900 g | ||
Display height |
422 mm | 25 mm | ||
Display width |
725.5 mm | 249 mm | ||
Response time (MPRT) |
0.4 ms | |||
Bezel colour |
black | |||
USB Power Delivery (USB PD) |
Yes | Yes | ||
Adjustable height (max) |
15 cm | |||
Number of displays |
1 | |||
Number of downstream ports |
4 | |||
Playback media |
Y | |||
