Product Details
Data sheet
- Package type
- Box
- Package depth
- 530 mm
- Package height
- 200 mm
- Package width
- 815 mm
- Package weight
- 12 kg
- Cables included
- DisplayPort
- Operating temperature (T-T)
- 10 - 40 °C
- Operating relative humidity (H-H)
- 10 - 80%
- Built-in microphone
- No
- Headphone out
- Yes
- Power supply type
- External
- HDMI ports quantity
- 2
- DisplayPorts quantity
- 1
- Display technology
- OLED
- Wi-Fi
- No
- Display diagonal
- 81.3 cm (32")
- Power cable length
- 1.5 m
- Built-in camera
- No
- LED backlight
- No
- Power consumption (max)
- 180 W
- Power consumption (typical)
- 38.4 W
- HDCP
- Yes
- Response time
- 0.03 ms
- HD type
- 4K Ultra HD
- Contrast ratio (typical)
- 1000000:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Native aspect ratio
- 16:9
- Built-in speaker(s)
- No
- VESA mounting
- Yes
- Swivelling
- Yes
- Tilt adjustment
- Yes
- Height adjustment
- YES
- Viewable size, horizontal
- 69.9 cm
- Viewable size, vertical
- 39.5 cm
- USB hub version
- 3.2 Gen 1 (3.1 Gen 1)
- USB Type-A downstream ports quantity
- 2
- NVIDIA G-SYNC
- Yes
- Swivel angle range
- -92 - 92°

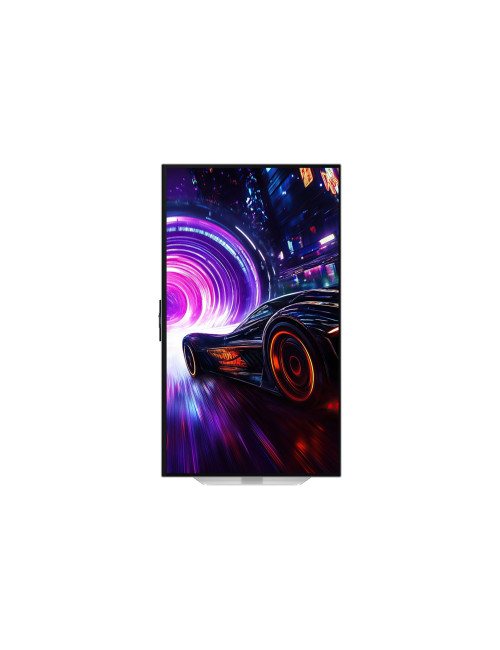

- Pivot
- YES
- Pivot angle
- -30 - 30°
- Power consumption (standby)
- 0.5 W

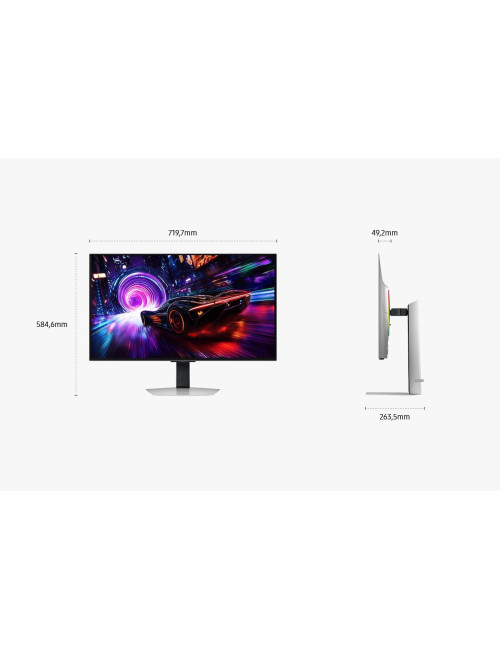

- Width (with stand)
- 719.7 mm
- Depth (with stand)
- 263.5 mm
- Height (with stand)
- 584.6 mm
- Panel type
- OLED
- Maximum refresh rate
- 240 Hz
- HDMI version
- 2.1
- HDMI
- Yes
- Touchscreen
- No
- Display number of colours
- 1 billion colours
- Power consumption (off)
- 0.3 W
- Display diagonal (metric)
- 80 cm
- Ethernet LAN
- No
- AC input voltage
- 100 - 240 V
- On Screen Display (OSD)
- No
- Colour Gamut
- 99%
- Digital signal format system
- Not supported
- Wall mountable
- Yes
- Screen shape
- Flat
- Built-in USB hub
- Yes
- Feet colour
- Silver
- Product colour
- Silver
- Market positioning
- Gaming
- Energy consumption (SDR) per 1000 hours
- 38 kWh
- Energy efficiency class (SDR)
- G
- Width (without stand)
- 719.7 mm
- Weight (with stand)
- 8.4 kg
- Height (without stand)
- 414.7 mm
- Depth (without stand)
- 49.2 mm
- Flicker-free technology
- Yes
- AMD FreeSync
- Yes
- Display resolution
- 2160 x 3840 pixels
- Display brightness (typical)
- 260 cd/m²
- Tilt angle range
- -2 - 25°
- Panel mounting interface
- 100 x 100 mm
- Weight (without stand)
- 5.3 kg
- High Dynamic Range (HDR) supported
- Yes
- Energy efficiency scale
- A to G
- AMD FreeSync type
- FreeSync Premium Pro
- Energy efficiency class (HDR)
- G
- Energy consumption (HDR) per 1000 hours
- 46 kWh
- NVIDIA G-SYNC type
- G-SYNC Compatible
- High Dynamic Range (HDR) technology
- High Dynamic Range 10+ Gaming (HDR10 Plus Gaming)
- Brand specific technologies
- Black Equalizer
- HDCP version
- 2.2
- Picture-in-Picture
- Yes
- Number of USB Type-B upstream ports quantity
- 1
- Warranty period
- 2 year(s)
- Colour gamut standard
- DCI-P3
- European Product Registry for Energy Labelling (EPREL) code
- 2232052
- Game features
- Super Arena Gaming UX, Ultrawide GameView
- DisplayPort out version
- 1.4
- Response time measurement type
- GTG (Gray to Gray)
- Adjustable height (max)
- 12 cm
- Warnings
- Do not expose to water or excessive moisture.
Quick Compare
Product |
|
EIZO 24.1" Monitor CS2400S HDMI, DP, USB-C IPS
|
|
GIGABYTE MO34WQC 34" OLED WQHD Curved Gaming Monitor - 3440 x 1440, 175Hz, 0.03ms, KVM, 250 cd/m², FreeSync Premium Pro, Displ
|
Availability |
|
|
|
|
Price |
€803.73
|
€804.58
|
€805.24
|
€808.56
|
Description |
||||
Plug and Play |
Yes | |||
Mac operating systems supported |
Yes | |||
Linux operating systems supported |
Yes | |||
Windows operating systems supported |
Windows 10 | |||
Package type |
Box | |||
Package depth |
370 mm | 300 mm | 238 mm | |
Package height |
484 mm | 460 mm | 527 mm | |
Package width |
1308 mm | 500 mm | 990 mm | |
Package weight |
20.9 kg | 8.3 kg | 12.5 kg | |
Headphone connectivity |
3.5 mm | |||
Cables included |
USB | AC | AC | DisplayPort |
Storage relative humidity (H-H) |
10 - 90% | 10 - 90% | ||
Operating temperature (T-T) |
0 - 35 °C | 0 - 40 °C | ||
Operating relative humidity (H-H) |
20 - 80% | 20 - 80% | ||
Storage temperature (T-T) |
-20 - 60 °C | -20 - 60 °C | ||
Built-in microphone |
No | |||
Headphone out |
Yes | No | ||
AC adapter included |
Yes | |||
Mobile operating systems supported |
Android | |||
Power supply type |
Internal | External | ||
Quick start guide |
Yes | Yes | ||
HDMI ports quantity |
2 | 1 | 1 | 2 |
DisplayPorts quantity |
1 | 1 | 1 | 1 |
Display technology |
LED | LCD | LCD | OLED |
Operating system installed |
Windows 10 | |||
Display diagonal |
124.5 cm (49") | 61.2 cm (24.1") | 48.3 cm (19") | 86.4 cm (34") |
Touch technology |
Multi-touch | |||
Backlight type |
W-LED | LED | ||
Built-in camera |
No | No | No | No |
VGA (D-Sub) ports quantity |
1 | |||
LED backlight |
Yes | |||
On/off switch |
Yes | |||
Power consumption (max) |
149 W | |||
Power consumption (typical) |
56 W | 18 W | 12 W | |
HDCP |
Yes | Yes | ||
Response time |
4 ms | 19 ms | 5 ms | 0.03 ms |
HD type |
UltraWide Full HD | WUXGA | SXGA | Wide Quad HD |
Contrast ratio (typical) |
3000:1 | 1350:1 | 1000:1 | 1500000:1 |
Viewing angle, horizontal |
178° | 178° | 170° | 178° |
Viewing angle, vertical |
178° | 178° | 160° | 178° |
Native aspect ratio |
32:9 | 16:10 | 4:3 | 21:9 |
Built-in speaker(s) |
Yes | No | No | Yes |
TV tuner integrated |
No | |||
VESA mounting |
Yes | Yes | Yes | Yes |
Swivelling |
Yes | Yes | Yes | |
Tilt adjustment |
Yes | Yes | Yes | Yes |
Height adjustment |
YES | YES | No | YES |
Cable lock slot |
Yes | Yes | Yes | |
Horizontal scan range |
15 - 76 kHz | |||
Vertical scan range |
23 - 61 Hz | |||
Viewable size, horizontal |
119.6 cm | 51.8 cm | ||
Viewable size, vertical |
33.6 cm | 32.4 cm | ||
USB hub version |
3.2 Gen 1 (3.1 Gen 1) | 2.0 / 3.2 Gen 1 (3.1 Gen 1) | ||
Number of upstream ports |
1 | 2 | 1 | 1 |
USB Type-A downstream ports quantity |
2 | 4 | 3 | |
RMS rated power |
10 W | 6 W | ||
NVIDIA G-SYNC |
Yes | No | No | No |
Swivel angle range |
0 - 344° | 0 - 30° | ||
Pivot |
YES | No | ||
Pivot angle |
0 - 90° | |||
Power consumption (standby) |
0.3 W | 0.3 W | 0.8 W | 0.5 W |
Width (with stand) |
1193.3 mm | 554.4 mm | 427 mm | 811.7 mm |
Depth (with stand) |
344.7 mm | 245 mm | 214.2 mm | 244.3 mm |
Height (with stand) |
529.1 mm | 396 mm | 374.6 mm | 595.3 mm |
Panel type |
VA | IPS | TN | OLED |
Display surface |
Anti-glare | |||
Maximum refresh rate |
144 Hz | 60 Hz | 175 Hz | |
HDMI version |
2.0 | 1.4 | 2.1 | |
DisplayPort version |
1.2 | 1.4 | ||
Number of speakers |
2 | 2 | ||
DVI port |
No | |||
HDMI |
Yes | Yes | Yes | |
Touchscreen |
No | No | Yes | No |
Display number of colours |
1.073 billion colours | 1.07 billion colours | 16.7 million colours | 1.07 billion colours |
Power consumption (off) |
0.3 W | 0.3 W | 0.3 W | 0.3 W |
3D |
No | |||
Pixel pitch |
0.311 x 0.311 mm | 0.27 x 0.27 mm | 0.294 x 0.294 mm | 0.2315 x 0.2315 mm |
Pixel density |
94 ppi | |||
Display diagonal (metric) |
61.1 cm | 48.2 cm | ||
Touchscreen technology |
Projected capacitive system | |||
Input current |
2 A | |||
USB Type-C downstream ports quantity |
1 | |||
USB upstream port type |
USB Type-B | USB Type-B | USB Type-B | |
Housing material |
Metal | |||
Headphone outputs |
1 | |||
AC input voltage |
100 - 240 V | 100 - 240 V | 100 - 240 V | |
Cable lock slot type |
Kensington | Kensington | Kensington | |
AC input frequency |
50 - 60 Hz | 50/60 Hz | 50/60 Hz | |
Supported graphics resolutions |
3840 x 1080 | 1920 x 1080 (HD 1080) | ||
Digital horizontal frequency |
30 - 167 kHz | 31 - 80 kHz | ||
International Protection (IP) code |
IP65 | |||
On Screen Display (OSD) |
Yes | Yes | ||
Supported video modes |
480i | |||
Colour Gamut |
99% | |||
Stand included |
Yes | Yes | ||
Colour depth |
10 bit | 10 bit | ||
Wall mountable |
Yes | |||
Screen shape |
Curved | Flat | Flat | Curved |
Built-in USB hub |
Yes | Yes | No | Yes |
Feet colour |
Black | Black | ||
Product colour |
Black | Black | Black | Black |
Market positioning |
Gaming | Photo editing | Business | Gaming |
Detachable stand |
Yes | |||
Energy consumption (SDR) per 1000 hours |
56 kWh | 16 kWh | ||
Energy efficiency class (SDR) |
G | E | ||
Width (without stand) |
1193.3 mm | 554.4 mm | 427 mm | 811.7 mm |
Weight (with stand) |
13.3 kg | 8.2 kg | 6.5 kg | 9.86 kg |
Height (without stand) |
369.7 mm | 362 mm | 355 mm | 361.2 mm |
Depth (without stand) |
178.4 mm | 64 mm | 48.8 mm | 105.8 mm |
Flicker-free technology |
Yes | Yes | Yes | |
AMD FreeSync |
Yes | No | No | |
Low Blue Light technology |
Yes | |||
Display resolution |
3840 x 1080 pixels | 1920 x 1200 pixels | 1280 x 1024 pixels | 3440 x 1440 pixels |
Display brightness (typical) |
450 cd/m² | 410 cd/m² | 250 cd/m² | 250 cd/m² |
Digital vertical frequency |
48 - 144 Hz | 50 - 75 Hz | ||
Surface hardness |
7H | |||
Tilt angle range |
-5 - 20° | -5 - 35° | -5 - 90° | -5 - 20° |
Panel mounting interface |
100 x 100 mm | 100 x 100 mm | 100 x 100 mm | 100 x 100 mm |
Harmonized System (HS) code |
85285210 | 85285210 | 85285210 | |
Weight (without stand) |
9.7 kg | 5.2 kg | 4.5 kg | 6.68 kg |
Hardware calibration |
Yes | |||
sRGB coverage (typical) |
125% | 100% | ||
High Dynamic Range (HDR) supported |
Yes | Yes | ||
Energy efficiency scale |
A to G | A to G | A to G | |
AMD FreeSync type |
FreeSync Premium Pro | FreeSync Premium Pro | ||
Anti-glare screen |
Yes | Yes | Yes | |
Screen curvature rating |
1800R | 1800R | ||
Energy efficiency class (HDR) |
G | Not available | G | |
Energy consumption (HDR) per 1000 hours |
109 kWh | 32 kWh | ||
High Dynamic Range (HDR) technology |
High Dynamic Range (HDR) 400 | DisplayHDR 400 True Black | ||
Brand specific technologies |
Crosshair | |||
NTSC coverage (typical) |
72% | |||
HDCP version |
2.3 | |||
Display brightness (peak) |
1000 cd/m² | |||
VESA Adaptive Sync support |
Yes | |||
Number of USB Type-C upstream ports quantity |
1 | |||
Adobe RGB coverage |
99% | |||
DCI-P3 coverage |
99% | |||
Number of USB Type-B upstream ports quantity |
1 | 1 | ||
Picture-by-Picture (PbP) |
Yes | |||
USB Type-C DisplayPort Alternate Mode |
Yes | Yes | ||
USB Power Delivery up to |
70 W | |||
Screen curvature |
180 cm | |||
Haze rate |
25% | |||
Warranty period |
5 year(s) | 3 year(s) | ||
Touchscreen type |
Tabletop | |||
Glass thickness |
3.1 mm | |||
Number of simultaneous touchpoints |
10 | |||
Operating hours (hours/days) |
24/7 | |||
Built-in KVM switch |
Yes | |||
Products per shipping (inner) case |
1 pc(s) | |||
Colour gamut standard |
sRGB | sRGB | NTSC | DCI-P3 |
European Product Registry for Energy Labelling (EPREL) code |
394157 | 456262 | ||
Compliance certificates |
RoHS | WEEE | ||
USB Power Delivery (USB PD) |
Yes | Yes | ||
Adjustable height (max) |
12 cm | 15.5 cm | 13 cm | |
Warnings |
Do not expose to water or excessive moisture. | Unplug the monitor from the power source before cleaning. | ||
Look-up table (LUT) bit depth |
16 | |||
